Strands Lighting Division

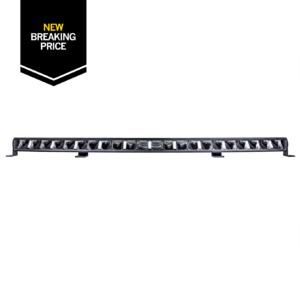

Strands ARCUM LED bar curved 40″, 220W

SKU: 809142
RRP: 379.80 (Excl. tax)

Choose variant

Strands ARCUM LED bar curved 40″, 220W

RRP: 379.80 (Excl. tax)
SKU: 809142
Chosen

ARCUM 20″ LED BAR

RRP: 170.80 (Excl. tax)
SKU: 809143
Choose

Strands ARCUM LED bar curved 30″, 160W

RRP: 125.90 (Excl. tax)
SKU: 809141
Choose

Tired eyes in traffic is history. Arcum LED bar is designed to provide the optimal light experience. High performance driving lights does not necessarily guarantee a safer journey. Light with a strong near-light or long spot beam can cause eye strain, which can lead to an unpleasant driving experience. Arcum is developed with this in mind. It is the result of many years of experience, a lot of tests and a close collaboration with professional drivers. The optimized light beam makes it suitable for both curved roads and straight sections. Available in three lengths – 20”, 30” and 40”. All lengths are E-approved according to ECE R112, with reference numbers between 45 and 50. The brackets are placed both on the back and the sides, which makes it possible to mount in several ways. Comes with a characteristic position light, where the lights are placed vertically one after the other, which gives an attractive effect. Has an arched, curved shape that fits well together with today’s aerodynamic vehicles.Product sheetManual

    • Type of Lamp LED
    • PCS LED´s 22
    • Voltage (V DC) 9-36V DC
    • Theoretical effect (w) 12V 220
    • Theoretical effect (w) 24V 220
    • Consumption (w) 12V 171
    • Consumption (w) 24V 163
    • Theoretical lumen 20900
    • Actual lumen 17765
    • 1 LUX @ m 512
    • Kelvin 6500
    • IP-class 68
    • Colour housing Black
    • Colour lens Clear
    • Colour LED´s White
    • Beam pattern Combo
    • Position light Yes
    • Connection ATP
    • Cable length (mm) 500
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) 1099
    • Depth (mm) 73
    • Height (mm) 56
    • Height including bracket (mm) 72,5
    • Operating temperature -40 - +60°C
    • ADR-approved No
    • E-approved Yes
    • According to regulation ECE R112, R7
    • Reference number 50
    • EMC ECE R10
    • Length inner box (mm) 1140
    • Height inner box (mm) 115
    • Depth inner box (mm) 145
    • Weight (kg) 4,65
    • PCS in master carton 2
    • Length master carton (mm) 1155
    • Height master carton (mm) 162
    • Width master carton (mm) 243
    • Weight master carton (kg) 11
    • Taric code 85122000
    • EAN 7323030180195
