Strands Lighting Division

NUUK E-LINE LOW PROFILE LED BAR

SKU: 809134
RRP: 189$ (Excl. tax)

Choose variant

NUUK E-LINE LOW PROFILE LED BAR

RRP: 189$ (Excl. tax)
SKU: 809134
Chosen

Nuuk E-line DUO Led Bar

RRP: 199$ (Excl. tax)
SKU: 809138
Choose

Nuuk E-line license plate led bar

RRP: 199$ (Excl. tax)
SKU: 809135
Choose

Experience a brighter nighttime driving with the new Nuuk E-Line Low Profile LED bar. Its super-slim size will fit any car, and thanks to its low power consumption and lightweight materials, it’s the perfect option for modern and electric vehicles. The thin design (514×36,7×39,5 mm incl. bracket) ensures it will not interfere with the cars’ cameras or sensors and can be installed without impacting the front.

The Nuuk E-Line Low Profile has an outstanding light output of 1 Lux @ 417 m. It is perfect as an addition to your high beam to enable early detection of obstacles and wildlife on the road. The 7800 actual lumens and a 5000-kelvin color temperature create a crisp and powerful illumination. It is E-approved with ECE R149.

With an integrated relay, this LED bar offers a seamless upgrade and easy installation. Connect the LED bar using the 2,5 m cable with a DT-3 connector, and you’re ready to go. If your car has a Canbus system, connect your Nuuk E-Line to a Canbus interface like XBB (part. no. 270425) to connect it to the high beam signal. A low power consumption of only 82 watts makes it suitable for electric cars.

The Nuuk E-Line is both lightweight and durable, thanks to the high-quality materials. It is tested in harsh Nordic conditions and IP-classed IP68/IP69K, ensuring it can withstand high and low temperatures, water, salt, and stone shots. The polycarbonate lens and cast aluminum frame will make the Nuuk E-Line a long-lived, reliable product backed by Strands Lighting Divisions’ 3-year function warranty.

    • Type of Lamp LED
    • PCS LED´s 18
    • Voltage (V DC) 9-36V DC
    • Theoretical effect (w) 12V 108
    • Theoretical effect (w) 24V 108
    • Consumption (w) 12V 82
    • Consumption (w) 24V 77
    • Theoretical lumen 8800
    • Actual lumen 7800
    • 1 LUX @ m 417
    • Kelvin 5000K
    • IP-class 68/69K
    • Color housing Black
    • Color lens Clear
    • Beam pattern Optimized
    • Connection DT-3
    • Cable length (mm) 2500

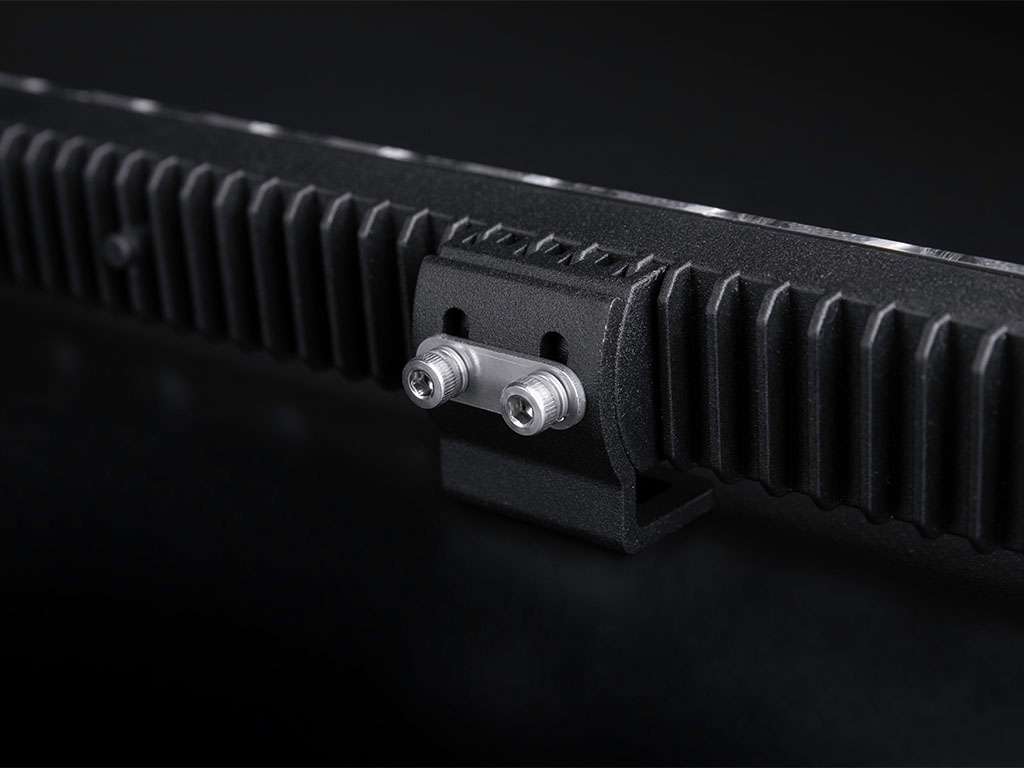

    • Material bracket Aluminium
    • Material housing/chassi Aluminium

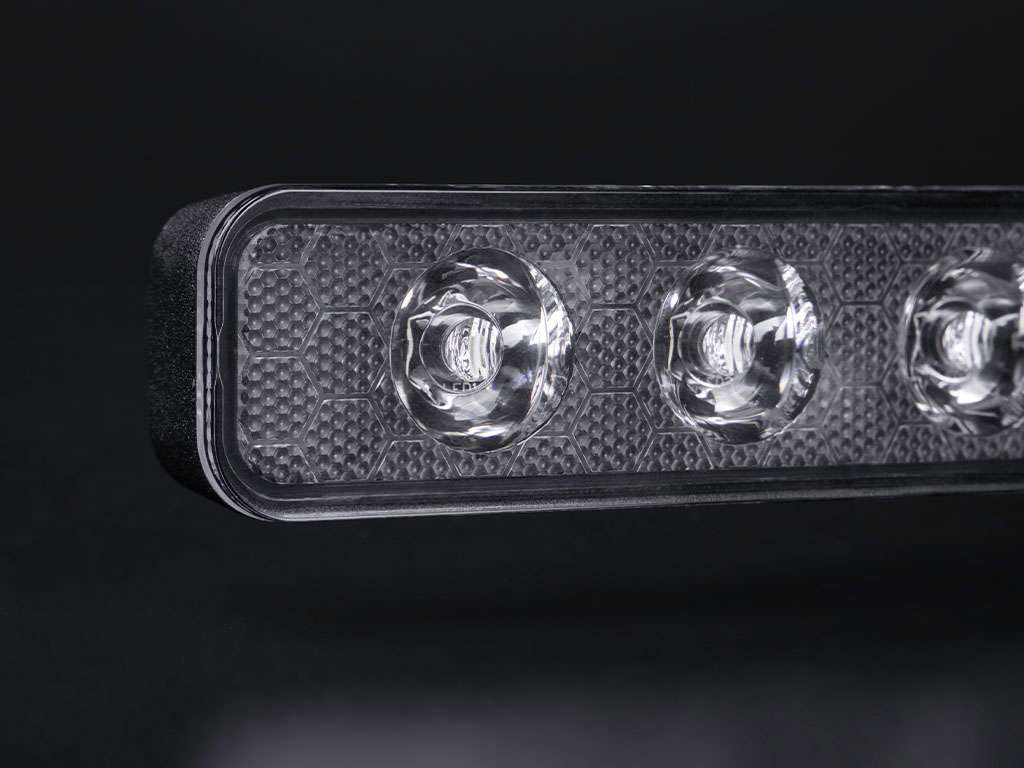

    • Material lens Polycarbonate
    • Length (mm) 514
    • Depth (mm) 36,7
    • Height (mm) 30
    • Height including bracket (mm) 39,5
    • Operating temperature -40 - +60°C
    • ADR-approved No
    • E-approved Yes
    • According to regulation ECE R149
    • Reference number 40
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + Positive
    • White cable + (on/off Signal wire)

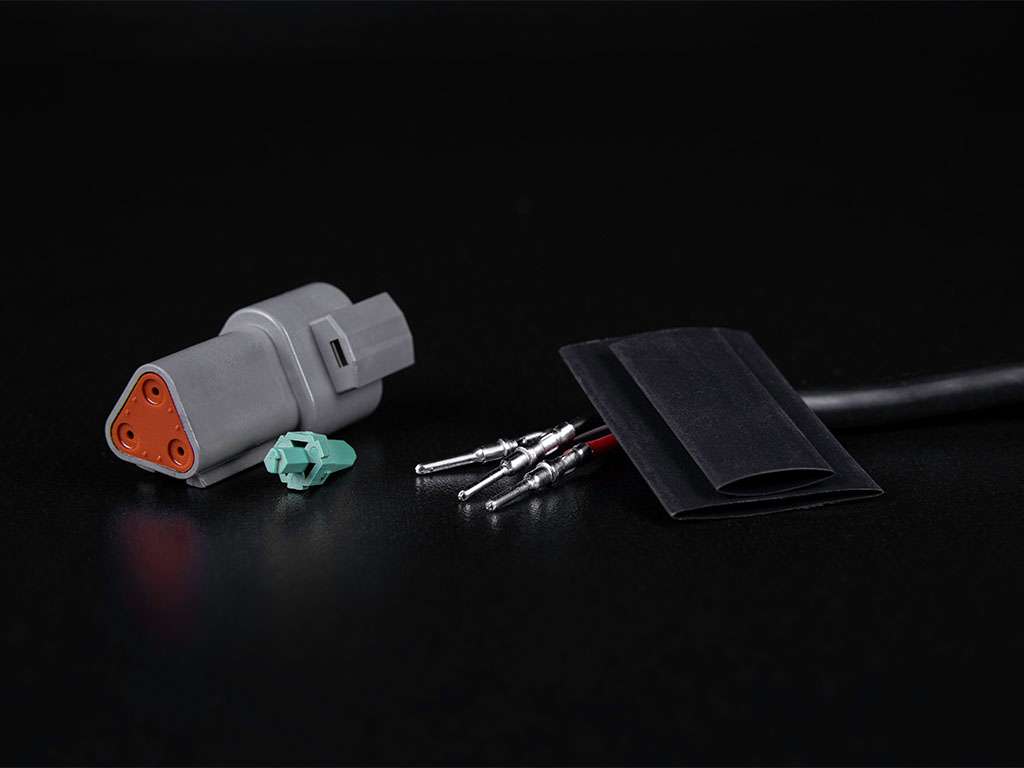

    • Mounting details included DT3 accessories, back bracket accessories
    • EAN 7323030190217

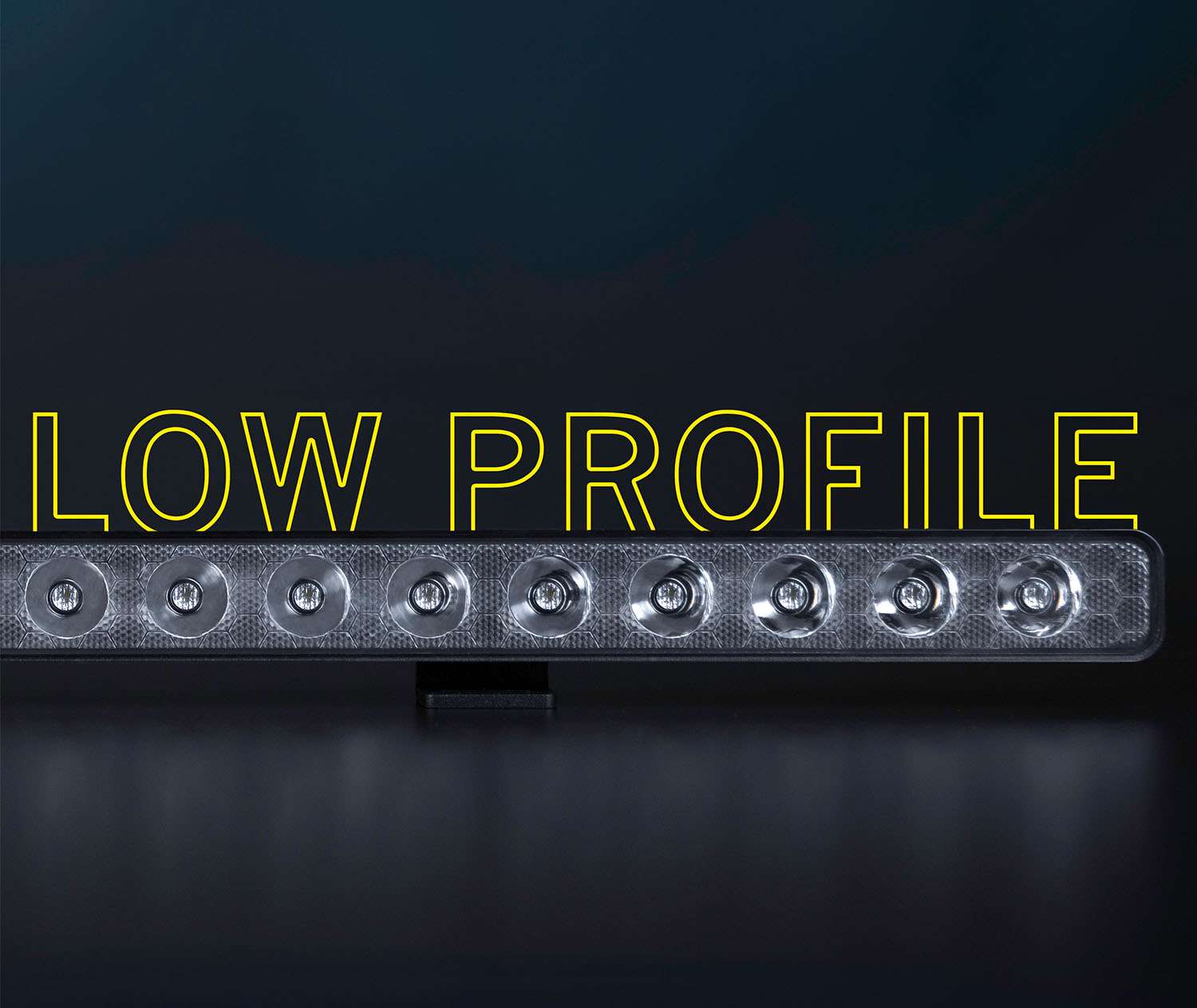

SLIM AND LIGHTWEIGHT

The slim size (514×36,7×39,5 mm incl. bracket) makes it a perfect fit for many types of vehicles. The weight is reduced by using high-quality materials.

SAFER DRIVING WITH A RANGE OF OVER 400 METERS

Experience a bright and safe night drive with Nuuk E-Line Low Profile’s powerful beam pattern, reaching over 400 meters @ 1 Lux. It has a color temperature of 5000 kelvin and an impressive 7800 actual lumen. This ensures high visibility ahead and increases safety.

EASY INSTALLATION

The Nuuk E-Line Low Profile has an integrated relay, 2.5 m cable, and DT-3 connector, offering a seamless installation. If your car has a Canbus system, connect the LED bar to a Canbus interface like XBB (part. no. 270425) to connect to the high beam signal.

SLIM DESIGN FOR EVERY DRIVER, EVERY DAY

The slim design integrates seamlessly into your vehicle, providing perfect illumination. Whatever your needs, the Nuuk E-Line Low Profile will increase safety and visibility. The stylish look ensures it will be a good-looking addition to any vehicle.
