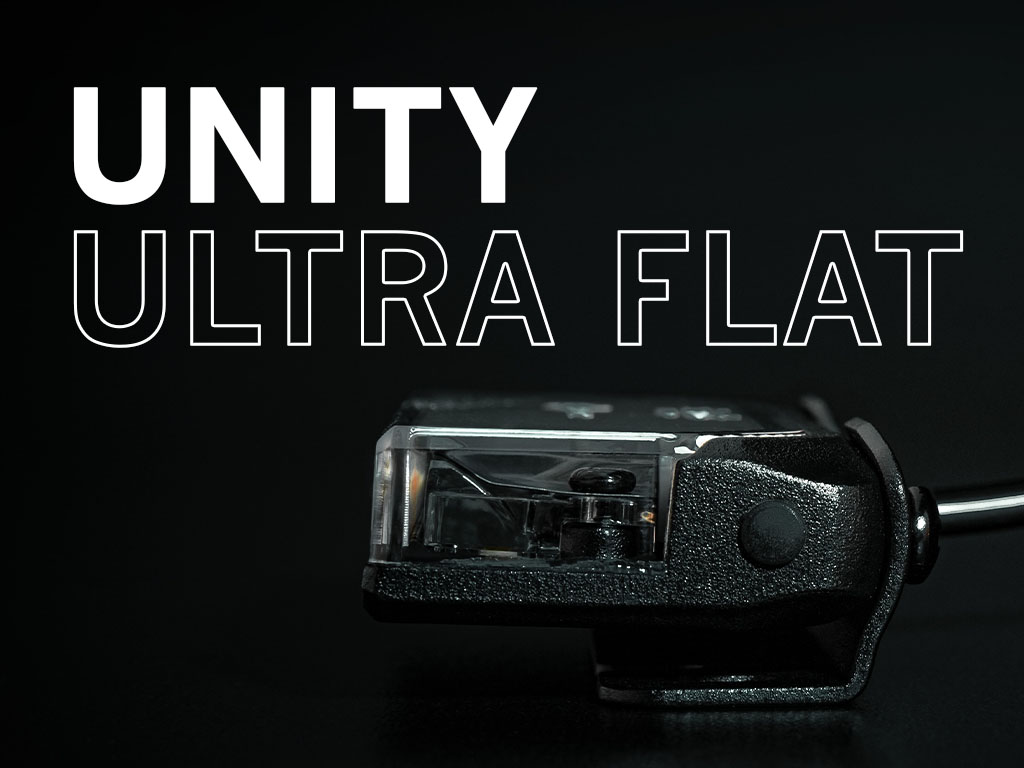

UNITY ULTRA FLAT WORK LIGHT 22W
Choose variant


UNITY ULTRA FLAT DUO

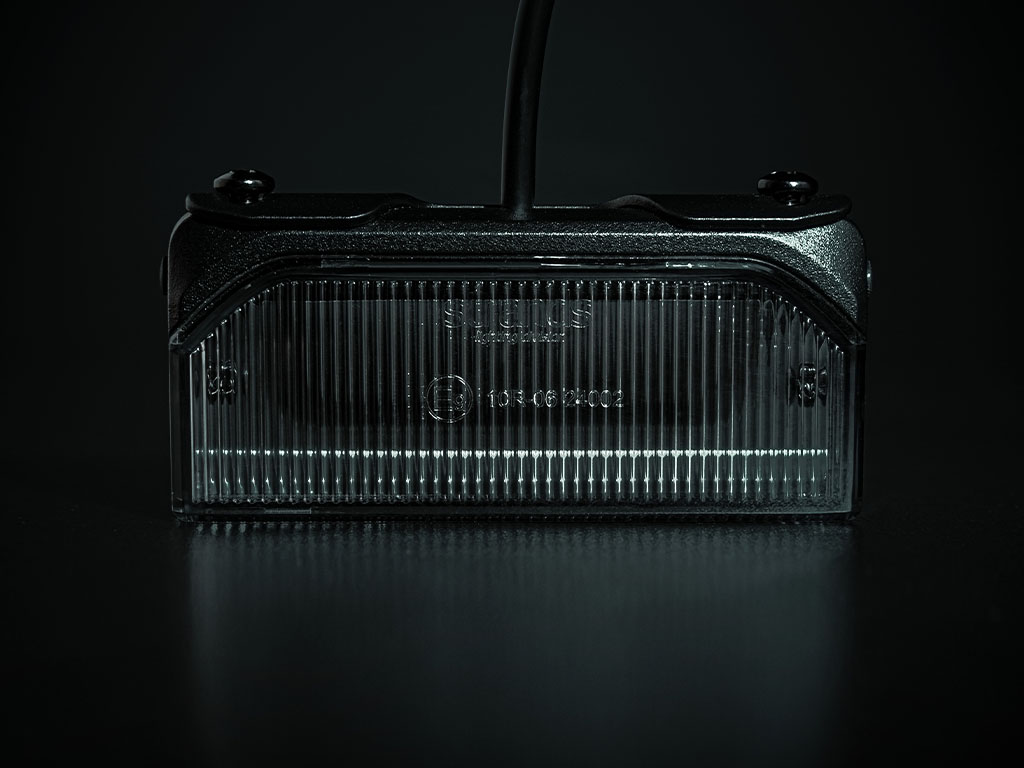

Could this be the world’s smallest work light? The Unity Ultra Flat work light fits anywhere you want to install it and will suit anyone with a vehicle. With a surface area only slightly larger than a credit card, it illuminates with the power of 1370 lumens and 6000 kelvins.

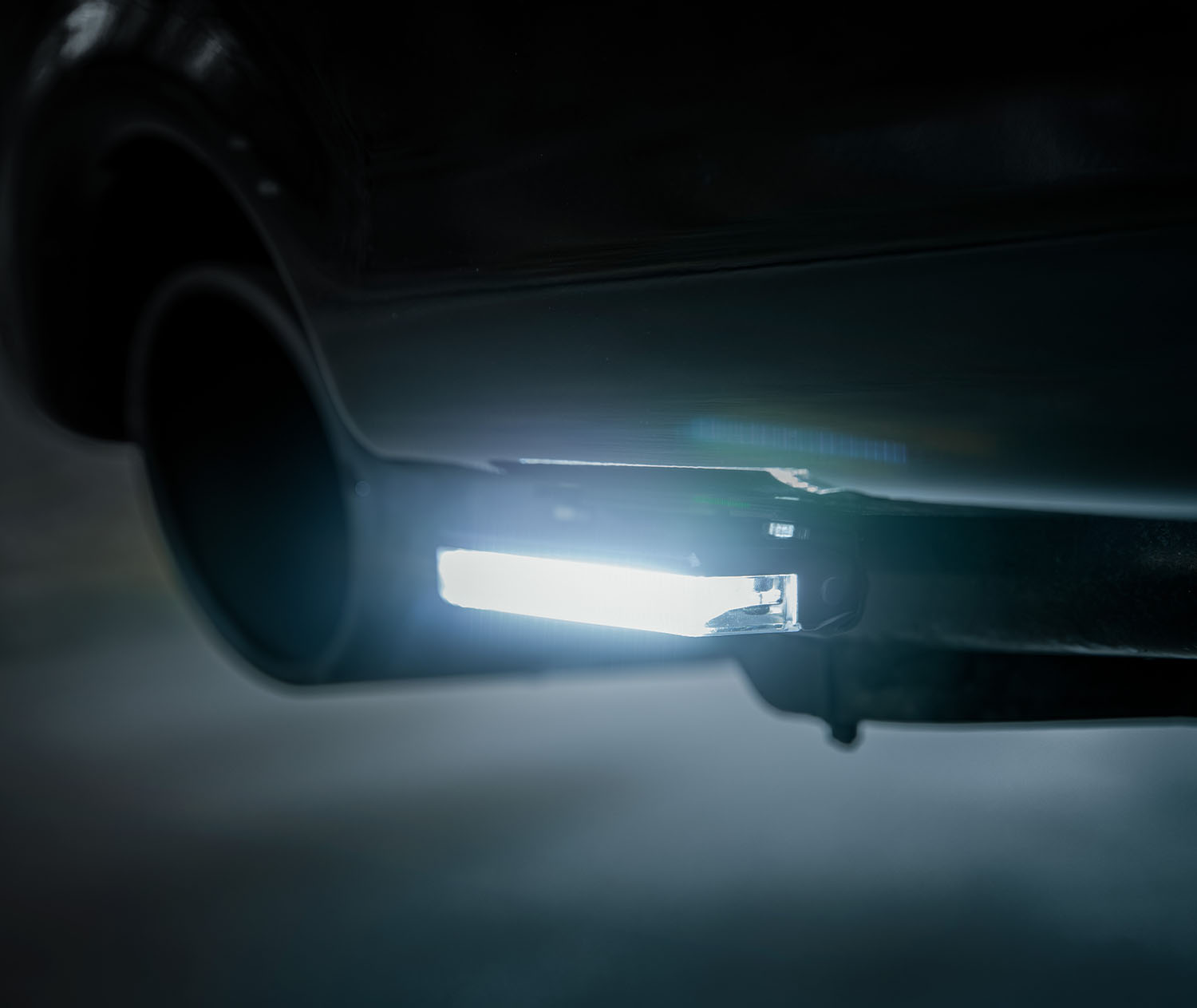

The unique design and function of the Unity Ultra Flat work light make it an exciting addition to any vehicle. It is slim, flat, and powerful and can be mounted in many positions. It will be perfect as a reversing light, as a standard reversing light will only illuminate a small area behind your car. With the Unity Ultra Flat, you will see the area behind your car, even under very dark conditions. The slim design of the lamp has a thickness close to that of an average smartphone, enabling installation in hard-to-reach places.
Don’t let the small size fool you. The Unity Ultra Flat work light is loaded with 1370 actual lumens and 6000 kelvins, and the wide beam has a range of 1 lux @ 32 meters, bringing true brightness where you need it the most. It is also a good choice for electric cars, as the power consumption is only 22 watts, no more than an average side indicator.
The small light (90x40x22,4 mm excl. bracket) is easy to install. A 500 mm cable and side and back brackets make it versatile and easy to place, and the rubber padding on the brackets will protect the surface of your car. Its durability and solid materials will ensure the lights’ longevity even when mounted in exposed positions.
Apart from being made of solid aluminum and unbreakable polycarbonate, the housing has a special coating to make it extra resistant to salt and dirt. This makes the Unity Ultra Flat work light a perfect option for Scandinavian roads or anywhere exposed to rugged use. As with all products from Strands Lighting Division, it comes with a 3-year warranty.
- Unit PCS
- Voltage (V DC) 10-32
- Consumption (W) 22
- Theoretical lumen 2900
- Actual lumen 1370
- 1 LUX @ m 32
- Color temperature (kelvin) 5700
- Beam pattern Flood beam
- Beam angle (°) (Width) 164,3°
- Connection Cable
- Cable length (mm) 500
- Color housing Black
- Color lens Clear
- Color LED´s White
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length (mm) 90
- Depth (mm) 40
- Height (mm) 15
- Height including bracket (mm) 22,4
- IP-class 68/69K
- Operating temperature -30 - +65
- E-approved No
- EMC R10
- Black cable - (Negative)
- Red cable + Positive

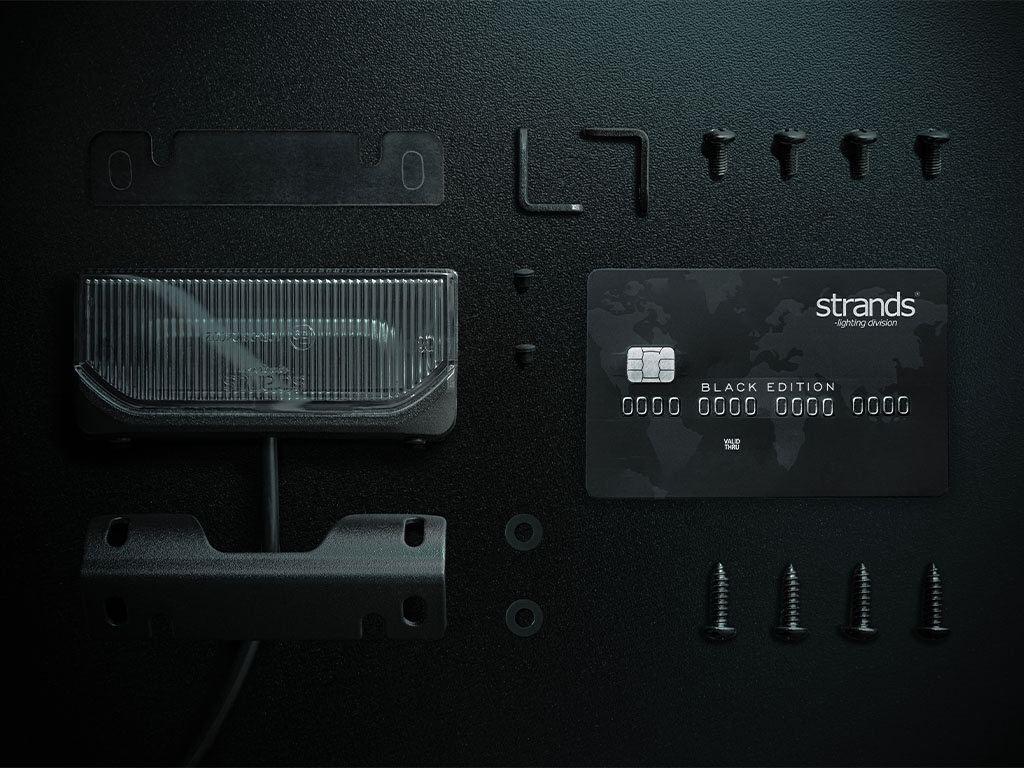

- Mounting details included Screws, washers, bolts, rubber pad, Back brackets,side brackets
- Length inner box (mm) 100
- Depth inner box (mm) 63
- Height inner box (mm) 55
- Weight (kg) 0,14
- Length master carton (mm) 295
- Width master carton (mm) 340
- Weight master carton (kg) 8
- PCS in master carton 50
- Warranty 3
THE SMALLEST WORK LIGHT
THE SMALLEST WORK LIGHT WITH MANY USES
This incredible work light will fit any vehicle and has many uses. The small light (90x40x22,4 mm excl. bracket) has a slightly larger surface area than a credit card. With its slim design, the lamp has a thickness comparable to that of an average smartphone, enabling installation in hard-to-reach places. The back and side brackets make it easy to install wherever needed, and the rubber pad will protect the surface of your car.
UNIQUE DESIGN WITH A POWERFUL WIDE BEAM AND LOW POWER CONSUMPTION

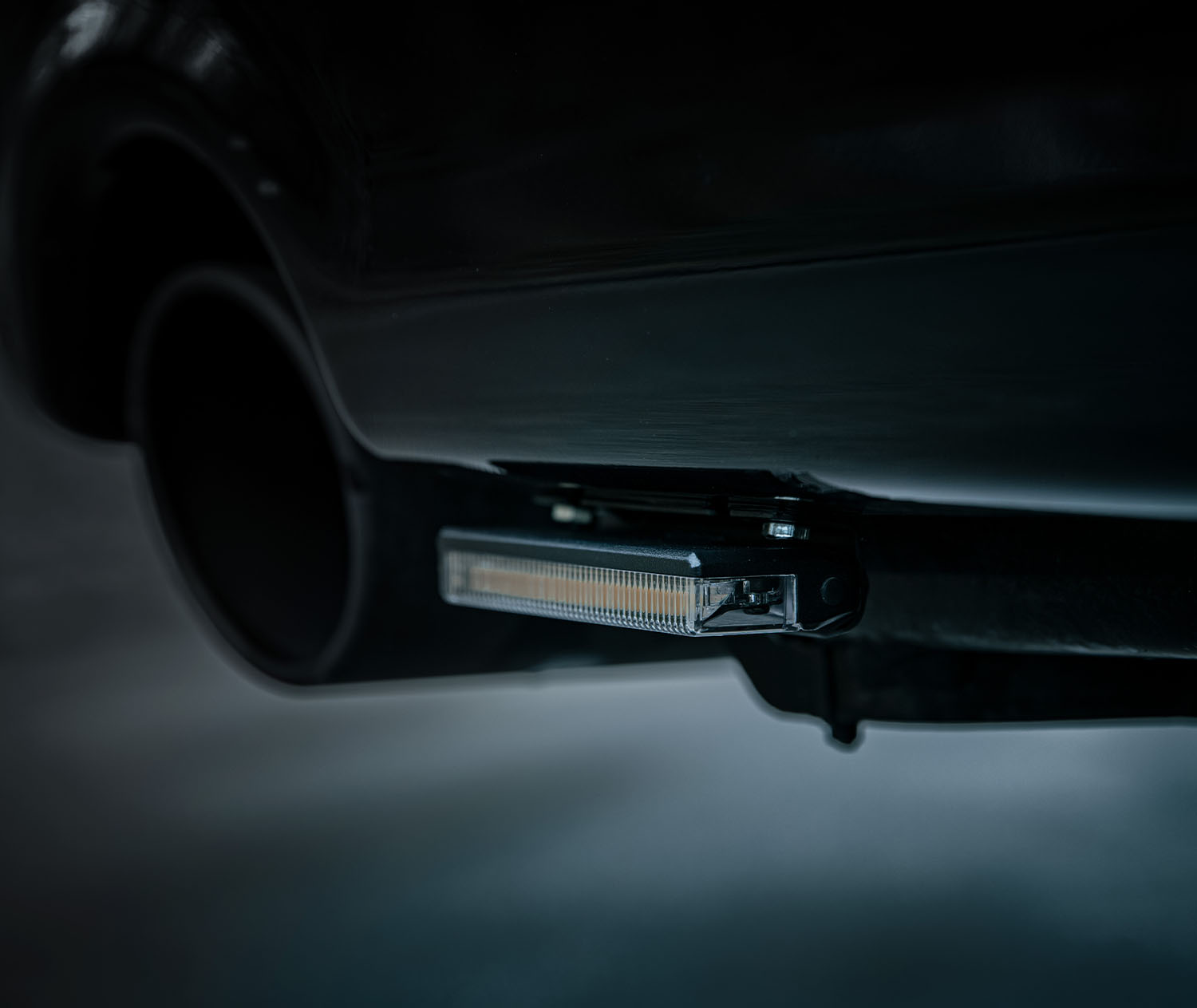

The Unity Ultra Flat work light combines superb design and powerful technology. It produces an incredible 1370 lumens and 6000 kelvins, and the wide beam has a range of 1 lux @ 32 m. The power consumption is only 22 watts, no more than a side indicator, making it a good choice for electric cars. Its size and durability make it a perfect reversing light for illuminating a larger area behind the vehicle.
DURABLE AND ROBUST WITH A SPECIAL COATING AND A 3-YEAR WARRANTY
This light is incredibly durable and made from solid aluminum and unbreakable polycarbonate. It has IP-class IP68/IP69K. The housing has a special coating, providing extra protection against salt and dirt. Making it a perfect option for Scandinavian roads or anywhere exposed to rugged use. As with all products from Strands Lighting Division, the Unity Ultra Flat work light comes with a 3-year warranty.
