Strands Lighting Division

SIBERIA MULTIPLE OPTIONS TAIL LIGHT LED

SKU: 809225
RRP: 92.60 (Excl. tax)

Choose variant

SIBERIA MULTIPLE OPTIONS TAIL LIGHT LED

RRP: 92.60 (Excl. tax)
SKU: 809225
Chosen

SIBERIA MULTIPLE OPTIONS TAIL LIGHT LED

RRP: 92.60 (Excl. tax)
SKU: 809224
Choose

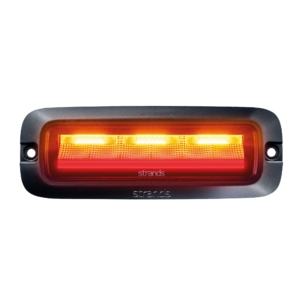

One light. Multiple options. Meet Siberia MO, a brand-new tail light in the Siberia family with four E-approved functions. Delivering the perfect lighting solution in one light with revolutionary mounting possibilities.

Siberia MO comes in two versions, delivering all the features you want in a tail light, where every function is equally essential. This version provides a warning light, brake light, reversing light, and red position light approved as a tail light. The other version (part. no. 809224) has the same functions. But the warning light is replaced with an indicator function. Combine them with Siberia Tail light (part. no. 809226) to get the perfect mix and unit.

The multiple options allow you to mount Siberia MO for different purposes and the mounting possibilities are revolutionary. The 10-32 V DC voltage makes Siberia MO perfect for mounting on vehicles like UTVs, scooters, cars or trucks, trailers, and tractors. Mount either by flush mounting with an included solid frame and rubber gasket. Designed to blend in seamlessly within the vehicle and deliver a seamless montage. Or mount Siberia MO with the angle bracket on the back of the lamp. The angle bracket can be adjusted 180 degrees, making it possible to mount Siberia MO at the angle that best suits your vehicle. Comes with a 2.5-meter cable for easy installation.

Siberia MO has a typical no-edge Siberia design. The house is made of aluminum, and the lens is made of unbreakable polycarbonate and is treated with UV coating for the most challenging climate. Waterproof according to IP67 and can withstand demanding environments according to IP-class IP69K. All functions are fully E-approved, and the warning light function is E-approved according to ECE R65. Standing behind Strands Lighting Division´s unique three-year function warranty. An obvious choice for you who want the perfect lighting solution in one light.

    • Type of Lamp LED
    • PCS LED´s Brake:21 Reverse:6 Tail light:9 Warning:21
    • Voltage (V DC) 10-32V DC
    • Theoretical effect (w) 12V Brake:21W Reverse:6W Tail light:9W Warning:31.5W
    • Theoretical effect (w) 24V Brake:21W Reverse:6W Tail light:9W Warning:31.5W
    • Consumption (w) 12V Brake:10,2W Reverse:3,9W Tail light:5,4W Warning:9,5W
    • Consumption (w) 24V Brake:10.4W Reverse:4.2W Tail light:5.5W Warning:9.7W
    • Functions Brake light Reverse light Tail light Warning light
    • Theoretical lumen Reverse light: 546
    • Actual lumen Reverse light: 322
    • 1 LUX @ m Reverse light: 14
    • Kelvin 6000
    • IP-class 67/69K
    • Color housing Black
    • Color lens Clear
    • Color LED´s Red/white/amber
    • Beam pattern Flood
    • Connection Cable
    • Cable length (mm) 2500
    • Material bracket Flush mount: Alumimun U bracket: Metal plate
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) Flush mount: 214 U-bracket: 172
    • Depth (mm) Flush mount: 71,5 U-bracket: 77
    • Height (mm) Flush mount: 77 U-bracket: 50
    • Height including bracket (mm) U-bracket: 53,8
    • CC (mm) Flush mount: 196
    • Operating temperature -30°C - +65°C
    • ADR-approved No
    • E-approved Yes
    • According to regulation ECE R148, R65
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable Brake
    • Yellow cable Warning
    • Grey cable Reverse
    • Yellow/green cable Tail
    • Mounting details included Screws, washers, bolts
    • Length inner box (mm) 250
    • Height inner box (mm) 120
    • Depth inner box (mm) 110
    • Weight (kg) 0,65
    • Length master carton (mm) 625
    • Height master carton (mm) 265
    • Width master carton (mm) 470
    • Weight master carton (kg) 15
    • Taric code 85122000
    • EAN 7350133814603

ONE LIGHT, MULTIPLE OPTIONS

Siberia MO comes in two versions, delivering all the features you want in a tail light, where every function is equally essential. This version provides a warning light, brake light, reversing light, and red position light approved as a tail light. The other version (part. no. 809224) has the same functions. But the warning light is replaced with an indicator function.

REVOLUTIONARY MOUNTING POSSIBILITIES

The multiple options allow you to mount Siberia MO for different purposes and the mounting possibilities are revolutionary. Mount either by a flush mounting, giving you a seamless and stylish montage. Or Siberia MO with the angle bracket on the back of the lamp. The angle bracket can be adjusted 180 degrees, making it possible to mount Siberia MO at the angle that best suits your vehicle.

FULLY E-APPROVED

We always guarantee visibility, safety, and long-term product durability. All functions are fully E-approved, and the warning light function is E-approved according to ECE R65. Standing behind Strands Lighting Division´s market-leading three-years function warranty.
