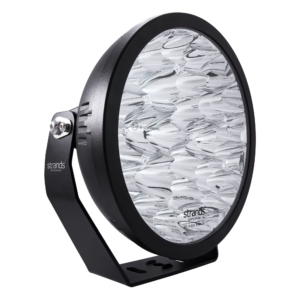

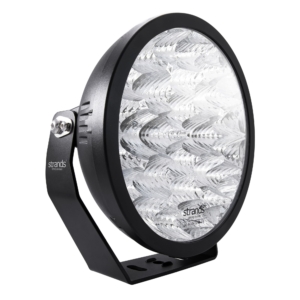

YUKON 2.0 FLOOD LIGHT 9″
Yukon 2.0 is designed for you who want a durable and powerful driving light, without unnecessary functions. Quality and performance at its best, we’re talking raw power!
Comes in three different variants, 7″ with a flood light beam and 9″ with a spot or flood light beam. Combine them however you want to get a light beam adapted to the roads and conditions you are driving in. The versions with flood beam is E-approved.
With 2 pcs 9″ flood and 1 pcs 9″ spot mounted on a car, you get 29,000 actual lumens and 1 lux at 1195 meters. With 6 pcs 9″ spots mounted on the roof of a truck, you get 60 000 actual lumens and 1 lux at impressive 2449 meters.
The driving light has a warm and comfortable light temperature of 5000 Kelvin. Which reduces glare and reflections and thus makes your driving in the dark pleasant to the eye. Yukon is IP-rated according to IP68 and can withstand tough conditions such as large temperature changes, heavily salted roads, rain, and debris.
- Unit pcs
- Voltage 10-32V DC
- Theoretical effect 99W
- Consumption 86W
- Theoretical lumen 11000lm
- Actual lumen 9500lm
- 1 lux @ 511m
- Color temperature 5000K
- Beam pattern Extended beam
- Beam angle 22,9
- Connection DT-2PIN (Built-in)
- Cable length 150mm
- Color housing Black
- Color lens Clear
- Color LED´s White
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length 229mm
- Depth 97,5/105,5mm
- Height including bracket 249,5mm
- Diameter 229mm
- Weight 2,7kg
- IP-class IP68/69K
- Operating temperature -35 - +45°C
- E-approved Yes
- According to regulation ECE R149(R112)
- Reference number 50
- EMC ECE R10
- Black cable - (Negative)
- Red cable + (High-beam)
- Included in package Bracket, Screws, washers, bolts
- Length inner box 250mm
- Width inner box 240mm
- Height inner box 130mm
- Gross weight 3,0kg
- Volume 0,007m³
- Warranty 3 Years
- Length master carton 740mm
- Width master carton 290mm
- Height master carton 270mm
- Weight master carton 19,5kg
- PCS in master carton 6pcs
RAW POWER!
UNBREAKABLE LENS
The housing and rim are made entirely of aluminium, which provides a robust driving light that can withstand a harsh climate. Together with the lens which is made of polycarbonate which can be compared to a bulletproof glass, which makes it basically unbreakable. The lens is also UV-treated to ensure that Yukon 2.0 can withstand long-term use without discoloration or degradation of the lens. This also means that the need for so-called lens protectors, which significantly reduce the light power, is no longer necessary.A DARKER LOOK
The black circuit board gives the Yukon 2.0 a darker look that blends in well with all types of vehicles in need of extra driving lights, such as trucks, light commercial vehicles, and cars.MINIMAL VIBRATIONS
The aluminium mount is robust and designed with a focus on durability and reducing vibrations to a minimum. The Yukon 2.0 also has a bracket for the top brace in the housing, which facilitates a completely vibration-free installation and a stable light image.
