Strands Lighting Division

Strands work light/ reversing light LED,15W, 9-30V ECE R23

SKU: 809030
RRP: €68.50 (Excl. tax)
Buy in store Buy in USA
Manual

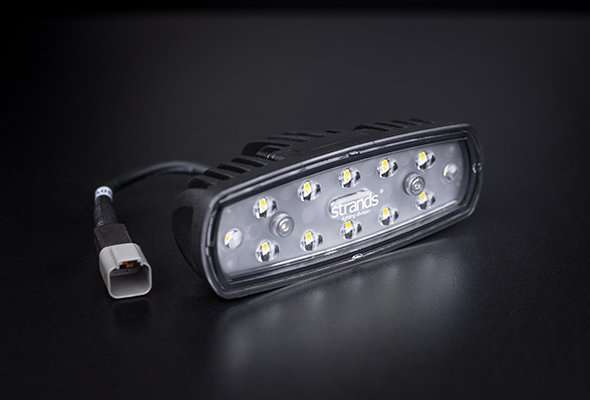

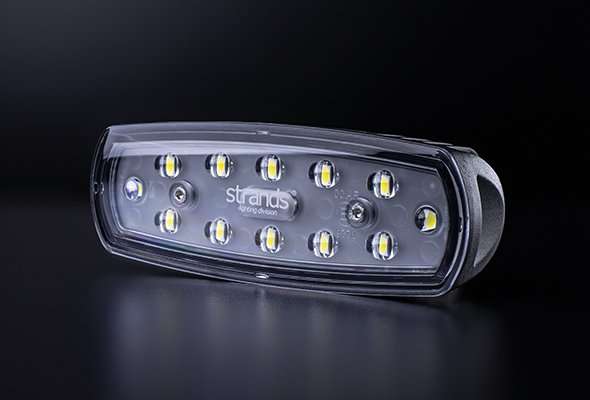

This new and unique slimmed reversing light got 1960 theoretical lumens, is E-approved according to regulation ECE R23, has a patented design and a full cover Lexan lens that’s gives this lamp great protection, a nice, modern and rough look.To ensure optimum performance, this reversing light is designed and manufactured to the highest standard. The fish eye technique gives the light a spread of 140 degrees. Optimal for a reversing light! The lamp is delivered with DT-connector for a simple installation and is fully radio interference free, EMC-approved according to ECE R10 and CISPR25 class 5, the highest rating for EMC protection.

    • Type of Lamp LED
    • PCS LED´s 12
    • Voltage (V DC) 9-30V DC
    • Theoretical effect (w) 12V 15
    • Theoretical effect (w) 24V 15
    • Theoretical lumen 1960
    • Actual lumen 1862
    • 1 LUX @ m 25
    • Kelvin 6500
    • IP-class 68/69K
    • Color housing Black
    • Color lens Clear
    • Beam pattern Flood
    • Connection DT
    • Cable length (mm) 300
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) 144
    • Depth (mm) 74,5
    • Height (mm) 49,6
    • Height including bracket (mm) 49,6
    • Operating temperature -40 -+60 ° C
    • ADR-approved No
    • E-approved Yes
    • According to regulation ECE R23
    • EMC ECE R10, CISPR25 Class 5
    • Length inner box (mm) 178
    • Height inner box (mm) 68
    • Depth inner box (mm) 95
    • Weight (kg) 0,45
    • PCS in master carton 30
    • Length master carton (mm) 381
    • Height master carton (mm) 370
    • Width master carton (mm) 273
    • Weight master carton (kg) 16,3
    • Taric code 85122000
    • EAN 7323030173234
