Strands Lighting Division

BIG ENERGY ROOF BAR XL 880MM

SKU: 850151
RRP: €499 (Excl. tax)

Choose variant

BIG ENERGY ROOF BAR XL 880MM

RRP: €499 (Excl. tax)
SKU: 850151
Chosen

BIG ENERGY ROOF BAR XL 1840MM

RRP: €779 (Excl. tax)
SKU: 850154
Choose

BIG ENERGY ROOF BAR XL 1520MM

RRP: €669 (Excl. tax)
SKU: 850153
Choose

BIG ENERGY ROOF BAR XL 1200MM

RRP: €559 (Excl. tax)
SKU: 850152
Choose
Buy in store Buy in USA
Manual Product sheet

A smooth, dark style with an irresistible amber glow. The heavy-duty Big Energy XL is available in sizes between 880-1840 mm, and the 200 mm depth makes it a solid fit for trucks and heavy vehicles. It’s E-approved ECE R65 TA2 and is approved for use on airport vehicles according to regulation ICAO type C. This makes it a powerful warning light solution for any driver. The premium design boasts a dark lens, smooth sparkling TPU top, and rounded edges. Moreover, it’s updated with a much-requested feature: the amber cruise light glow. The amber cruise light has two patterns: on the edges or around the bar. When you activate the lights, it will automatically switch to the latest setting. For maximum flexibility, you can choose between 27 warning light patterns. A 2500 mm cable allows easy installation and access to the junction box, and it has separate steady-on and day-mode cables. This roof bar is IP-rated IP67 to ensure high protection against dirt and stormy weather and is covered by Strands’ 3-year function warranty.

    • Unit PCS
    • Voltage (V DC) 12-24V DC
    • Consumption (W) 105
    • Patterns 29
    • Functions Warning light
    • Connection Cable
    • Cable length (mm) 2500
    • Color housing Black
    • Color lens Dark tinted
    • Color LED´s Amber
    • Material bracket Nylon
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) 880
    • Depth (mm) 200
    • Height (mm) 44
    • Height including bracket (mm) 100
    • IP-class 67
    • Operating temperature -30°C - +60°C
    • ADR-approved No
    • E-approved Yes
    • According to regulation ECE R65 class 2 (TA2), ICAO Type C
    • EMC ECE R10
    • Additional information Approved: ICAO (Airport)
    • Black cable - (Negative)
    • Red cable + (Positive warning light)
    • White cable Low intensity, constantly connect to red wire to achieve it
    • Blue cable + (Positive steady on pattern nr 28 and 29)
    • Yellow cable Pattern selection, apply to red
    • Brown cable Right arrow direction (Apply to red wire constantly)
    • Green cable Left arrow direction (Apply to red wire constantly)
    • Mounting details included Screws, washers, bolts, brackets, 15A fuse
    • Length inner box (mm) 1020
    • Depth inner box (mm) 145
    • Height inner box (mm) 250
    • Weight (kg) 8
    • PCS in master carton 2
    • Warranty 3 Years

HEAVY-DUTY DARK DESIGN

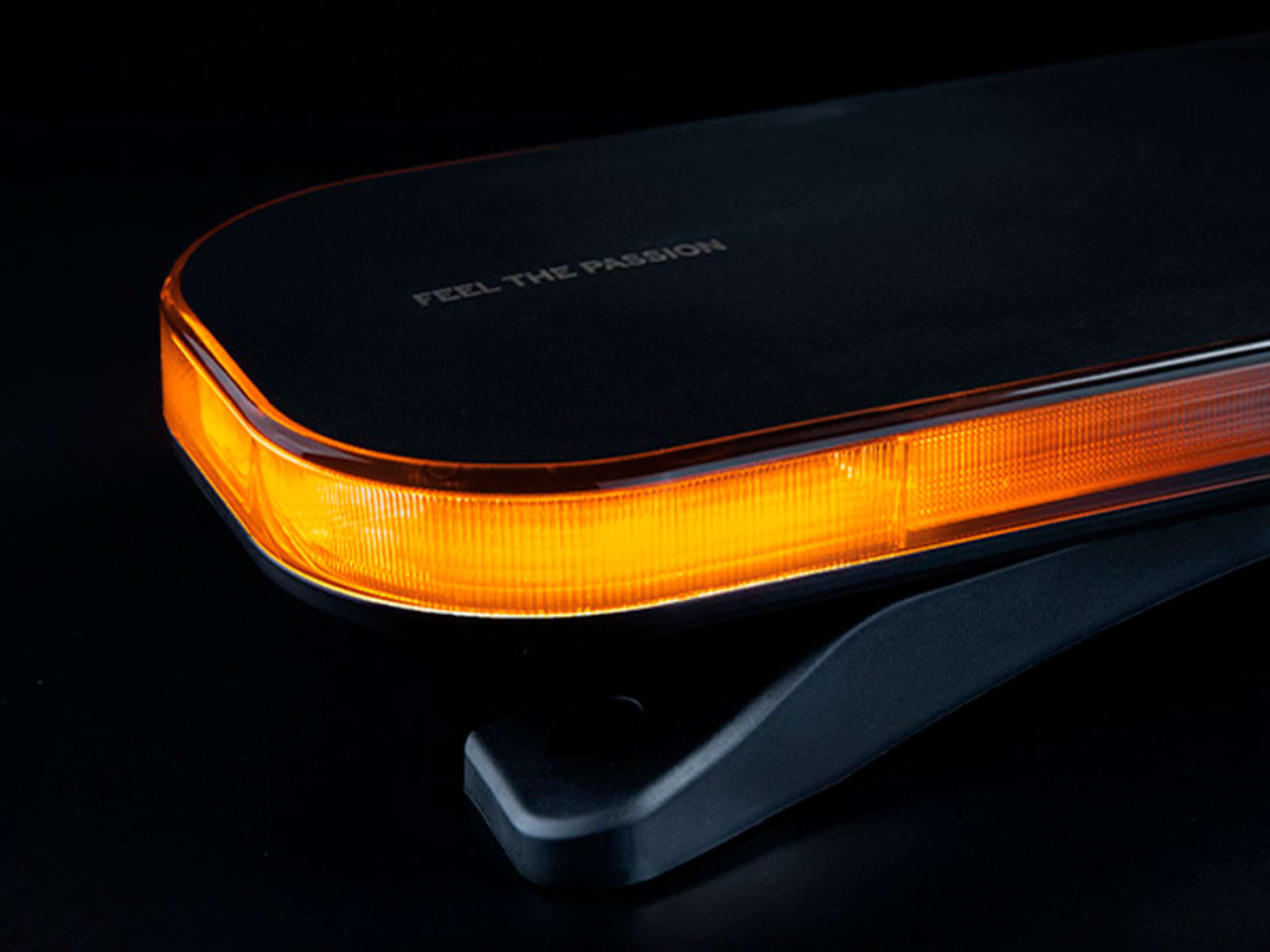

CRUISE LIGHT GLOW

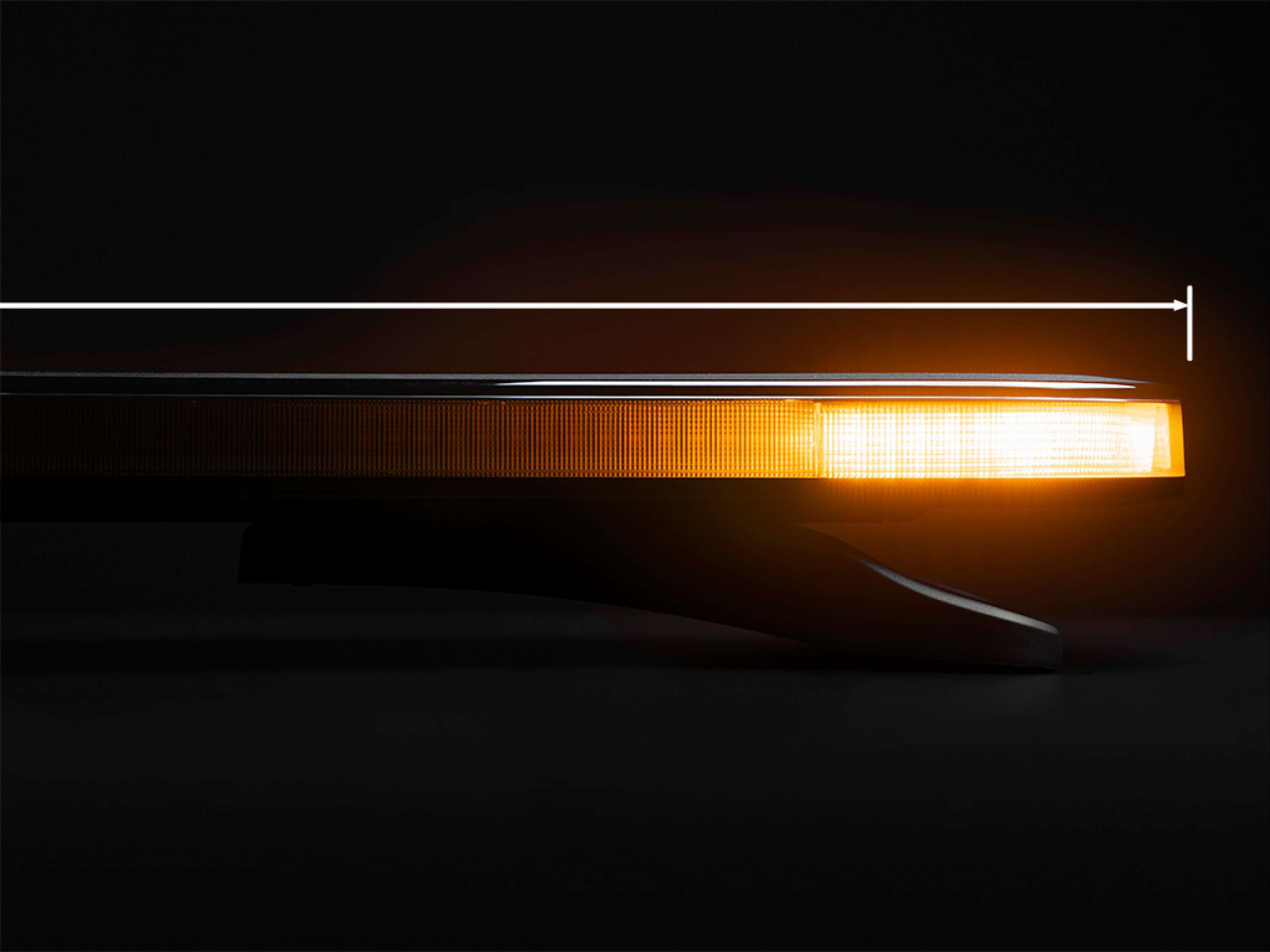

Finally, we can introduce a much-asked feature: the amber cruise light glow. With this, the edges of the roof bar display a powerful amber glow, or you can activate it all around the roof bar. Or choose between 27 unique warning light patterns to find the one perfect for you. Big Energy XL has a memory function and will automatically engage the latest setting. Installation is straightforward, with separate cables for cruise mode and low intensity.

HEAVY-DUTY WARNING LIGHT SOLUTION

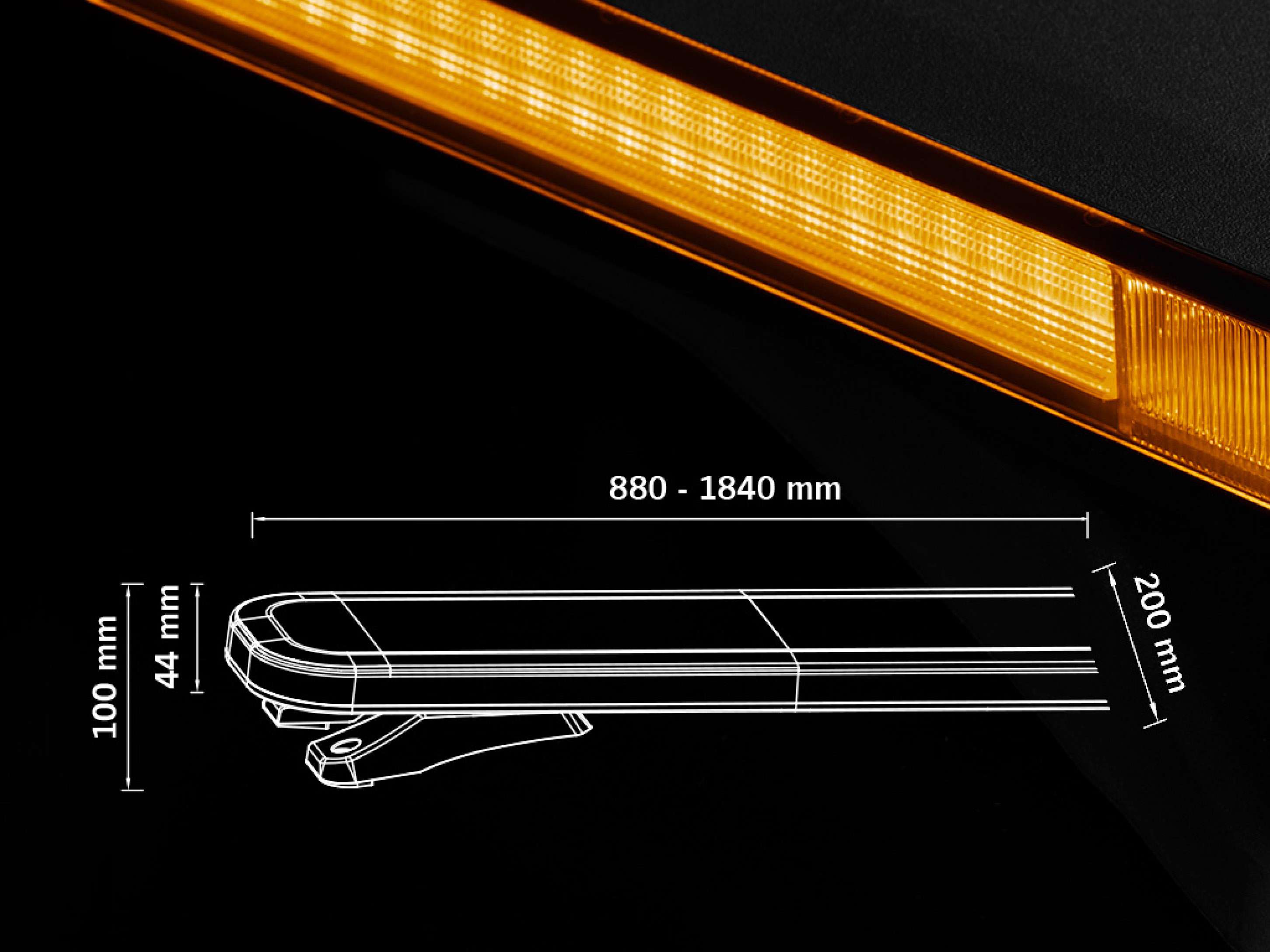

This robust roof bar fits all kinds of trucks while maintaining a smooth, dark style. With options from 880 to 1840 mm long, any driver can enjoy this stylish addition to their vehicle. The 200 mm depth and solid feel make it perfect for trucks and other heavy vehicles. Its 2500 mm cable enables easy access to the junction box, making it easy to install. Thanks to the IP67 IP rating, it has excellent resistance to water and dirt. It’s also covered by Strands’ market-leading 3-year warranty.

DARK LENS AND PREMIUM DESIGN

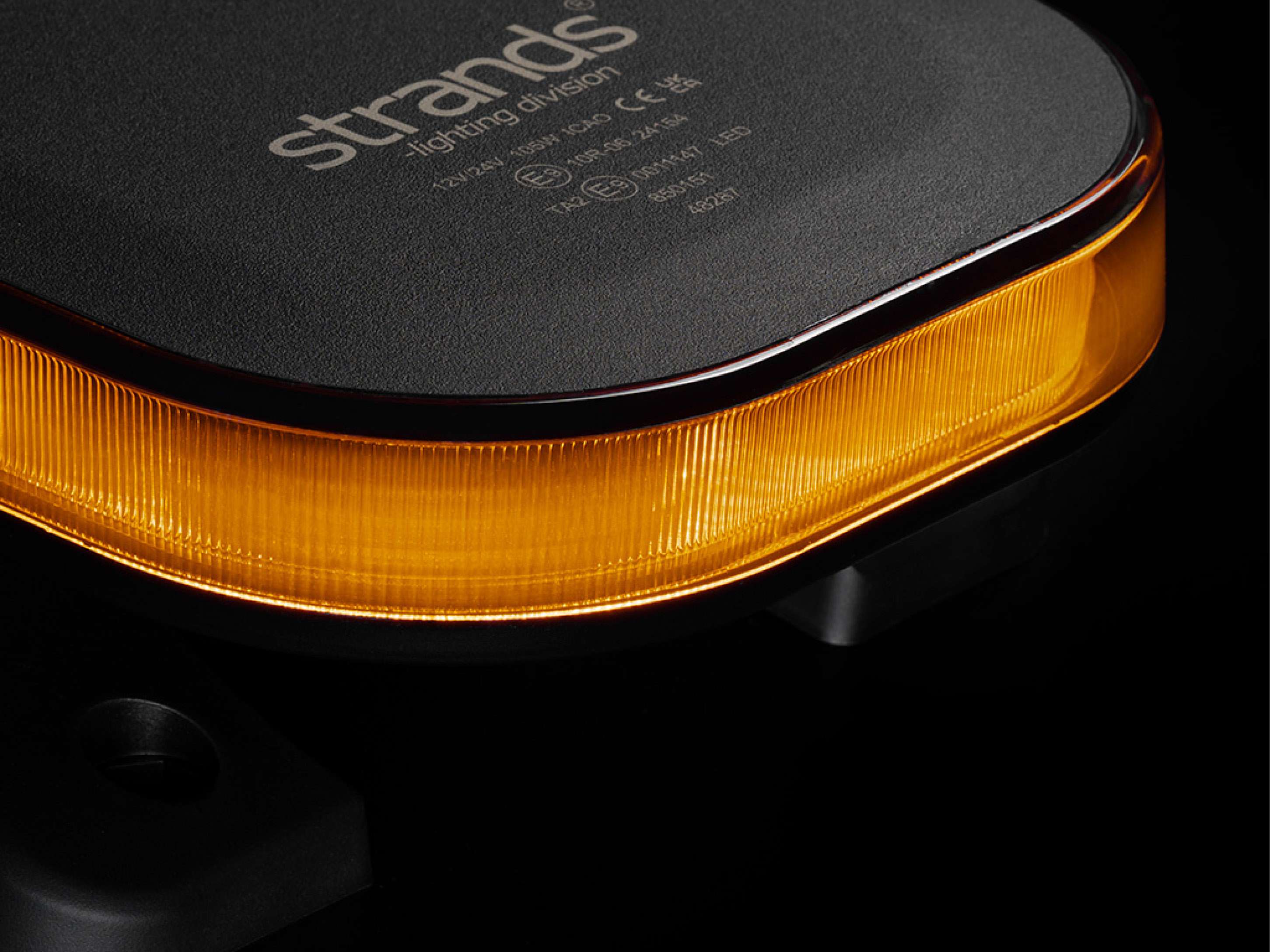

If you’re a fan of the Big Energy dark look, this is for you. The XL roof bar boasts a sparkling TPU satin top and stylish profile. The dark PC lens provides an eye-catching contrast to the amber glow, and a smooth, rounded aluminum housing completes the look and heightens any vehicle’s style.

ICAO AND E-APPROVED

To fit any driver, the Big Energy XL is E-approved ECE R65 TA2 for use both day and night. More than that, it follows the ICAO regulation type C for vehicles operating at airports.
