Strands Lighting Division

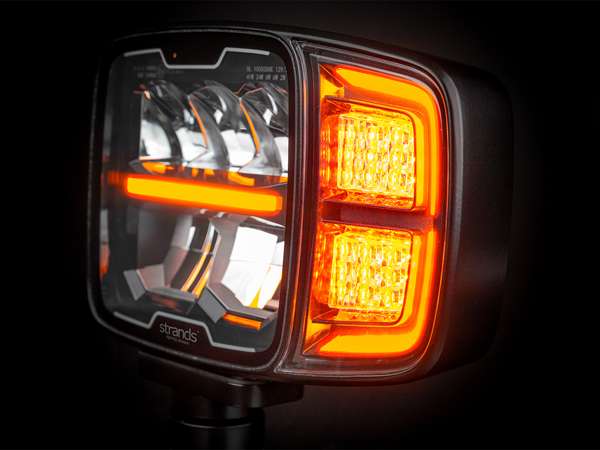

HI-LO SNOW PLOW LAMP LED – RIGHT

SKU: 270716
RRP: €309.25 (Excl. tax)

Choose variant

HI-LO SNOW PLOW LAMP LED – RIGHT

RRP: €309.25 (Excl. tax)
SKU: 270716
Chosen

HI-LO SNOW PLOW LAMP LED – LEFT

RRP: €309.25 (Excl. tax)
SKU: 270717
Choose
Buy in store Buy in USA
Manual Product sheet

Innovation for extreme weather. HI-LO is a snow plow driving light with a built-in heated lens – designed for maximum visibility and developed for the most demanding environments.

Modern, slim design, in combination with high technology, make HI-LO the perfect choice for maximum visibility regardless of weather and road conditions. The feature of the heated lens is automatic, starts at 5 °C, and keeps snow and ice away from the lens – without any handling by the driver.

The light comes in left and right models. Delivering several smart functions, including a fantastic high beam and low beam, an indicator, and an appealing dual-position light in amber and white that adds another dimension to the overall impression. The indicator function is also visible behind the lamp, making it easier for the driver to see when the function is in use. Perfect for heavier vehicles like plow trucks, tractors, loaders, and other equipment machinery. Especially useful on plow trucks where the plow blade usually covers the standard main headlight.

The included bracket can be mounted in the back or at the bottom of the lamp, creating more mounting possibilities and facilitating the installation. The DT connector is also built into the housing, making it even easier to perform the installation. The lens is UV-protecting and made of tempered glass. The lamp is fully E-approved, and the high beam reference number is 17,5. Standing behind our market-leading three-year function warranty.

– AUTOMATIC HEATED LENS
– INDICATOR IN THE FRONT AND BACK
– SEVERAL SMART FUNCTIONS
– LEFT AND RIGHT MODEL

    • Unit pcs
    • Voltage 10-32V DC
    • Theoretical effect Low Beam 30 / High Beam 60W
    • Consumption Low Beam: 24W / High Beam: 41W
    • Functions High beam, low beam, white position light, amber position light, indicator
    • Consumption specific function High beam: 60W, Low beam: 30W, White position light: 2W, Amber position light: 4W, Front direction indicator: 6W, Side direction indicator: 6W
    • Theoretical lumen 5000lm
    • Actual lumen Low beam: 876 / High-beam: 2273lm
    • 1 lux @ Low beam: 171m / High beam: 275m
    • Beam pattern Optimized beam
    • Connection DT-6PIN (Built-in)
    • Color housing Black
    • Color lens Clear
    • Color LED´s White/amber
    • Material bracket Die Cast Aluminium
    • Material housing/chassi Aluminium
    • Material lens Tempered glass
    • Length 220mm
    • Depth 80,5mm
    • Height 152mm
    • Height including bracket 197,2mm
    • Weight 2,2kg
    • IP-class IP67,68,69K
    • Operating temperature -30 - +65°C
    • E-approved Yes
    • According to regulation ECE R148(R7),R149(R112)
    • Reference number 17,5
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + (High-beam)
    • White cable + Amber position light(Positive)
    • Yellow cable + (Low-beam)
    • Green cable + Indicator
    • Grey cable + White position light(Positive)
    • Included in package Screws, washers, bolts
    • Length inner box 335mm
    • Width inner box 135mm
    • Height inner box 200mm
    • Volume 0,009045m³
    • Warranty 3 Years
    • Length master carton 420mm
    • Width master carton 425mm
    • Height master carton 350mm
    • Weight master carton 13,5kg
    • PCS in master carton 6pcs

AUTOMATIC HEATED LENS

The effective, built-in heated lens provides maximum visibility regardless of the weather and road conditions. The feature is automatic, starts at 5°C, and keeps ice and snow away from the lens without any handling by the driver.

INDICATOR IN THE FRONT AND BACK

The indicator function is visible both in the front and back of the lamp, making it easier for the driver to see when the function is in use. Perfect for heavier vehicles like plow trucks, tractors, loaders, and other equipment machinery. Especially useful on plow trucks where the plow blade usually covers the standard main headlight.

SEVERAL SMART FUNCTIONS

HI-LO delivers several smart functions, including a fantastic high beam and low beam, an indicator, and an appealing dual-position light in amber and white that adds another dimension to the overall impression. The lamp is fully E-approved and the high beams reference number is 17,5.

LEFT AND RIGHT MODEL

HI-LO comes in left and right models. The bracket can be mounted both in the back or at the bottom of the lamp, creating more mounting possibilities and facilitating the installation.
