HI-LO SNOW PLOW LAMP LED – LEFT
RRP: €253.60
(Excl. tax)
SKU: 270717
/
Strands Lighting Division
Chosen
Choose
HI-LO SNOW PLOW LAMP LED – LEFT
SKU: 270717
RRP:
€253.60
(Excl. tax)
Choose variant
HI-LO SNOW PLOW LAMP LED – RIGHT
RRP: €253.60
(Excl. tax)
SKU: 270716

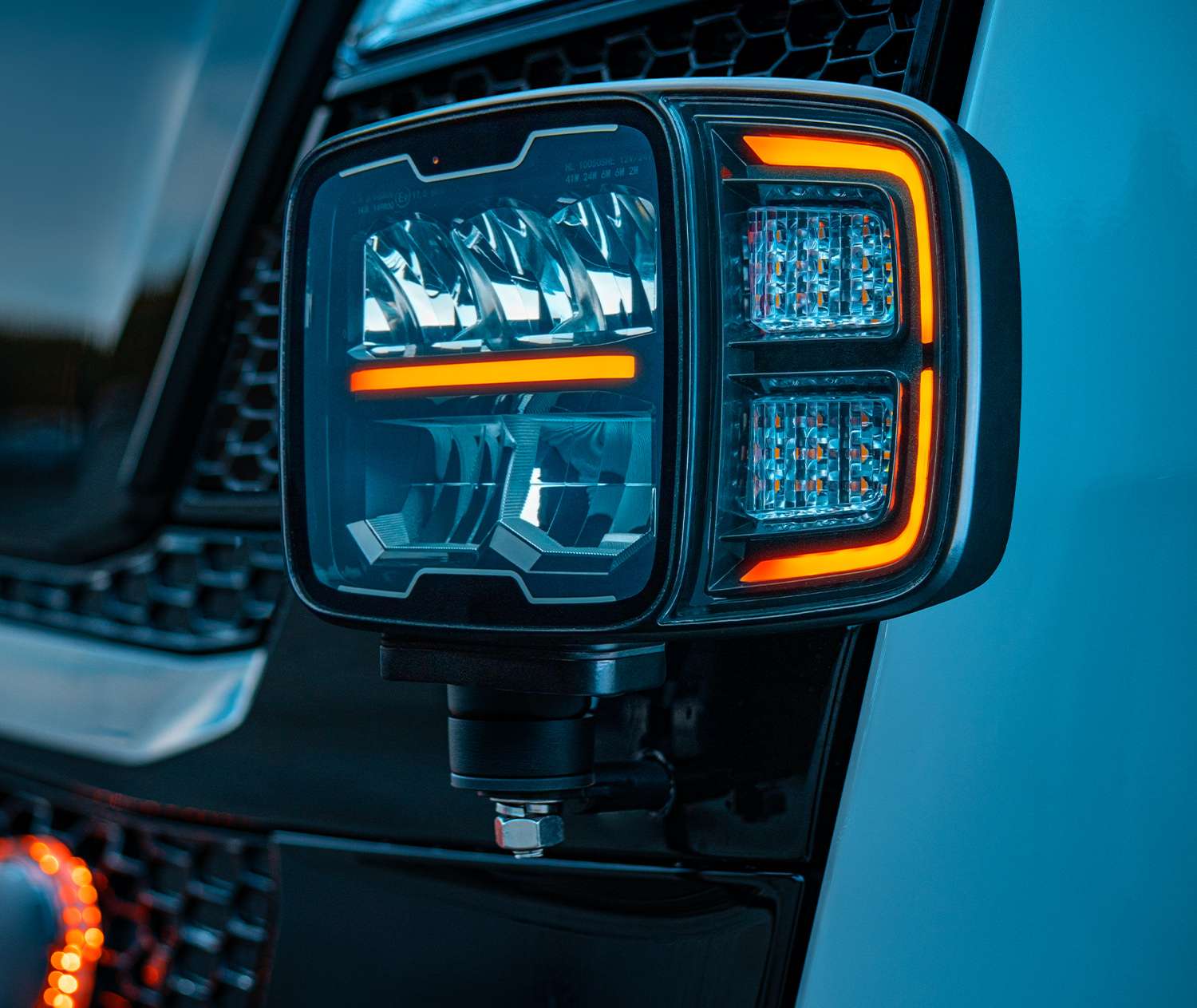

Innovation for extreme weather. HI-LO is a snow plow driving light with a built-in heated lens – designed for maximum visibility and developed for the most demanding environments.
Modern, slim design, in combination with high technology, make HI-LO the perfect choice for maximum visibility regardless of weather and road conditions. The feature of the heated lens is automatic, starts at 5 °C, and keeps snow and ice away from the lens – without any handling by the driver.

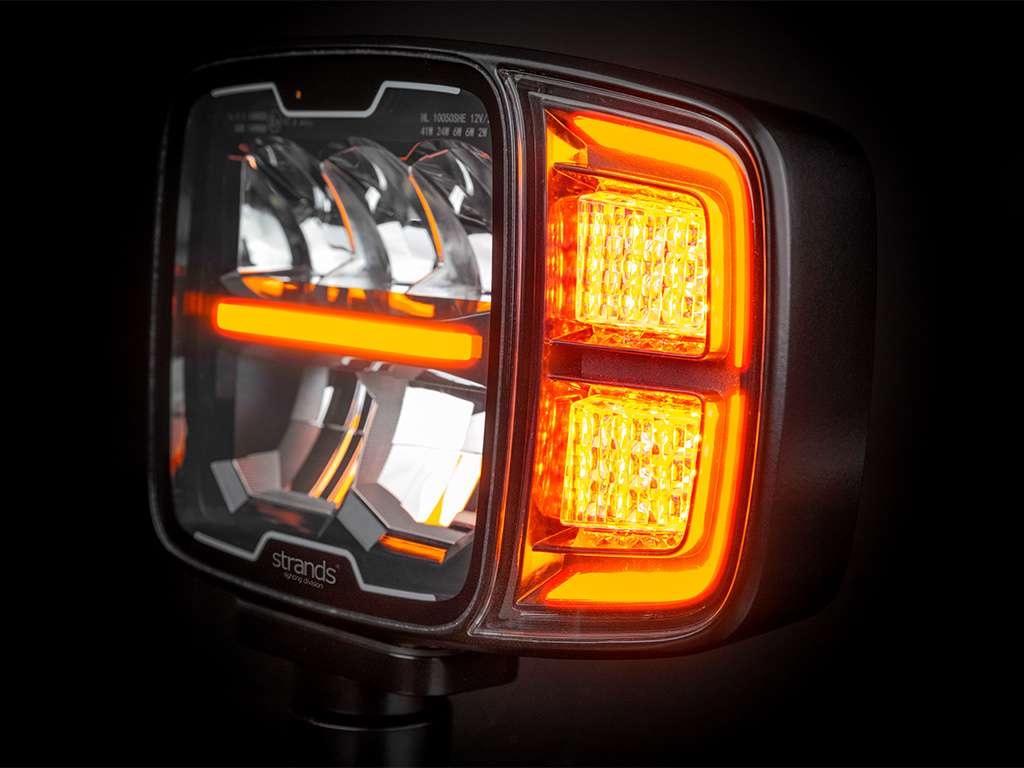

The light comes in left and right models. Delivering several smart functions, including a fantastic high beam and low beam, an indicator, and an appealing dual-position light in amber and white that adds another dimension to the overall impression. The indicator function is also visible behind the lamp, making it easier for the driver to see when the function is in use. Perfect for heavier vehicles like plow trucks, tractors, loaders, and other equipment machinery. Especially useful on plow trucks where the plow blade usually covers the standard main headlight.
The included bracket can be mounted in the back or at the bottom of the lamp, creating more mounting possibilities and facilitating the installation. The DT connector is also built into the housing, making it even easier to perform the installation. The lens is UV-protecting and made of tempered glass. The lamp is fully E-approved, and the high beam reference number is 17,5. Standing behind our market-leading three-year function warranty.
– AUTOMATIC HEATED LENS
– INDICATOR IN THE FRONT AND BACK
– SEVERAL SMART FUNCTIONS
– LEFT AND RIGHT MODEL
- Type of Product LED
- Voltage (V DC) 10-32V DC
- Theoretical effect (w) 24V 30W Low Beam 60W High Beam
- Functions High beam, low beam, white position light, amber position light, indicator
- Theoretical lumen 5000 (high beam) 2000 (low beam)
- Actual lumen 2273 (high beam) 876 (low beam)
- 1 LUX @ m 275 (high beam) 171 (low beam)
- IP-class 67,68,69K
- Color housing Black
- Color lens Clear
- Color LED´s White and Amber
- Beam pattern Optimized beam
- Position light White and amber
- Connection DT6 (Built-in)
- Material bracket Die Cast Aluminum
- Material housing/chassi Aluminum
- Material lens Tempered glass
- Length (mm) 220
- Depth (mm) 80,5
- Height (mm) 152
- Height including bracket (mm) 197,2
- Operating temperature -30°C - +65°C
- According to regulation ECE R148(R7),R149(R112)
- Reference number 17,5
- EMC ECE R10
- Black cable - (Negative)
- Red cable (+) High beam
- Yellow cable Low Beam
- Green cable Indicator
- Mounting details included Screws, washers, bolts
- Depth inner box (mm) 135
- Weight (kg) 2,2
- PCS in master carton 6
INNOVATION FOR EXTREME WEATHER
AUTOMATIC HEATED LENS
The effective, built-in heated lens provides maximum visibility regardless of the weather and road conditions. The feature is automatic, starts at 5°C, and keeps ice and snow away from the lens without any handling by the driver.
INDICATOR IN THE FRONT AND BACK

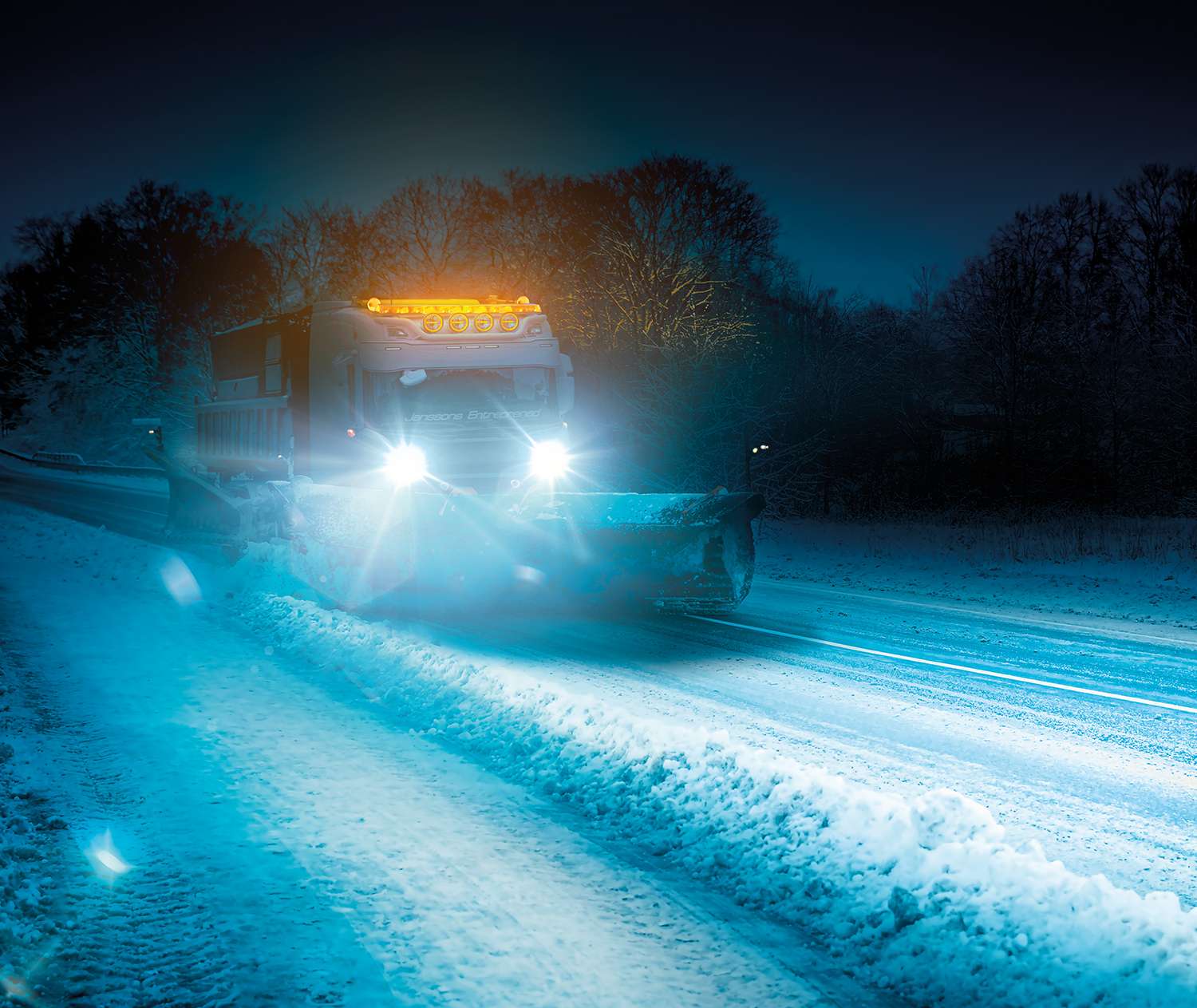

The indicator function is visible both in the front and back of the lamp, making it easier for the driver to see when the function is in use. Perfect for heavier vehicles like plow trucks, tractors, loaders, and other equipment machinery. Especially useful on plow trucks where the plow blade usually covers the standard main headlight.
SEVERAL SMART FUNCTIONS
HI-LO delivers several smart functions, including a fantastic high beam and low beam, an indicator, and an appealing dual-position light in amber and white that adds another dimension to the overall impression. The lamp is fully E-approved and the high beams reference number is 17,5.
LEFT AND RIGHT MODEL
HI-LO comes in left and right models. The bracket can be mounted both in the back or at the bottom of the lamp, creating more mounting possibilities and facilitating the installation.
