FREEDOM MAXIMUM POSITION LIGHT 7″ DARK POSITION LIGHT
/
Strands Lighting Division

FREEDOM MAXIMUM POSITION LIGHT 7″ DARK POSITION LIGHT

SKU: 270933
RRP: €389 (Excl. tax)

Choose variant

FREEDOM MAXIMUM POSITION LIGHT 7″ DARK POSITION LIGHT

RRP: €389 (Excl. tax)
SKU: 270933
Chosen

FREEDOM MAXIMUM POSITION LIGHT 9″ DARK POSITION LIGHT

RRP: €399 (Excl. tax)
SKU: 270935
Choose
Buy in store Buy in USA
Manual Product sheet

Enhance your style to the max. The Freedom Maximum Position driving light 7” is full of brightness and personality and has a dark position light. Innovative technology renders the white and amber position lights invisible when not in use and reveals their distinct shape and intense glow when activated. The amber light is E-approved both as a forward position light and a side marker ECE R148(R7, R91), R149 (R112).

As with all Freedom family products, the Maximum Position is made in Europe to reduce transport and environmental strain. With durable materials backed by Strands Lighting Division’s 3-year warranty, it will be a lasting addition to any vehicle. The solid design suits heavier vehicles, such as jeeps and trucks, or anywhere you need intense brightness and eye-catching position light. Freedom MP is IP-rated IP69K for maximum durability to withstand dirt, liquids, and exposure to the elements.

With a 3 m cable, it is easy to install in various places on your vehicle. Thus, you can create the optimal driving experience for your needs in forested areas or other dark roads. The optimized beam has a range of 311 m @ 1 Lux, ensuring high visibility ahead. An incredible brightness of 10000 lumens and a 5700-kelvin color temperature combine to create a powerful illumination.

    • Unit pcs
    • Voltage 12-24V DC
    • Theoretical effect 130W
    • Consumption 108W
    • Functions Driving light, front marker, side marker
    • Consumption specific function Front position light.: 3W, Side marker: 9W
    • Theoretical lumen 10800lm
    • Actual lumen 10000lm
    • 1 lux @ 311m
    • Color temperature 5700K
    • Beam pattern Optimized beam
    • Beam angle 26,7
    • Connection Cable
    • Cable length 3000mm
    • Color housing Black
    • Color lens Clear
    • Color LED´s White/amber
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Depth 62mm
    • Height including bracket 194mm
    • Diameter 179mm
    • Weight 1,854kg
    • IP-class IP69K
    • Operating temperature -40 - +40°C
    • E-approved Yes
    • According to regulation ECE R148(R7,R91), R149(R112)
    • Reference number 20
    • EMC ECE R10
    • Black cable + Front pos. light
    • Red cable + Side marker light
    • White cable - (Negative)
    • Green cable + (High-beam)
    • Included in package Bracket, Screws, washers, bolts
    • Length inner box 255mm
    • Width inner box 110mm
    • Height inner box 255mm
    • Gross weight 2,06kg
    • Volume 0,006m³
    • Warranty 3 Years
    • Length master carton 410mm
    • Width master carton 340mm
    • Height master carton 320mm
    • Weight master carton 8,82kg
    • PCS in master carton 4pcs

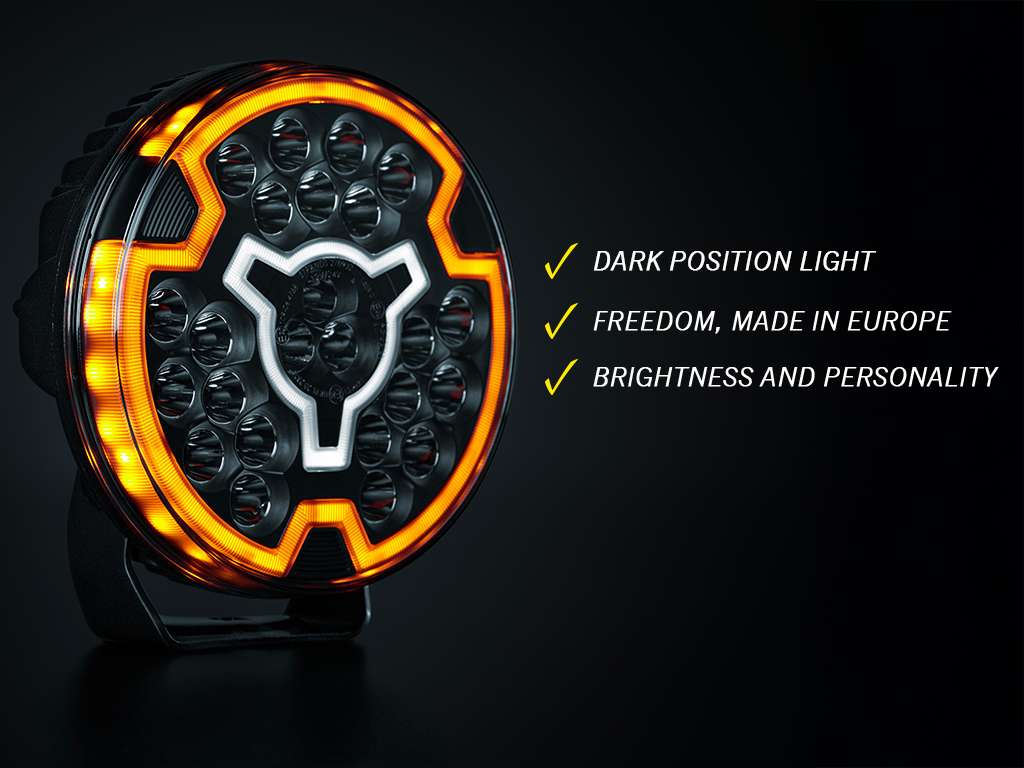

DARK POSITION LIGHT

FREEDOM, MADE IN EUROPE

The Freedom Maximum Position is proudly made in Europe, minimizing transport and environmental impact. With a solid design and manufacture, the reliable aluminum and polycarbonate materials will ensure your product is long-lived. It is also backed by Strands Lighting Divisions’ 3-year function warranty.

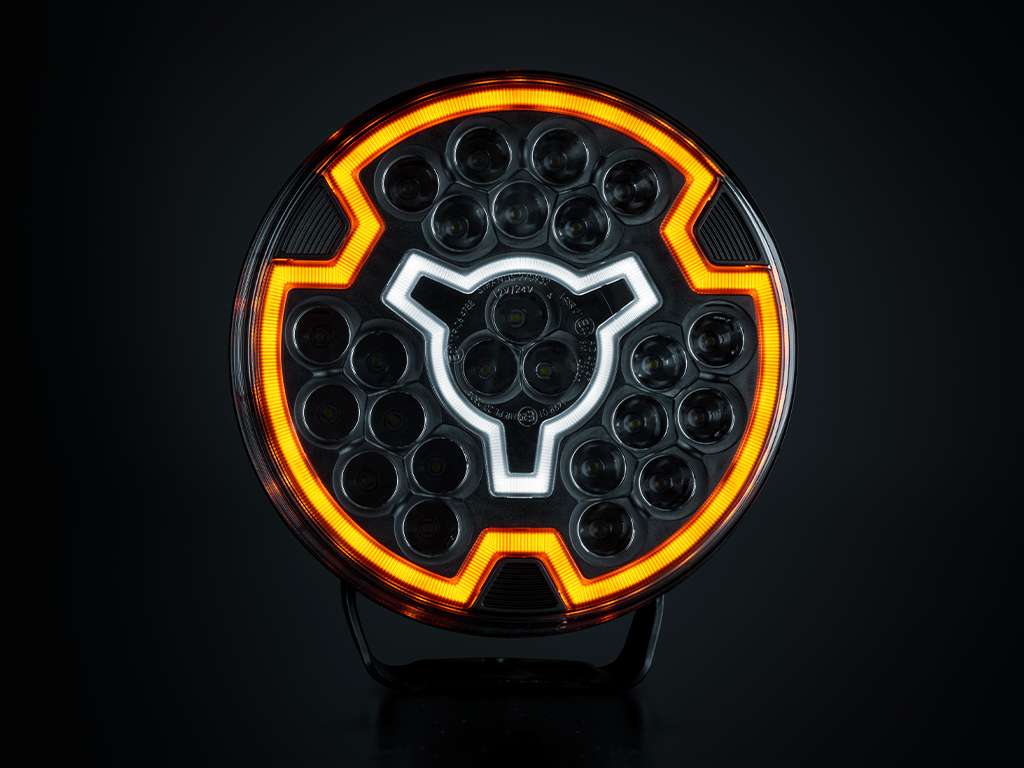

DARK POSITION LIGHT

This new take on position light technology will render it invisible against the black housing when not in use. When the amber glow of the position lights is activated, you’ll be met with an eye-catching shape and design. It is E-approved both as forward and sideways position light.

BRIGHTNESS AND PERSONALITY

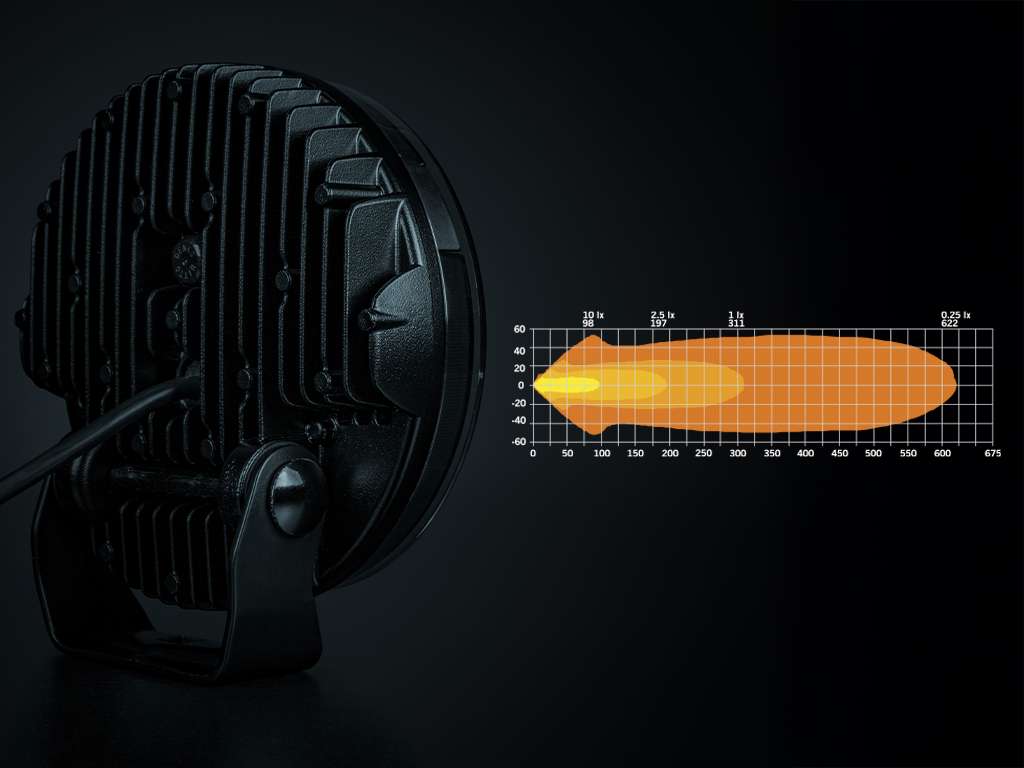

The 10000 lumens provide an exemplary brightness, and the color temperature of 5700 kelvins ensures powerful and easy-on-the-eye illumination. The optimized beam, which measures 1 Lux @ 311 meters, gives high visibility ahead. It will increase the visual range and draw attention to your vehicle.
