FREEDOM DARK LINE CORNER POSITION LIGHT RED
/
Strands Lighting Division

FREEDOM DARK LINE CORNER POSITION LIGHT RED

SKU: 900042
RRP: 16.45 (Excl. tax)

Choose variant

FREEDOM DARK LINE CORNER POSITION LIGHT RED

RRP: 16.45 (Excl. tax)
SKU: 900042
Chosen

FREEDOM DARK LINE CORNER POSITION LIGHT WHITE

RRP: 16.45 (Excl. tax)
SKU: 900041
Choose

FREEDOM DARK LINE POSITION LIGHT LONG RED

RRP: 28 (Excl. tax)
SKU: 900048
Choose

FREEDOM DARK LINE SIDE MARKER LONG AMBER

RRP: 24.18 (Excl. tax)
SKU: 900049
Choose

FREEDOM DARK LINE POSITION LIGHT WHITE

RRP: 16.45 (Excl. tax)
SKU: 900044
Choose

FREEDOM DARK LINE CORNER SIDE MARKER AMBER

RRP: 17.89 (Excl. tax)
SKU: 900043
Choose

FREEDOM DARK LINE POSITION LIGHT RED

RRP: 17.89 (Excl. tax)
SKU: 900045
Choose

FREEDOM DARK LINE POSITION LIGHT LONG WHITE

RRP: 19.33 (Excl. tax)
SKU: 900047
Choose

FREEDOM DARK LINE SIDE MARKER AMBER

RRP: 17.89 (Excl. tax)
SKU: 900046
Choose

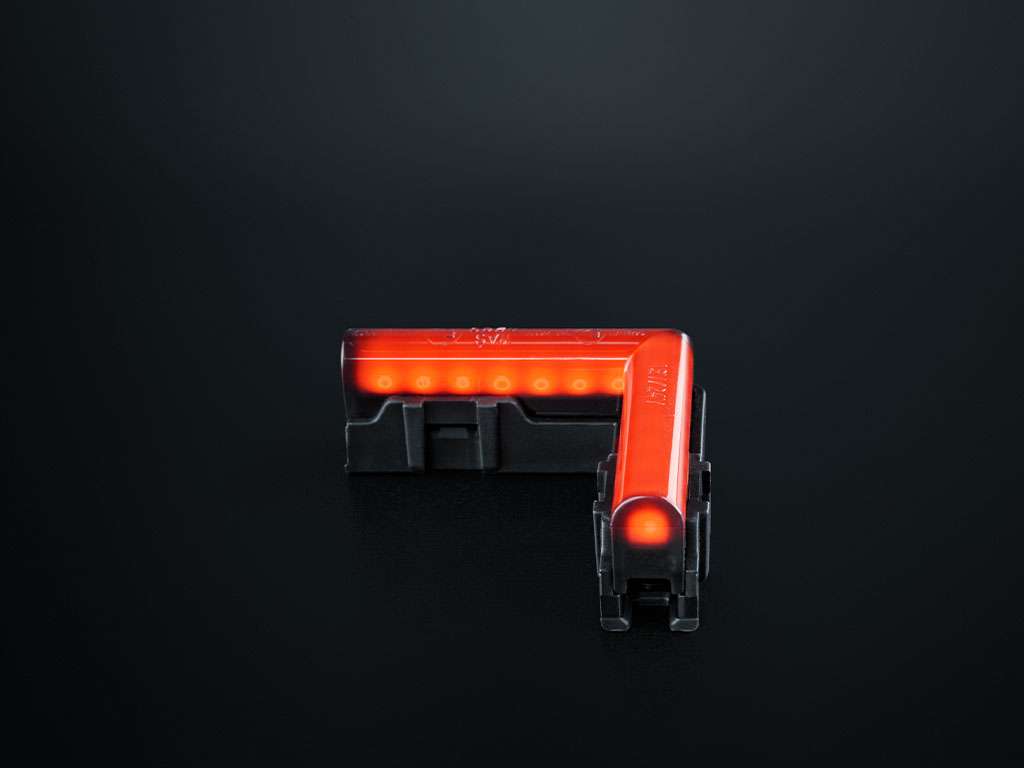

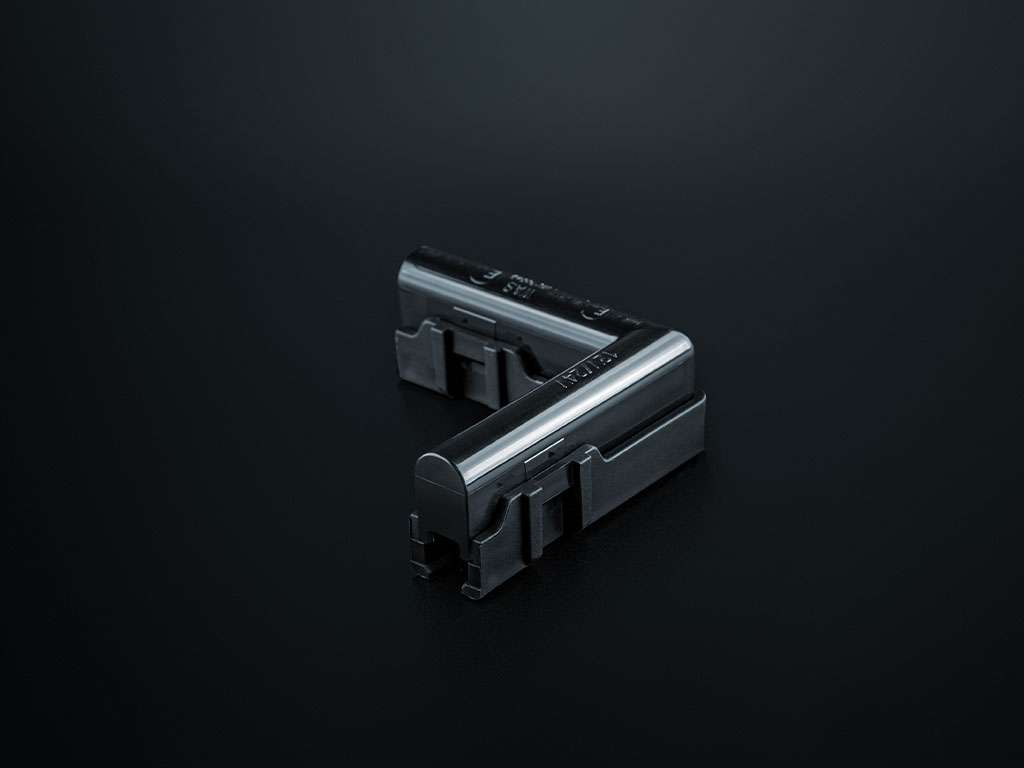

The Freedom Dark Line red corner position light is installed using a click-in frame. The durable PC lens and polypropylene housing protect against corrosion and guarantee a long-lived product. With an IP rating of IP6K9K, you can be sure it will withstand harsh weather. The Dark Line is something completely new on the market. It can be connected to the long version (Part No. 900047-49) and the small version (Part No. 900044-46) for a creative way to style your truck or trailer. It’s 6,3 cm long and high. The slim size and eye-catching glow lead to new levels of styling and visibility, so get creative with this unique take on the fiber optic look.

    • Unit pcs
    • Voltage 12-24V DC
    • Theoretical effect 3,5W
    • Consumption 3W
    • Functions Rear position
    • Connection Cable
    • Cable length 400mm
    • Color housing Black
    • Color lens Dark
    • Color LED´s Red
    • Material bracket Polycarbonate
    • Material housing/chassi Polycarbonate
    • Material lens Polycarbonate

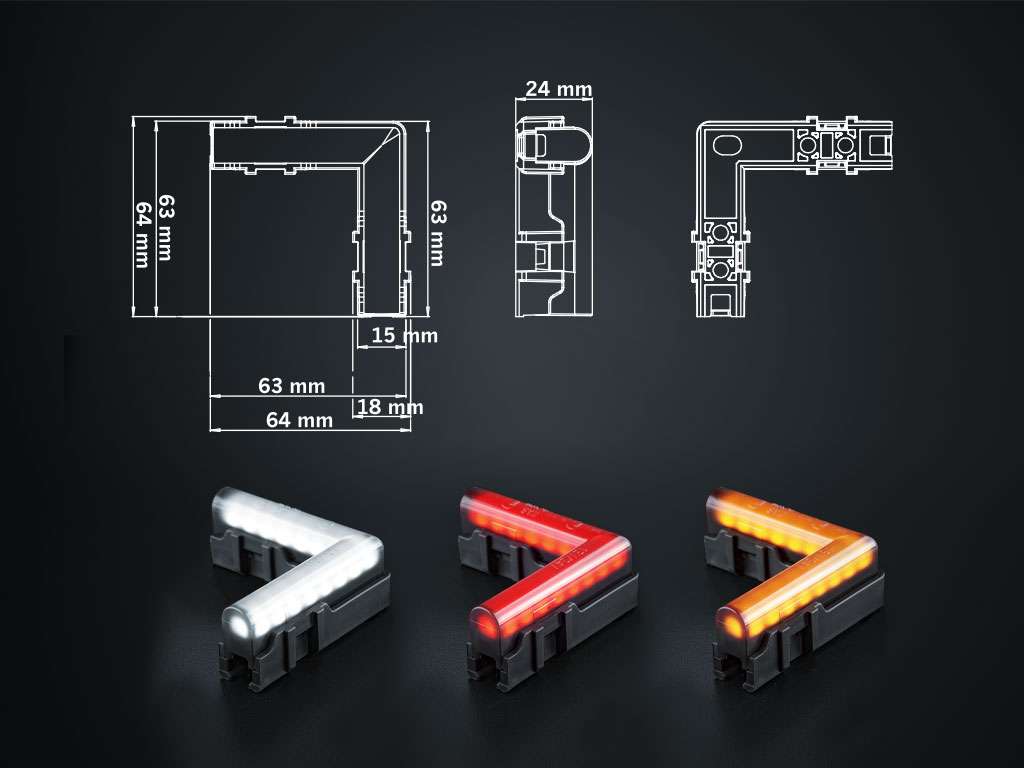

    • Length 62,7mm
    • Depth 24,5mm
    • Height 62,7mm
    • Weight 0,08kg
    • IP-class IP6K9K
    • Operating temperature -40 - +40°C
    • E-approved Yes
    • According to regulation ECE R148
    • EMC ECE R10
    • Additional information Refer to the manual for CC dimensions
    • Black cable No polarization
    • Included in package Brackets, screws
    • Length inner box 160mm
    • Width inner box PIN PACKmm
    • Height inner box 250mm
    • Gross weight 0,084kg
    • Volume 1e-05m³
    • Warranty 3 Years
    • Length master carton 410mm
    • Width master carton 330mm
    • Height master carton 185mm
    • Weight master carton 1kg
    • PCS in master carton 100pcs

Get creative

Benefits for drivers

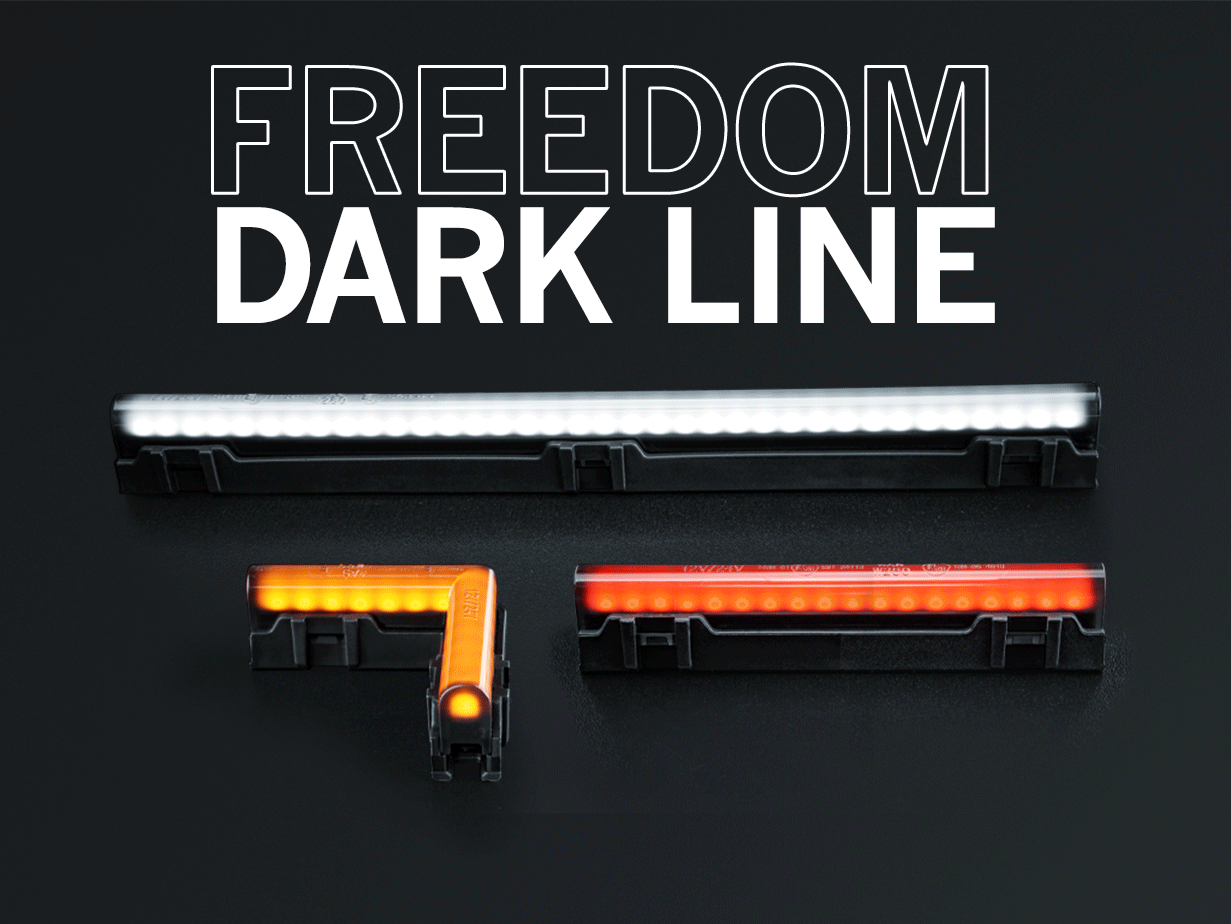

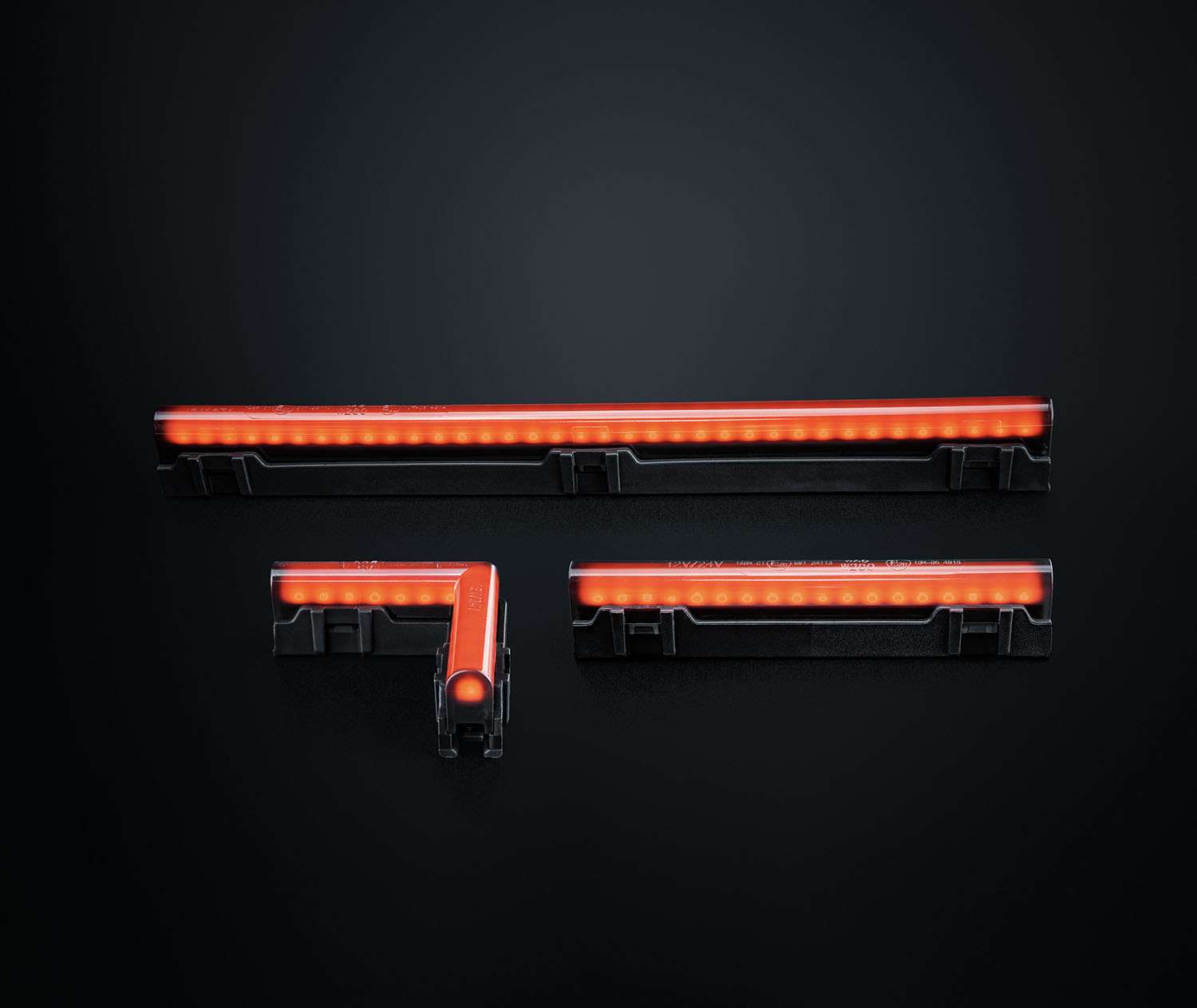

The Freedom Dark Line is a new take on the fiber optic look, with long, short, and corner position lights manufactured in Europe. Get creative with your styling ideas and accentuate all those corners and angles with intense illumination. The dark lens will blend almost invisibly with darker trucks and draw attention on lighter color trucks. All sizes are available as side markers and front and back position lights. Only your imagination will set the limit with the Dark Line. As a bonus, the Dark Line consumes only 2-3W, so you can install as many as you like.

Benefits for installation

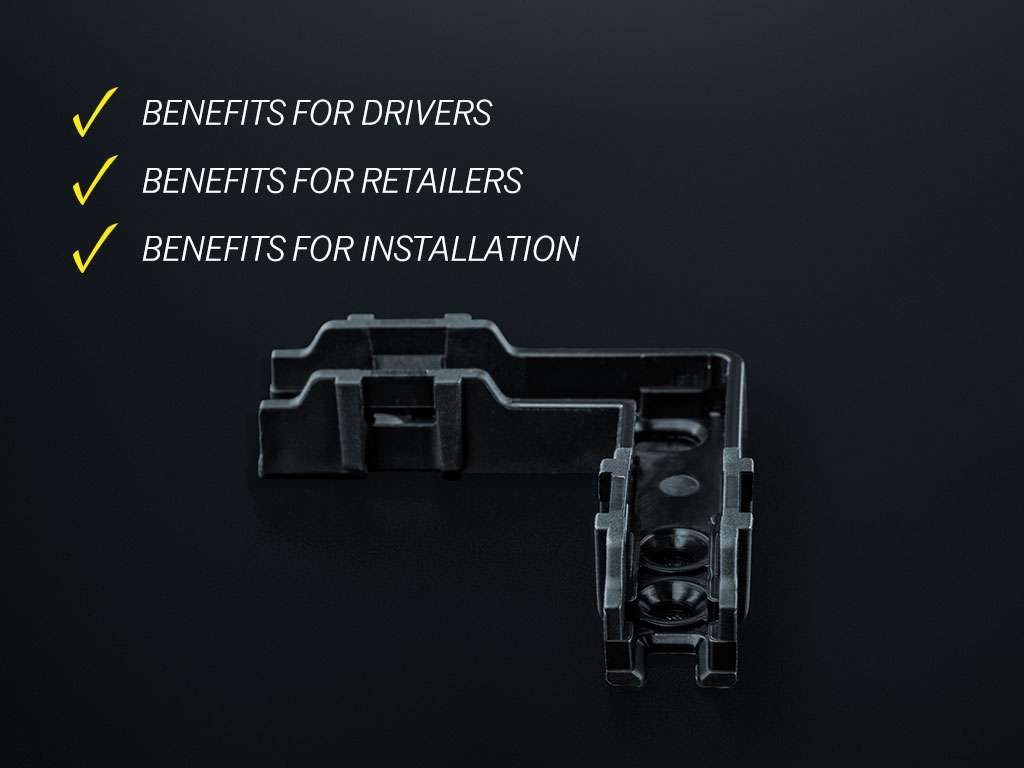

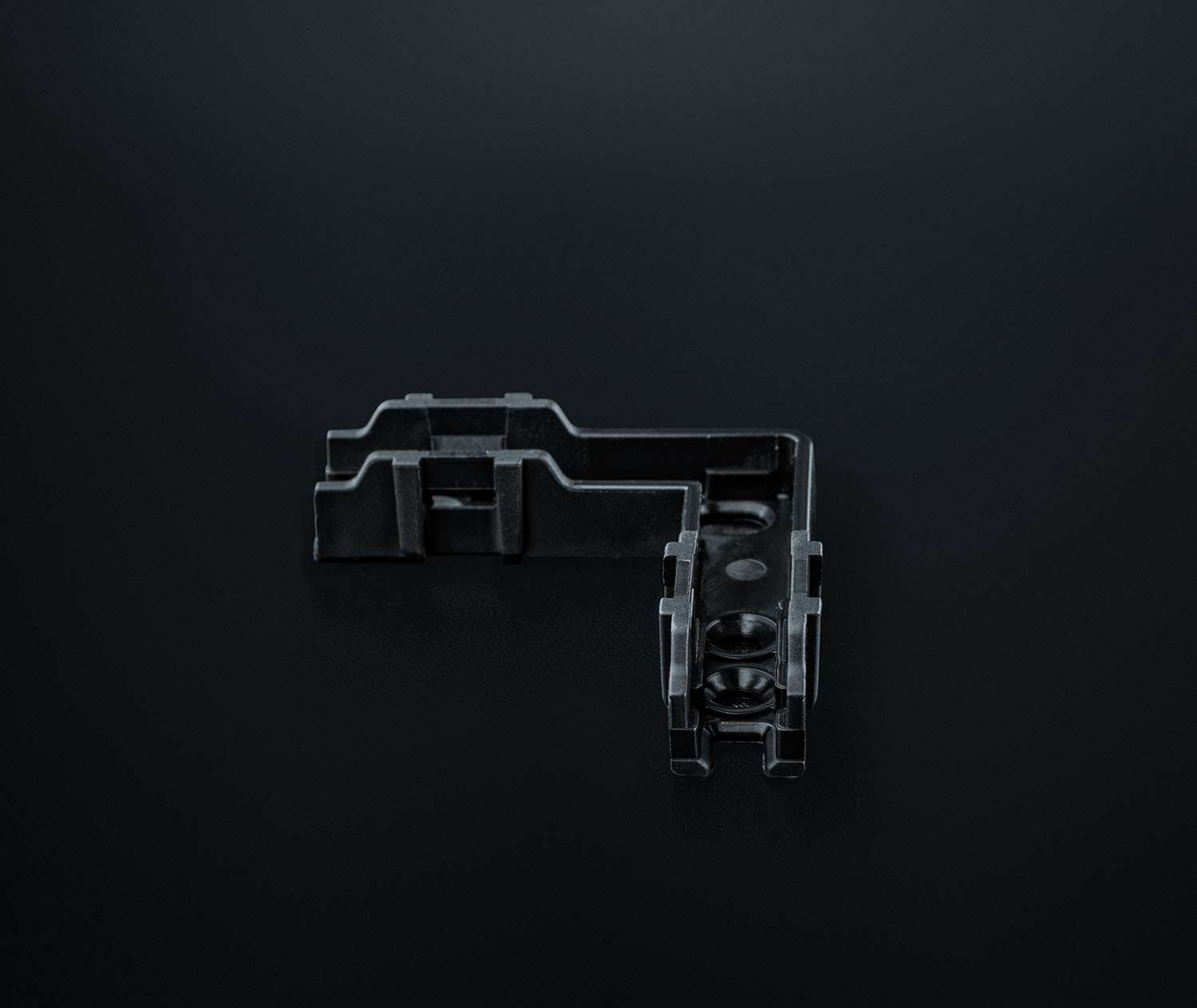

When installing a product, the process needs to be efficient and trouble-free. Thanks to the click-in-frame, installation is easy and gives a smooth look with no visible screws. Attach the bracket to the vehicle’s surface and click the light into place on the bracket. This also gives additional protection to the lens. The slim shape fits anywhere, and the 400 mm cable is non-polarized.

Benefits for retailers

With the Freedom series, you can count on the highest customer satisfaction. The slim shape and different sizes mean you can find the perfect solution to your customer’s needs. The Dark Line has a high IP rating of IP6K9K, is corrosion-free, and is manufactured in Europe using the most durable materials. European production means shorter transport and faster deliveries. It’s E-approved R148 when installed according to your country’s traffic legislation. As a further guarantee for lasting quality, it’s covered by Strands’ market-leading 3-year warranty. Strands’ expert support team is ready to answer any questions you may have. Everything to provide you and your customer with lasting peace of mind.
