Strands Lighting Division

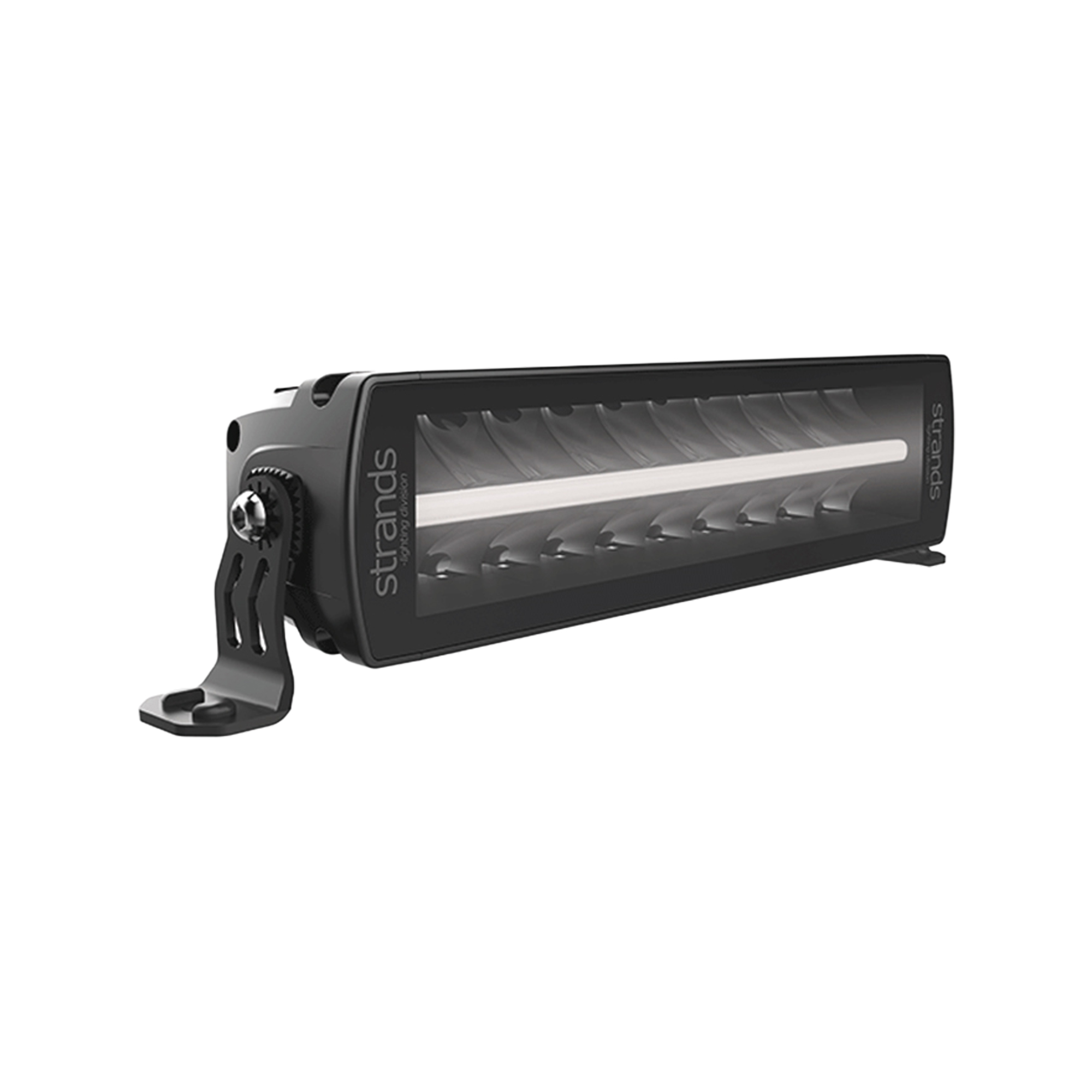

COMPLETE KIT SIBERIA DR 22″ LED BAR

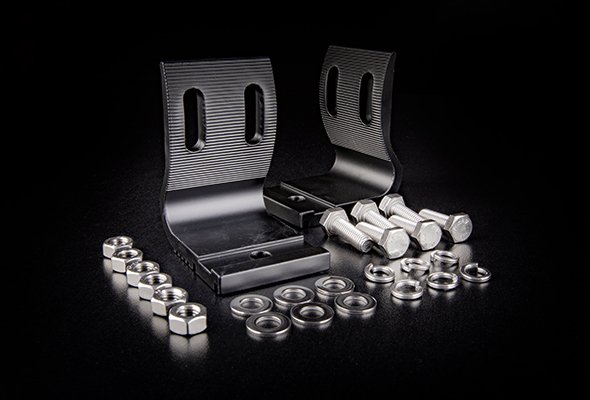

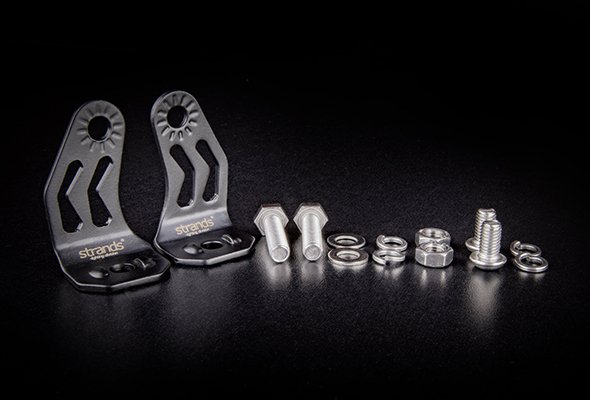

Universal kit including; Bar, bracket and harness
SKU: 809181-KIT
RRP:
€441.65
(Excl. tax)
- Unit Pack
- Voltage 10-40V DC
- Consumption 91W
- Consumption specific function White position light: 5,5W, Amber position light: 14,5W
- Theoretical lumen 16000lm
- Actual lumen 6316lm
- 1 lux @ 450m
- Color temperature 6000K
- Beam pattern Combo
- Connection DT-4
- Cable length 500mm
- Color housing Black
- Color lens Clear
- Color LED´s White
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length 562mm
- Depth 71,6mm
- Height 76mm
- Height including bracket 89mm
- Weight 5,3829kg
- IP-class IP67/69K
- Operating temperature -20 - +45°C
- E-approved Yes
- According to regulation ECE R112
- Reference number 45
- EMC ECE R10
- Black cable - (Negative)
- Red cable + (Positive)
- White cable White Position light
- Blue cable Amber position light
- Gross weight 5,981kg
- Volume 0,009m³
- Warranty 3 Years
- PCS in master carton 1pcs
