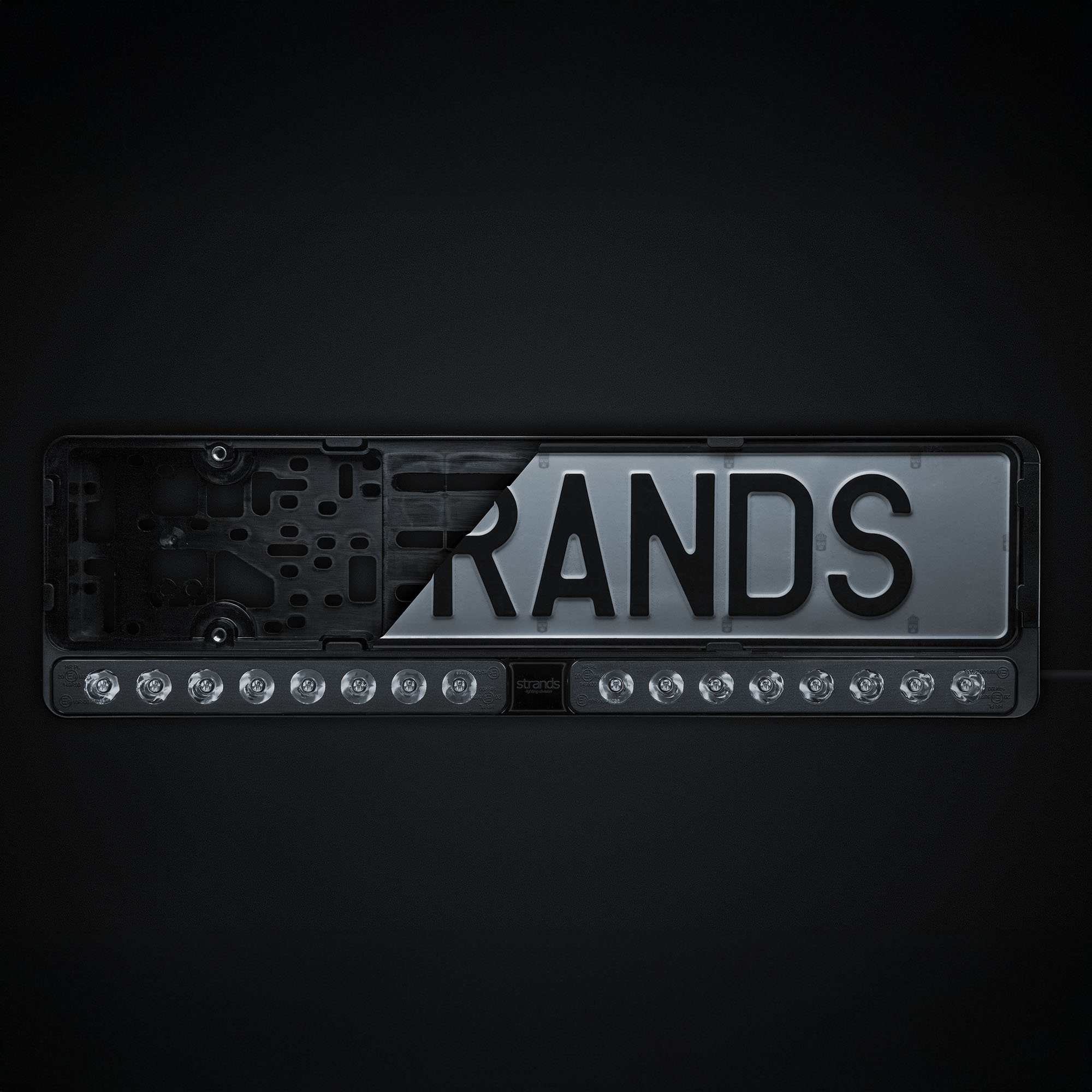

NUUK E-LINE DUO BLACK LED BAR 2X10″
/
Strands Lighting Division

NUUK E-LINE DUO BLACK LED BAR 2X10″

SKU: 809446
RRP: €199 (Excl. tax)

Choose variant

NUUK E-LINE DUO BLACK LED BAR 2X10″

RRP: €199 (Excl. tax)
SKU: 809446
Chosen

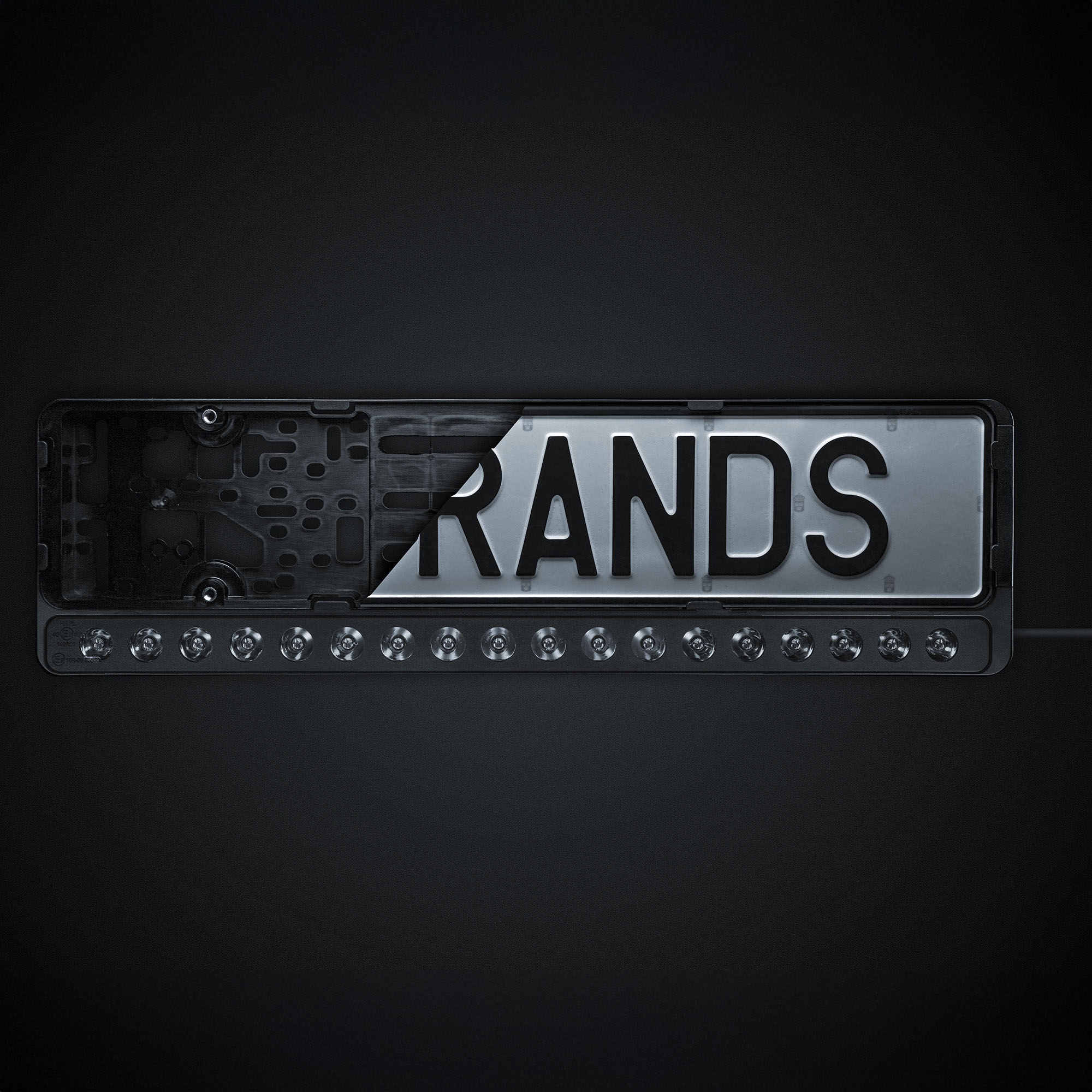

NUUK E-LINE BLACK LED BAR 20″

RRP: €199 (Excl. tax)
SKU: 809445
Choose
Buy in store Buy in USA
Manual Product sheet

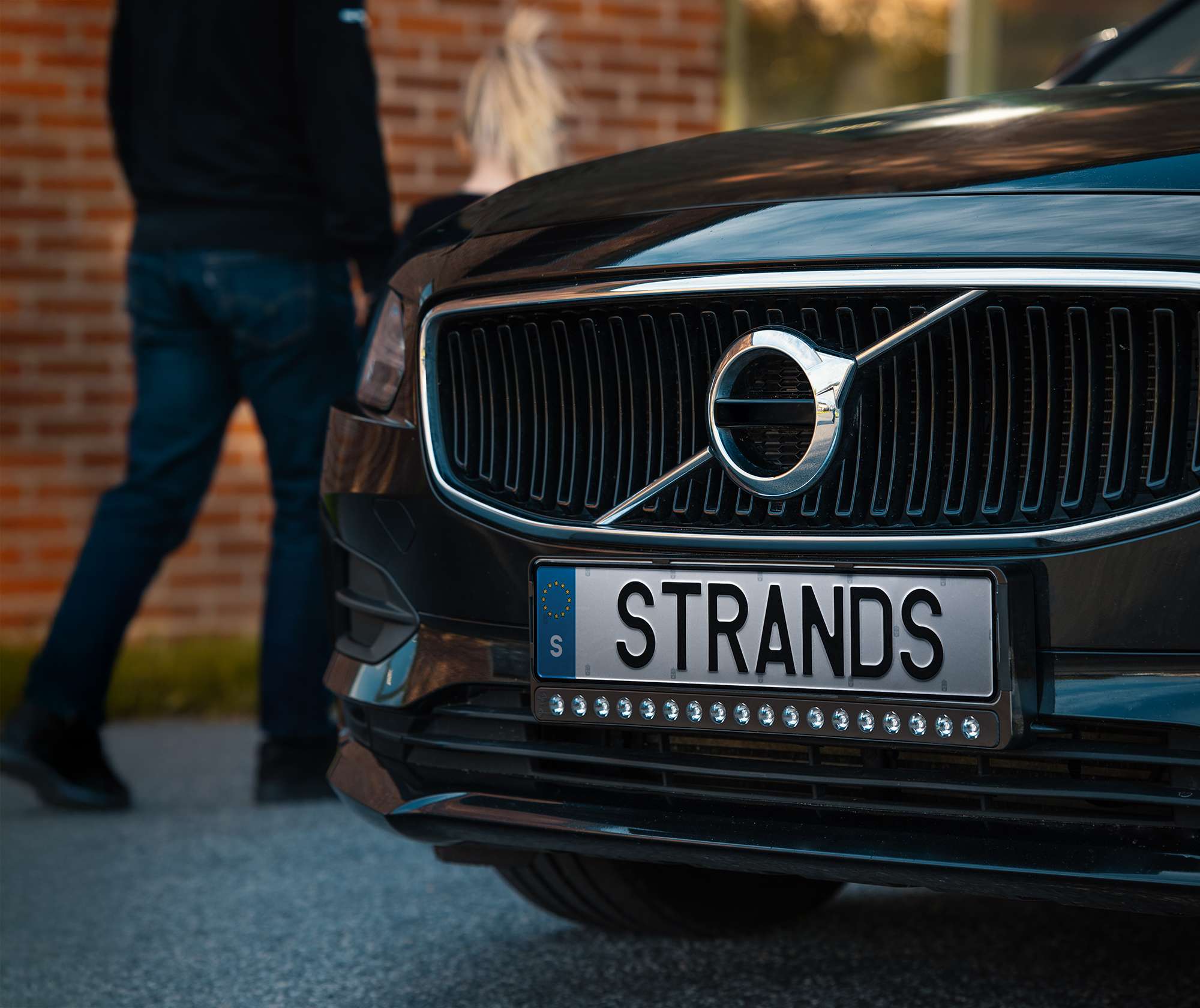

Improve your night drive with 8350 actual lumens and 440-meter visual range @ 1 Lux. The Nuuk E-Line Duo Black has an optimized beam and 5000 K color temperature, greatly improving forward and sideways visibility. It’s E-approved R149 with reference number 2×20 and is used with 9-36 V. This double light source is a requirement for some European countries. The low power consumption of only 108 W makes it suitable for electric cars, and the integrated license plate holder ensures it can be installed without unnecessary impact on your vehicle. Simply replace your license plate holder with a Nuuk E-Line Duo. It has a new black lens that gives a smooth look that blends with any vehicle. The innovative design and easy installation guarantee that any driver can get a considerable boost in safety and visibility.

    • Unit pcs
    • Voltage 9-36V DC
    • Theoretical effect 110W
    • Consumption 108W
    • Theoretical lumen 9000lm
    • Actual lumen 8100lm
    • 1 lux @ 438m
    • Color temperature 5000K
    • Beam pattern Optimized beam
    • Beam angle 15,2°
    • Connection DT-3PIN
    • Cable length 2500mm
    • Color housing Black
    • Color lens Black
    • Color LED´s White
    • Material bracket Plastic
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length 535mm
    • Depth 36mm
    • Height 154,4mm
    • Height including bracket 154,4mm
    • Weight 1,4kg
    • IP-class IP68/69K
    • Operating temperature -40 - +60°C
    • E-approved Yes
    • According to regulation ECE R149
    • Reference number 20 （for one 10")
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + (Positive)
    • White cable + (on/off Signal wire)

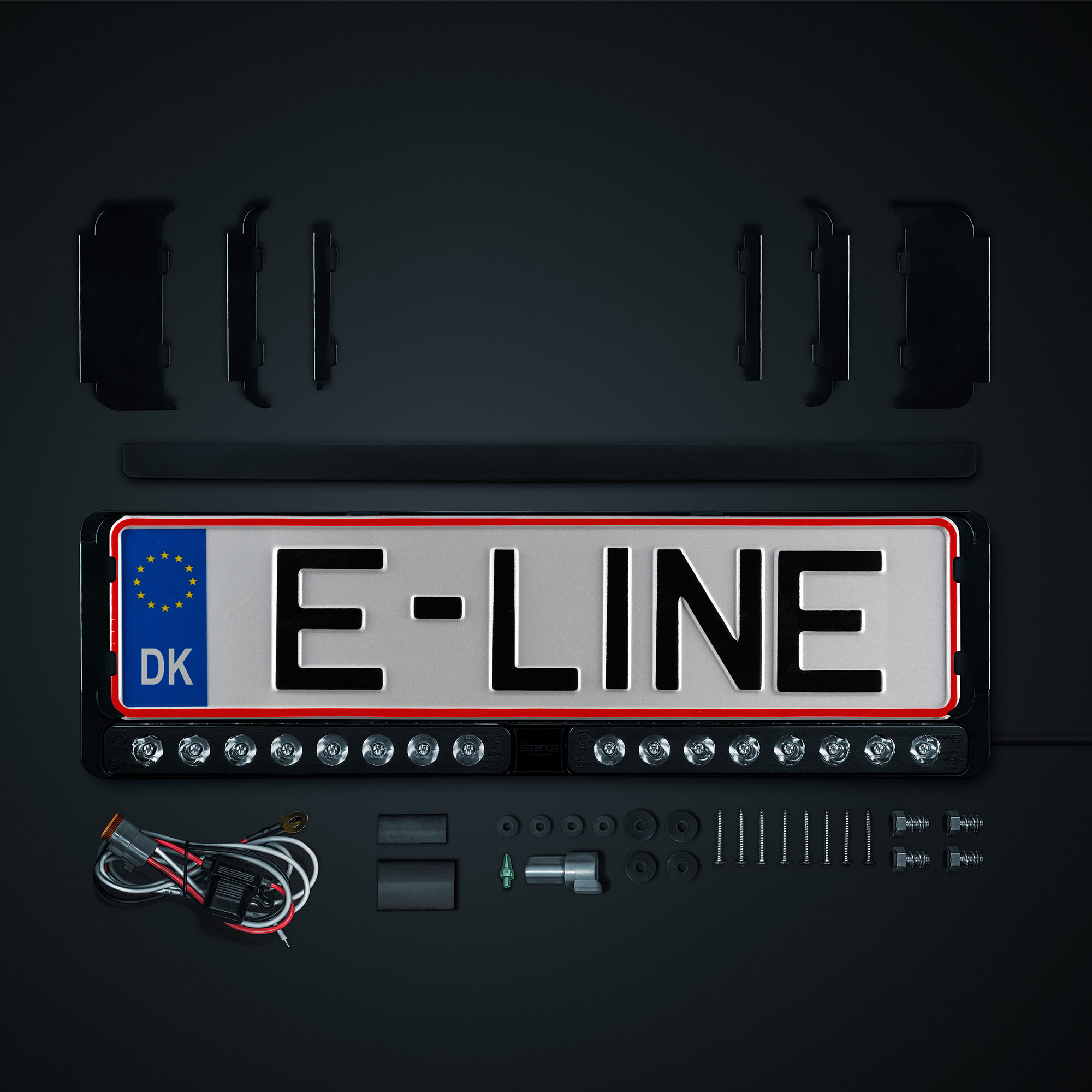

    • Included in package • Number plate holder • Wiring harness with 20A fuse and DT-3 connector • 4 pcs adjustable screws with spring • 8 pcs Mounting Screws • 4pcs 5mm spacer and 4 pcs 8mm spacer • 2 pcs number
    • Length inner box 595mm
    • Width inner box 225mm
    • Height inner box 45mm
    • Gross weight 1,63kg
    • Volume 0,001m³
    • Warranty 3 Years Years
    • Length master carton 620mm
    • Width master carton 475mm
    • Height master carton 250mm
    • Weight master carton 16,3kg
    • PCS in master carton 10pcs

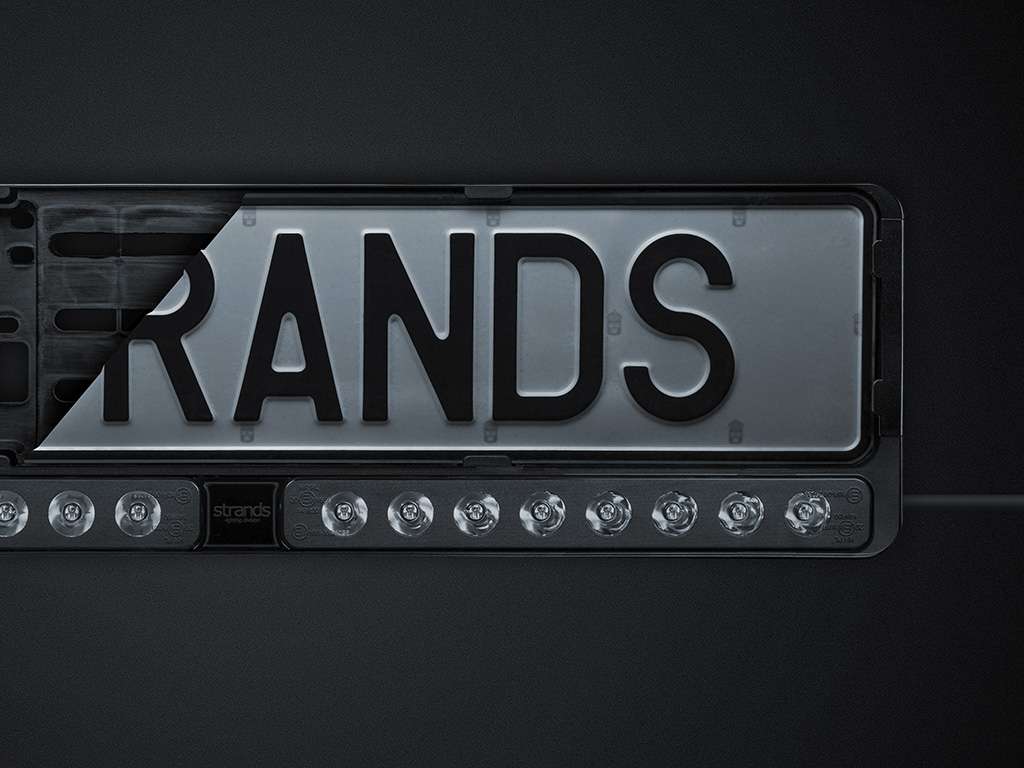

New black lens

Improved reaction time and safety

What does the perfect nighttime drive look like for you? Wherever your journey takes you, whichever car you drive, we know a top-notch driving light will heighten your driving experience and improve your reaction time on the road. The Nuuk E-Line Black has a range of 440 meters and improves visibility to the sides of the road as well. The 8350 actual lumens, optimized beam pattern, and warm color temperature enable a clear and comfortable view of the road. The curved housing and black lens blend smoothly with any car. It’s connected to the high beam, easy to use, and suitable for all drivers.

Trouble-free installation

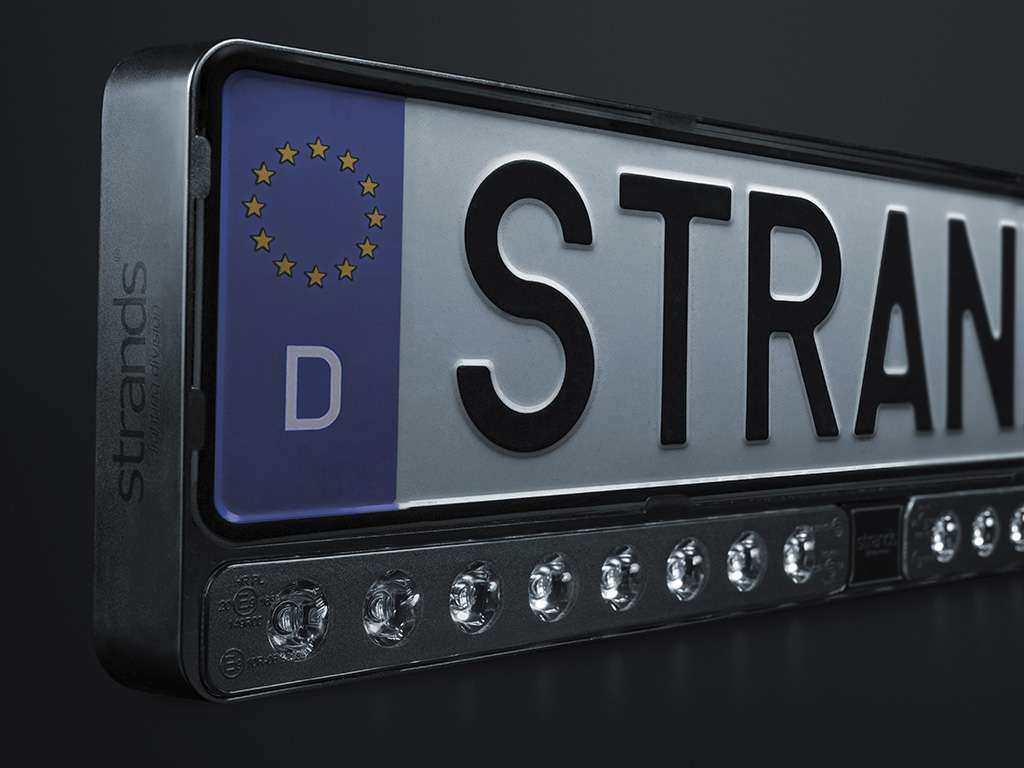

The Nuuk E-Line Duo Black is designed for easy installation, whether you’re an experienced mechanic or simply want to boost your daily commute. Because the LED bar is integrated into a curved license plate holder and has a standard screw pattern, it fits any car with a standard EU license plate. Just remove the existing holder and replace it with Nuuk E-Line. Nuuk E-Line Duo has a built-in relay to minimize the hassle of connecting cables. If the car has a Canbus system, a Canbus interface such as XBB (Part No. 270425) is recommended. It’s installed with a 2,5 m cable and DT-3 connector, and everything you need is included: a wiring harness (20A fuse), screws, spacers, and buckles.

Game-changing design for every driver

As a retailer, you can feel confident the Nuuk E-Line Duo will provide cost-effective value and customer satisfaction. The slim and discreet design, user-friendliness, low power consumption, and easy installation make this a top choice for various drivers. From the everyday driver, car and styling enthusiasts to drivers of leased and electric vehicles. The range and power of the Nuuk E-Line add a whole new level of comfort and safety to any drive, improving visibility and reaction time. It’s E-approved R149 with reference number 2x20 and is suitable for European roads where a double light source is required. Nuuk E-Line Duo is covered by Strands’ unique 3-year warranty. The durable materials and IP68/69K IP rating ensure a long-lived product and lasting customer satisfaction.
