NUUK D-LINE LED BAR 20″ COMPLETE KIT

Suitable Kia PV5 Cargo
SKU: MAK52504514A
RRP: €0 (Excl. tax)
Buy in store Buy in USA
Manual Product sheet

Upgrade Your KIA PV5: High-Performance Lighting

Elevate your driving experience with the Strands Lighting LED Bar, specifically designed for a seamless fit on the new KIA PV5. This is the ultimate lighting solution for drivers who demand power without compromising their vehicle’s integrity.

Why this is the perfect choice for your PV5:

  • Leasing-Friendly: The innovative license plate mount means zero modifications to your vehicle. No drilling, no cutting, and no permanent changes—simply remove it when your lease is up!

  • Daylight Performance: Experience incredible visibility with 9,600 actual lumen, throwing a crisp beam reaching 1 lux at 492 meters.

  • Reliability Guaranteed: Built to last with a 3-year warranty from Strands, a leader in premium automotive lighting.

  • Sleek Integration: Designed to complement the modern aesthetics of the KIA PV5 for a “factory-installed” look.

Technical Specifications:

  • Output: 9,600 Lumens

  • Range: 1 lux @ 492m

  • Warranty: 3 Years

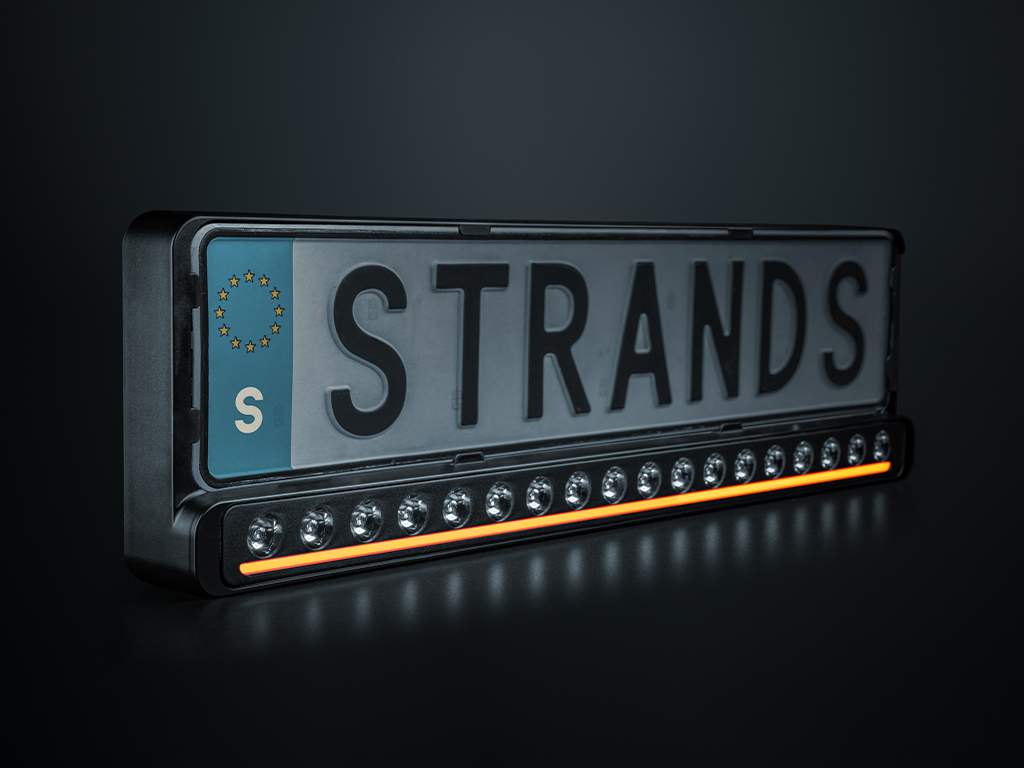

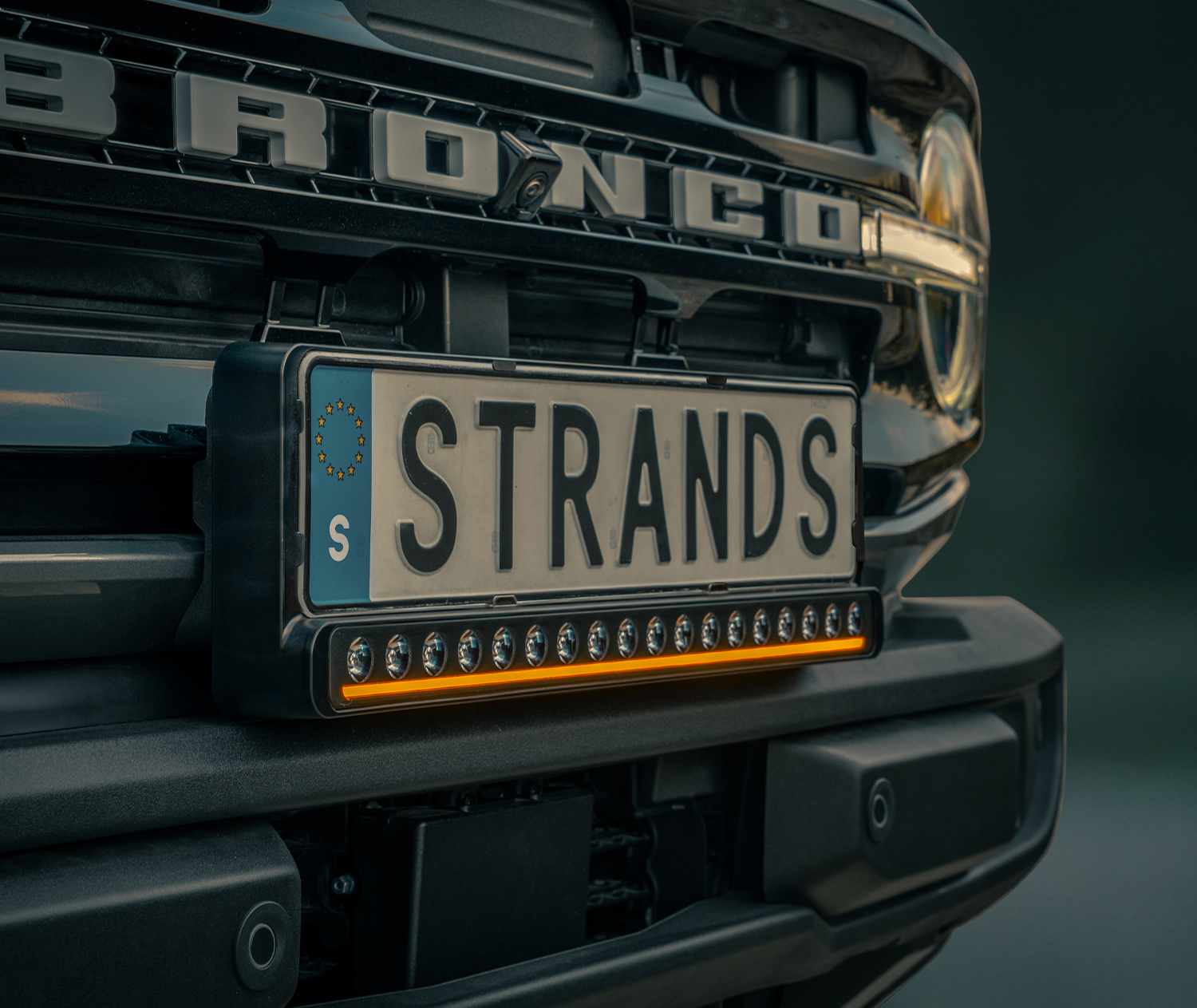

  • Installation: License plate bracket with built in ledbar

    • Unit Pack
    • Voltage 9-35V DC
    • Theoretical effect 129W
    • Consumption 124,0W
    • Functions High beam, Amber and white position light
    • Consumption specific function Xperience mode:124W / E-mode:32W / White Pos:8,8W / Amber Pos:8W
    • Theoretical lumen 12999lm
    • Actual lumen E-mode:3300lm / Xperience mode:9599lm
    • 1 lux @ E-mode:291m / Xperience mode:491m
    • Color temperature 5000K
    • Beam pattern Optimized beam
    • Connection Cable
    • Cable length 2499mm
    • Color housing Black
    • Color lens Black
    • Material bracket Plastic
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length 544mm
    • Depth 51mm
    • Height 162mm
    • Weight 1,9kg
    • IP-class IP68/69K
    • Operating temperature -40 - +59°C
    • E-approved Yes
    • According to regulation ECE R148, R148
    • Reference number 19
    • EMC ECE R9
    • Black cable - (Negative)
    • Red cable + (Positive) with fuse box
    • White cable White Position light
    • Yellow cable Amber Position light
    • Green cable + (on/off signal line for high beam)

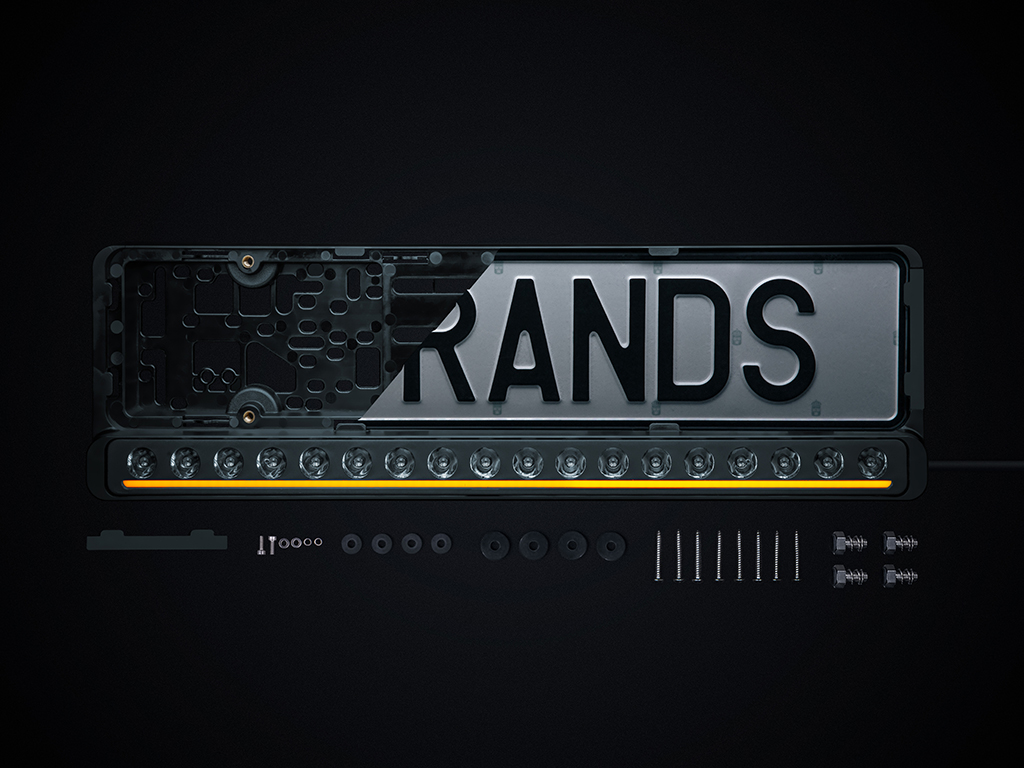

    • Included in package LED bar , Licence plate Holder and Accessories (No canbus included)
    • Gross weight 3,8kg
    • Volume 0,005m³
    • Warranty 3 Years
    • PCS in master carton 1pcs

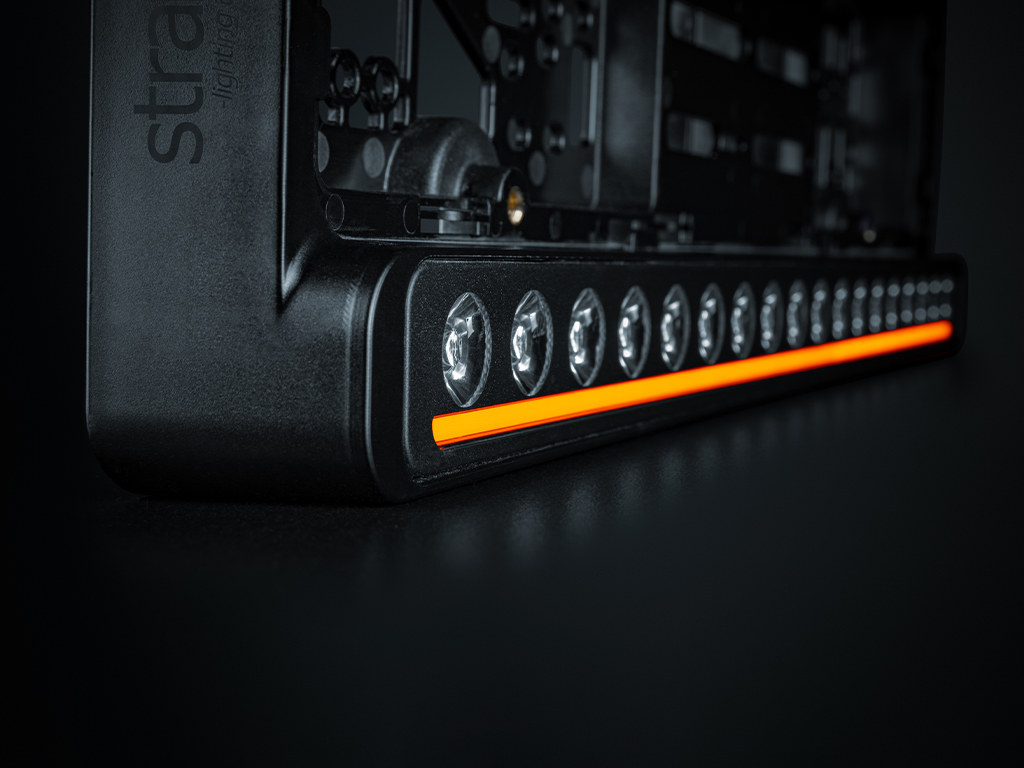

New black lens

Contemporary design

Embrace simplicity, elegance, and safety. The new Nuuk D-Line LED bar is inspired by the design of modern vehicles. Its clean, contemporary lines and dark lens blend seamlessly wherever you install it. It’ll fit even in the narrowest places thanks to the slim fit and 4,5 cm height (including the bracket). The duo-color position light in white and amber adds an attention-grabbing touch, underlining the dark look of the housing and lens. The glowing line is a stylish statement. Any driver can achieve increased safety and visibility with 10”-40” LED bar models, Xperience mode, and optimized or extended beam patterns. The increased sight ahead will improve your reaction time when encountering animals or other difficulties on the road.

Perfect match for any driver

As a retailer, you’ll find that the Nuuk D-Line series is a good fit for any customer looking for a compact and stylish LED bar. Thanks to the slim housing and variety of sizes, drivers of cars, LCVs, and trucks can all find a D-Line to fit their needs. The E-approved mode is suitable for European roads. With the Xperience mode, the output gets a massive boost that is suitable for the darkest nights. The Nuuk D-Line is covered by Strands’ market-leading 3-year warranty, providing guaranteed peace of mind for yourself and your customers. For any questions regarding warranty, installation, and use, our expert support team is ready to provide professional customer care.

Everything is included

An LED bar shouldn’t just be easy to use; it needs to be easy to install. That’s why the Nuuk D-Line has a built-in relay and cable harness. It’s slim and lightweight, which makes it easy to place. You’ll also find everything you need for installation included in the package: side and hanging brackets, screws, bolts, nuts, washers, 3 pcs dura seal, and silicone pads. The 2,5 m cable ensures plenty of reach, and it’s used with 9-36 V.

Benefits of Xperience mode

The Nuuk D-Line was developed with design and ease-of-use foremost in mind. We wanted to achieve a single-row LED bar with flawless contemporary lines and design that is lightweight and easy to install. The beam pattern should be superb and perfectly tailored to boost the high beam, adding range and brightness. We added the Xperience mode, a powerful feature, so you can adapt quickly to changing weather conditions. The E-mode dramatically improves the range of the built-in high beam and is E-approved R148/149, suitable for European roads or driving in rainy or snowy weather, lessening the glare from water particles.
