Strands Lighting Division

BIG ENERGY DRIVING LIGHT 9″ EB

SKU: 270977
RRP: €149 (Excl. tax)

Choose variant

BIG ENERGY DRIVING LIGHT 9″ EB

RRP: €149 (Excl. tax)
SKU: 270977
Chosen

Big Energy driving light 9″

RRP: €149 (Excl. tax)
SKU: 270976
Choose
Buy in store Buy in USA
Manual Product sheet

Get ready to be blown away by this supernova of brightness. The Big Energy extended beam driving light packs a ton of energy and will improve the range of your high beam. It produces an extended beam with more than 10700 lumens in a slim and surprisingly light package, making it perfect for cars or LCVs.

This new extended beam driving light has a confident look and powerful energy and will improve visibility under dark conditions. Even with limited space, it will be easy to install and use. Its weight is reduced by effectively combining cutting-edge technology and high-quality materials. This makes the Big Energy extended beam driving light an excellent choice for any driver and is also available with an optimized beam (Part. No. 270976).

The extended beam has a range of more than 640 meters and will provide a powerful addition to your headlight. With more than 10700 lumens and a color temperature of 6500K, you can count on the Big Energy extended beam driving light to guide you through the darkest nights. Choose between the white or amber position lights to achieve your desired look.

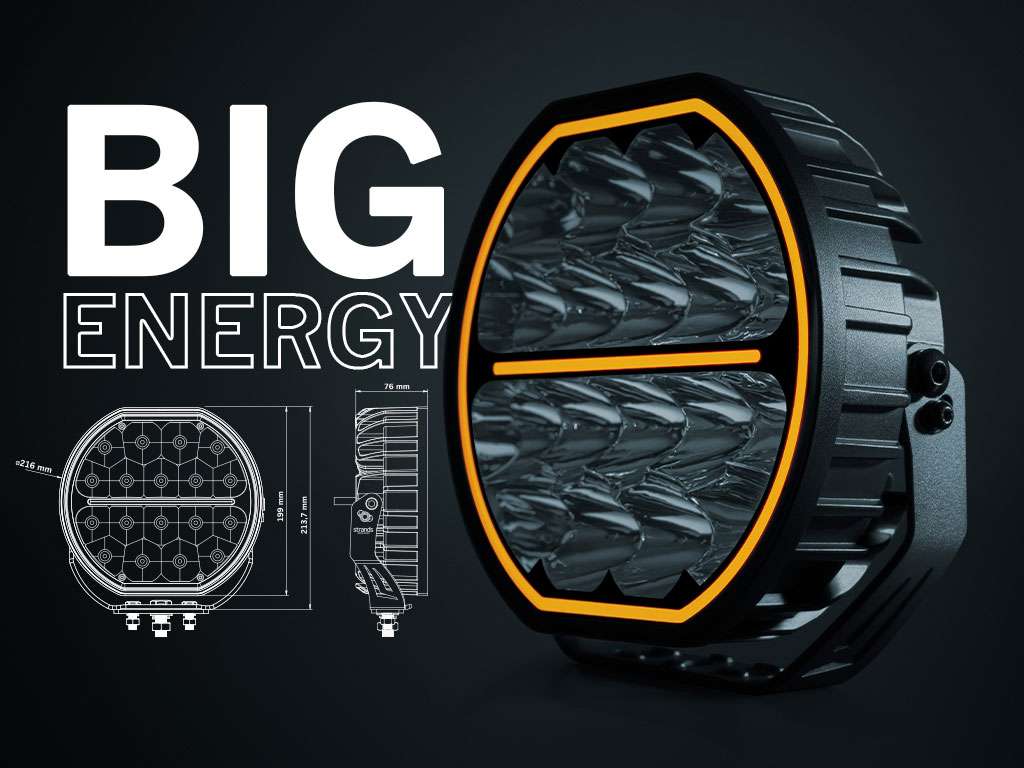

The size and weight of the Big Energy extended beam driving light make it easy to place and install. It has a 1000 mm cable with a DT-4 connector for easy installation. The slim design (216x76x199 mm excl. bracket) makes it a good fit for cars or LCVs. Made from aluminum and polycarbonate and certified IP67/IP69K, it will be a durable addition to your vehicle.

The Big Energy extended beam driving light is packed with power to increase visibility and boost your vehicle’s look. It will withstand rough weather and rugged use, and Strands Lighting Divisions’ 3-year functional warranty guarantees a long-lived product that won’t disappoint you. The slim design and durable materials suit many drivers, vehicles, and uses.

    • Type of Lamp LED
    • PCS LED´s 18
    • Voltage (V DC) 10-32V DC
    • Theoretical effect (w) 12V 126
    • Theoretical effect (w) 24V 126
    • Consumption (w) 12V 104
    • Consumption (w) 24V 105
    • Functions Driving light, Amber+White position light
    • Theoretical lumen 12600
    • Actual lumen 10700
    • 1 LUX @ m 644
    • Kelvin 6500K
    • IP-class 67/69K
    • Color housing Black
    • Color lens Clear
    • Color LED´s Amber & White
    • Beam pattern Extended Beam
    • Position light Yes

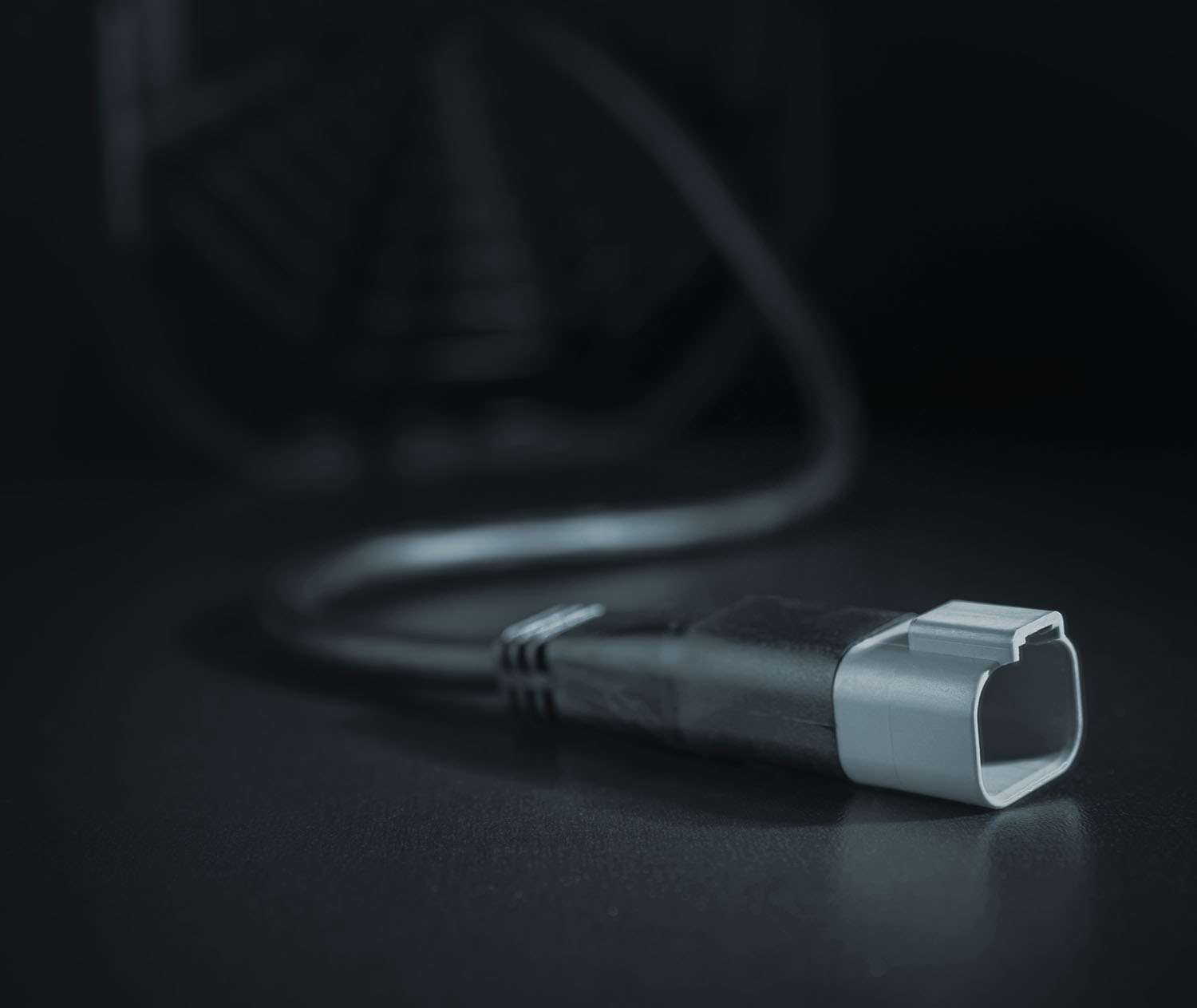

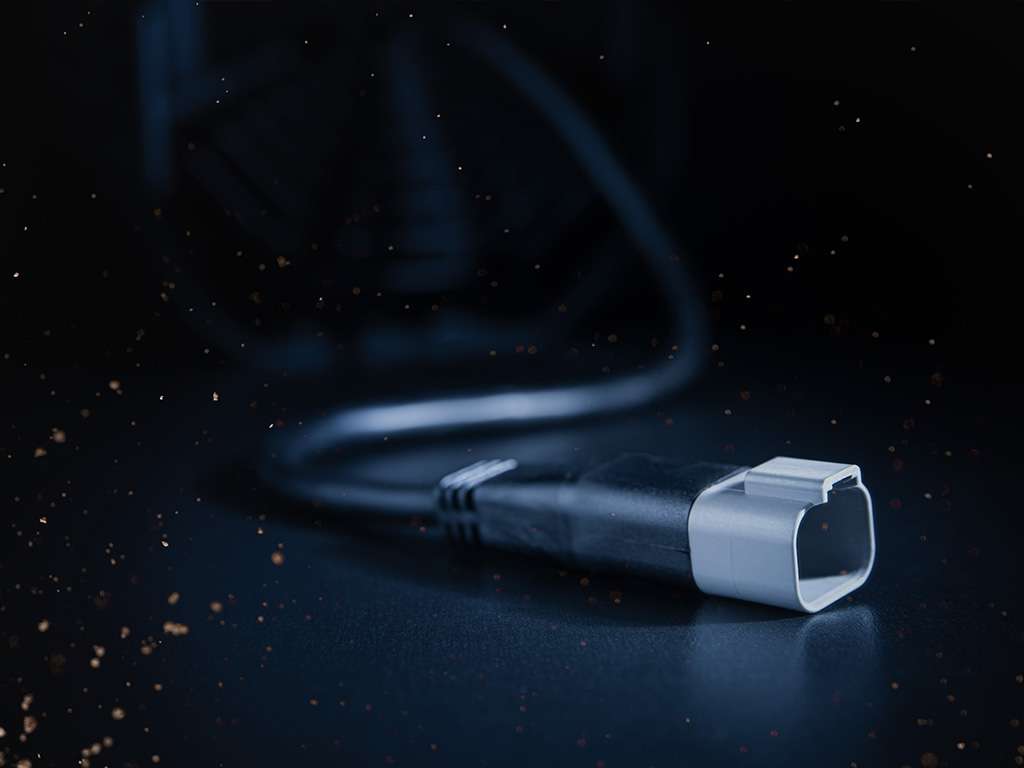

    • Connection DT-4
    • Cable length (mm) 1000
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) 216
    • Depth (mm) 76
    • Height (mm) 199
    • Height including bracket (mm) 213,7
    • Operating temperature -35 - +60°C
    • ADR-approved No
    • E-approved No
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + Positive
    • White cable White position light
    • Yellow cable Amber position light
    • Length inner box (mm) 290
    • Height inner box (mm) 275
    • Depth inner box (mm) 140
    • Weight (kg) 2,7
    • PCS in master carton 6
    • Length master carton (mm) 568
    • Height master carton (mm) 306
    • Width master carton (mm) 454
    • Weight master carton (kg) 17
    • Taric code 8512000
    • EAN 7323030190200

SUPERNOVA OF BRIGHTNESS

A powerful extended beam packed with energy

The Big Energy extended beam driving light is packed with more than 10700 actual lumens, producing a powerful extended beam with a range of more than 640 meters. With a color temperature of 6500K, you will get a strong and clear light output.

Light and easy to install, it is a perfect fit for cars and LCVs

The slim and light design (216x76x199 mm excl. bracket) makes it easy to place and install even with limited space. This makes the Big Energy extended beam driving light an excellent option for cars, LCVs, and any driver wishing to improve visibility under dark conditions.

10700 lumens and dual position light

With 10700 powerful lumens and a slim design, the Big Energy extended beam driving light is full of brightness and a given choice for many situations and uses. Choose between white or amber position lights to achieve the look you want.

Durable and delivered with a 3-year functional warranty

Made from durable aluminum and unbreakable polycarbonate, the Big Energy extended beam driving light can withstand rough weather and hard use. IP-class IP67/IP69K and Strands Lighting Divisions’ 3-year functional warranty guarantees a long-lived product that won’t disappoint you.
