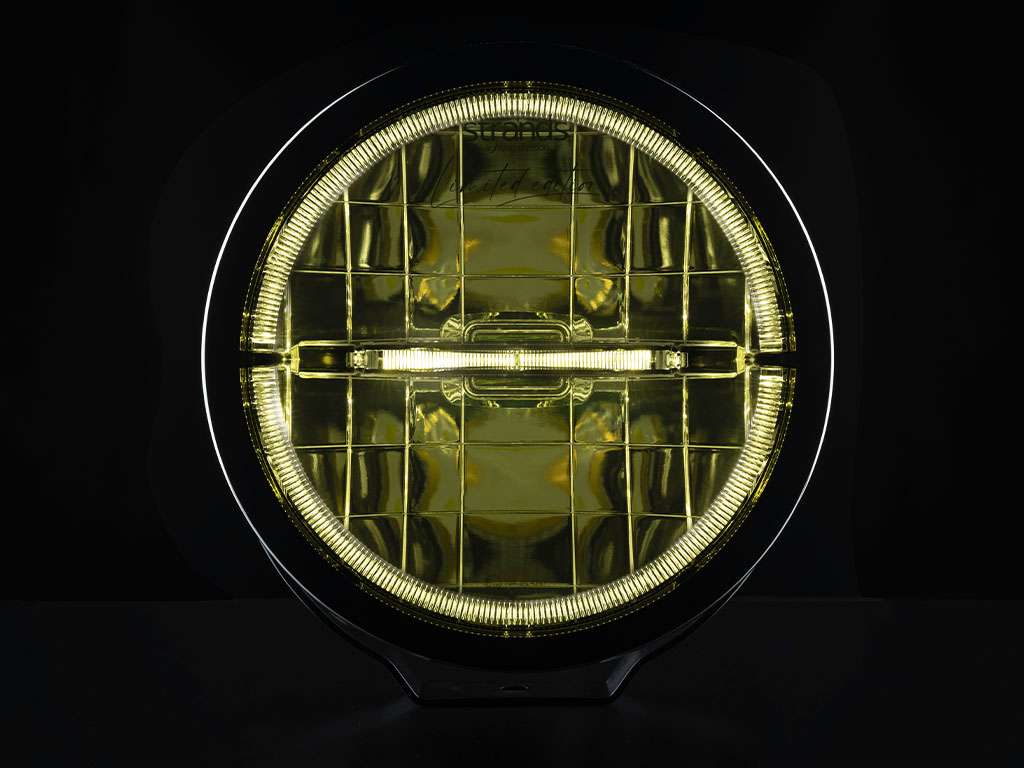

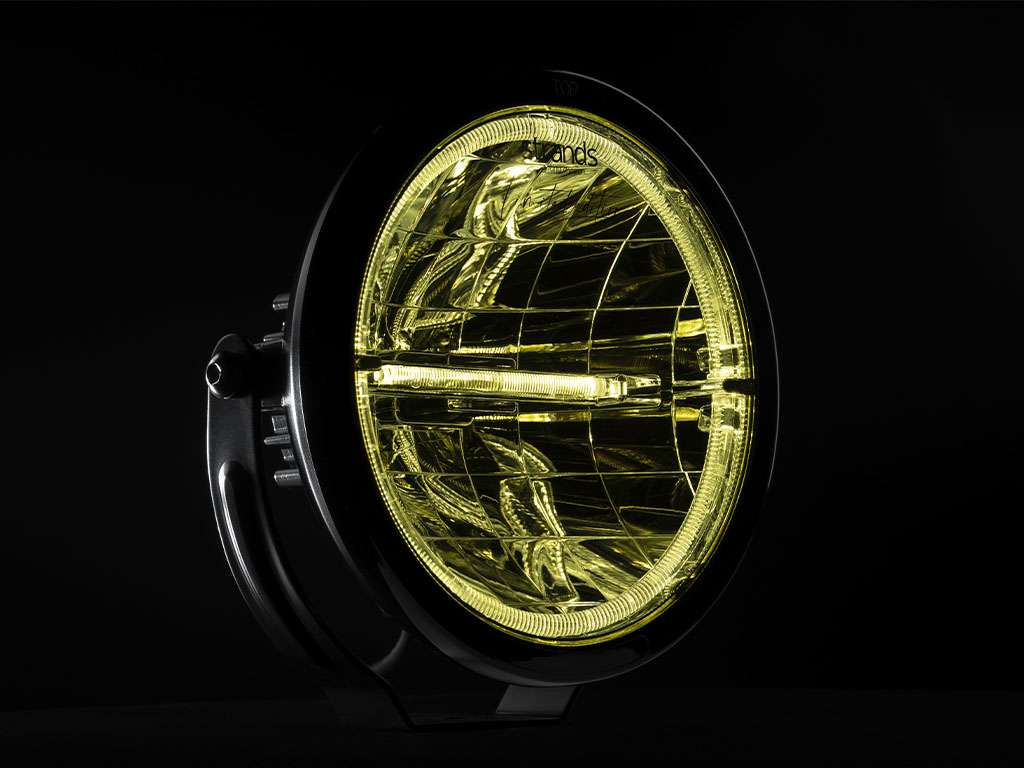

AMBASSADOR LIMITED EDITION 9″ LED

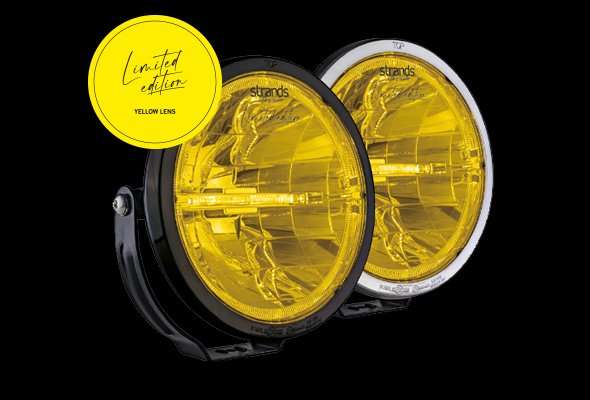

With high demand after we launched the original Ambassador with clear lens, we are now launching a limited edition of Ambassador Limited Edition, which comes with a yellow lens and two different colors on the frame / ring. Choose between black or chrome. Both colors are included. Choose the color that suits you and your vehicle best. Ambassador Limited Edition is a high-quality driving light that surpasses anything you have seen before. The components are specifically designed for Ambassador with the aim of ensuring quality and function. The driving light is designed in Sweden and manufactured in Europe.Ambassador is perfect for you who want to give your vehicle an exclusive look, a spot beam that exceeds the normal and a quality that meets high expectations.Gives you 1 lux at 643 meters.
- Type of Lamp LED
- PCS LED´s 8
- Voltage (V DC) 10-32V DC
- Consumption (w) 12V 67W - high beam, 2,5W position light
- Consumption (w) 24V 67W - high beam, 2,5W position light
- Theoretical lumen 5535
- Actual lumen 3879
- 1 LUX @ m 643
- Kelvin 4300
- IP-class 66/68
- Colour housing Black
- Colour lens Yellow
- Colour LED´s White and amber
- Beam pattern Spot
- Connection Cable
- Cable length (mm) 3000
- Material bracket Steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate

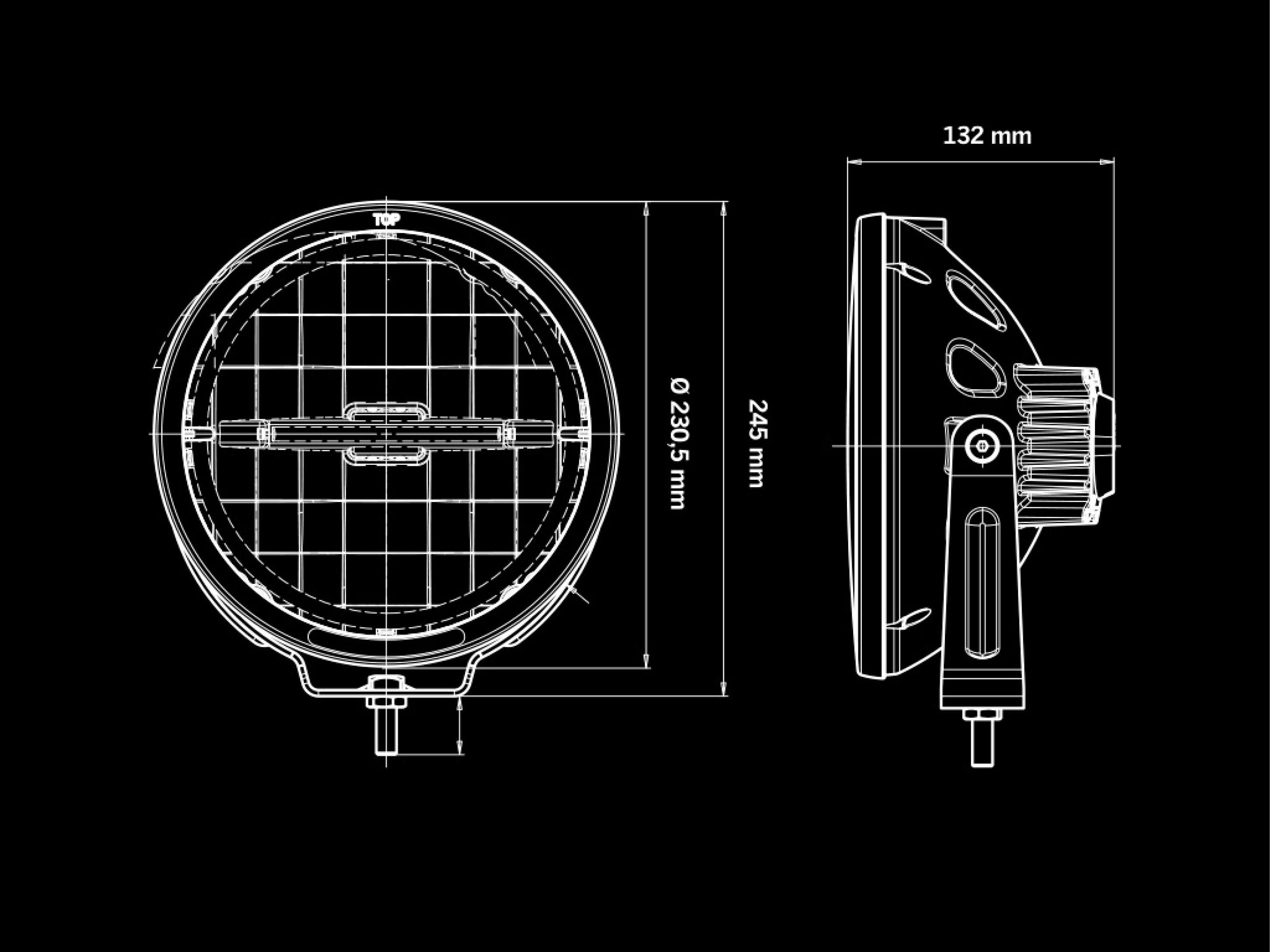

- Depth (mm) 132
- Height including bracket (mm) 245
- Diameter (mm) 230,5
- Operating temperature -40 - +40°C
- ADR-approved No
- E-approved No
- EMC ECE R10
- 1 LUX at (m) for 1 unit 644,2049363
- 1 LUX at (m) for 2 units 911,0433579
- 1 LUX at (m) for 3 units 1115,79568
- 1 LUX at (m) for 4 units 1288,409873
- 1 LUX at (m) for 5 units 1440,486029
- 1 LUX at (m) for 6 units 1577,973384
- 1 LUX at (m) for 7 units 1704,406055
- 1 LUX at (m) for 8 units 1822,086716
- 1 LUX at (m) for 9 units 1932,614809
- 1 LUX at (m) for 10 units 2037,154879
- Black cable White position light
- Red cable + Positive
- White cable - Negative
- Yellow cable Amber position light
- Mounting details included Top stabilizer (stainless steel), screws, washers
- Length inner box (mm) 140
- Height inner box (mm) 280
- Depth inner box (mm) 280
- Weight (kg) 2,4
- PCS in master carton 3
- Length master carton (mm) 420
- Height master carton (mm) 320
- Width master carton (mm) 340
- Weight master carton (kg) 7,71
- Country of origin Poland
- Taric code 85122000
- EAN 7323030185329
