Strands Lighting Division

AMBASSADOR 9″ DRIVING LIGHT LED

SKU: 270922
RRP: 365.30 (Excl. tax)

Choose variant

AMBASSADOR 9″ DRIVING LIGHT LED

RRP: 365.30 (Excl. tax)
SKU: 270922
Chosen

AMBASSADOR LIMITED EDITION 9″ LED

RRP: 405.70 (Excl. tax)
SKU: 270924
Choose

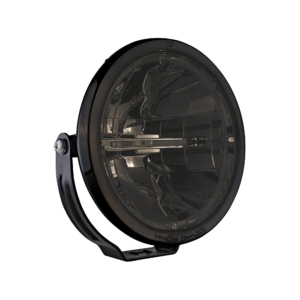

AMBASSADOR DARK EDITION 9″ DRIVING LIGHT LED

RRP: 383.60 (Excl. tax)
SKU: 270925
Choose

Ambassador, our next flagship driving light, is as the namensuggests, very powerful. It is developed for you who demand the abslolute best light beam – it exceeds everything you have seen and literally turns night into day on a long distance. The LED-chip is customized to meet the highest standard possible. With Ambassador you get uniqe components, which you can not find anywhere else. It is designed in Sweden and assembled in Europe to ensure the perfect light experience.

    • Type of Lamp LED
    • PCS LED´s 8
    • Voltage (V DC) 10-32V DC
    • Consumption (w) 12V Driving light: 70,2, position light: 1,5
    • Consumption (w) 24V 57,2, position light: 1,5
    • Theoretical lumen 5535
    • Actual lumen 4040
    • Kelvin 6250
    • IP-class 68
    • Color housing Black
    • Color lens Clear
    • Color LED´s White/Amber
    • Beam pattern Spot
    • Position light Yes, amber and white
    • Connection Cable
    • Cable length (mm) 3000
    • Material bracket Steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Depth (mm) 132
    • Height including bracket (mm) 245
    • Diameter (mm) 230,5
    • Operating temperature -40°C - +45°C
    • ADR-approved No
    • E-approved No
    • EMC ECE R10
    • Black cable White position light
    • Red cable + Positive
    • White cable - Ground
    • Yellow cable Amber position light
    • Mounting details included Top stabilizer (stainless steel)
    • Length inner box (mm) 140
    • Height inner box (mm) 280
    • Depth inner box (mm) 280
    • Weight (kg) 2,4
    • PCS in master carton 3
    • Length master carton (mm) 420
    • Height master carton (mm) 320
    • Width master carton (mm) 340
    • Weight master carton (kg) 7,71
    • Country of origin Poland
    • Taric code 85122000

EXPRESS YOUR PERSONALITY

The position light has a duo function, choose between white or orange.

RESISTANT TO MOISTURE

At the back are so-called “breathers”, breathing valves from Nitto Denko. A function that keeps the lamp’s indoor climate in the best condition. Moisture is transported away from the lamp, but no moisture enters. * When painting a house, the lamp valves need to be protected and covered to maintain the breathing function.
