Strands Lighting Division

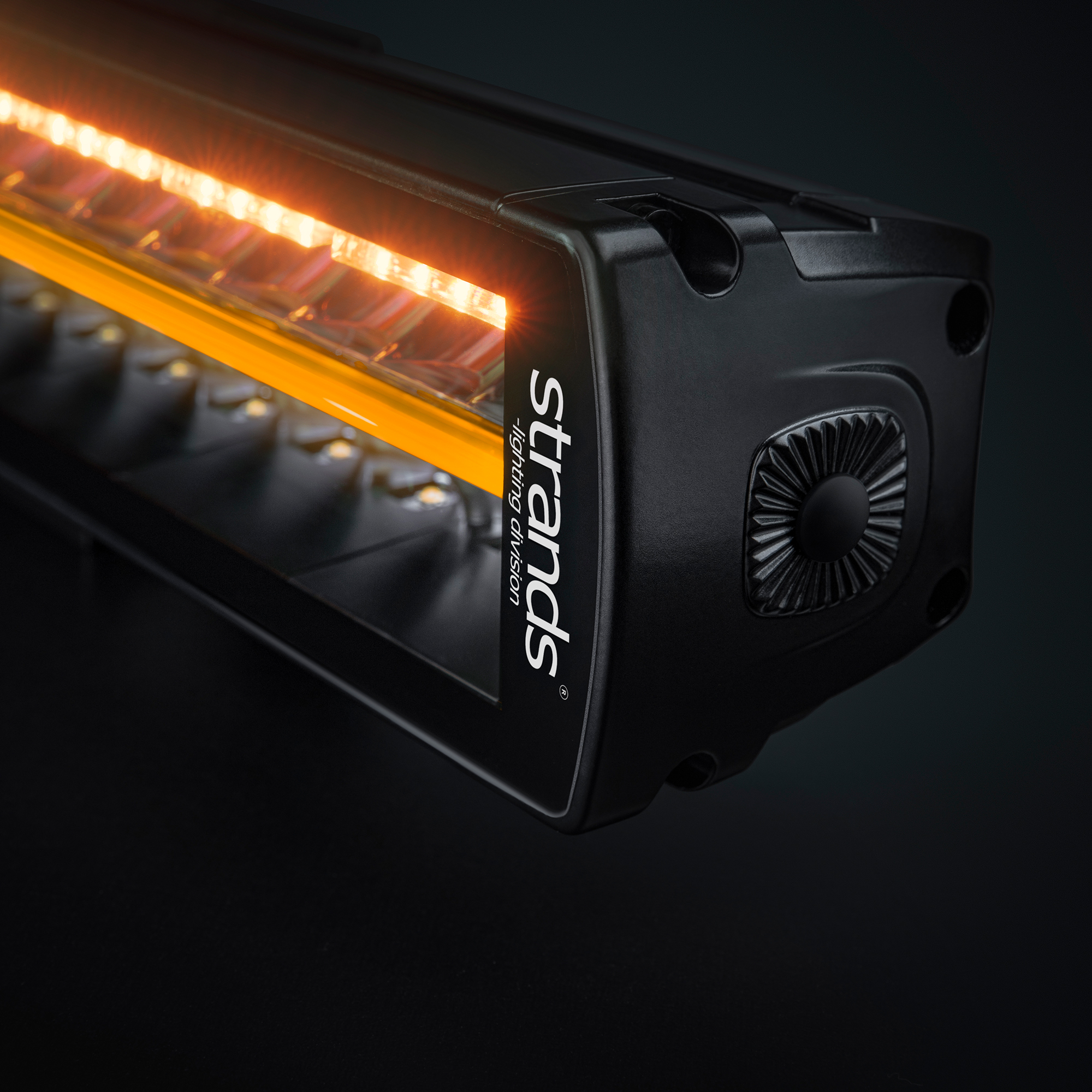

Strands YETI Side Shooter LED Bar 24″

SKU: 809149
RRP: €323.70 (Excl. tax)
Buy in store Buy in USA
Manual

THE LOOK OF GROUNDBREAKING The inspiration comes from the pioneers in the automotive industry – which is visible in both design and function.nThis is a combined work light and a warning light, in the shape of a LED bar. The lens is made in unbreakable polycarbonate and the housing is in aluminum. The robust design and flexible mounting options with sliding brackets, makes it a perfect solution for heavy duty, construction and agriculture vehicles.

    • Type of Lamp LED
    • PCS LED´s 40pcs*5w OSRAM LEDS+8pcs*OSRAM 3030 LEDs+8pcs 3030 amber LEDs
    • Voltage (V DC) 9-32V DC
    • Theoretical effect (w) 12V 120
    • Theoretical effect (w) 24V 120
    • Consumption (w) 12V 103
    • Consumption (w) 24V 95
    • Patterns 1
    • Functions Work light Warning light Heated lens
    • Theoretical lumen 12320
    • Actual lumen 7286
    • 1 LUX @ m 205
    • Kelvin 6000
    • IP-class 69K
    • Color housing Black
    • Color lens Clear
    • Color LED´s White/Amber
    • Beam pattern Flood
    • Position light No
    • Connection Cable
    • Cable length (mm) 970
    • Material bracket Alu firm bracket
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) 610
    • Depth (mm) 63
    • Height (mm) 78,5
    • Height including bracket (mm) 97
    • Operating temperature -30°C - +65°C
    • ADR-approved No
    • E-approved No
    • EMC ECE R10
    • Length inner box (mm) 715
    • Height inner box (mm) 125
    • Depth inner box (mm) 115
    • Weight (kg) 3,65
    • PCS in master carton 6
    • Length master carton (mm) 730
    • Height master carton (mm) 275
    • Width master carton (mm) 380
    • Weight master carton (kg) 23,2
    • Taric code 85122000
    • EAN 7323030182816
