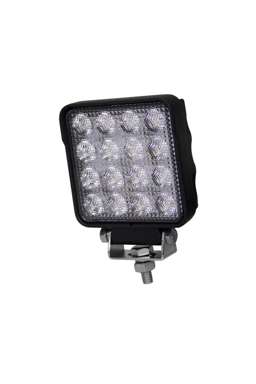

STRANDS WORK LIGHT LED SQUARE 25W, 9-32V DC, IP67/69K
Our new unique series of working lamps requires less power. Our traditional 48w is replaced by 809517 that now demands a smaller amount of power, but provide more lumen. Instead of 48W it now consumes only 25W. The new manufacturing technique reduces the power consumption with near 50%.We always present you with the theoretical and the real (actual) lumen for our work lights. Due to the fact that we use first class diodes we can deliver working lights that surpasses today’s standards.Our lamps are very slim and crave less space for mounting. The housing is smaller which make the lamp less exposed to wear and tear and provides an easier installation process for the customer. The lamps are fully radio interference free (EMC-approved). They are also R10, IP67 and IP69K approved. 809517 Is also E-approved as a reversing light with over 2000 lumen which makes this lamp totally unique.
- Unit pcs
- Voltage 10-32V DC
- Theoretical effect 48W
- Consumption 25W
- Theoretical lumen 4320lm
- Actual lumen 2200lm
- Color temperature 6000K
- Beam pattern Combo
- Connection Cable
- Cable length 520mm
- Color housing Black
- Color lens Clear
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length 108mm
- Depth 48mm
- Height 139mm
- Weight 1,0251kg
- IP-class IP67/69K
- Operating temperature -30 - +65°C
- E-approved Yes
- According to regulation ECE R23
- EMC ECE R10
- Length inner box 120mm
- Width inner box 65mm
- Height inner box 150mm
- Gross weight 1,139kg
- Volume 0,038m³
- Warranty 3 Years
- Length master carton 345mm
- Width master carton 320mm
- Height master carton 260mm
- Weight master carton 16,5kg
- PCS in master carton 20pcs
