Strands Lighting Division

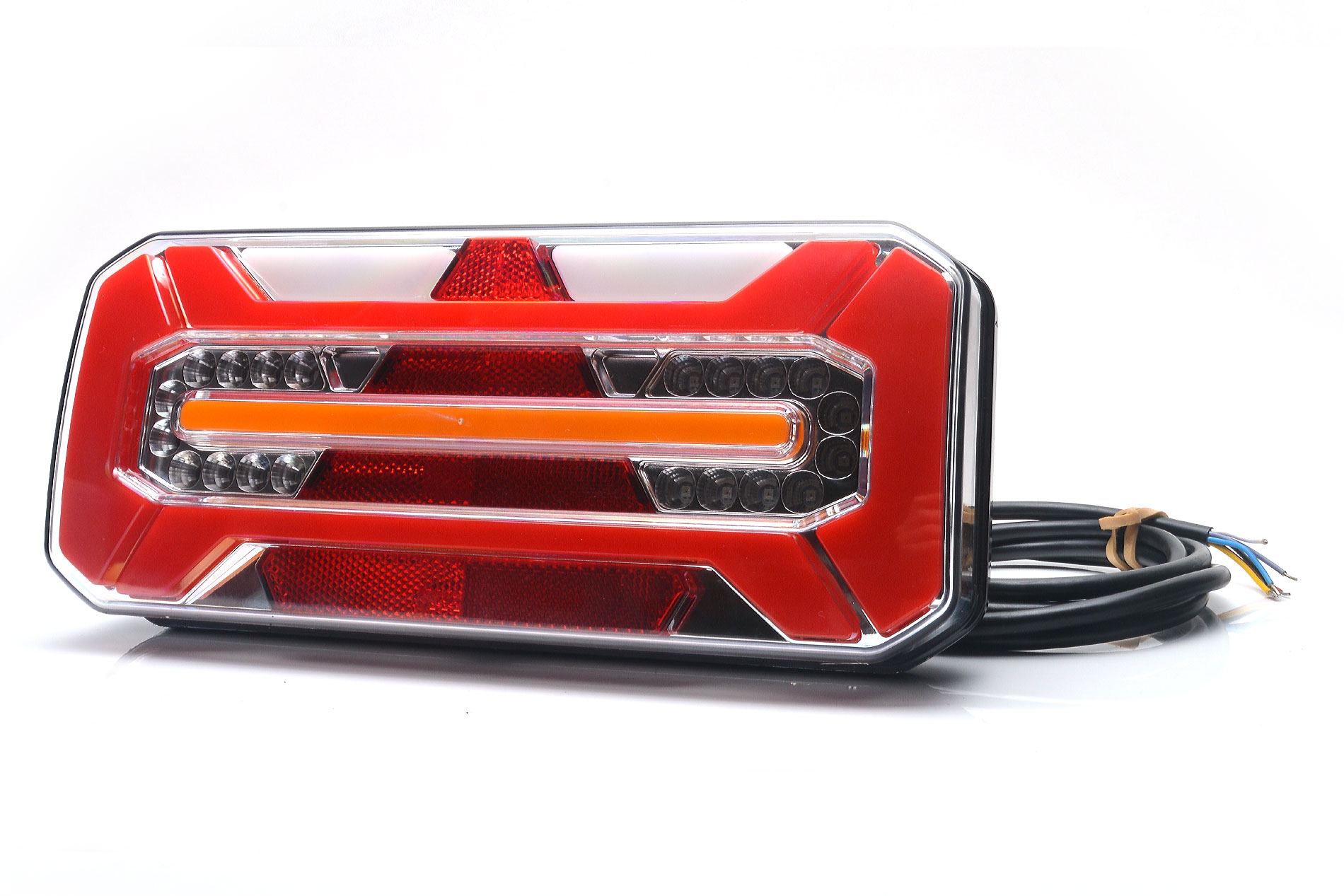

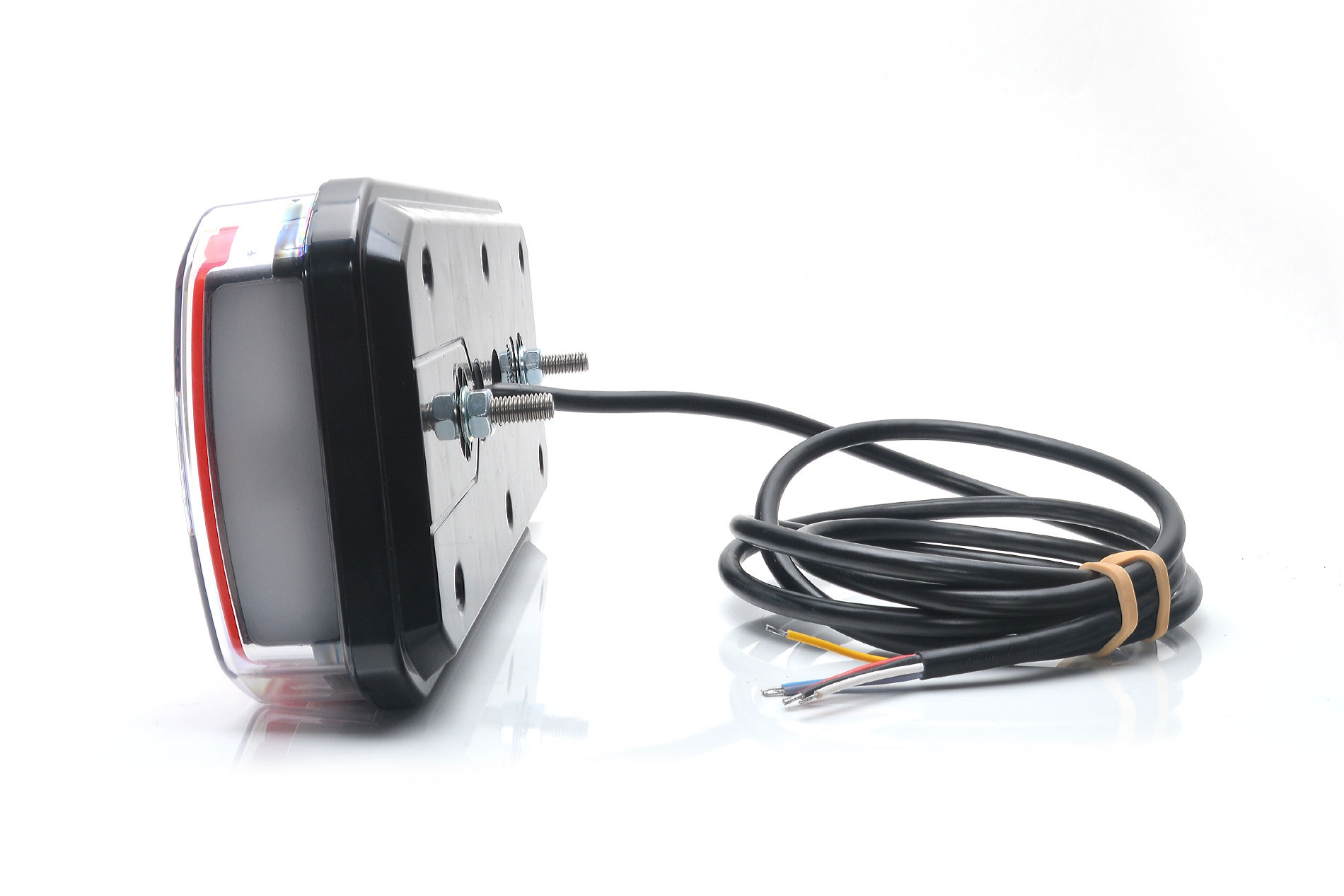

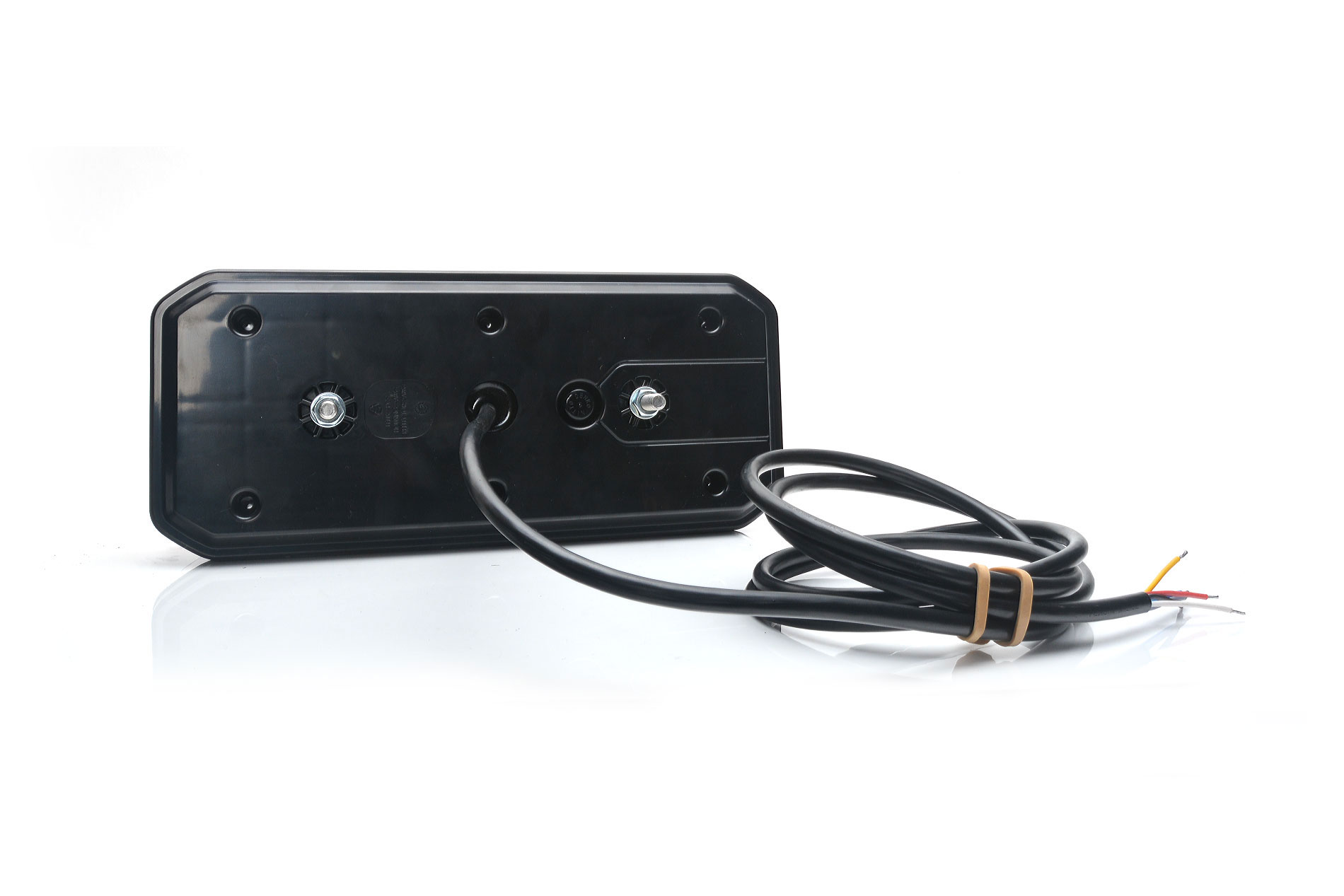

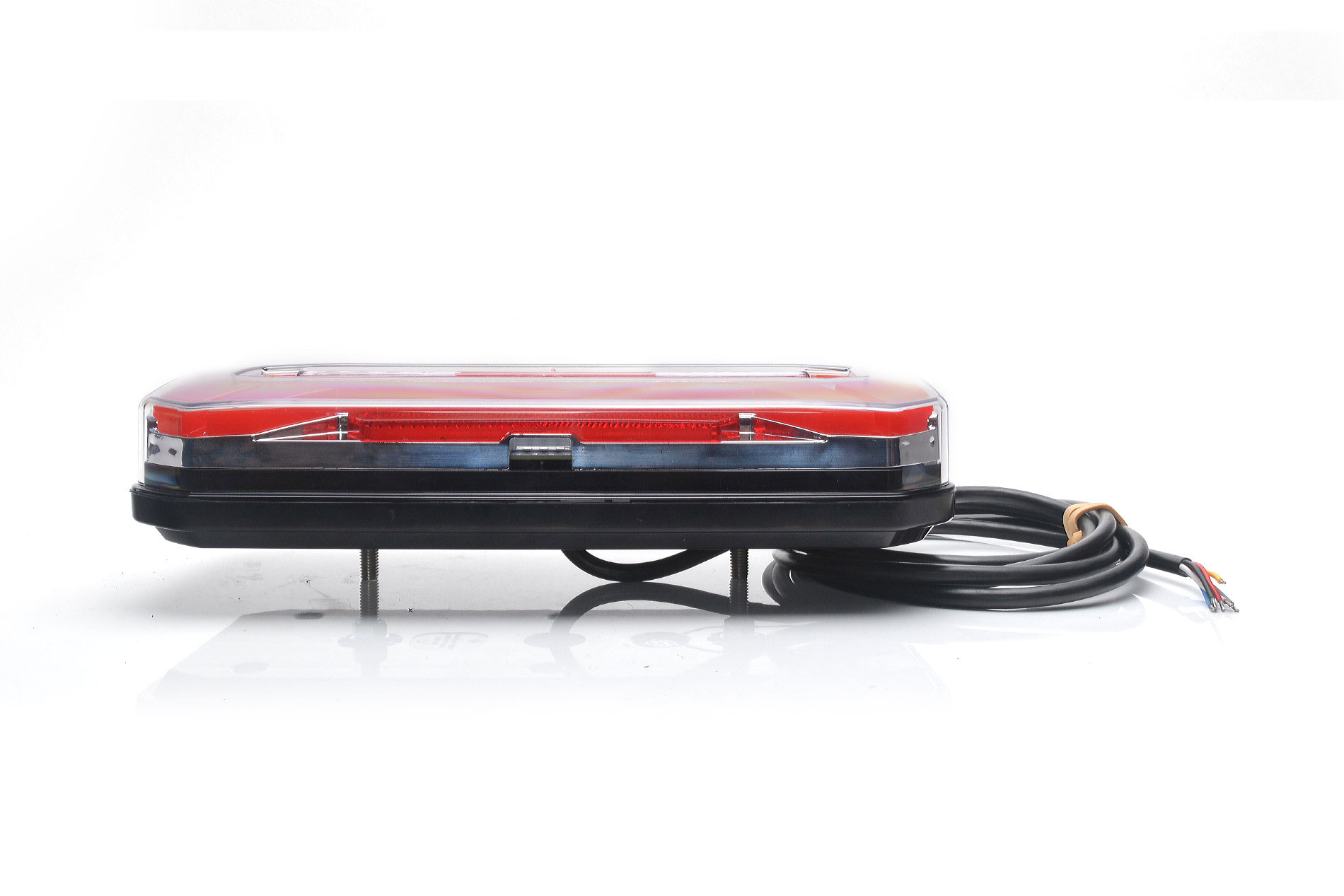

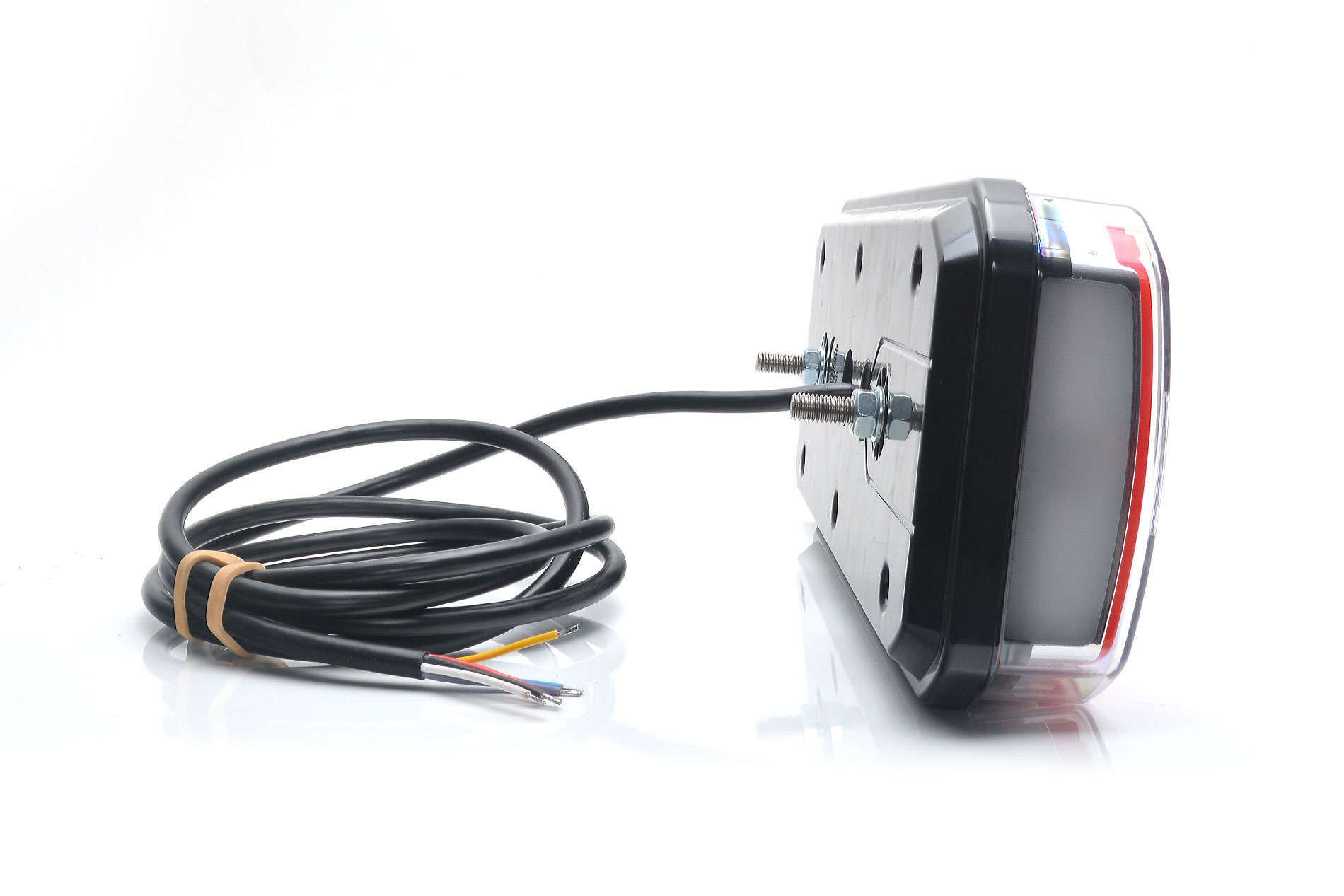

Strands Tail light 5 func. LED – Right

SKU: 800537
RRP: €217.60 (Excl. tax)
Buy in store Buy in USA
    • Type of Lamp LED
    • PCS LED´s 92
    • Voltage (V DC) 12-24V DC
    • Theoretical effect (w) 12V Reverse-4,5; position-1,27; dynamic indicator-10,6 W; STOP-1,25 W; fog-1,6 W;
    • Theoretical effect (w) 24V Reverse-4,5; position-2,54; dynamic indicator-10,6 W; STOP-1,25 W; fog-1,6 W;
    • Consumption (w) 12V Reverse-4,5; position-1,27; dynamic indicator-10,6 W; STOP-1,25 W; fog-1,6 W;
    • Consumption (w) 24V Reverse-4,5; position-2,54; dynamic indicator-10,6 W; STOP-1,25 W; fog-1,6 W;
    • Functions Tail, brake, reverse, fog, dynamic indicator
    • IP-class 66/68
    • Colour housing Black
    • Colour lens Clear
    • Colour LED´s White, Red
    • Connection Cable
    • Cable length (mm) 2000
    • Material housing/chassi ABS
    • Material lens PC
    • Length (mm) 306
    • Depth (mm) 60,6
    • Height (mm) 133
    • CC (mm) 150
    • Operating temperature -35°C - +45°C
    • ADR-approved No
    • E-approved Yes
    • According to regulation R23, R7, R6, R38, R3
    • EMC ECE R10
    • Length inner box (mm) 320
    • Height inner box (mm) 152
    • Depth inner box (mm) 100
    • Weight (kg) 1,3
    • PCS in master carton 6
    • Length master carton (mm) 410
    • Height master carton (mm) 300
    • Width master carton (mm) 330
    • Weight master carton (kg) 9
    • Country of origin Poland
    • Taric code 85122000
