Strands Lighting Division

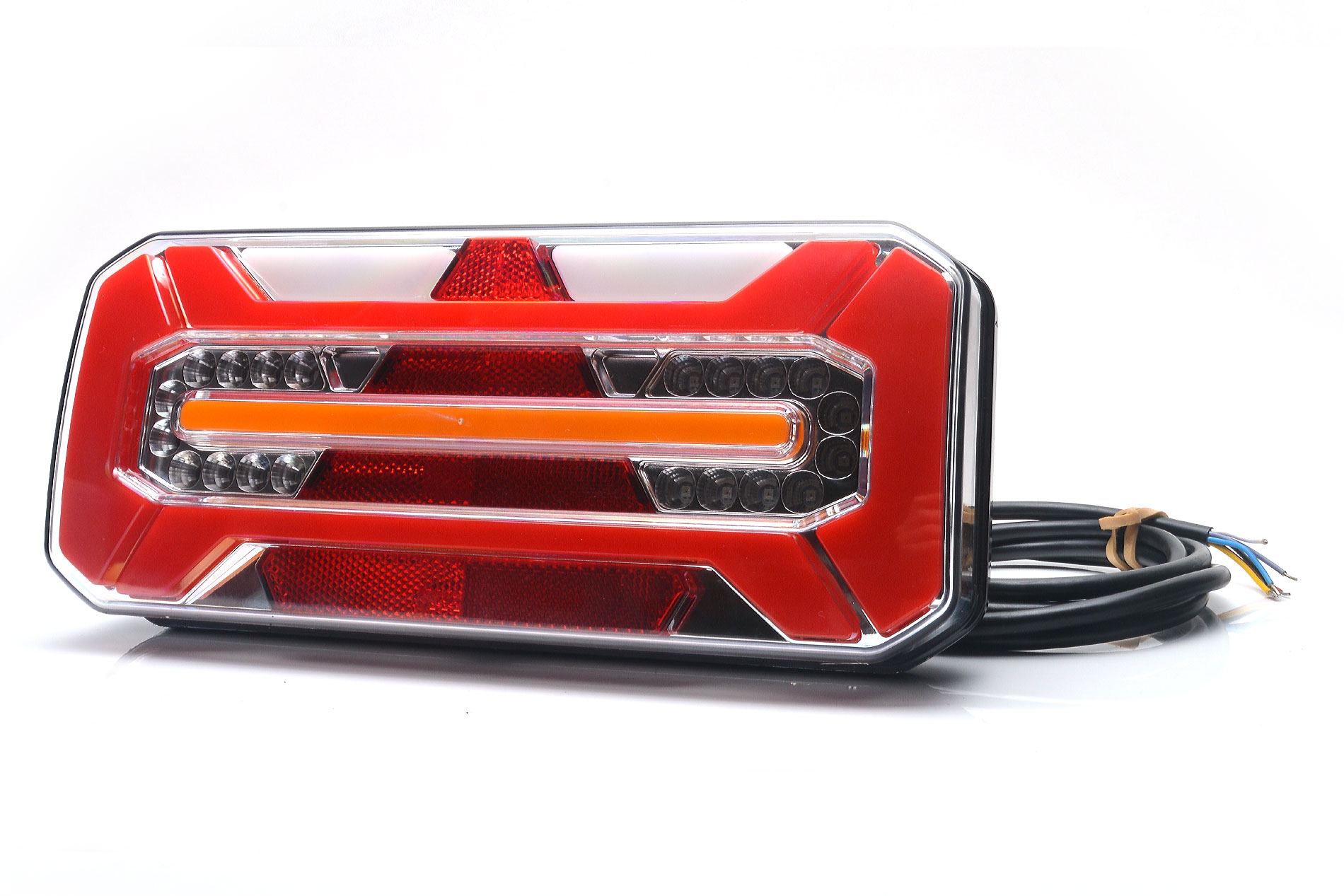

STRANDS TAILLIGHT 5 FUNCTION LED – RIGHT, 12-24V DC, DYNAMIC FLASHING, IP66/68

SKU: 800537
RRP: €223.60 (Excl. tax)
Buy in store Buy in USA
    • Unit pcs
    • Voltage 10-32V DC
    • Theoretical effect Reverse-4,5; position-2,54; dynamic indicator-10,6 ; STOP-1,25 ; fog-1,6 ;W
    • Consumption Reverse: 4,5W / position: 2,54W / dynamic indicator:10W / stop: 1,25W / fog: 1,6W
    • Functions Tail, brake, reverse, fog, dynamic indicator
    • Connection Cable
    • Cable length 2000mm
    • Color housing Black
    • Color lens Clear
    • Color LED´s White/Red
    • Material housing/chassi ABS
    • Material lens Polycarbonate
    • Length 306mm
    • Depth 60,6mm
    • Height 133mm
    • CC 150mm
    • Weight 1,17kg
    • IP-class IP66/68
    • Operating temperature -35 - +45°C
    • E-approved Yes
    • According to regulation ECE R3, R6, R7, R23, R38
    • EMC ECE R10
    • Length inner box 320mm
    • Width inner box 100mm
    • Height inner box 152mm
    • Gross weight 1,3kg
    • Volume 0,004m³
    • Warranty 3 Years
    • Length master carton 410mm
    • Width master carton 330mm
    • Height master carton 300mm
    • Weight master carton 9kg
    • PCS in master carton 6pcs
