Strands Lighting Division

STRANDS 3 FUNC. TAILLIGHT ROUND 140MM

Tail/Indicator/Brake | 2M Cable
SKU: 800744
RRP: €28.60 (Excl. tax)
Buy in store Buy in USA

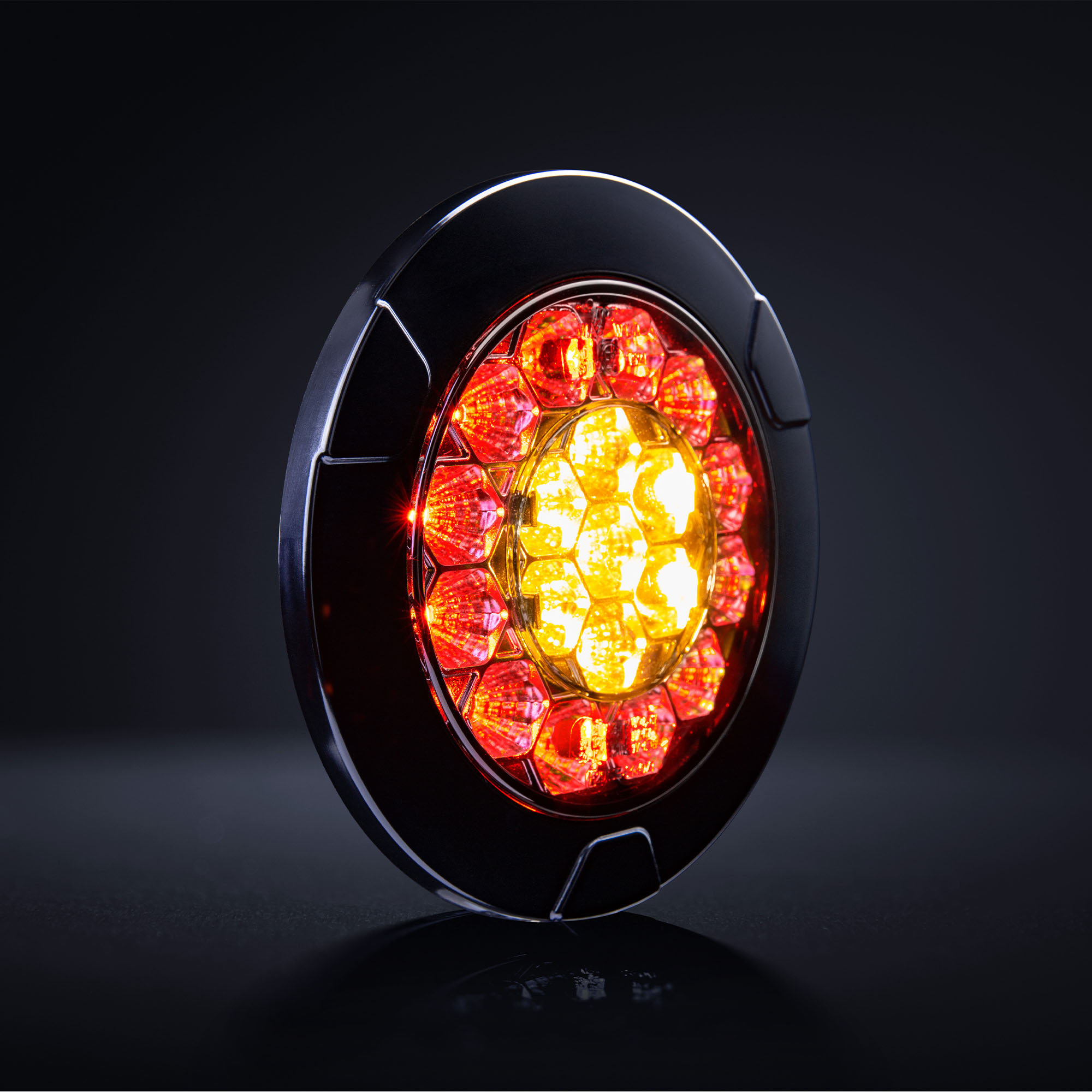

The Strands round tail light is a slim tail light with three functions, measuring only 25 mm in depth. It has a diameter of 140 mm, 45 mm CC, and is installed with a 2-meter cable. For an extra clean finish, it can be complemented with a chrome ring (Part No. 800746). It is both E-approved and D-approved, meaning it is approved for double mounting. The robust construction is IP-rated IP68 and built to withstand both road wear and corrosion.

    • Unit pcs
    • Voltage 12-24V DC
    • Functions Tail, brake, indicator
    • Consumption specific function Tail: 0,9W / Brake: 2,4W / Indicator: 1,7W
    • Connection Cable
    • Cable length 2000mm
    • Color housing Black
    • Color lens Red
    • Color LED´s Red/amber/white
    • Material housing/chassi Polycarbonate
    • Material lens Polycarbonate
    • Depth 25mm
    • Diameter 140mm
    • CC 45mm
    • Weight 0,364kg
    • IP-class IP66/68
    • Operating temperature -35 - +45°C
    • E-approved Yes
    • According to regulation ECE R6, R7
    • EMC ECE R10
    • Length inner box 140mm
    • Width inner box 90mm
    • Height inner box 150mm
    • Gross weight 0,405kg
    • Volume 0,0009m³
    • Warranty 3 Years
    • PCS in master carton 18pcs
