SIBERIA CABLE KIT PROFESSIONAL 3x DT
SIBERIA CABLE KIT PROFESSIONAL 1x DT
SIBERIA PRO HIGH POWER CABLE KIT 3x DT-CONNECTOR
SIBERIA CABLE KIT HIGH POWER PROFESSIONAL 4x DT

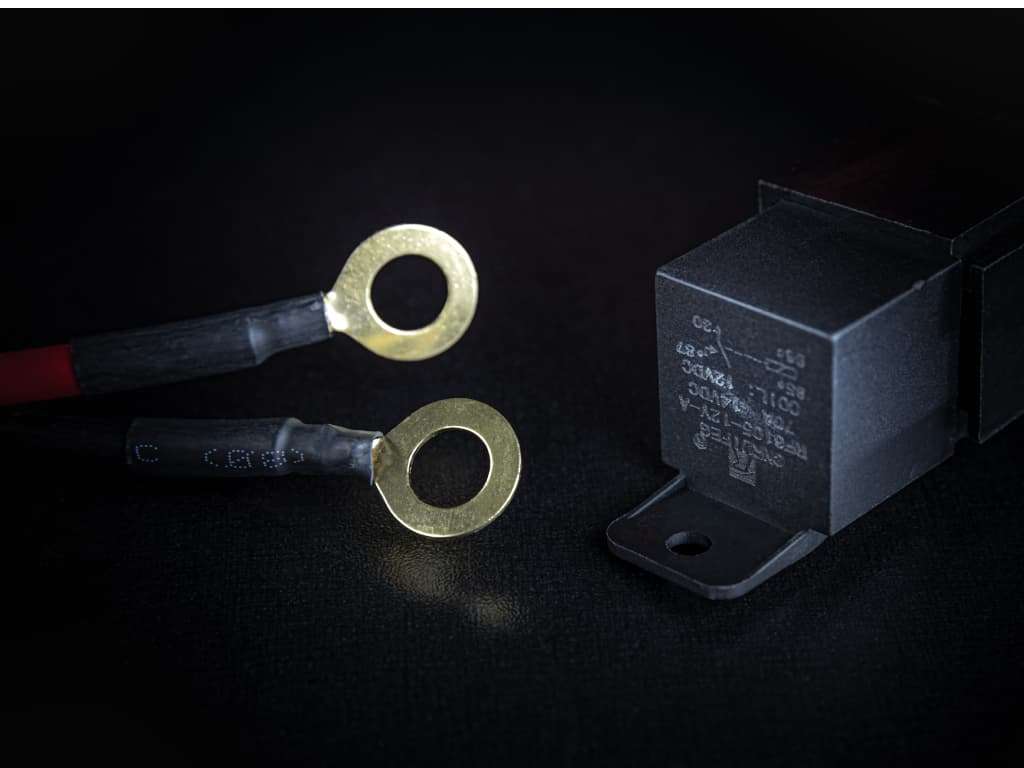

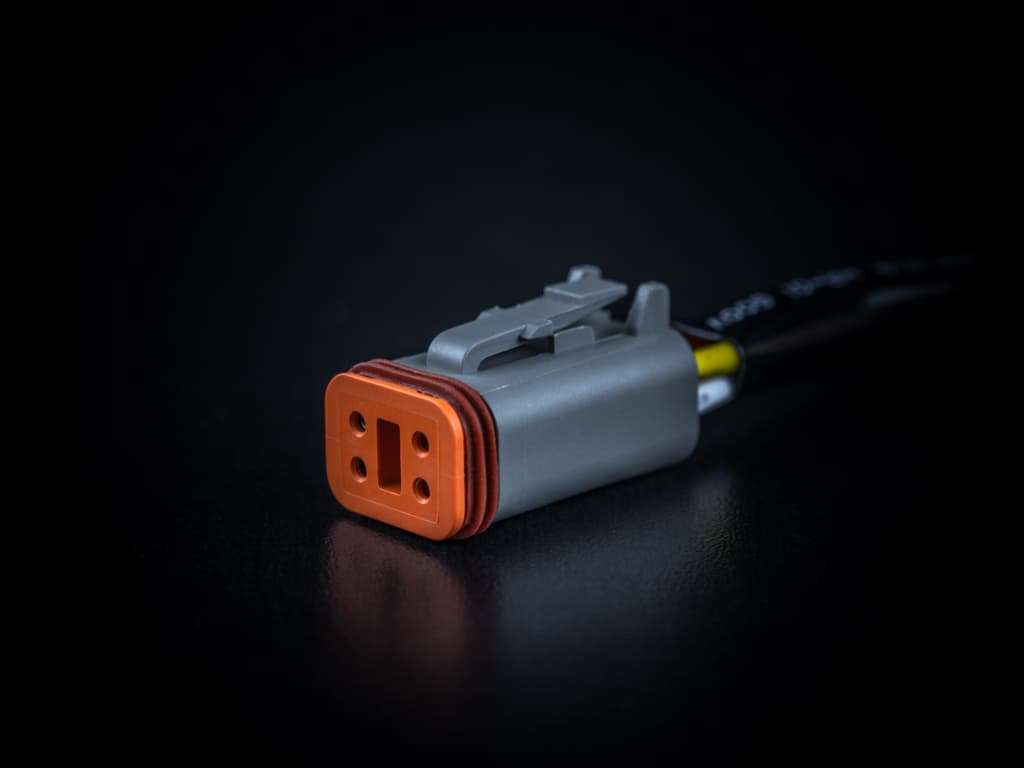

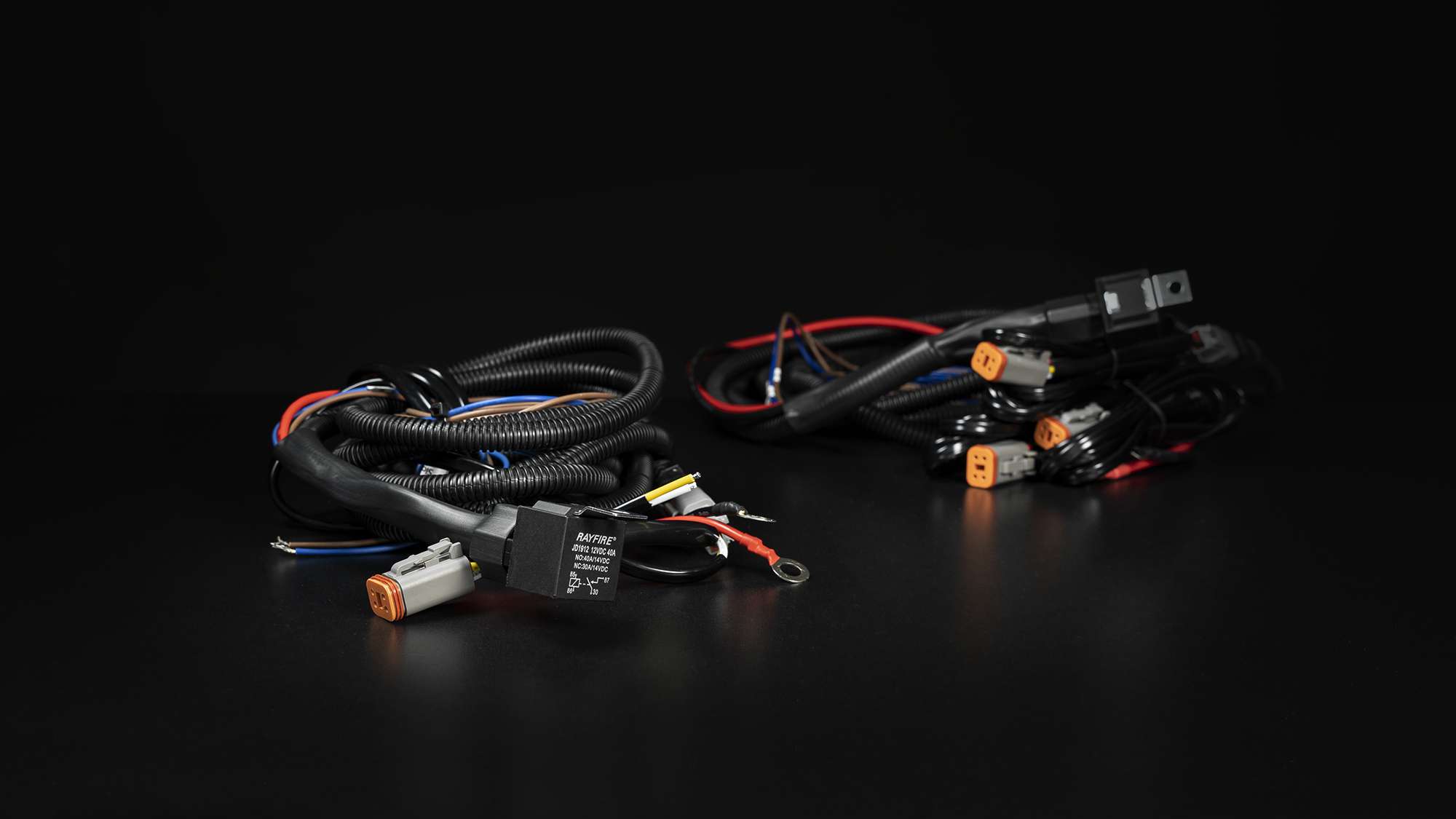

A professional cable set with 3x DT connector. Adapted for all our additional lights with a maximum consumption of 3x156W or a maximum of 480W if the DT connector is cut. Works great for connecting three extra lights/LED ramps. A fast, simple and professional installation. The Nordic climate creates both opportunities and dangers for the vehicle out on the roads. On the Siberia cable set pro 3x DT, a protective tube surrounds the cables and the DT connector to provide extra protection. Both a mechanical protection against impact and wear and against dirt and water. The signal cable (brown 86) is used to connect the relay with our Canbus Interface. If the car is not affected by Canbus, the signal is picked up directly from the car’s headlights with this cable. Siberia cable set professional 1x DT has more possibilities of use. Namely, Output 2 (blue 87A) is added, which is used to control another signal such as the position light on Siberia and the Dark Knight series. Output 2 is used when using XBB. From the cable kit comes a 2 pin DT connector and as both the Siberia and Dark Knight series use 4 pin DT connectors due to dual position lights it ships with an adapter cable to convert from 4 pin to 2 pin DT connector. On the adapter cable there are also two loose cables that are used to power the position light. The DT connector is only adapted for a consumption of 156W and if you are to connect more that consume more than 156W, this cable set can handle a total of up to a maximum of 480W if the DT connector is cut off. Can, for example, be used for 42″ and 52″ Siberia DR LEDBAR. Siberia cable set professional 3x DT makes it easy to carry out a professional installation. If you need to cut the cable for various reasons, you can easily do so. Because there are two watertight, shrinkable joint sleeves that make it possible to make a safe and tight closure afterwards and a hose clamp to reconnect the protective hose. But it is important that you cut at least 50 cm from the relay to ensure that the cable does not come into contact with any moisture. – For connecting lighting with both two-pole DT connector and four-pole DT connector. – Protective hose that protects against impact and wear as well as moisture and dirt. – Possibility to adjust the length of the cable, for a simpler and more attractive assembly. – An extra cable (blue 87A) for connection of, for example, XXB. To connect, for example, position lights.
