SIBERIA BR 9″,BUSH RANGER DRIVING LIGHT LED
Choose variant


SIBERIA NR 9″,NIGHT RANGER DRIVING LIGHT LED

SIBERIA NIGHT RANGER SPOT 9″

SIBERIA NRS 7″

SIBERIA NR 7″, NIGHT RANGER DRIVING LIGHT LED

SIBERIA BR 7″,BUSH RANGER DRIVING LIGHT LED

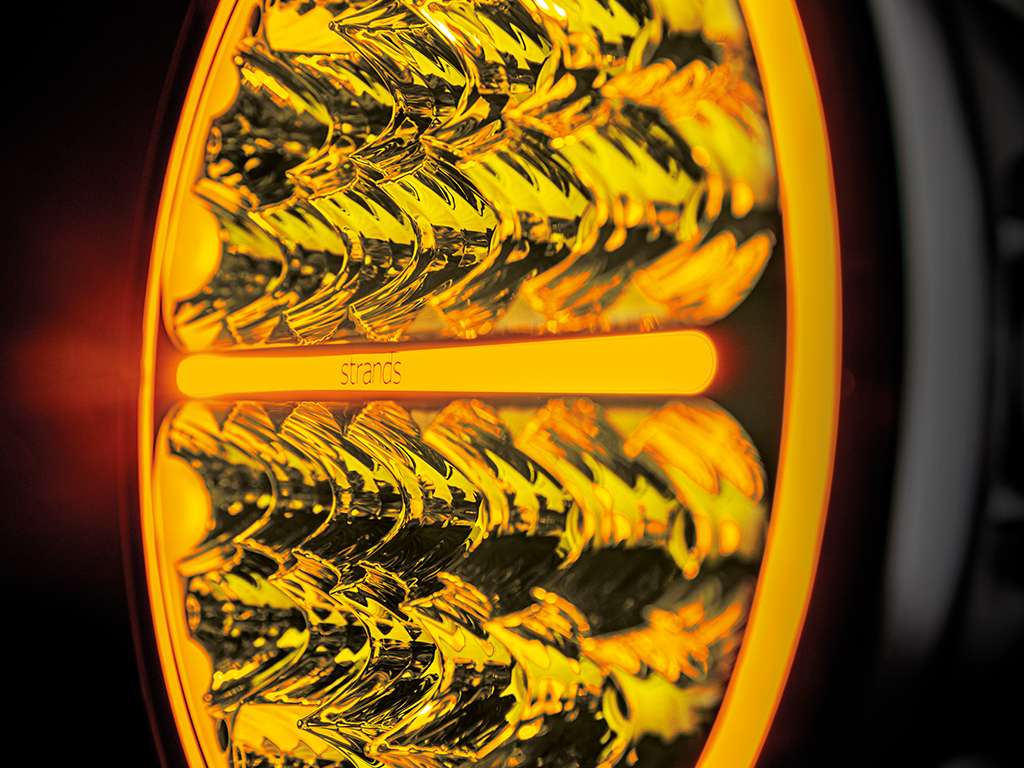

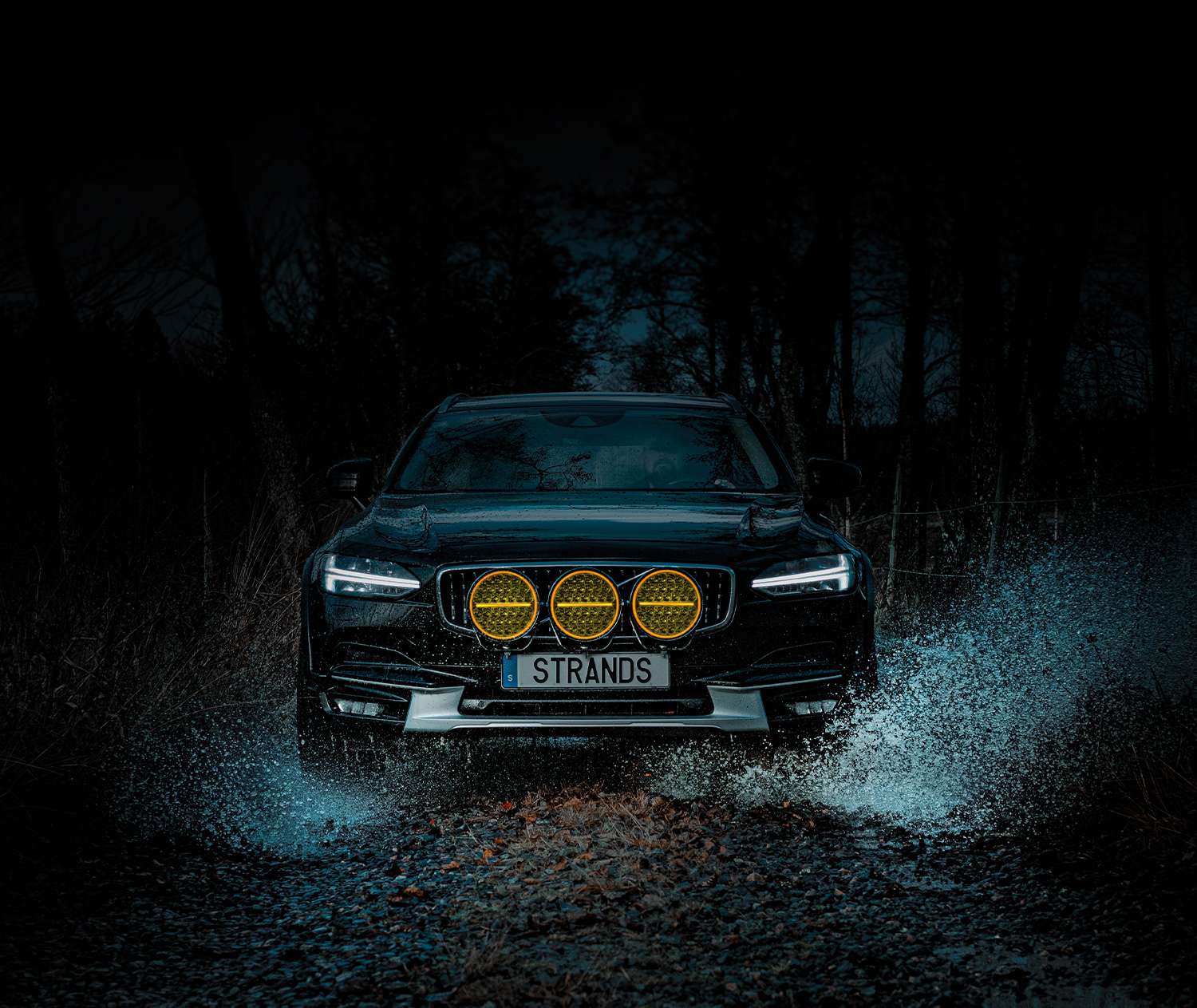

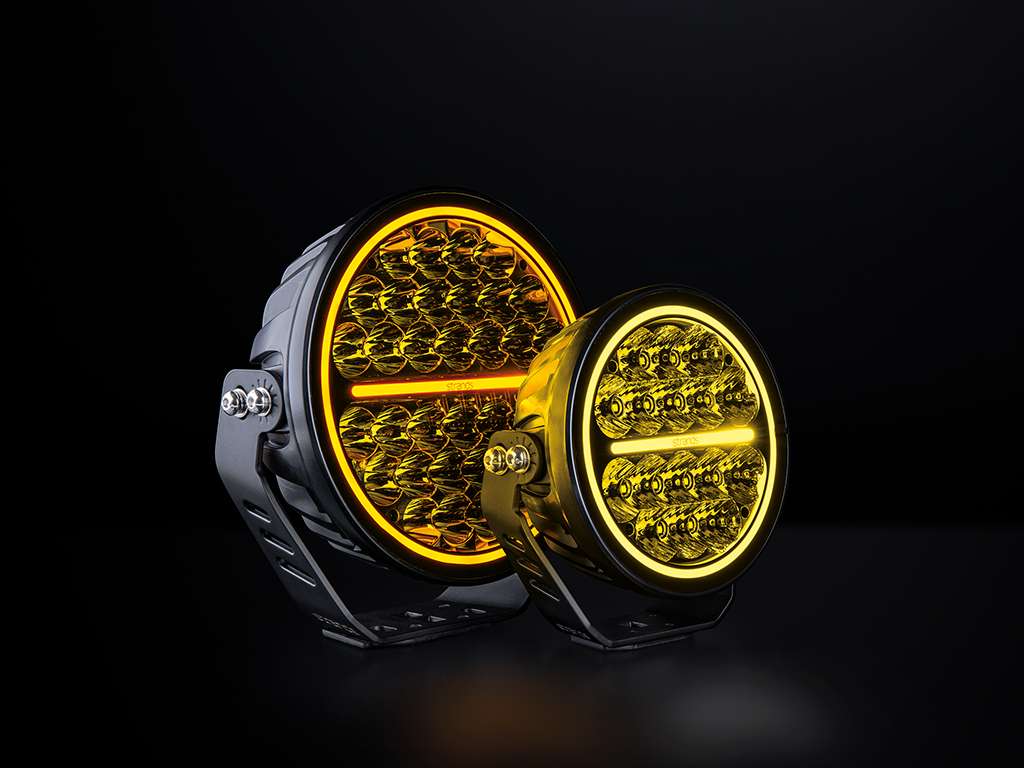

You wished more passion. We listened. We have taken the already extremely appreciated look and performance from our Siberia LED bar – and turned it into a driving light. Siberia BR, Bush Ranger, provides a driving experience which does not leave the driver untouched. The yellow lens makes it perfect for tough off-road driving, or for anyone that want to add a unique yellow look. A new Siberia family member that really boosts the appearance of your vehicle with a modern, raw design. Comes with a dual position light that gives you an outstanding light effect and an amazing appearance.We are yet again redefining the standards with passion in every detail – creating the ultimate representation of our brand spirit. Innovation, design and performance that you have never experienced before – with our three-year warranty standing behind it.Comes in two models – Bush Ranger (yellow lens), Night Ranger (clear lens). Each model available in both 7” and 9” each. – YELLOW LENS- DUAL POSITION LIGHT- OPTIMIZED LIGHT BEAM
- Type of Lamp LED
- PCS LED´s 34
- Voltage (V DC) 9-32V DC
- Theoretical effect (w) 12V 170
- Theoretical effect (w) 24V 170
- Consumption (w) 12V 145,3
- Consumption (w) 24V 144,6
- Theoretical lumen 20400
- Actual lumen 11515
- 1 LUX @ m 387
- Kelvin 3568
- IP-class 67/69K
- Colour housing Black
- Colour lens Yellow
- Colour LED´s White and amber
- Beam pattern Flood
- Position light Yes, amber and white
- Connection DT-4
- Cable length (mm) 500
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length (mm) 228,6
- Depth (mm) 86,7
- Height (mm) 228,6
- Height including bracket (mm) 249,3
- Diameter (mm) 228,6
- Operating temperature -30°C - +65°C
- E-approved No
- EMC ECE R10
- 1 LUX at (m) for 1 unit 386,5229618
- 1 LUX at (m) for 2 units 546,6260147
- 1 LUX at (m) for 3 units 669,4774081
- 1 LUX at (m) for 4 units 773,0459236
- 1 LUX at (m) for 5 units 864,2916175
- 1 LUX at (m) for 6 units 946,7840303
- 1 LUX at (m) for 7 units 1022,643633
- 1 LUX at (m) for 8 units 1093,252029
- 1 LUX at (m) for 9 units 1159,568885
- 1 LUX at (m) for 10 units 1222,292927
- Black cable - (Negative)
- Red cable + Positive
- White cable White position light
- Yellow cable Amber position light
- Mounting details included Screws, washers, bolts
- Length inner box (mm) 331
- Height inner box (mm) 287
- Depth inner box (mm) 160
- Weight (kg) 4
- PCS in master carton 4
- Length master carton (mm) 682
- Height master carton (mm) 595
- Width master carton (mm) 185
- Weight master carton (kg) 17,58
- Taric code 85122000
- EAN 7323030185343
