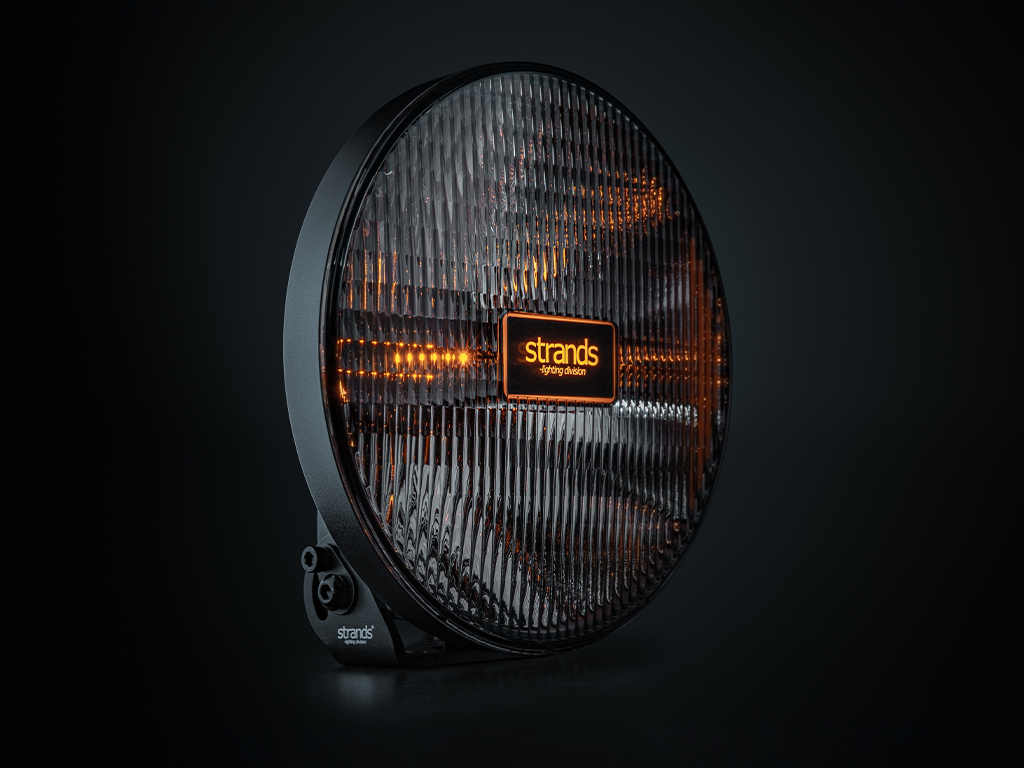

IZE LED OG DRIVING LIGHT 9″

White/Amber Pos.
SKU: 270945
RRP: €249 (Excl. tax)
Buy in store Buy in USA
Manual Product sheet

Modern power and old-school style. The IZE LED OG provides top-notch illumination with 12000 actual lumens and a 500-meter range in Xperience mode. The E-mode is E-approved R148/149 with reference number 20. It’s suitable for European roads and poor weather conditions, as it lessens glare from snow and rain. The extended beam pattern has a color temperature of 4500 K. A dual-color position light in white and amber creates a stunning old-school glow, just like in old times. The position light diodes are invisible when not used, so that you can enjoy the old-school design and expression of the lens. It’s inspired by the classic glass lenses but made from durable polycarbonate for modern quality. Thanks to the IP rating of IP68/69K, it can withstand both dirt and water. It’s covered by Strands’ 3-year warranty to guarantee a long lifespan.

    • Unit pcs
    • Voltage 12-36V DC
    • Theoretical effect 180W
    • Consumption E-mode: 30W / Xperience mode: 172W
    • Functions High beam, Amber and white position light
    • Consumption specific function White pos. light: 1W Amber pos. light: 1W
    • Theoretical lumen 13500lm
    • Actual lumen E-mode: 3220lm / Xperience mode: 12000lm
    • 1 lux @ E-mode: 273m / Xperience mode: 506m
    • Color temperature 4500K
    • Beam pattern Extended beam
    • Beam angle 33,2°
    • Connection Cable
    • Cable length 2500mm
    • Color housing Black
    • Color lens Clear
    • Color LED´s White/amber
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Depth 94,8mm
    • Height including bracket 225,4mm
    • Diameter 215mm
    • Weight 2,0kg
    • IP-class IP68/69K
    • Operating temperature -40 - +60°C
    • E-approved Yes
    • ADR-approved No
    • According to regulation ECE R148, R149
    • Reference number 20
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + (High-beam)
    • White cable White Position light
    • Yellow cable Amber Position light
    • Included in package Bracket, screws, bolts, nuts, washers, silicon pads
    • Length inner box 311mm
    • Width inner box 109mm
    • Height inner box 224mm
    • Gross weight 2,1kg
    • Volume 0,008m³
    • Warranty 3 Years
    • Length master carton 655mm
    • Width master carton 470mm
    • Height master carton 235mm
    • Weight master carton 19,5kg
    • PCS in master carton 8pcs

Always in style

Timeless retro design

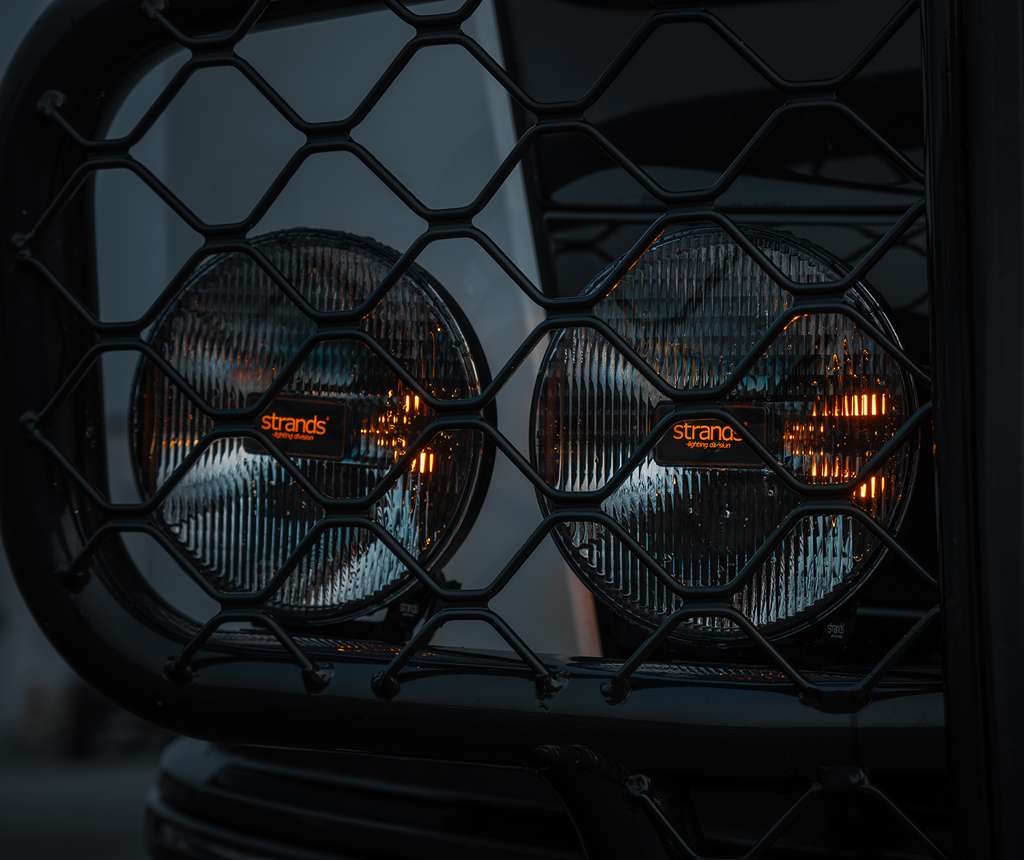

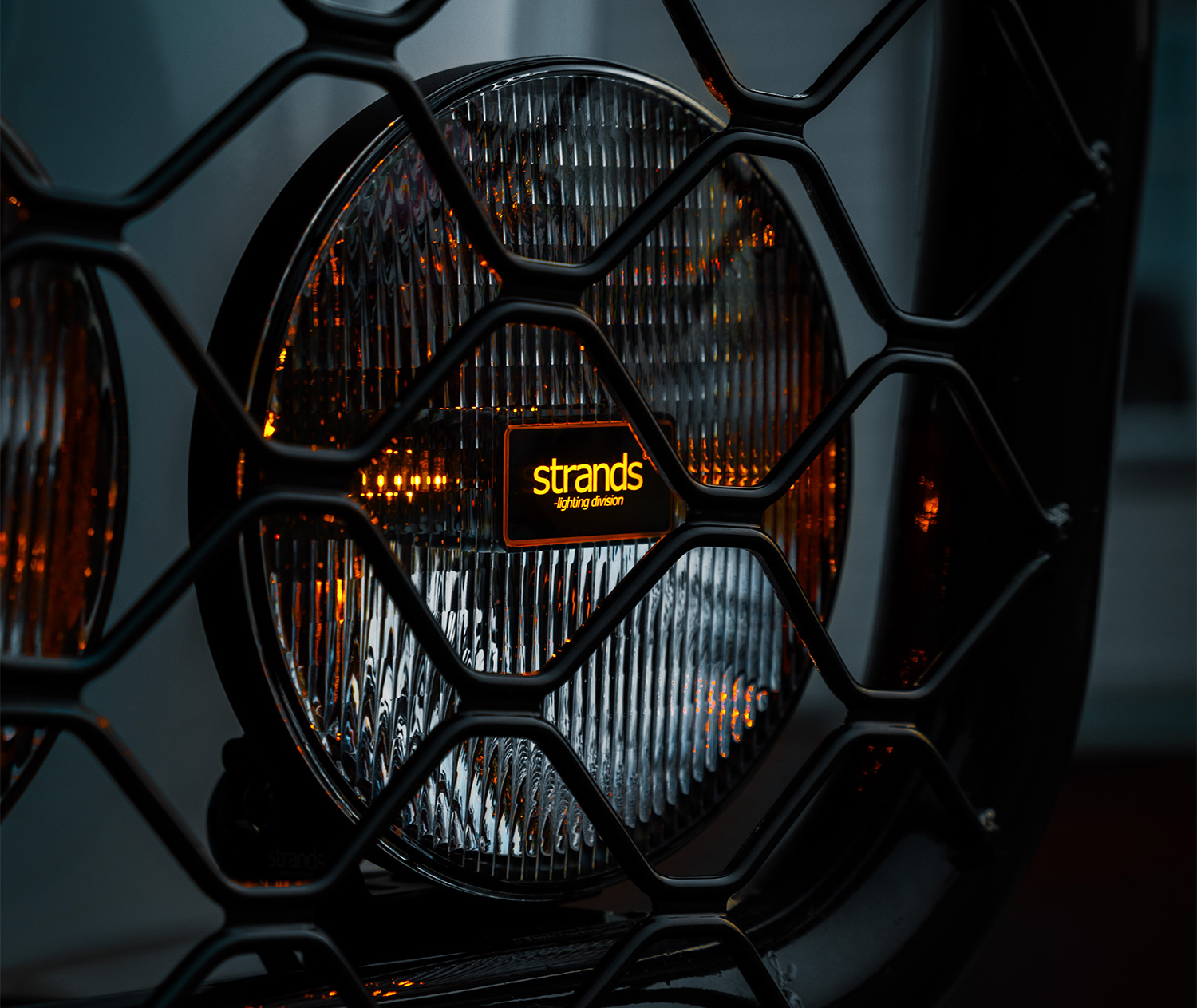

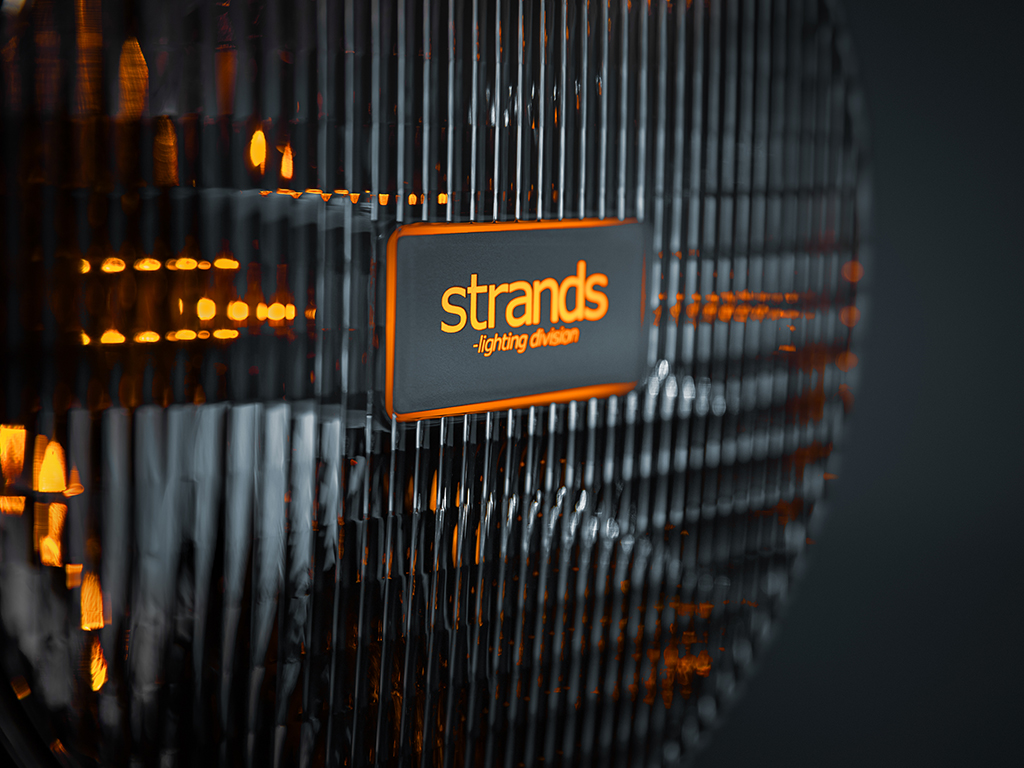

This timeless design will never go out of style. Every part of the OG is designed with the utmost attention to detail. The reflector’s design boosts the white and amber position light and spreads a diffused, indirect glow. The position light also draws attention to the illuminated Strands logo in the lens. When not used, the position light is invisible in the lens. The OG has a smooth, slim look yet a solid feel, and is made of high-quality materials. If you’re looking for position lights to complete the look of your truck, check out the IZE LED Double Burner (Part No. 850458-59) and the IZE LED Torpedo (Part No. 850426-27).

12000 actual lumens

The IZE LED OG has an extended beam pattern, producing up to 12000 actual lumens with a more than 500-meter range. It has a color temperature of 4500 K, creating a comfortable driving experience. Thanks to the XP-mode and E-mode, it suits European drivers and those wishing to change output to match the weather conditions. The E-mode is E-approved R148/149 with reference number 20. As a retailer, you can be sure that the style and durability of the OG will bring lasting customer satisfaction. It’s covered by Strands’ 3-year warranty as a further guarantee of its quality.

Durable and easy to install

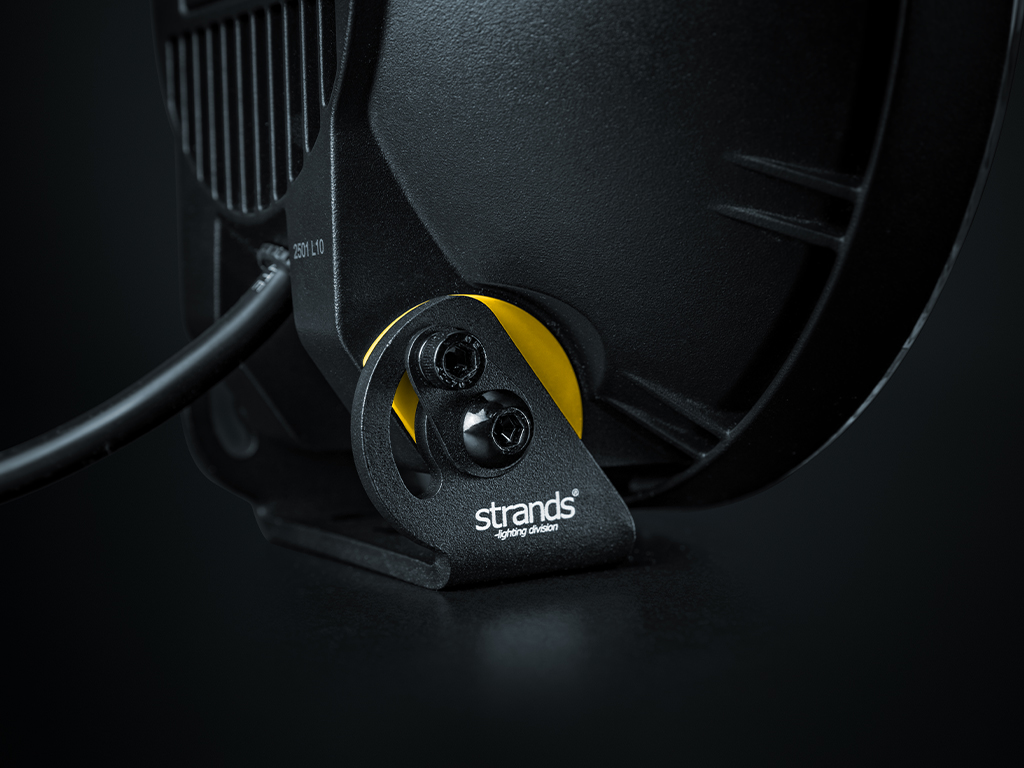

When installing the OG, the 2,5 m cable provides plenty of reach, so you don’t need to lengthen the cable. Everything you need for installation is included in the package: bracket, screws, bolts, nuts, washers, and silicone pads. The IP68/69K IP rating ensures it will withstand hard use, dirt, and weather. It’s used with 12-36 V.
