FIREFLY LED BAR 20″

SKU: 809403
RRP: 249 (Excl. tax)

Choose variant

FIREFLY LED BAR 20″

RRP: 249 (Excl. tax)
SKU: 809403
Chosen

FIREFLY LED BAR 10″

RRP: 169 (Excl. tax)
SKU: 809401
Choose

Allow us to introduce the Firefly LED bar 20”, seamlessly integrating with your vehicle while delivering exceptional performance. The result of cutting-edge engineering and our attention to detail.

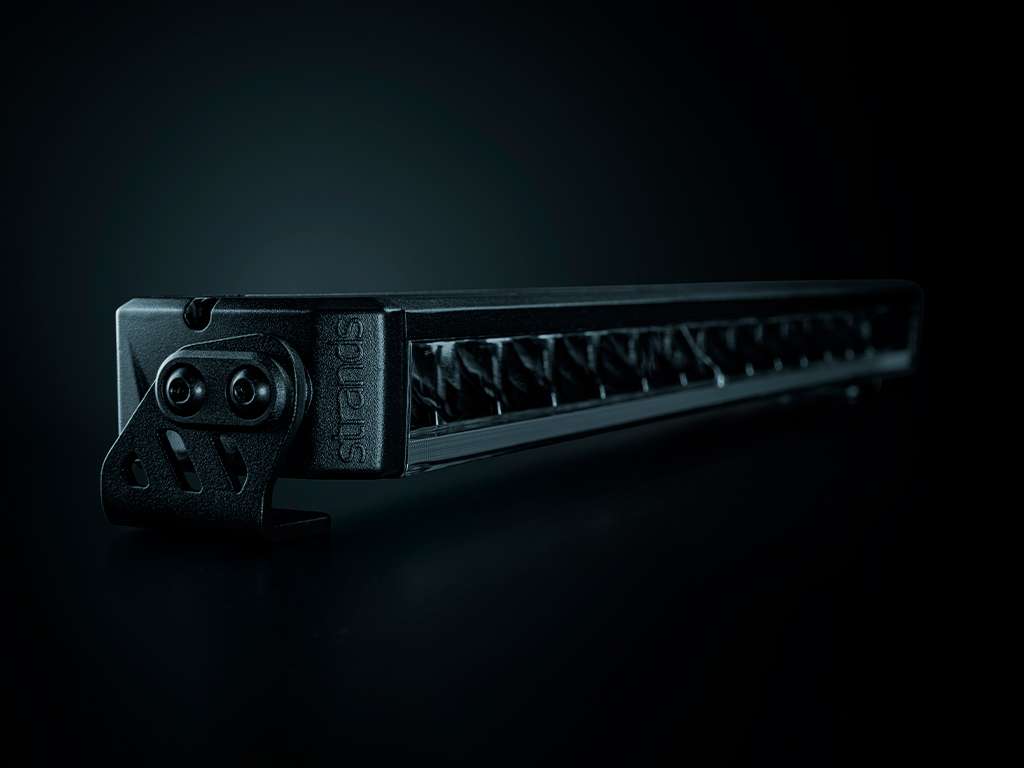

The Firefly LED bar 20” is an absolute game-changer in LED innovation and design. With only 70 mm in depth and a height of 38.5 mm, this LED bar is remarkably slim, setting new standards with a unique design.

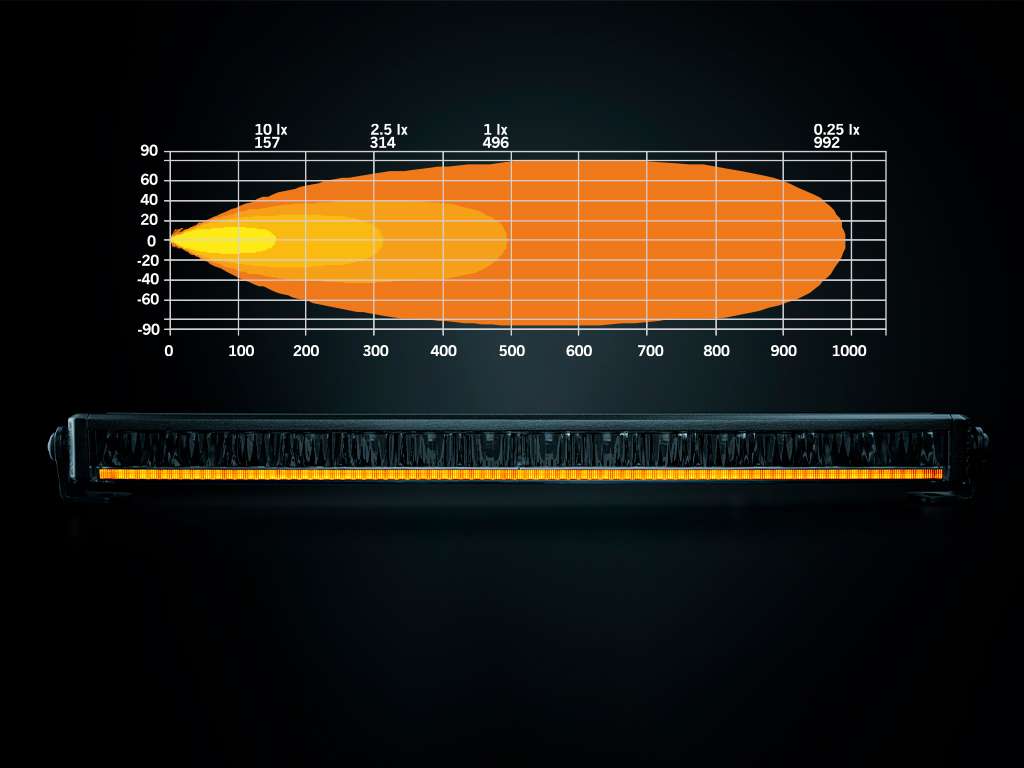

Despite its size, it’s a single-row masterpiece. It delivers maximum performance like no other, providing a sharp and wide beam pattern of 10 670 actual lumens and 1 lux at 496 meters. Ready to guide you forward with clarity and precision.

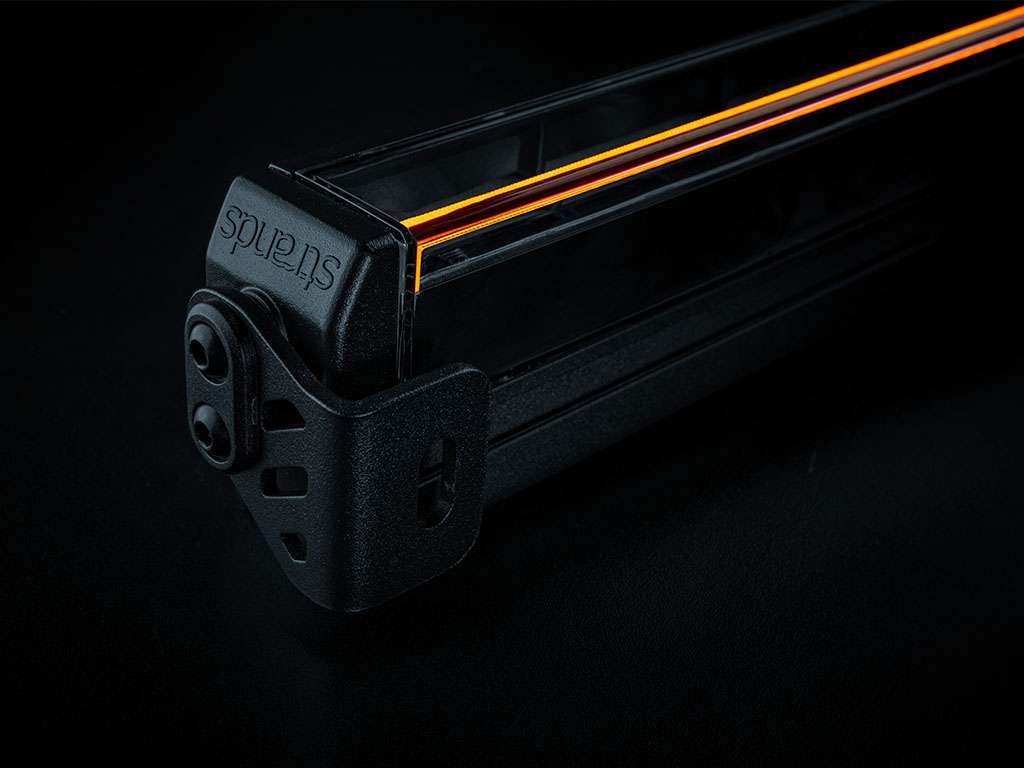

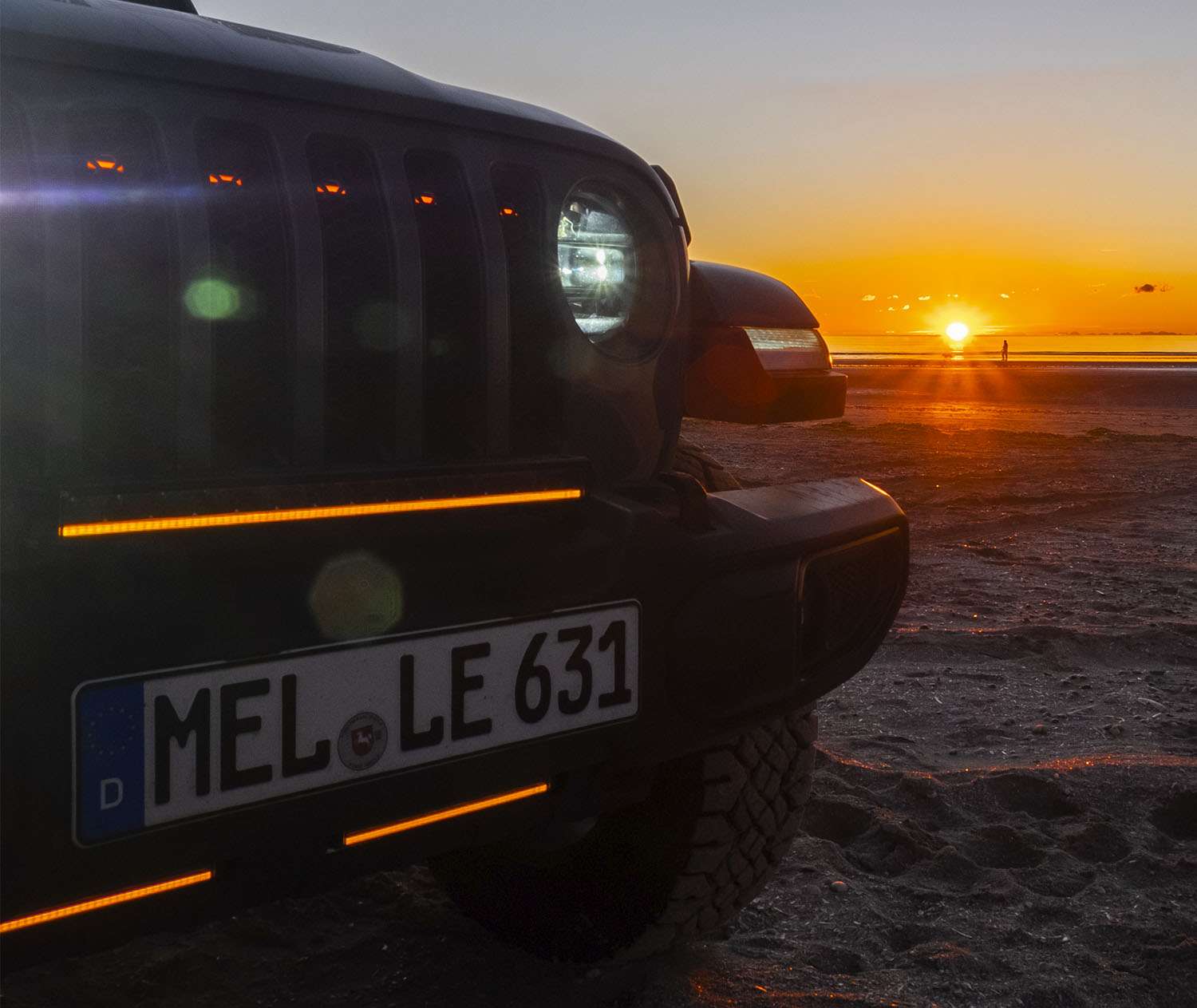

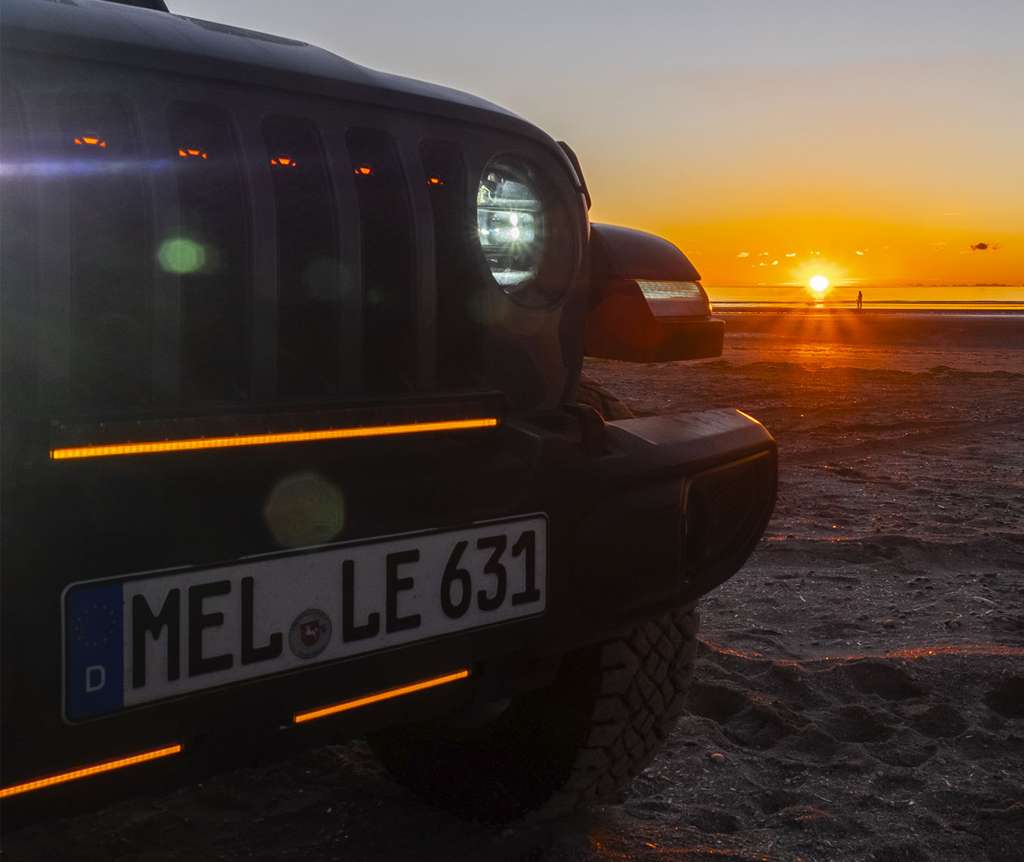

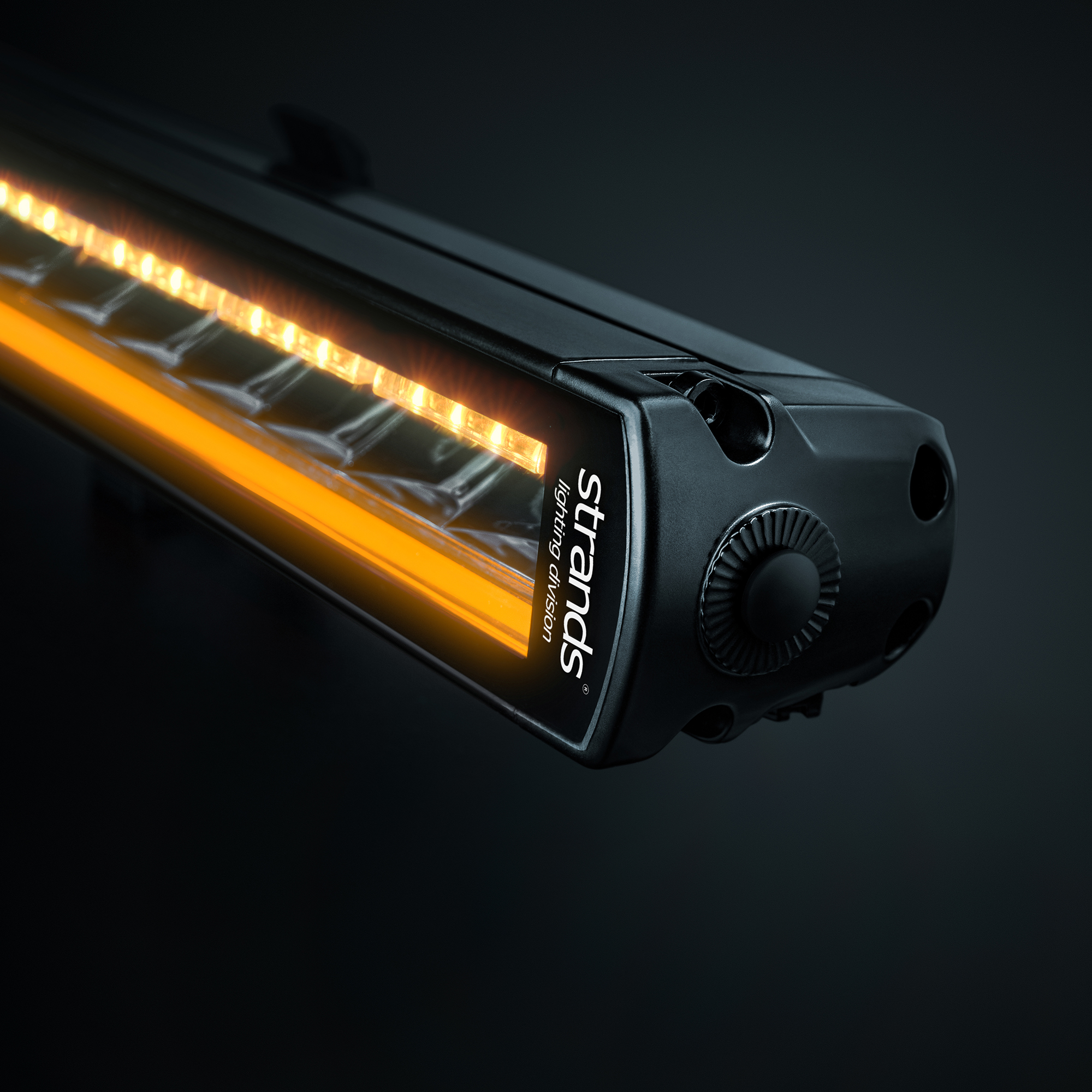

Prepare to leave a lasting impression as you navigate the night with the Firefly LED bar. Its unique dual-position light creates a captivating amber glow beneath the LEDs, guiding your way like a Firefly.

The Firefly LED bar doesn’t just illuminate the road; it becomes an integral part of your vehicle´s DNA. The invisible design makes your vehicle´s exterior uncompromised while enhancing functionality and style.

Each component is important for the result, and we have developed the perfect LED bar based on our experience to protect you from the challenging environment. The lens is made of unbreakable polycarbonate, and the light is E-approved and waterproof, meeting the highest IP standards for ultimate protection.

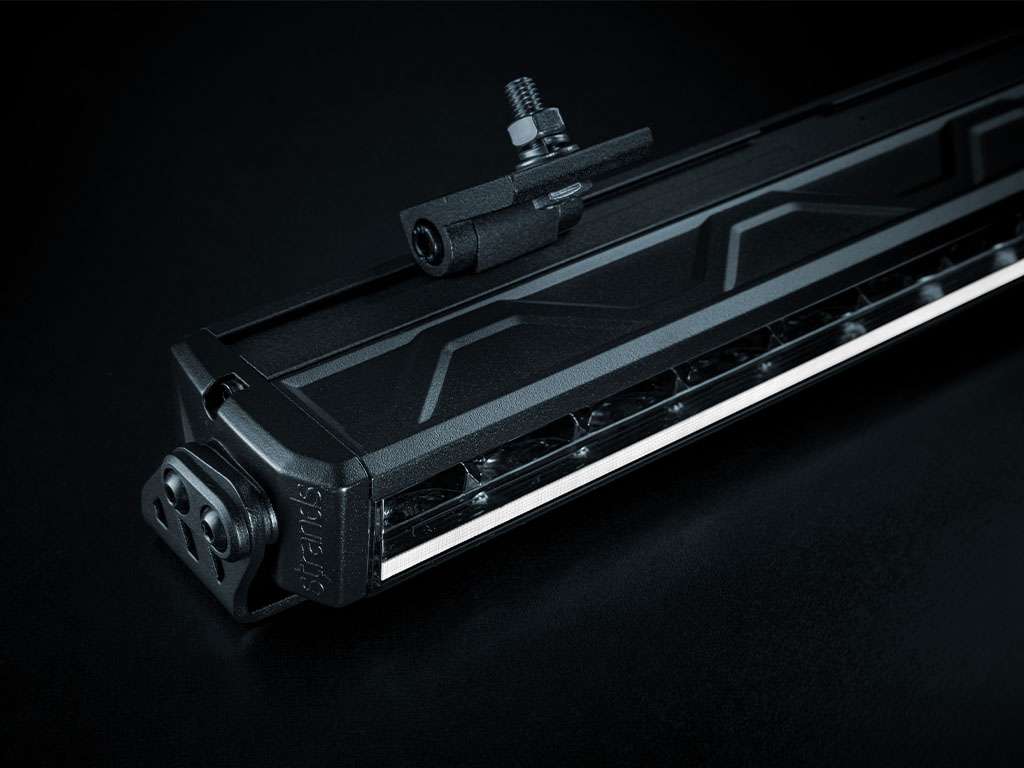

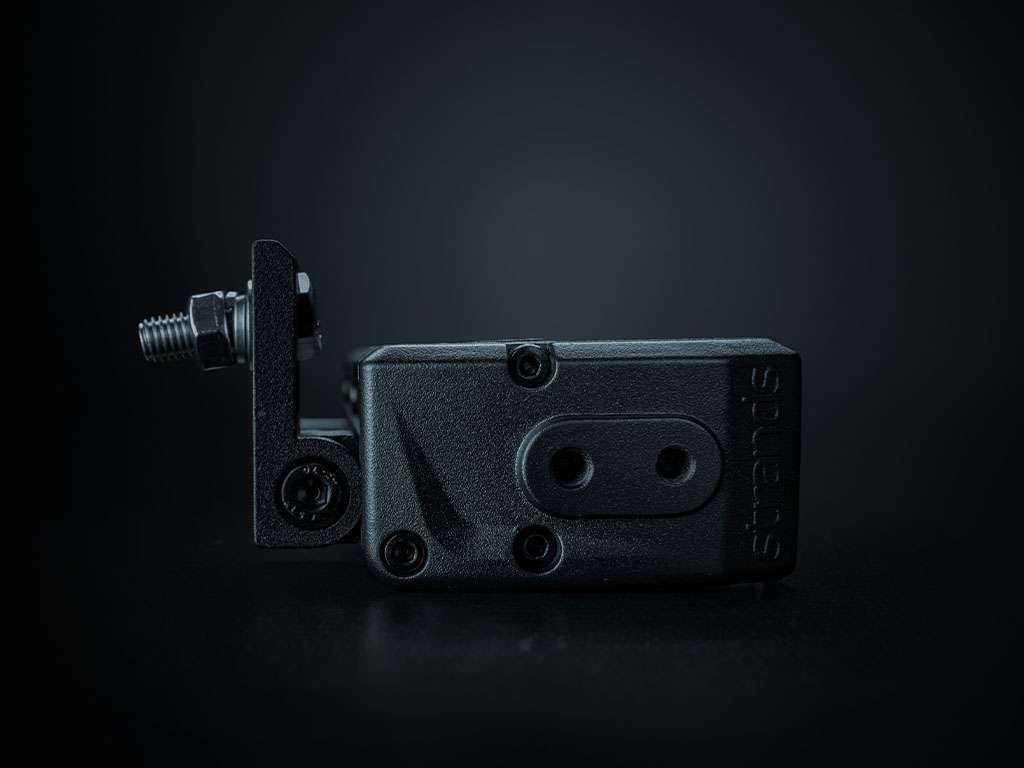

Installation is a breeze with two mounting options. Choose side brackets for a stable, traditional setup, or use adjustable brackets on the side, top, or below the LED bar to tailor the installation to your specific preferences. With included brackets, screws, and a 50 cm cable, securing it is a quick task. The package also included a DT-4 contact for easy connections. Its compact size is ideal for pickups and light commercial vehicles – a must-have guide for your next mission.

    • Type of Lamp LED
    • Voltage (V DC) 10-48V DC
    • Theoretical effect (w) 12V 155
    • Theoretical effect (w) 24V 153
    • Consumption (w) 12V 159
    • Consumption (w) 24V 157,8
    • Functions White position lights,Amber position lights,Driving lights
    • Actual lumen 10670
    • 1 LUX @ m 496
    • Kelvin 6000
    • IP-class 68
    • Color housing Black
    • Color lens Clear
    • Beam pattern Combo
    • Position light Yes
    • Connection DT4
    • Cable length (mm) 500
    • Material bracket side bracket: 304 stainless steel, sliding bracket: Aluminium
    • Material housing/chassi Aluminium
    • Material lens PC
    • Length (mm) 515
    • Depth (mm) 70
    • Height (mm) 38,5
    • Height including bracket (mm) 56
    • Operating temperature -40 - +65°C
    • ADR-approved No
    • E-approved Yes
    • According to regulation ECE R148, R149
    • Reference number 50
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + Positive
    • White cable White position light
    • Yellow cable Amber position light
    • Length inner box (mm) 110
    • Depth inner box (mm) 70
    • Weight (kg) 2,2
    • PCS in master carton 9
    • Length master carton (mm) 760
    • Weight master carton (kg) 21,3
    • EAN 7350133816461

GUIDE YOU FORWARD

MAXIMUM PERFORMANCE

Firefly LED bar 20” is an absolute game-changer in LED innovation. Despite its size, it’s a single-row masterpiece. It delivers maximum performance like no other, providing a sharp and wide beam pattern of 10 670 actual lumens and 1 lux at 496 meters. Ready to guide you forward with clarity and precision.

UNIQUE DUAL POSITION LIGHT

Prepare to leave a lasting impression as you navigate the night with the Firefly LED bar. Its unique dual-position light creates a captivating amber glow beneath the LEDs, guiding your way like a Firefly.

INVISIBLE DESIGN

The Firefly LED bar doesn’t just illuminate the road; it becomes an integral part of your vehicle´s DNA. The invisible design makes your vehicle´s exterior uncompromised while enhancing functionality and style.
