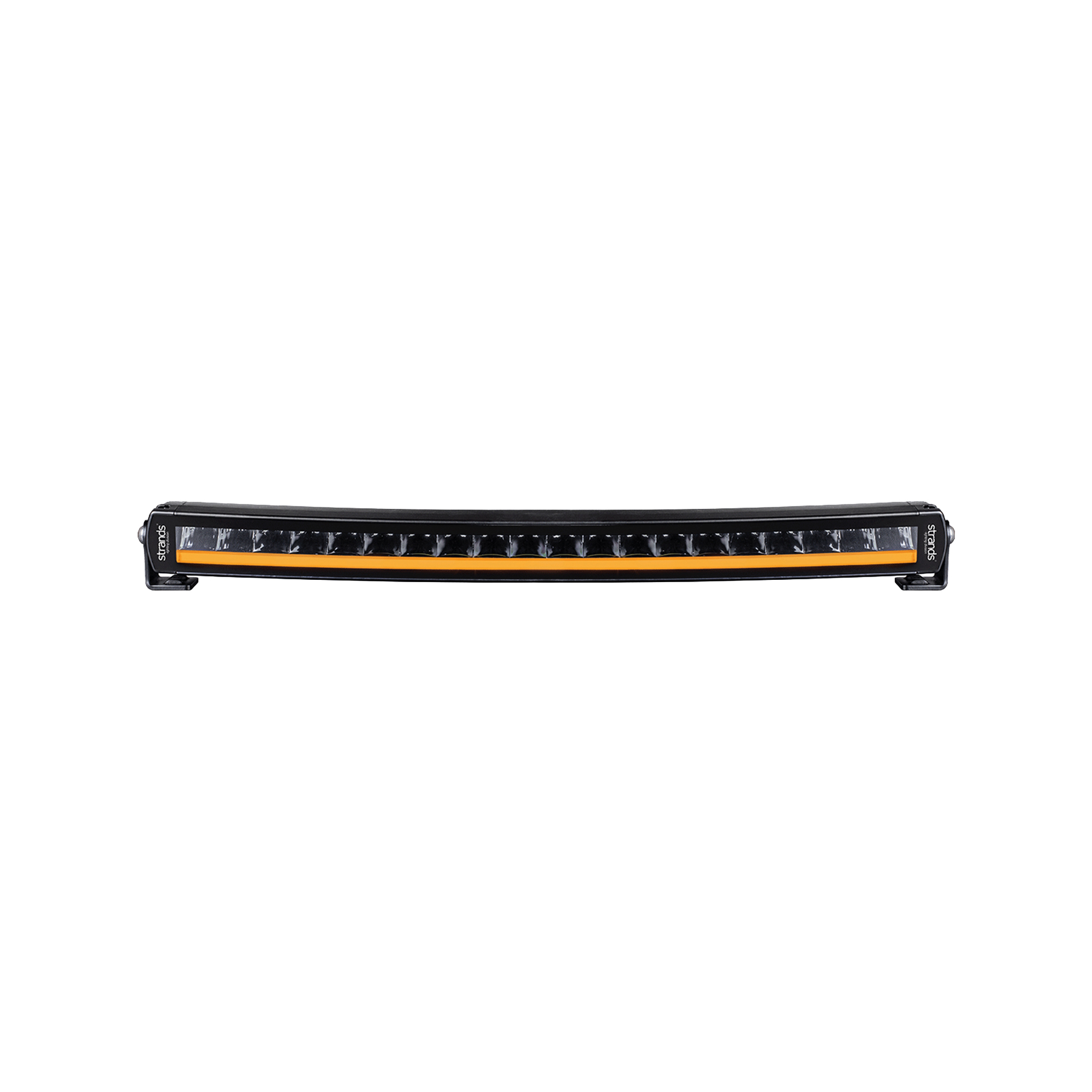

COMPLETE KIT SIBERIA SRC 22″ LED BAR

SKU: 809192-KIT
RRP: 362.60 (Excl. tax)
    • Unit KIT
    • Type of Lamp LED
    • PCS LED´s 20
    • Voltage (V DC) 10-40V DC
    • Theoretical effect (w) 12V 100
    • Theoretical effect (w) 24V 100
    • Consumption (w) 12V High beam: 65 White position light: 5,5 Amber position light: 13
    • Consumption (w) 24V High beam: 65 White position light: 5,5 Amber position light: 13
    • Theoretical lumen 8000
    • Actual lumen 4500
    • 1 LUX @ m 401
    • Kelvin 6000
    • IP-class 67/69K
    • Color housing Black
    • Color lens Clear
    • Color LED´s White and Amber
    • Beam pattern Combo
    • Position light Yes
    • Connection DT-4
    • Cable length (mm) 500
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) 559,43
    • Depth (mm) 55,5
    • Height (mm) 45
    • Height including bracket (mm) 65
    • Operating temperature -20°C - +45°C
    • ADR-approved No
    • E-approved Yes
    • According to regulation ECE R112, R7
    • Reference number 37,5
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + Positive
    • White cable White position light
    • Yellow cable Amber position light
    • Mounting details included Screws, washers, bolts
    • Taric code 85122000

HIGHEST POSSIBLE PERFORMANCE

Comes in 22 “, 32”, 42 “and 50”. Available in both single-row and double-row versions. The 22” version is E-approved. The exclusive costume gives an unbeatable overall impression. Slim, dark and sophisticated. The lens extends from edge to edge with an extremely thin frame. Every little element is created to bring out the highest possible performance and interact in perfect harmony.

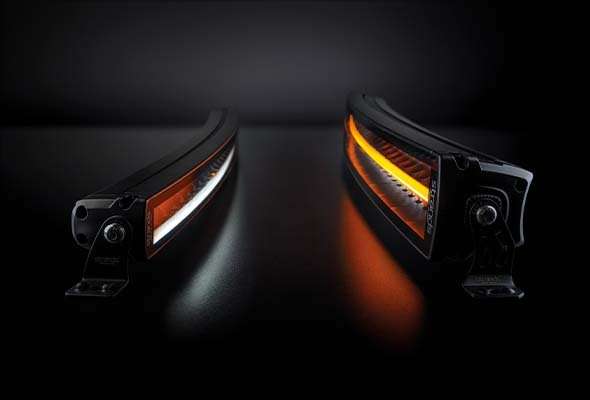

CURVED DESIGN

The rounded design fits perfectly on vehicles with a curved front. Siberia enhances the impression of your vehicle – and fits perfect with it. Like it has always been a part of the original look. The shape also contributes to a wider light distribution and efficiency on completely new levels, on all roads and in all conditions.

OPTIMIZED LIGHT BEAM

Siberia Curved comes with the established Siberia light beam – now optimized to perform maximally in a curved shape. An extended light distribution that gives you a lot of light to the sides. In addition, it provides a lot of light ahead, thanks to an increased number of spot reflectors. A phenomenal combination. It increases your safety and makes your driving experience extraordinary. The combined light beam makes the Siberia Curved suitable for varied driving, perfect for all kinds of roads and vehicles.

DUAL POSITION LIGHT

The well-known Siberia position light creates a powerful character and runs in a line along the bottom of the LED bar. Express your style and personality by choosing color between amber and white.
