Strands Lighting Division
ALASKA SNOW PLOW LAMP LED
SKU: 270708
RRP:
€29.31
(Excl. tax)

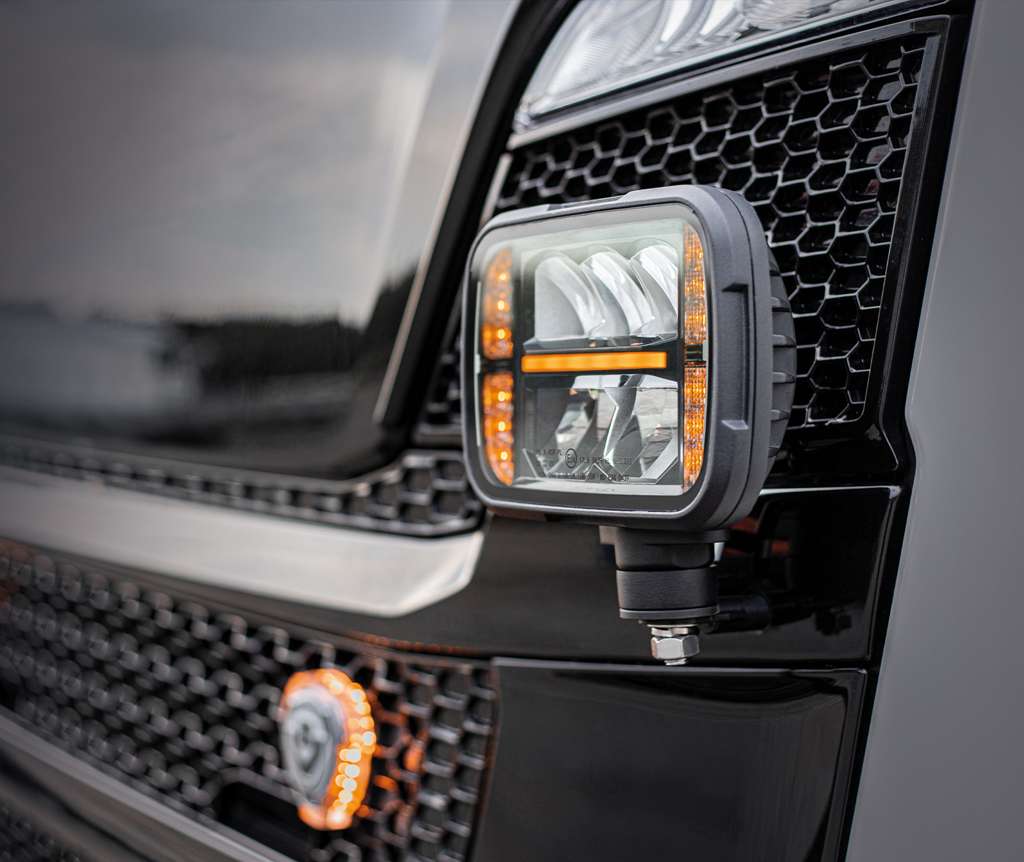

Reimagine how a snow plow lamp works and looks. Alaska is all about the combination – design and high technology features. The lamp fits perfectly on today’s modern vehicles thanks to the look. Slim design and elegant shape. The appealing position light adds another dimension to the overall impression.
– INNOVATION FOR EXTREME WEATHER
– AUTOMATIC HEATED LENS
– FULLY E-APPROVED
- Unit pcs
- Voltage 10-32V DC
- Theoretical effect 70W
- Consumption Tail: 5W, Indicator: 6W, High beam: 55,5W, Low beam: 18,5W, Heating lens: 31W
- Functions High beam, low beam, position light, indicator, heated lens
- Theoretical lumen 3000lm
- Actual lumen Low beam: 1008lm / High-beam: 1380lm
- 1 lux @ Low beam: 80m / High beam: 160m
- Beam pattern Optimized beam
- Connection DT-6PIN
- Cable length 500mm
- Color housing Black
- Color lens Clear
- Color LED´s White
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Glass
- Length 200,4mm
- Depth 85,5mm
- Height 142,4mm
- Height including bracket 177,8mm
- Weight 1kg
- IP-class IP67/69K
- Operating temperature -30 - +65°C
- E-approved Yes
- According to regulation ECE R6, R7, R112
- Reference number 17,5
- EMC ECE R10
- Black cable - (Negative) PIN1
- Red cable + High-beam(heating lens) PIN2
- Yellow cable + Low-beam(heating lens) PIN6
- Green cable +White position light(Positive) PIN3
- Grey cable + Indicator PIN4
- Included in package Bracket, Screws, washers, bolts
- Length inner box 240mm
- Width inner box 122mm
- Height inner box 180mm
- Volume 0,00527m³
- Warranty 3 Years
- Length master carton 495mm
- Width master carton 265mm
- Height master carton 375mm
- Weight master carton 10,5kg
- PCS in master carton 8pcs
MAXIMUM VISIBILITY IN ANY WEATHER
