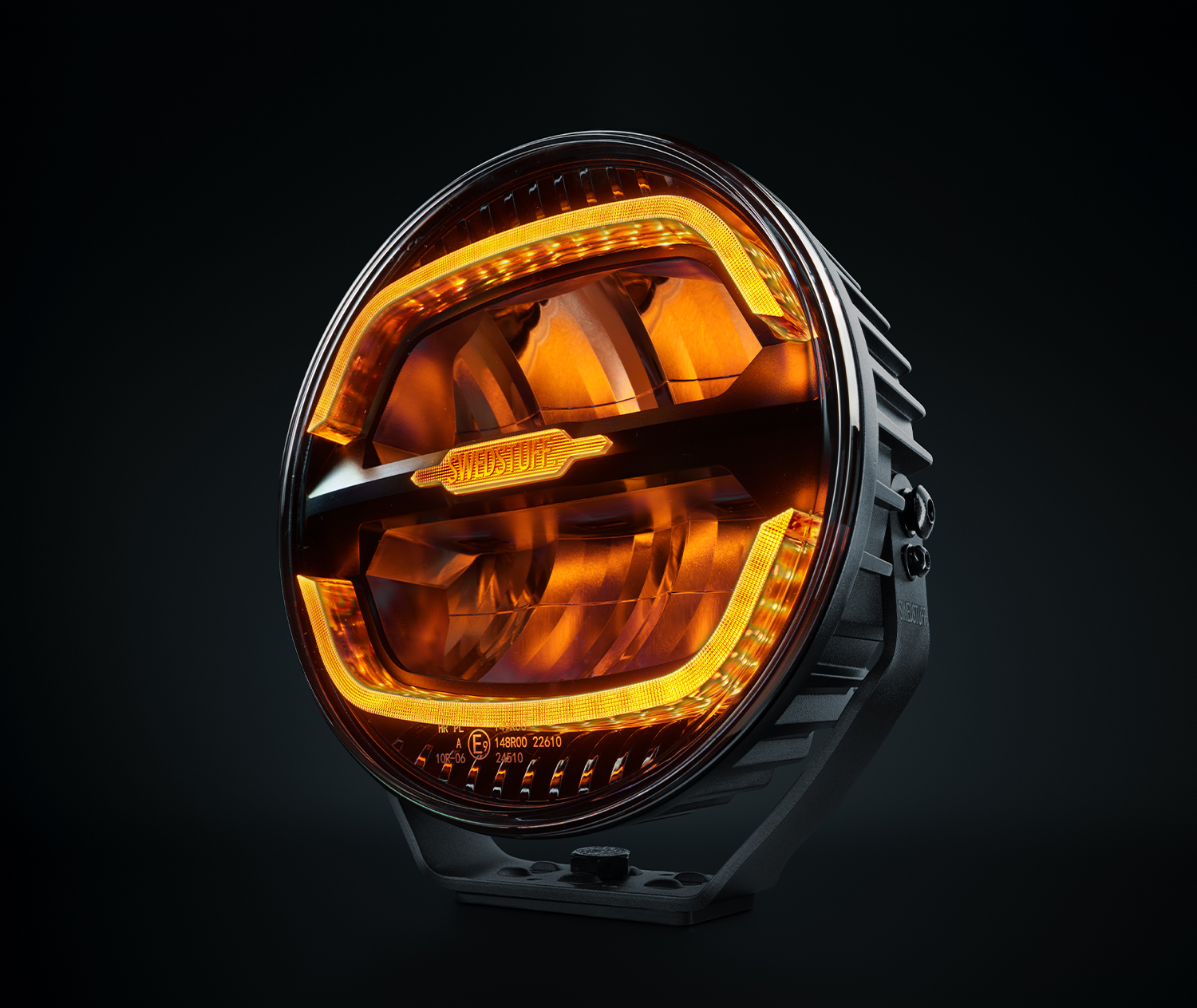

Driving Light 9” – High-Performance LED Driving Light:
The Driving Light 9” is engineered to deliver maximum illumination for demanding driving conditions. This powerful LED driving light is designed with a robust high-beam and features stylish white and amber position lights, making it a perfect choice for vehicles needing superior visibility and modern design.
Key Features:
• Superior Illumination: With a theoretical output of 4900 lumens and an actual output of 4800 lumens, this light ensures clear visibility in all road conditions.
• Optimized Beam Pattern: The precision-engineered beam pattern delivers exceptional road coverage, maximizing visibility and safety.

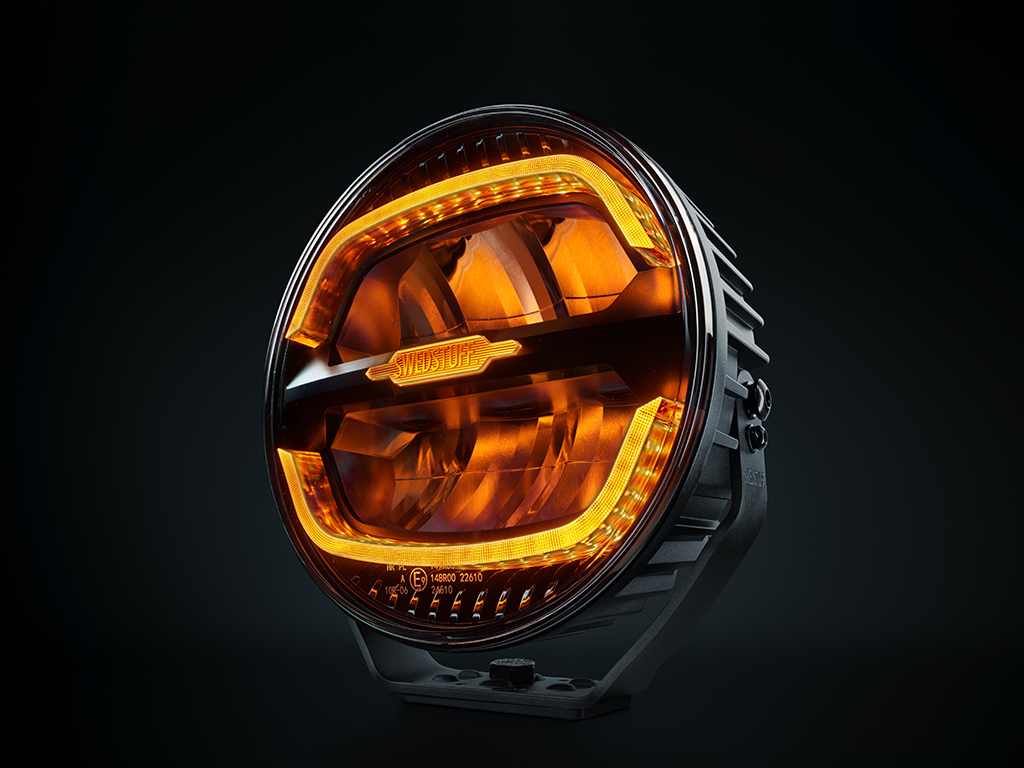

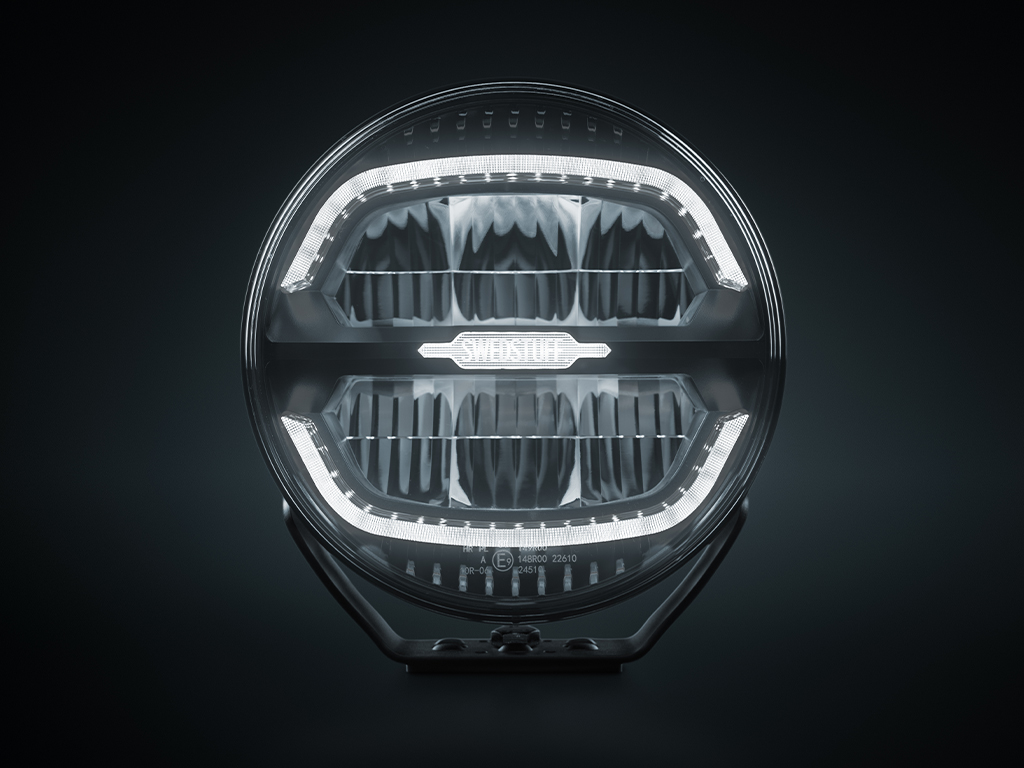

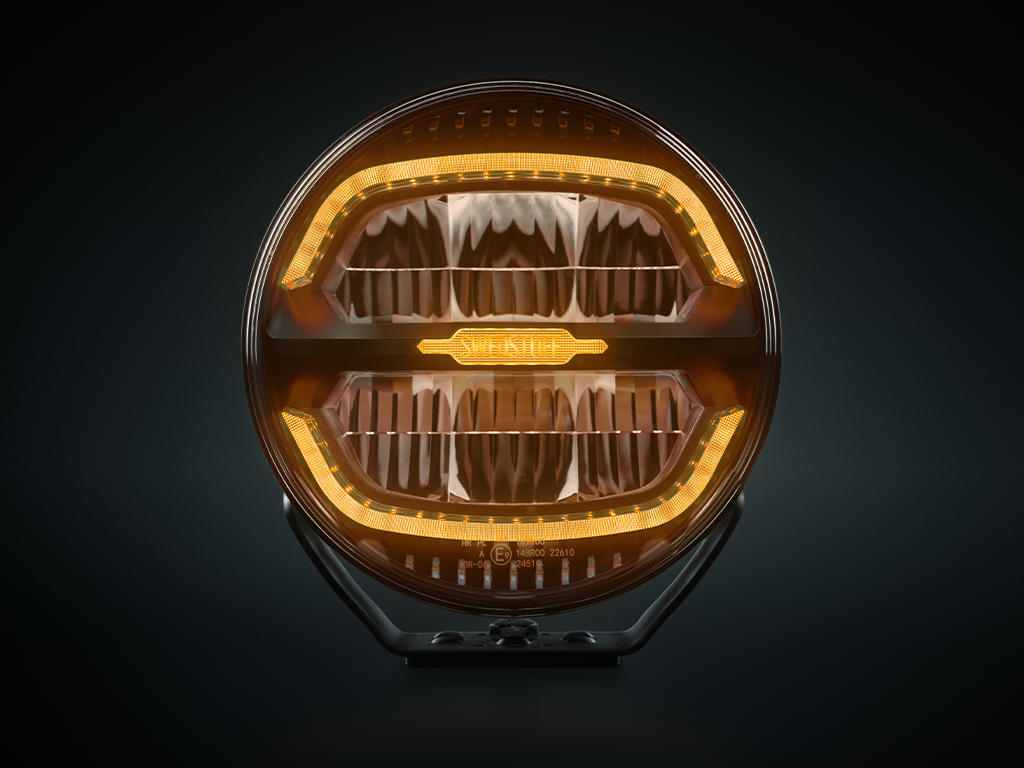

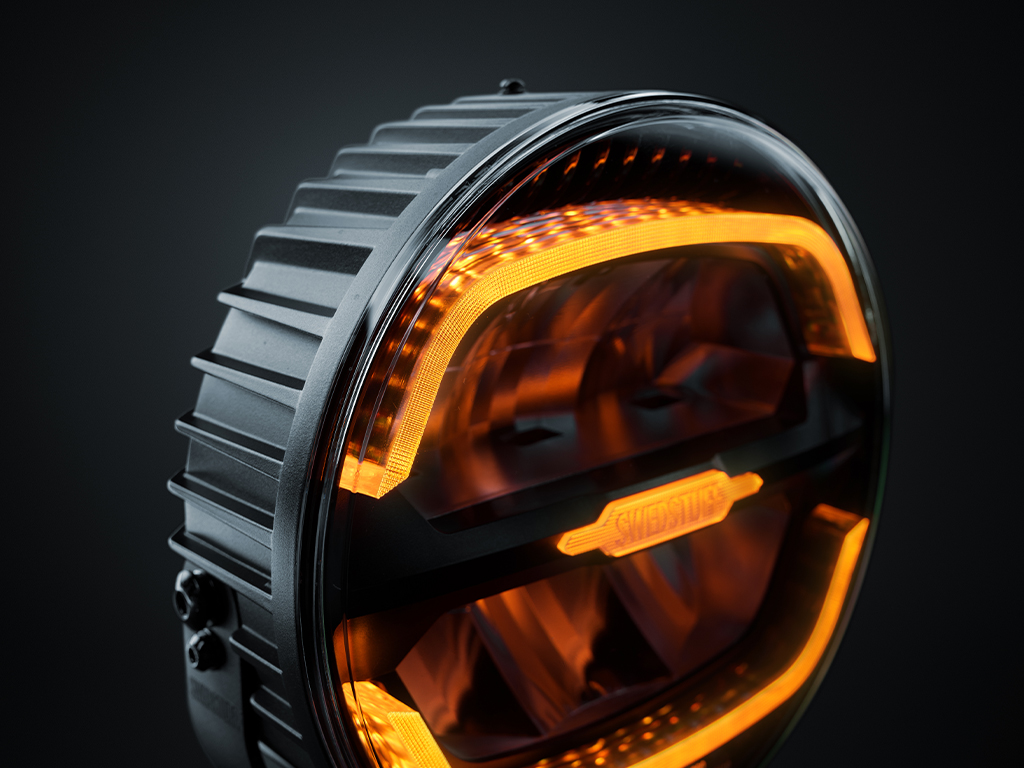

• Dual Position Lights: Choose between amber and white position lights to enhance both function and appearance, making your vehicle stand out.

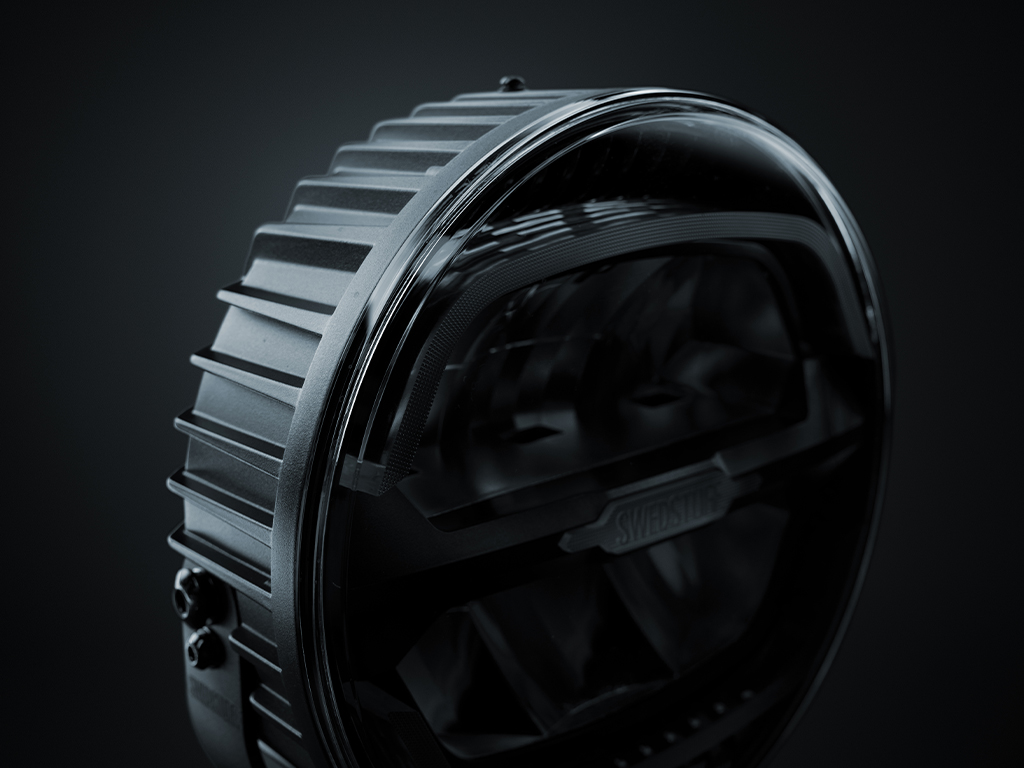

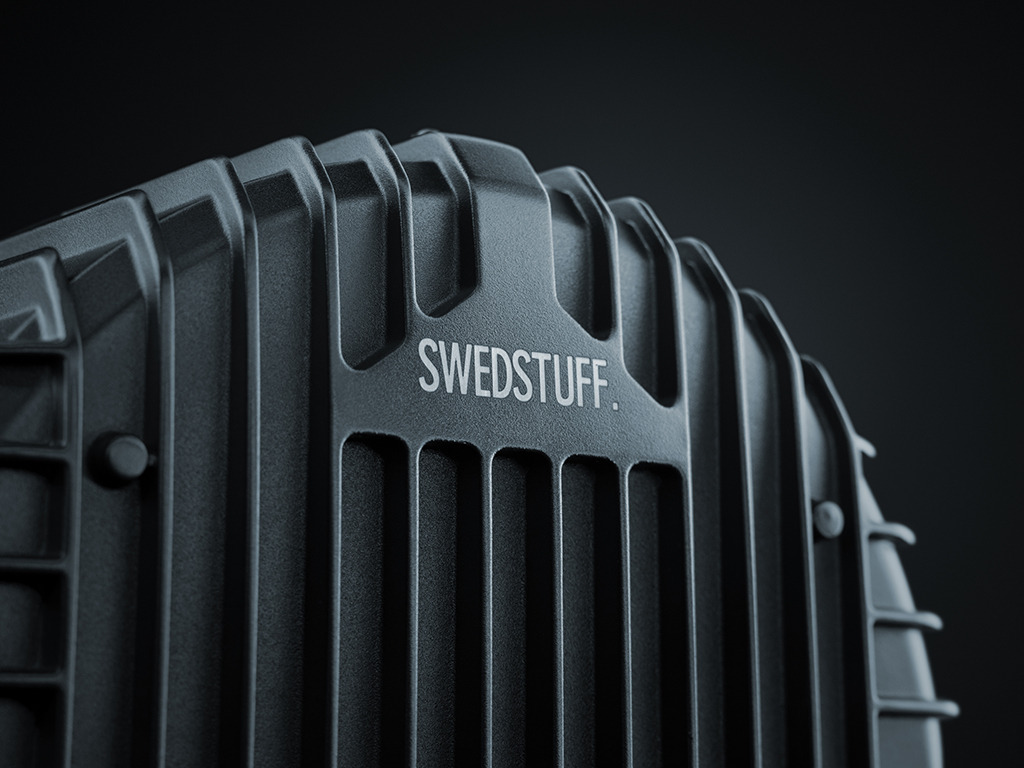

• Durable Build: Constructed with an aluminum housing and polycarbonate lens, this driving light is built to withstand harsh environments and heavy use.
• IP67 & IP69K Rated: Fully dustproof and waterproof, this driving light is designed to perform in the toughest conditions, whether on or off-road.
Ideal Applications:
• Off-road vehicles
• Trucks and heavy-duty vehicles
• Emergency and utility vehicles
• Agricultural and construction machinery
- Unit pcs
- Voltage 10-32V DC
- Theoretical effect 136,6W
- Consumption 95W
- Functions High beam, Amber and white position light
- Consumption specific function White pos: 1,5W / Amber pos: 1,5W
- Theoretical lumen 4900lm
- Actual lumen 4800lm
- 1 lux @ 484m
- Color temperature 5700K
- Beam pattern Optimized beam

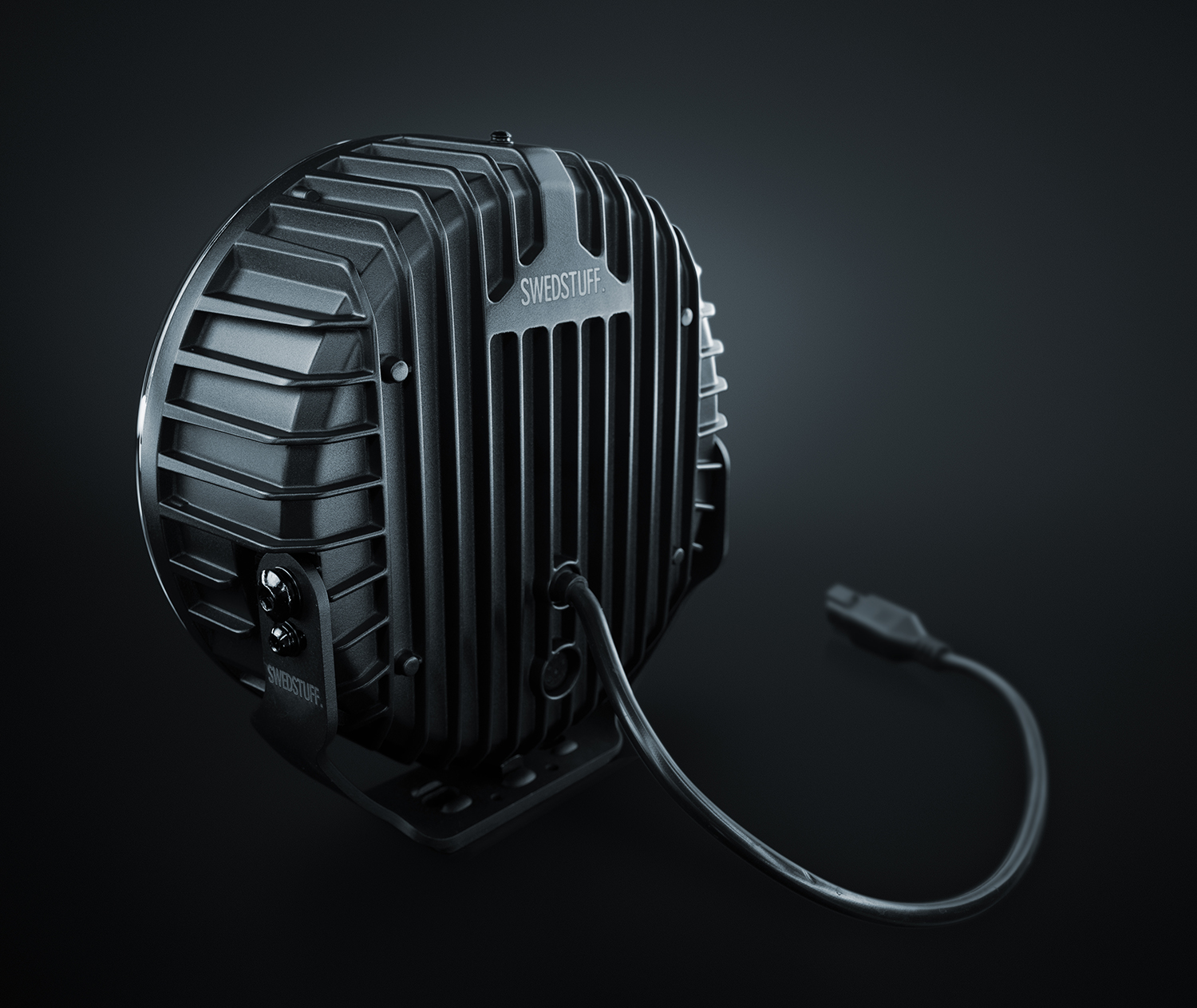

- Connection DT-4PIN
- Cable length 1000mm
- Color housing Black
- Color lens Clear
- Color LED´s White/amber
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length 228,7mm
- Depth 97,47mm
- Height 228,7mm
- Height including bracket 246,62mm
- Diameter 228,7mm
- Weight 2,28kg
- IP-class IP67/69K
- Operating temperature -35 - +60°C
- E-approved Yes
- According to regulation ECE R148,R149
- Reference number 50
- EMC ECE R10
- Black cable - (Negative)
- Red cable + (Positive)
- White cable White Position light
- Yellow cable Amber Position light
- Included in package Brackets ,Screws, Washers, Bolts, Rubber pad, Deutsch plug
- Length inner box 336mm
- Width inner box 173mm
- Height inner box 290mm
- Gross weight 2,54kg
- Volume 0,017m³
- Warranty 1 Years
- Length master carton 598mm
- Width master carton 370mm
- Height master carton 352mm
- Weight master carton 11,5kg
- PCS in master carton 4pcs
