FOR9T ILLUSION 3 FUNC. TAIL LIGHT
/
Strands Lighting Division

FOR9T ILLUSION 3 FUNC. TAIL LIGHT

Horizontal/vertical approv. | Tail/Brake/Indicator
SKU: 800655
RRP: €79 (Excl. tax)

Choose variant

FOR9T ILLUSION 3 FUNC. TAIL LIGHT

RRP: €79 (Excl. tax)
SKU: 800655
Chosen

FOR9T ILLUSION TAIL/BREAK LIGHT

RRP: €79 (Excl. tax)
SKU: 800656
Choose

FOR9T ILLUSION REVERSE/FOG LIGHT

RRP: €79 (Excl. tax)
SKU: 800658
Choose

FOR9T ILLUSION INDICATOR LIGHT

RRP: €79 (Excl. tax)
SKU: 800657
Choose
Buy in store Buy in USA
Manual Product sheet

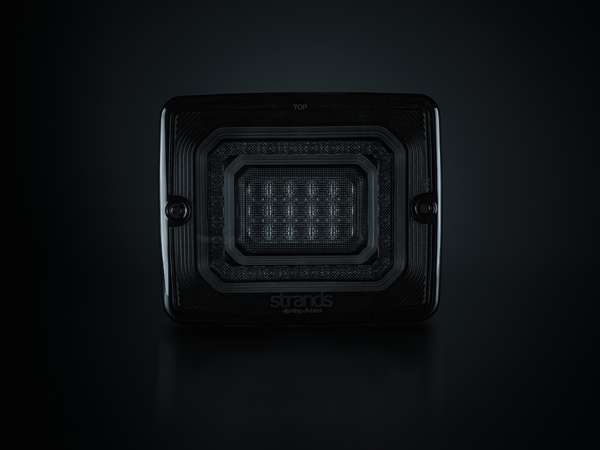

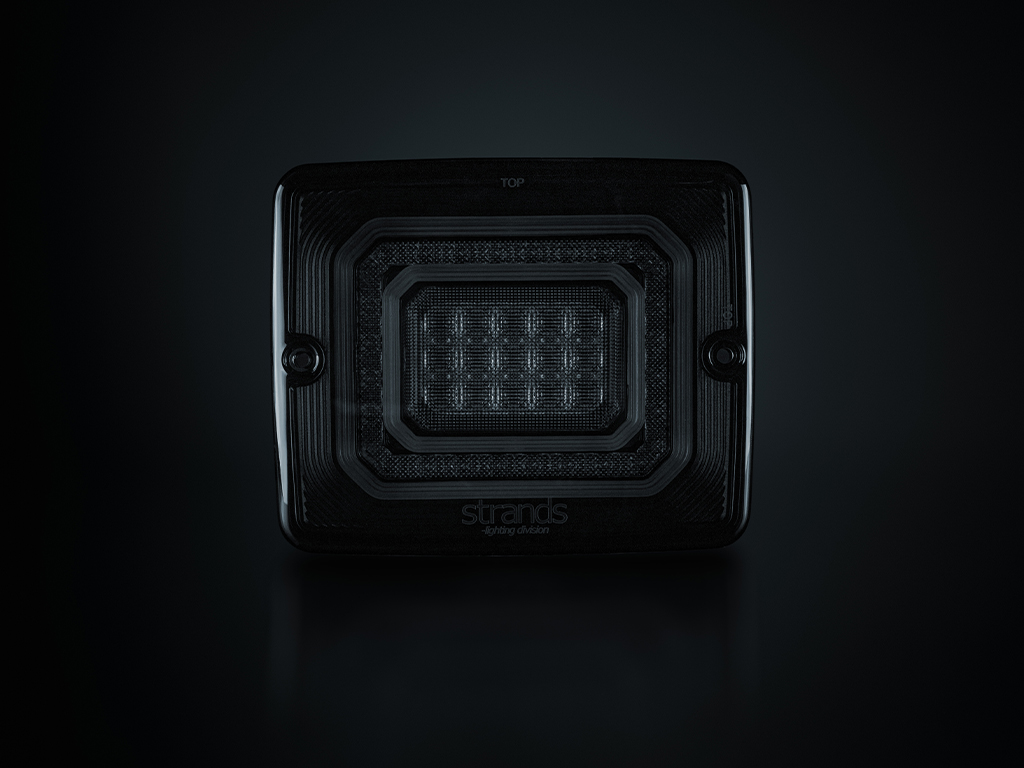

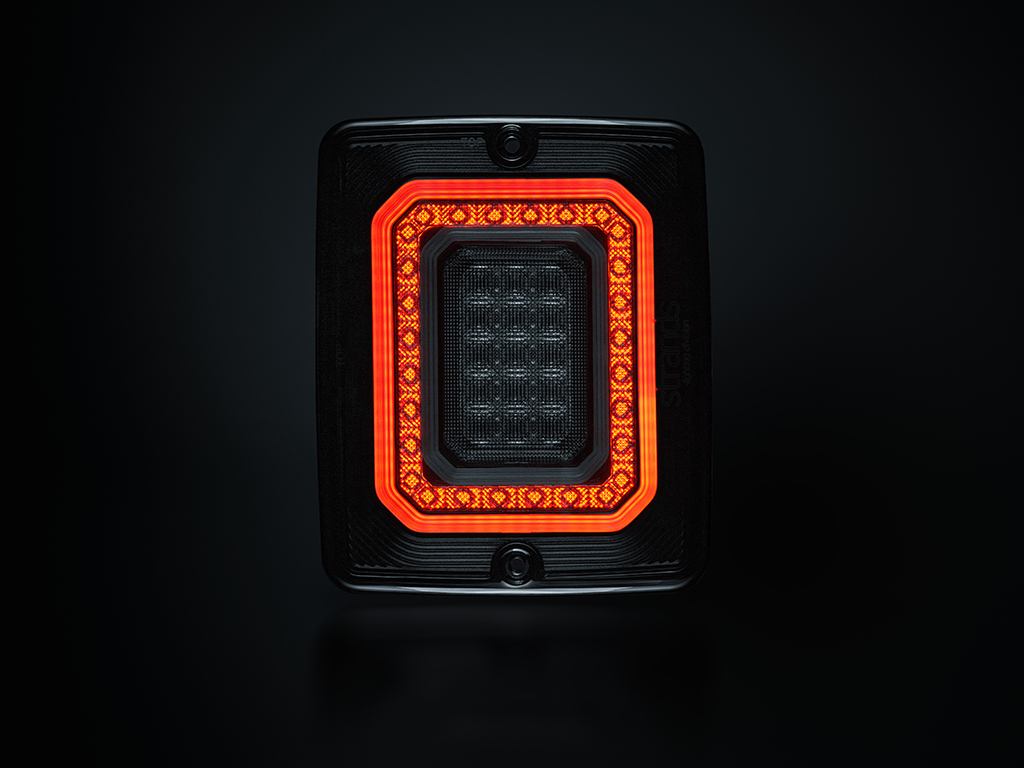

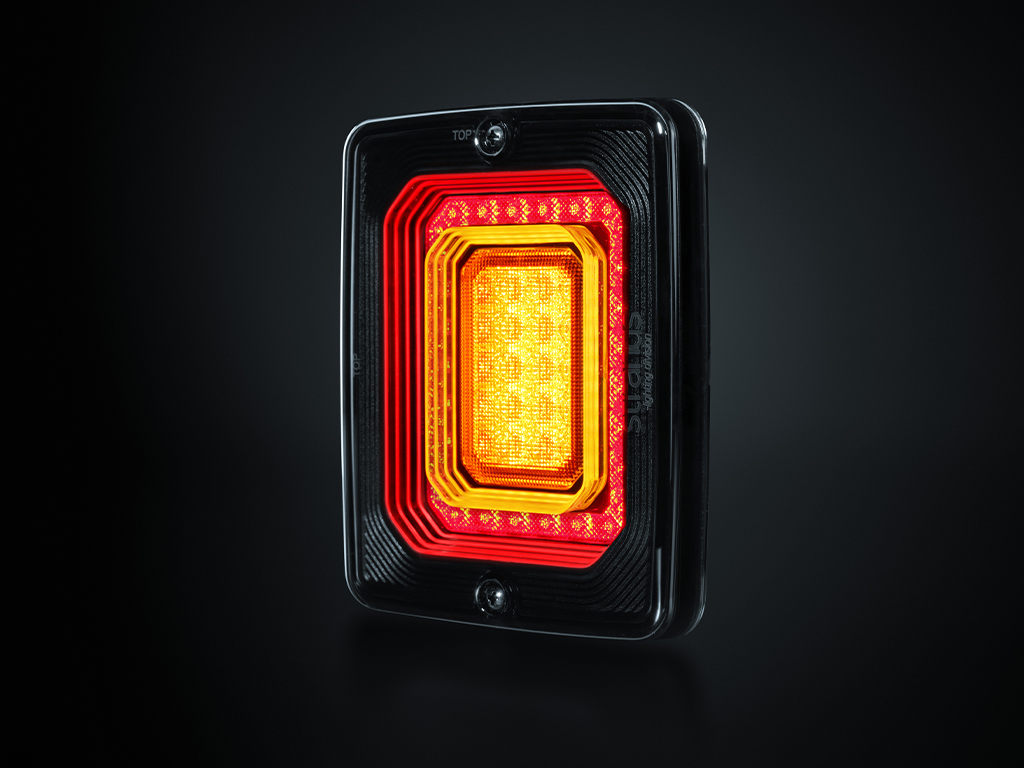

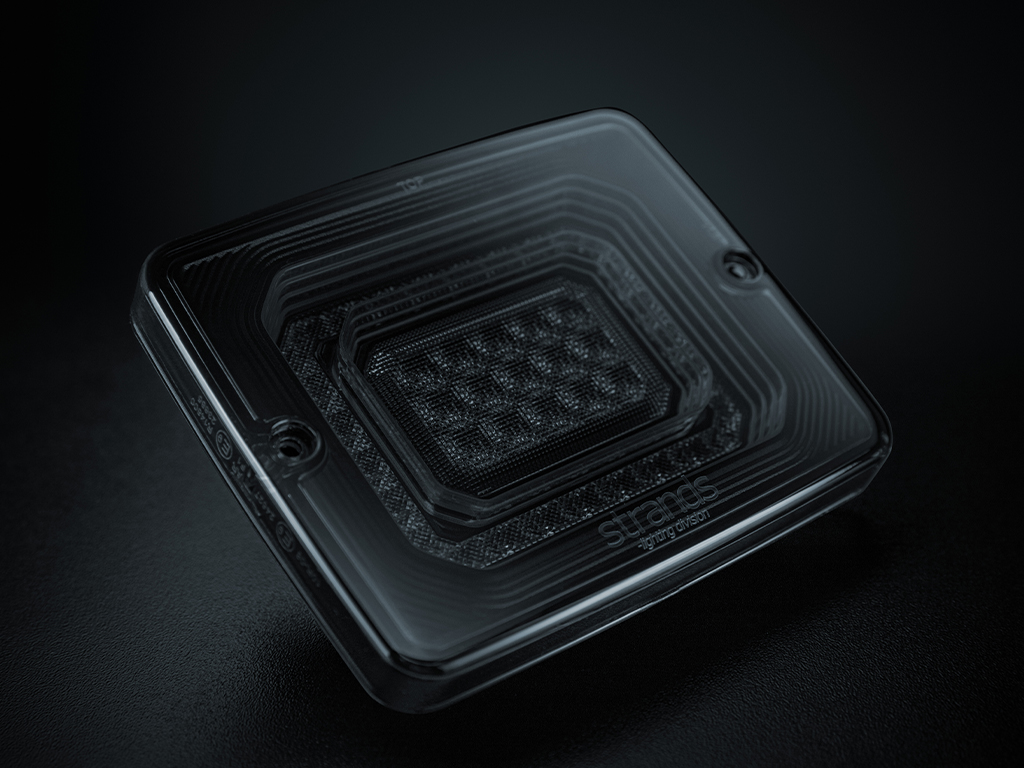

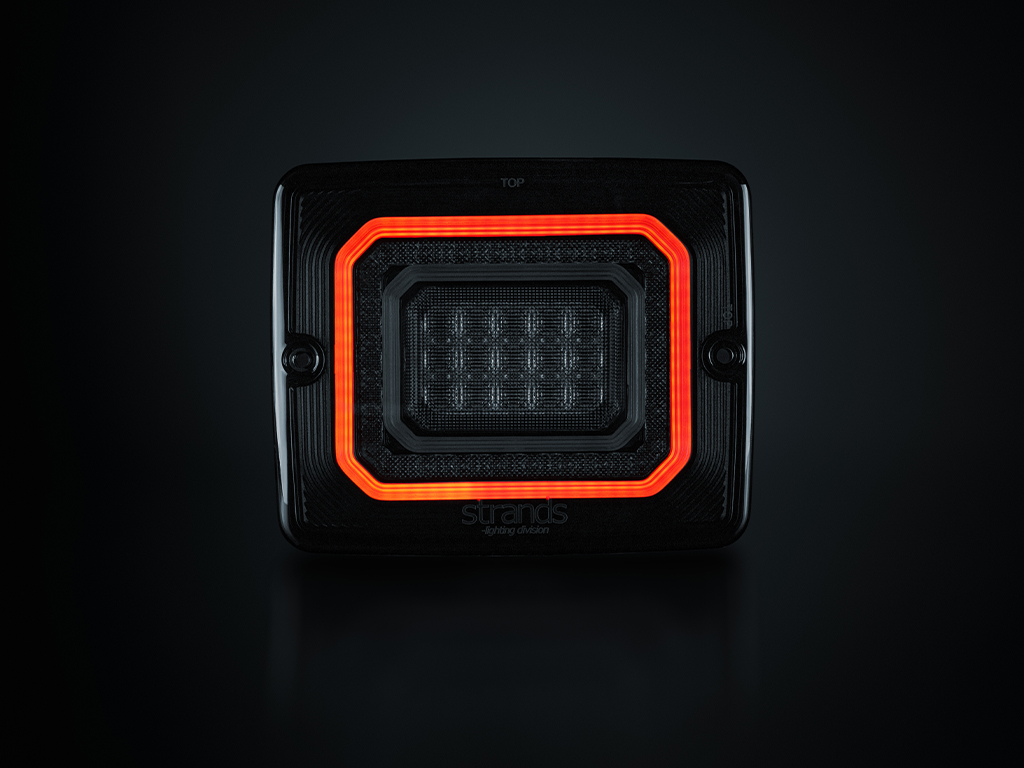

The FOR9T Illusion 3 function tail light perfectly combines the style of the unique and eye-catching FOR9T position lights with maximum functionality. These signature lights provide an undeniable and hypnotic look, contrasted against the dark lens. It features a tail light, brake light, and dynamic indicator light. Different areas of the light illuminate with different functions, creating a unique and striking effect in the FOR9T style. Thanks to the 115 mm CC and square shape, it fits all IZE LED frames (Part No. 800635-40) and rubber housings (Part No. 800112-13). This makes installation and retrofit straightforward, and upgrading your old lights simple. It’s built from durable materials, ensuring a long-lasting and resilient product. As an additional assurance of its durability, it’s backed by Strands’ 3-year warranty. The Illusion is E-approved R148 for both vertical and horizontal installation. Screws, nuts, and nylon washers are included in the package.

    • Unit pcs
    • Voltage 10-40V DC
    • Theoretical effect 20W
    • Consumption 15,5W
    • Functions Tail, brake, indicator
    • Consumption specific function Tail:4,5W, Brake:5W, Indicator:6W

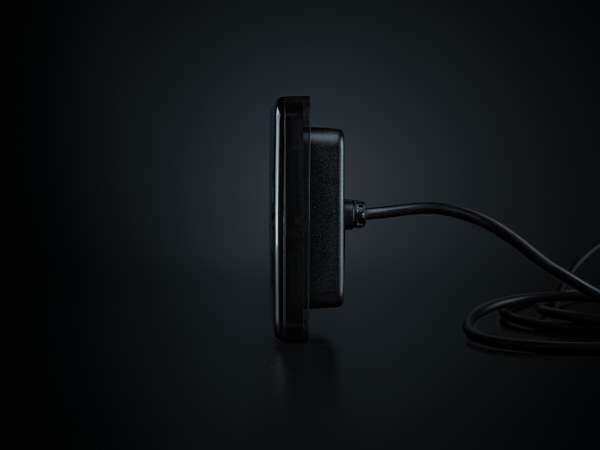

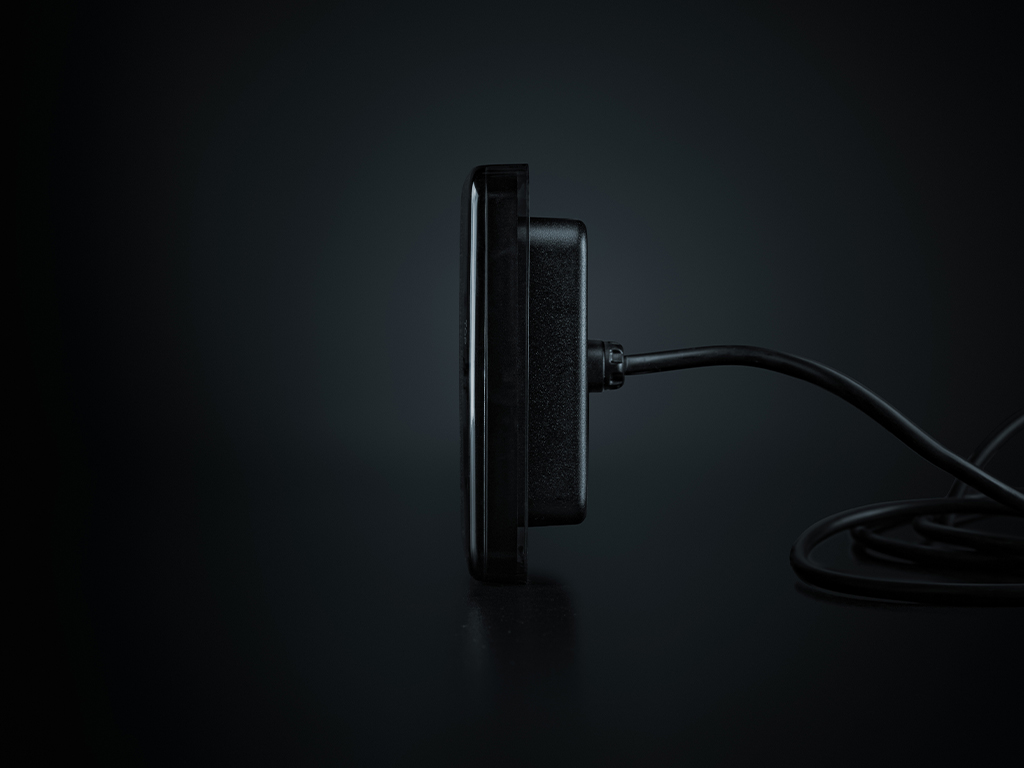

    • Connection Cable
    • Cable length 2500mm
    • Color housing Black
    • Color lens Dark
    • Color LED´s Red/amber
    • Material housing/chassi Polycarbonate
    • Material lens Polycarbonate
    • Length 113mm
    • Depth 46mm
    • Height 110mm
    • CC 115mm
    • Weight 0,37kg
    • IP-class IP67
    • Operating temperature -30 - +65°C
    • E-approved Yes
    • According to regulation ECE R148
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + Brake light
    • Yellow cable Indicator light
    • Green cable Tail light
    • Included in package Screws, nuts, nylon washers
    • Length inner box 145mm
    • Width inner box 75mm
    • Height inner box 120mm
    • Gross weight 0,42kg
    • Volume 0,0013m³
    • Warranty 3 Years
    • Length master carton 390mm
    • Width master carton 305mm
    • Height master carton 255mm
    • Weight master carton 9,9kg
    • PCS in master carton 20pcs

FOR9T IS PASSION

EASY HORIZONTAL AND VERTICAL INSTALLATION

Thanks to the square size and 115 mm CC, swapping out your old lights for these eye-catching FOR9T tail lights is a breeze. The FOR9T Illusion fits all IZE LED frames (Part No. 800635-40). These frames accommodate one to five Illusion lamps in either vertical or horizontal configurations. You can also install the Illusion using the IZE LED rubber housings (Part No. 800112-13). IZE LED frames make installation easier and can be painted to match your style. Achieving a perfect light setup has never been simpler.

FOR9T: EVERYTHING YOU NEED

The FOR9T series has taken us by storm with its unique position lights. Let us introduce the FOR9T Orbi and Illusion tail lights, which are a perfect match in quality, style, and functionality. The premium quality and eye-catching position lights complement all FOR9T products, including position, work, and driving lights. The different depths, layers, and functions of each light make them truly unique and attention-grabbing. The Illusion tail lights are available in four options: tail/brake/indicator, reverse/fog, tail/brake, and indicator.

ALL E-APPROVED TAIL LIGHT FUNCTIONS

Thanks to the diverse range of FOR9T products, any driver can achieve a cohesive look from every angle. The Orbi and Illusion tail lights ensure you have all the necessary functions in various combinations: tail, brake, indicator, reverse, and fog light. All FOR9T tail lights are E-approved to suit any driver. They’re designed to endure the challenges of the road and withstand dirt and water. Each function has a distinct look and placement within the lamp.

MODERN DESIGN

Strands Lighting Division is dedicated to enhancing the daily driving experience with innovative, high-quality products. The FOR9T series combines functionality and technology with a modern design. These lights encompass all the features you need, featuring a position light design that offers a fresh, captivating look. Select from a diverse range of FOR9T products to achieve a cohesive style for any vehicle.
