FOR9T DRAGON DRIVE DRIVING LIGHT 7″
/
Strands Lighting Division

FOR9T DRAGON DRIVE DRIVING LIGHT 7″

White/Amber Pos. | Xperience Mode | DT-4Pin
SKU: 270967
RRP: 215 (Excl. tax)

Choose variant

FOR9T DRAGON DRIVE DRIVING LIGHT 7″

RRP: 215 (Excl. tax)
SKU: 270967
Chosen

FOR9T DRAGON DRIVE DRIVING LIGHT 9″

RRP: 240 (Excl. tax)
SKU: 270969
Choose

The Dragon Drive is now available in a 7” version. It has an impressive output of 6600 actual lumens and a range of over 440 meters in Xperience mode. The E-mode is E-approved R148/149 with reference number 20, which is often required but also ideal for driving in poor weather conditions. The adjusted output reduces glare from rain, snow, or fog. The optimized (combo) beam ensures optimal forward and sideways illumination.

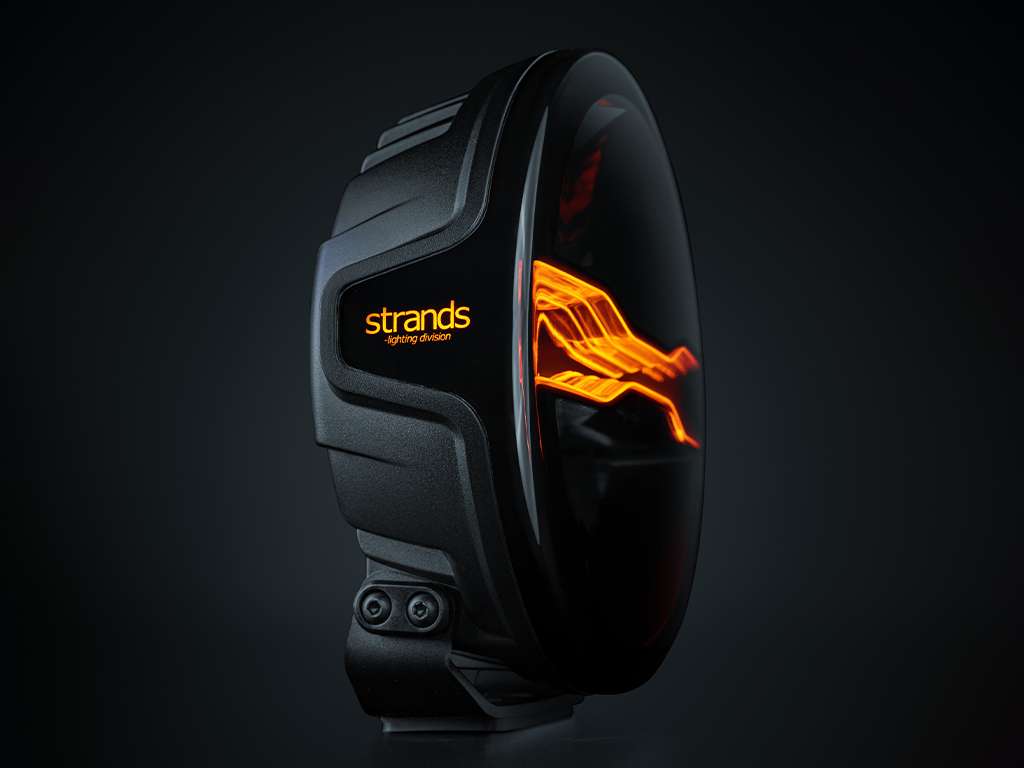

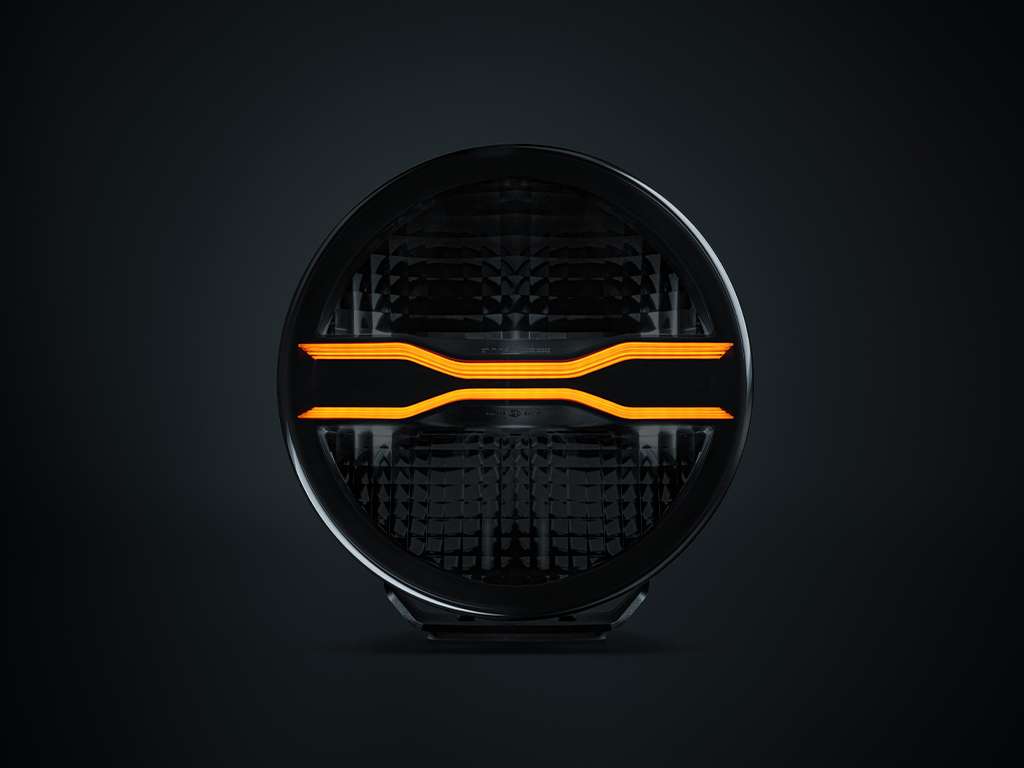

The FOR9T dual-color position lights in white and amber offer a modern look and superior performance, with flowing lines making your vehicle the center of attention. It also illuminates the Strands logo on the side of the lens. When not in use, the position lights are dark and invisible against the lens. The Dragon Drive is made with high-quality materials and has an IP rating of IP67, making it a lasting addition to your vehicle. It’s easy to install with a DT-4 connector and is covered by Strands Lighting Division’s leading 3-year warranty.

    • Unit pcs
    • Voltage 10-48V DC
    • Theoretical effect 110W
    • Consumption 105W
    • Functions High-beam, white and amber position light, logo light
    • Consumption specific function Xperience mode:105W / E-mode:32W / White Pos: 3,5W / Amber Pos: 3,5W
    • Theoretical lumen 7800lm
    • Actual lumen Xperience mode:6600lm / E-mode:2800lm
    • 1 lux @ Xperience mode: 446m / E-mode: 305m
    • Color temperature 6500K
    • Beam pattern Optimized beam
    • Connection DT-4PIN
    • Cable length 550mm
    • Color housing Black
    • Color lens Clear/Dark
    • Color LED´s White and amber
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Depth 91mm
    • Height including bracket 185mm
    • Diameter 180mm
    • Weight 1,65kg
    • IP-class IP67
    • Operating temperature -30 - +65°C
    • E-approved Yes
    • According to regulation ECE R148,R149
    • Reference number 20
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + (High beam, Xperience mode)
    • White cable White Position light
    • Yellow cable Amber Position light
    • Green cable + (E-mode)
    • Included in package Bracket, washers, bolts, rubber pad, DT06-pig tail
    • Length inner box 265mm
    • Width inner box 255mm
    • Height inner box 115mm
    • Gross weight 2,1kg
    • Volume 0,0075m³
    • Warranty 3 Years
    • Length master carton 525mm
    • Width master carton 280mm
    • Height master carton 250mm
    • Weight master carton 10,4kg
    • PCS in master carton 4pcs

FOR9T IS PASSION

1 lux @ +440 meters

In the new E-approved Dragon Drive, high-end functionality meets bold design. The sleek design of the no-edge lens enhances its unique shape, extending over the side to showcase the glowing Strands logo. Dragon Drive has a design where all details matter: its lightweight aluminum housing, high-quality materials, and compact size make it a powerful addition to any vehicle. Thanks to its 6600 actual lumens, the extended beam reaches 440 meters in Xperience mode, an impressive boost to your high beam. The unique design of the FOR9T position lights is a true attention-grabber, with hypnotic lines drawing the attention of everyone around you.

Low weight and easy installation

The lasting materials and IP67 rating ensure a long-lived and corrosion-free product. They also reduce weight and, combined with the DT-4 connector and compact bracket, make the FOR9T Dragon Drive easy to install on any vehicle. It uses 10-48 V DC. Everything you need for installation is included in the package: bracket, washers, bolts, rubber pad, and DT-pigtail. The fifth cable (green) is connected for E-mode. Dragon Drive is installed with a 550 mm cable.

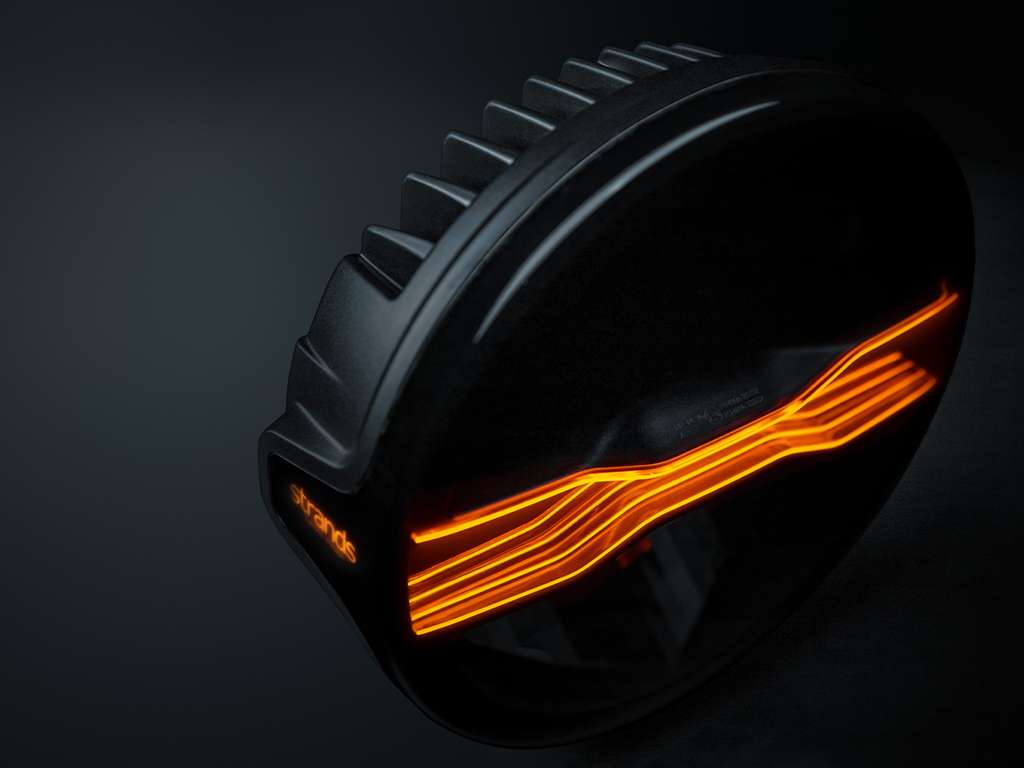

Dual-color position light

The new Dragon Drive driving light is guaranteed to be a customer favorite. It’s a powerful all-round driving light with an extended beam, suitable for many drivers. It can be used with E-approved mode and Xperience mode. The E-approved mode suits European drivers or is used during poor weather conditions, and the Xperience mode is a powerful lighting experience. The eye-catching white and amber position light, unique to the FOR9T series, adds a stylish look. The wide range of the FOR9T series provides numerous opportunities for anyone to get a complete look with matching driving, position, and work lights. Thanks to Strands’ unique 3-year warranty and expert support team, you can count on lasting customer satisfaction.
