Single Row vs Double Row LED Bar: What’s the Difference and Which Should You Choose?

Choosing between a single row and a double row LED bar comes down to beam performance, installation space, vehicle type, and compliance requirements. A single row design offers a slimmer profile and lower mounting height, while a double row configuration delivers higher light output and greater beam intensity in demanding environments. Both can be E-approved when properly configured, and both can integrate seamlessly with modern CAN-BUS systems. The right choice depends on how much light you actually need, what you want, where you can mount the bar, and whether your vehicle is a passenger car, pickup, or heavy truck.

What Is the Difference Between a Single Row and a Double Row LED Bar?

The core difference lies in the LED arrangement and optical depth.
A single row LED bar features one horizontal line of diodes. It is compact, lightweight, and ideal where installation height is limited — for example, behind a grille or integrated into a vehicle’s front profile.
A double row LED bar stacks two rows of LEDs vertically. This increases reflector depth and available output, resulting in higher Actual lumen performance and a more intense long-range beam.
From a design perspective: Single row bars prioritize slim integration. Double row bars prioritize maximum performance per centimeter.

HOW DOES LIGHT OUTPUT AND BEAM PATTERN COMPARE?

Light performance depends on reflector geometry, optics, and driving modes — not just the number of LEDs. However, double row bars typically deliver higher output due to increased diode count and deeper reflector design.

Both configurations are available with different beam patterns, so each driver can find the best balance of width and distance.

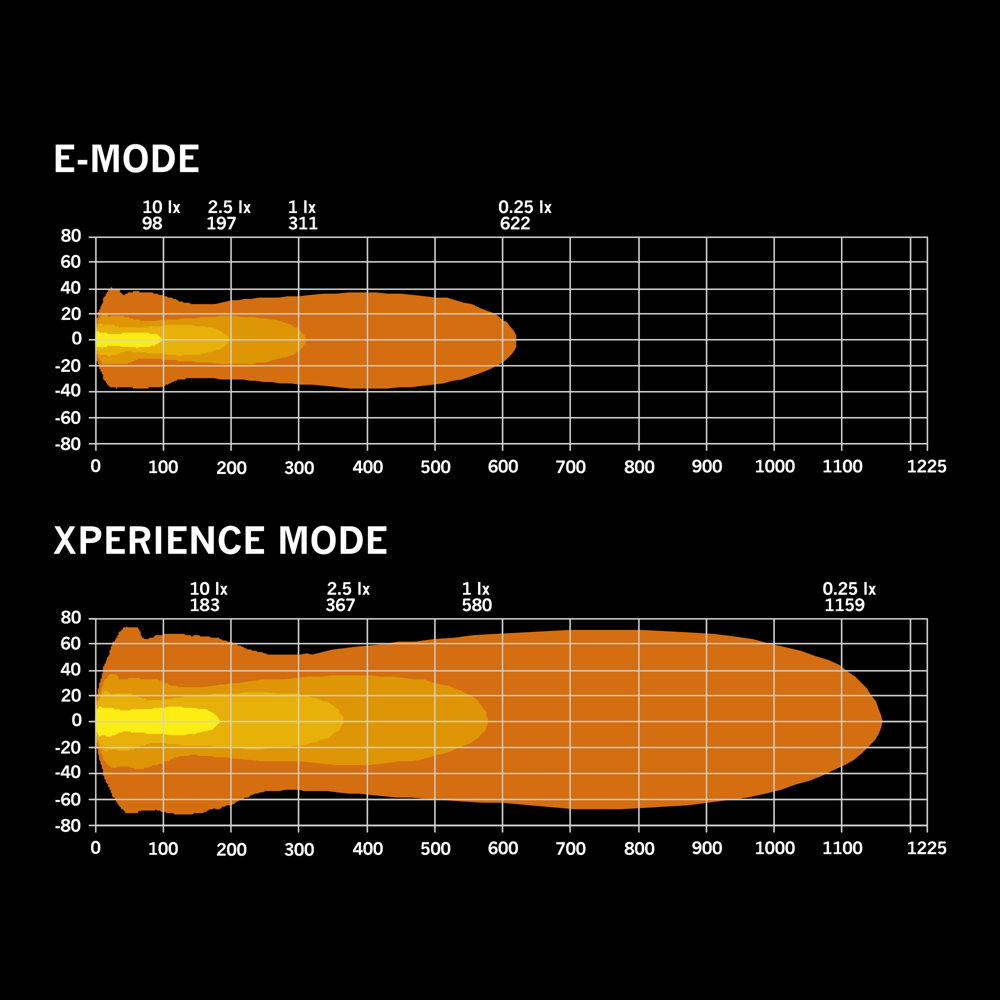

Strands models equipped with E-mode allow road-legal driving when connected to high beam, while Xperience mode is a boost mode that unlocks full performance for off-road use where permitted.

Feature	Single Row LED Bar	Double Row LED Bar
Physical height	Slim profile	Taller housing
Typical output range	Moderate to high	High to very high
Beam reach	Long, controlled	Longer, more intense
Best for	Discreet integration	Maximum forward visibility
Vehicle fit	Passenger cars, SUVs	Pickups, heavy trucks

WHICH IS BETTER FOR DIFFERENT VEHICLE TYPES?

Passenger Cars and SUVs

A single row bar is often the preferred solution due to:

Limited mounting space
Aerodynamic considerations
Integration behind the grille

Slim designs maintain OEM aesthetics while still delivering strong forward light. Pairing with a CAN-BUS solution such as XBB ensures compatibility with modern electrical systems. A passenger car favorite is the Nuuk E-Line Black (Part No. 809445). It's designed to be easy to use and install and has a built-in relay. Simply remove the license plate holder and replace it with the Nuuk E-Line.

Pickup Trucks

Pickup owners often choose based on usage:

Daily driving and discreet styling → single row
Rural roads, work use, hunting, or off-road → double row

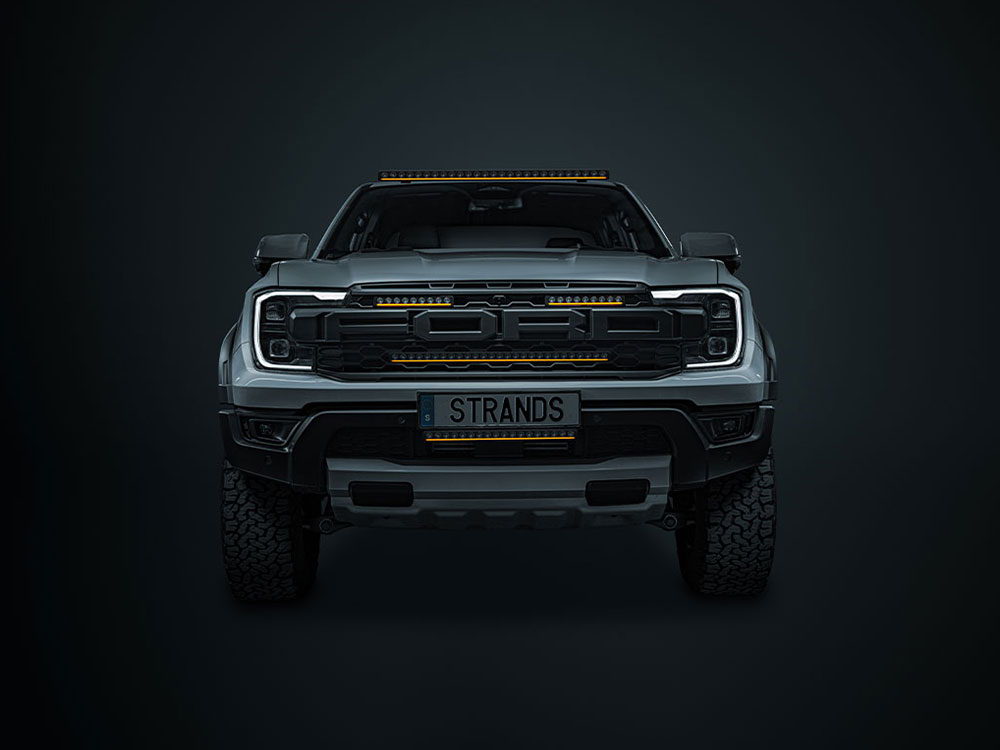

Depending on the desired light and look, there are multiple options. The Nuuk D-Line LED bar (Part No. 809451-54) is available in sizes 10"-40", has a slim housing with a dark lens, and can be used with an amber or white position light. It blends discreetly with the look of any vehicle.

If you drive off-road or on gravel roads and need powerful durability as well as output, check out the Skylord LED bar 10"-40" (Part No. 902000-03). It features a built-in relay, a housing cast in one piece, and a beam pattern designed for maximum visibility both near and far from the vehicle.

Heavy Trucks (24V Systems)

Heavy-duty applications benefit significantly from double row configurations:

Higher mounting positions allow larger bars
24V compatibility ensures stable performance
Stronger beam reach improves long-distance visibility

Strands' double row straight and curved models are commonly selected for commercial fleets where durability and consistent output are critical. As trucks are able to accommodate larger LED bars, you can get a massive light output. The Siberia XP series LED bars are available in sizes up to 50". Choose between straight or curved, white/amber or white/yellow position light, and single or double row.

WHAT ABOUT E-APPROVAL AND ROAD LEGALITY?

When installing auxiliary lighting in Sweden and across Europe, compliance is essential.

For legal road use:

The LED bar must be E-approved under ECE R112 (forward driving lamps).
The bar must emit white forward light.
It must automatically activate with high beam.
The combined Reference number must comply with national limits.
The product should also comply with ECE R10 (electromagnetic compatibility).

Many Strands models include:

E-mode: E-approved output.
Xperience mode: Full output mode for off-road use where allowed.

Always verify current installation requirements and Reference number limits before installation. Regulations may change, and vehicle-specific conditions can apply.

IS ONE MORE DURABLE THAN THE OTHER?

Durability is not determined by just one factor. Instead, it depends on:

Housing construction
Sealing and IP rating
Vibration resistance
Connector quality

Both single and double-row LED bars from Strands are engineered for demanding Nordic conditions. For heavy trucks and high-vibration environments, proper mounting brackets and stable wiring are equally important.

WHEN SHOULD YOU CHOOSE SINGLE ROW VS DOUBLE ROW?

Choose single row if:

Mounting space is limited
You want a discreet installation
You drive primarily on-road
You want a clean OEM-style look

Choose double row if:

You need maximum Actual lumen output
You drive frequently on dark rural roads
Your vehicle allows taller mounting
You operate a pickup or heavy truck requiring extended reach

There is no universal “better” option — only the right solution for your vehicle and driving environment.

FAQ

Not automatically. Double row designs generally allow higher output, but total performance depends on optics, reflector design, and operating mode (E-mode vs Xperience mode).

Yes, provided the model is E-approved under ECE R112, correctly connected to the high beam, and within the allowed Reference number limits.

Typically, yes, due to higher LED count. Always check technical specifications and ensure proper wiring and fuse capacity.

A single row LED bar is usually better suited due to its slimmer profile.

Find your next LED bar

EXPLORE LED BARS

Selecting between single row and double row LED bars is about matching performance to real-world needs. When chosen correctly, both deliver controlled, compliant, and optimized forward lighting — engineered for Nordic conditions.
