WORK LIGHT/ REVERSING LIGHT SQUARE 25W LED

SKU: 908517
RRP: 58.70 (Excl. tax)

Choose variant

WORK LIGHT/ REVERSING LIGHT SQUARE 25W LED

RRP: 58.70 (Excl. tax)
SKU: 908517
Chosen

WORK LIGHT/ REVERSING LIGHT SQUARE 25W LED – 10 CM CABLE

RRP: 79.70 (Excl. tax)
SKU: 908517-10DT
Choose

WORK LIGHT/ REVERSING LIGHT SQUARE 25W LED – 10-110V DC

RRP: 95.60 (Excl. tax)
SKU: 908517-110
Choose

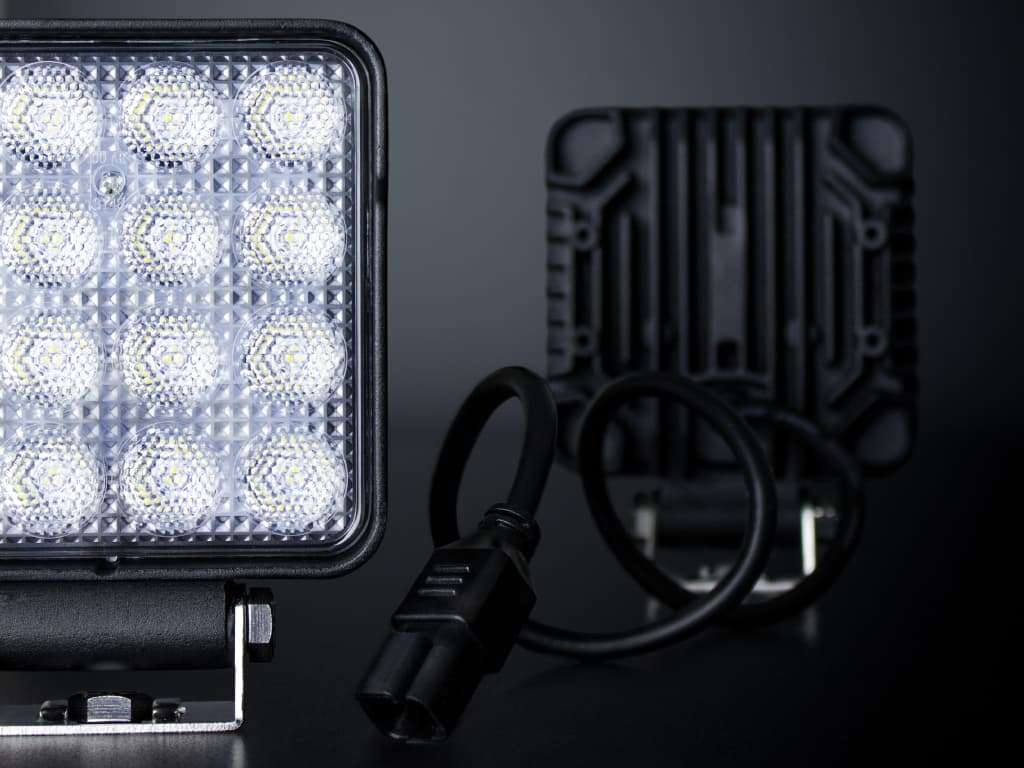

High quality, slim design and a powerful light. A unique design-patented work lamp that is E-approved as a reversing lamp. It has a low power consumption – but still delivers a high lumen. 3040 theoretical and 2200 actual lumens.

The slim design, with a depth of only 46 mm, has many advantages. It is less exposed to stressful weather conditions, and it is easy to mount.

The black lacquered housing is made in aluminum and the lens in polycarbonate. The choice of material makes it durable and immune to scratches.

Comes with one meter cable and a DT connector that makes the installation smooth.

– 1 LUX AT 77 METERS
– OSRAM LED
– DT CONNECTOR
– ADR APPROVED
– E-APPROVED AS REVERSE LAMP

    • Type of Lamp LED
    • PCS LED´s 16
    • Voltage (V DC) 12-32V DC
    • Theoretical effect (w) 12V 48
    • Theoretical effect (w) 24V 48
    • Consumption (w) 12V 25
    • Consumption (w) 24V 25
    • Theoretical lumen 3040
    • Actual lumen 2200
    • 1 LUX @ m 77
    • Kelvin 6000
    • IP-class 67/69K
    • Color housing Black
    • Color lens Clear
    • Color LED´s White
    • Beam pattern Flood
    • Connection DT
    • Cable length (mm) 1002
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) 110
    • Depth (mm) 46,52
    • Height (mm) 110
    • Height including bracket (mm) 138,83
    • Operating temperature -30°C - +65°C
    • ADR-approved Yes
    • E-approved Yes
    • According to regulation ECE R23
    • EMC ECE R10
    • Length inner box (mm) 120
    • Height inner box (mm) 150
    • Depth inner box (mm) 65
    • Weight (kg) 0,8
    • Length master carton (mm) 350
    • Height master carton (mm) 260
    • Width master carton (mm) 320
    • Weight master carton (kg) 16,56
    • Taric code 85122000
