Unity worklight round 11W

SKU: 809233
RRP: 29 (Excl. tax)

Maximise your work, meet the next generation of work lighting with the Unity mini round. A work light that takes your work to a new level.
With its slim design revolutionising strong light output and with its actual 1000 lumens. the unity mini round is developed to illuminate the toughest environments.
The Unity mini round comes in an infinity design where the lens extends to the corners, which not only does wonders for the overall impression. It provides a wide and even light pattern without shadows. It also fulfils the increased requirements for dirt resistance.
Its sleek design and small size make it a perfect match for today’s vehicles that need work lighting such as trucks, tractors, trailers, construction or agricultural machinery.
When it comes to powerful lights, they usually produce more heat, which can cause the lamp to fail. The built-in temperature control prevents this and the function protects the lamp and reduces the output until the light cools down. This makes the Unity series one of the most durable products on the market.

    • Type of Lamp LED
    • PCS LED´s 8
    • Voltage (V DC) 9-32V DC
    • Theoretical effect (w) 12V 12
    • Theoretical effect (w) 24V 12
    • Consumption (w) 12V 10
    • Consumption (w) 24V 11
    • Theoretical lumen 1520
    • Actual lumen 1000
    • 1 LUX @ m 45
    • Kelvin 6000
    • IP-class 68/69K
    • Color housing Black
    • Color lens Clear
    • Color LED´s White

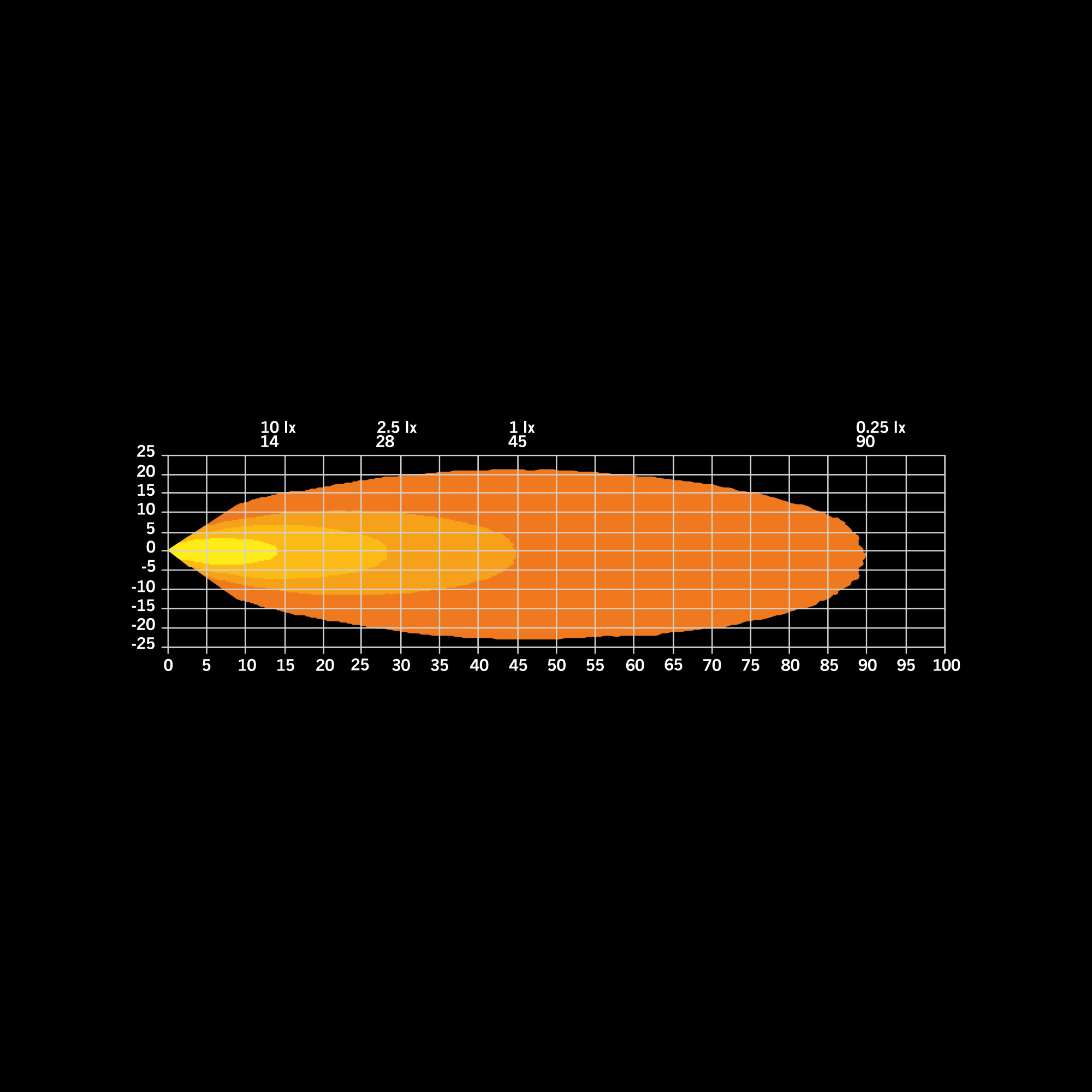

    • Beam pattern Flood
    • Position light No
    • Connection DT2
    • Cable length (mm) 500
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate

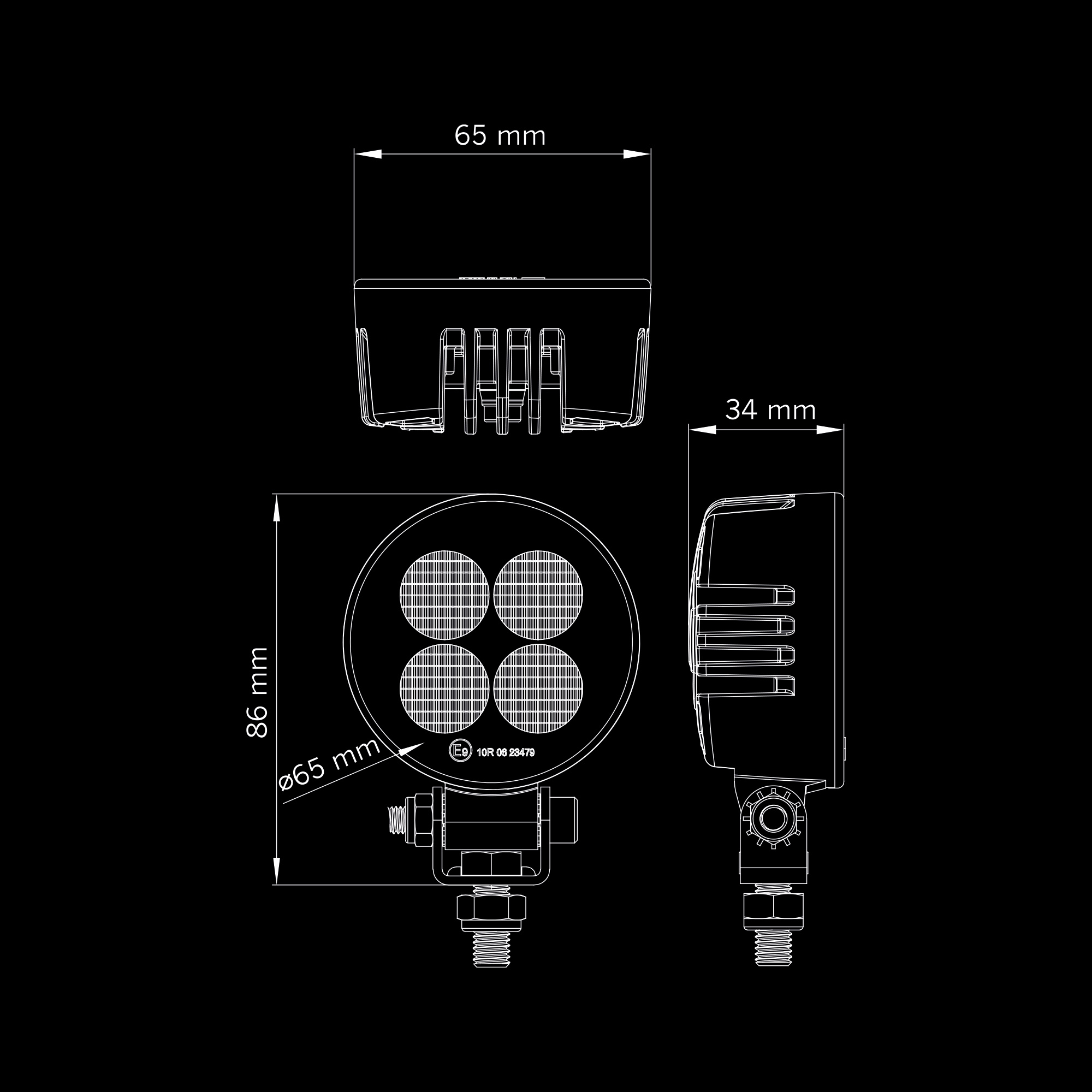

    • Length (mm) 65
    • Depth (mm) 34
    • Height (mm) 65
    • Height including bracket (mm) 86
    • Diameter (mm) 65
    • Operating temperature -30°C - +65°C
    • ADR-approved No
    • E-approved No
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + Positive
    • Mounting details included Bracket, Screws, washers, bolts
    • Length inner box (mm) 100
    • Height inner box (mm) 55
    • Depth inner box (mm) 63
    • Weight (kg) 0,24
    • PCS in master carton 50
    • Length master carton (mm) 295
    • Height master carton (mm) 215
    • Width master carton (mm) 340
    • Weight master carton (kg) 11
    • EAN 7350133816942
