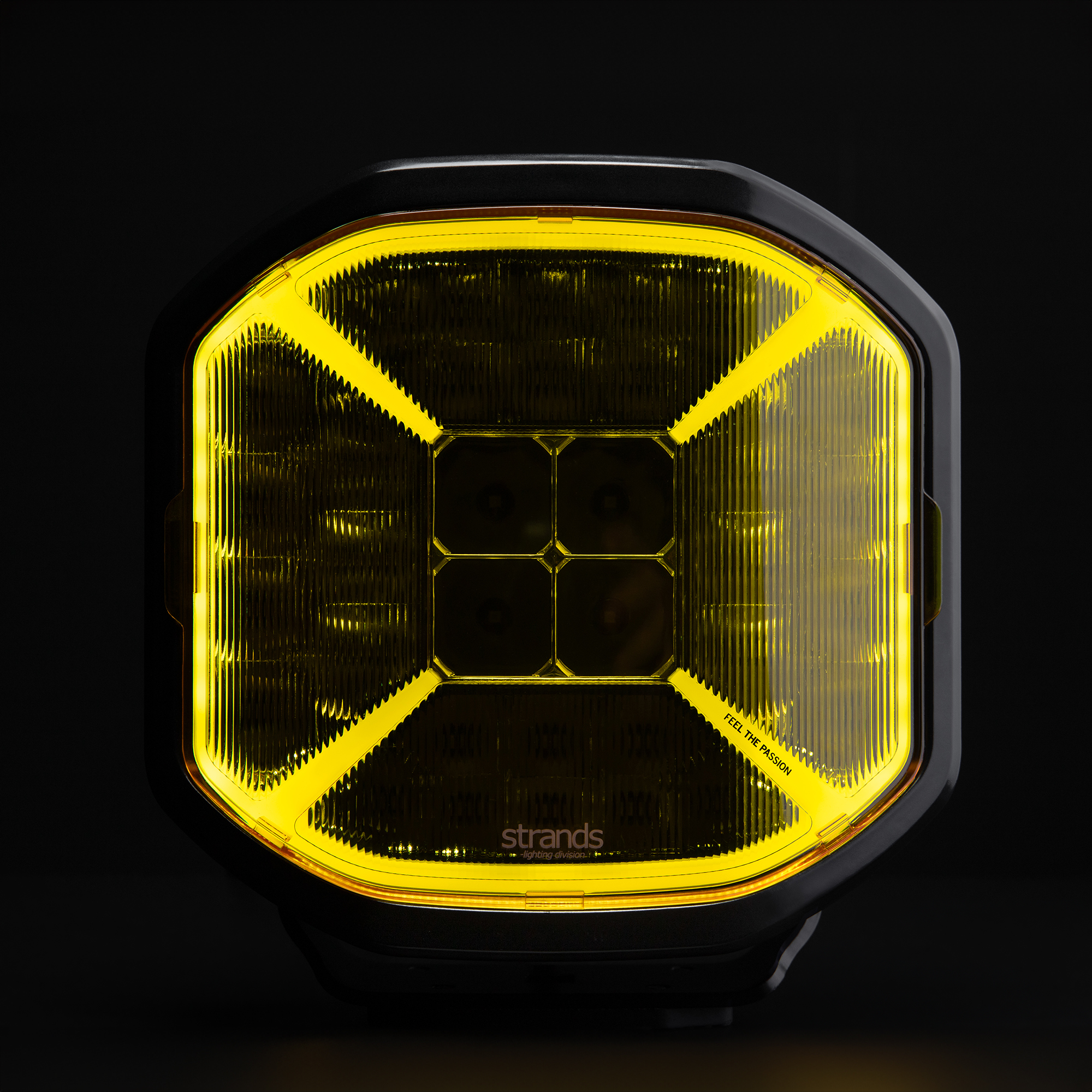

SIBERIA X DRIVING LIGHT 9″
Choose variant

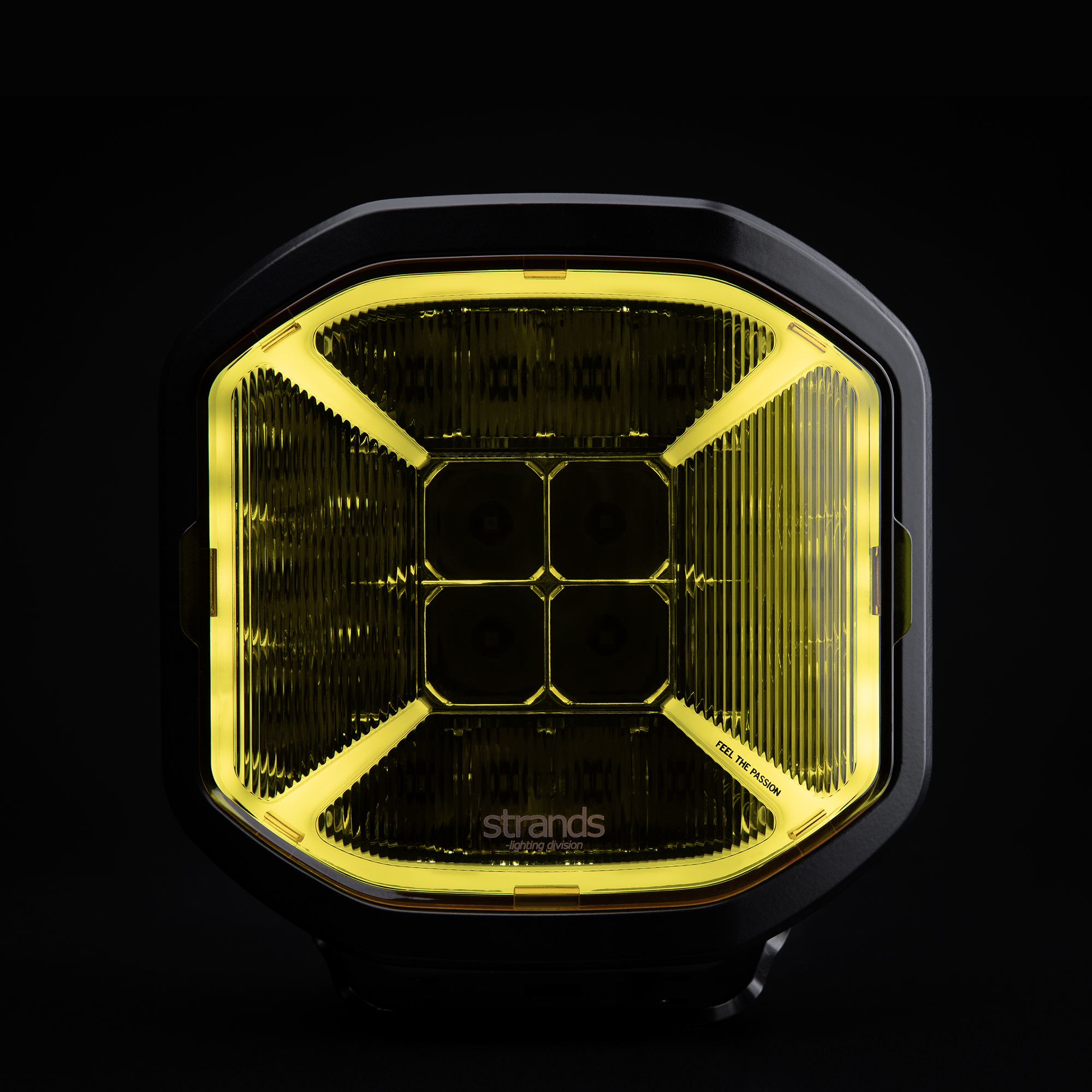

SIBERIA X DRIVING LIGHT 7″
Emitting 1430/13350 incredible actual lumens, the X 9” will light up the darkest night. It has an extended beam with an incredible range of 319/881 meters, ensuring high forward illumination. This makes Siberia X a powerful companion on challenging roads. Its durable materials and new powder coating make it a long-lived addition to any vehicle, with an IP rating of IP68/IP69K. Enjoy an effortless installation thanks to the DT-4 connector and 150 mm cable, saving you the headache of connecting cables. It is E-approved ECE R149(R112), R148(R7), and EMC certified ECE R10, CISPR25 Class 3.

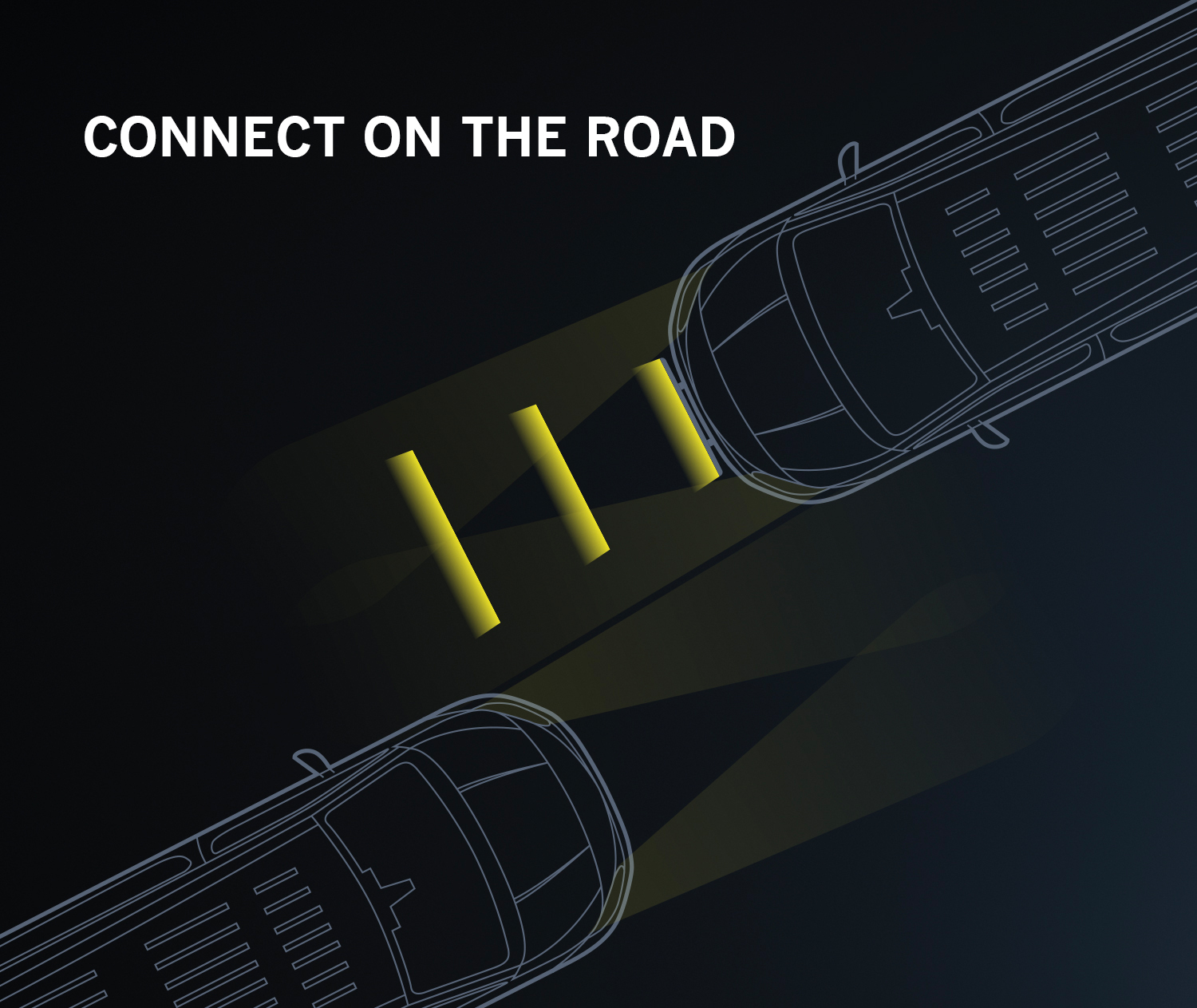

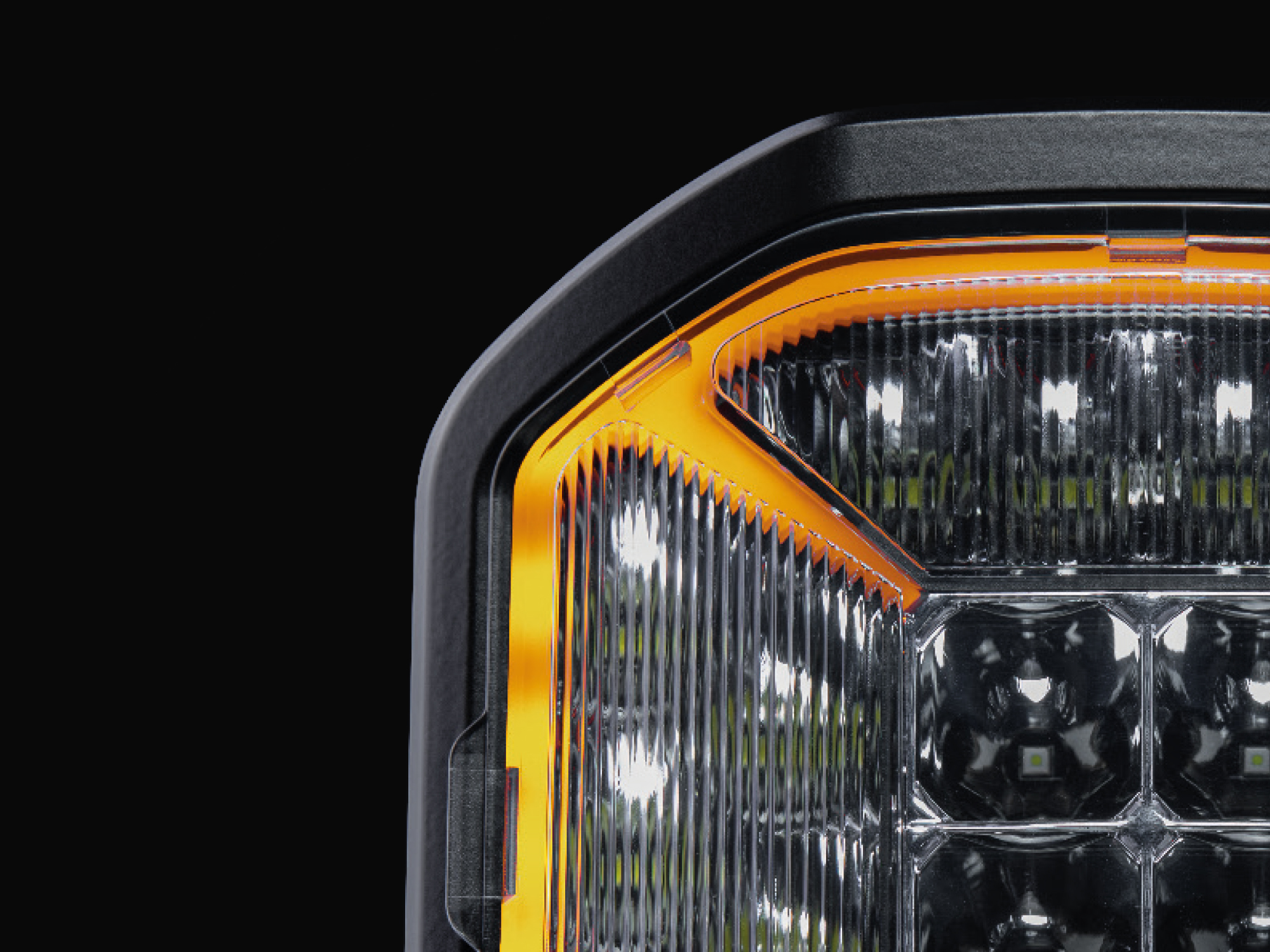

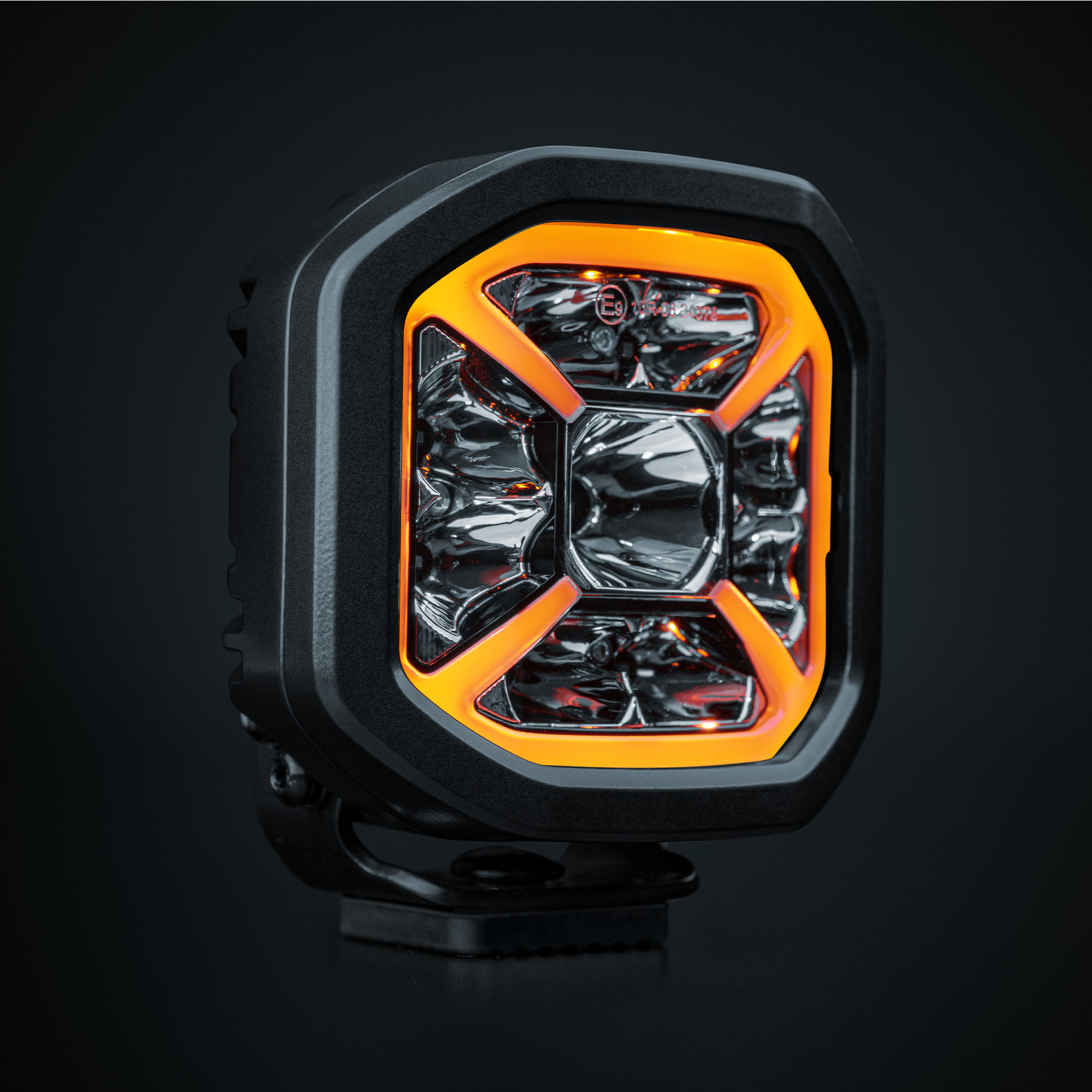

Like all Xperience products, the X driving light has a unique visual expression and a wholly reimagined shape. The square shape of the housing invites a variety of installations, and the rounded sides of the lens illuminate the sides. The X-shaped duo position light is unexpected and compliments the lens’ shape; choose between white and amber position lights. A new Hello function, unique to the Xperience series, allows you to signal to fellow drivers on the road. Just flash your headlights twice, and the position lights’ Hello signal will activate. The position light shines through the back of the housing, creating an eye-catching effect from any angle.
- Unit pcs
- Voltage 10-32V DC
- Theoretical effect 190W
- Consumption E-mode:19W / Xperience mode: 164W
- Functions High beam, Amber and white position light, Separate Hello function for position light, logo light
- Consumption specific function White position light: 6,9W ,Amber position light: 7,1W
- Theoretical lumen 18000lm
- Actual lumen E mode: 1430lm / Xperience mode: 13350lm

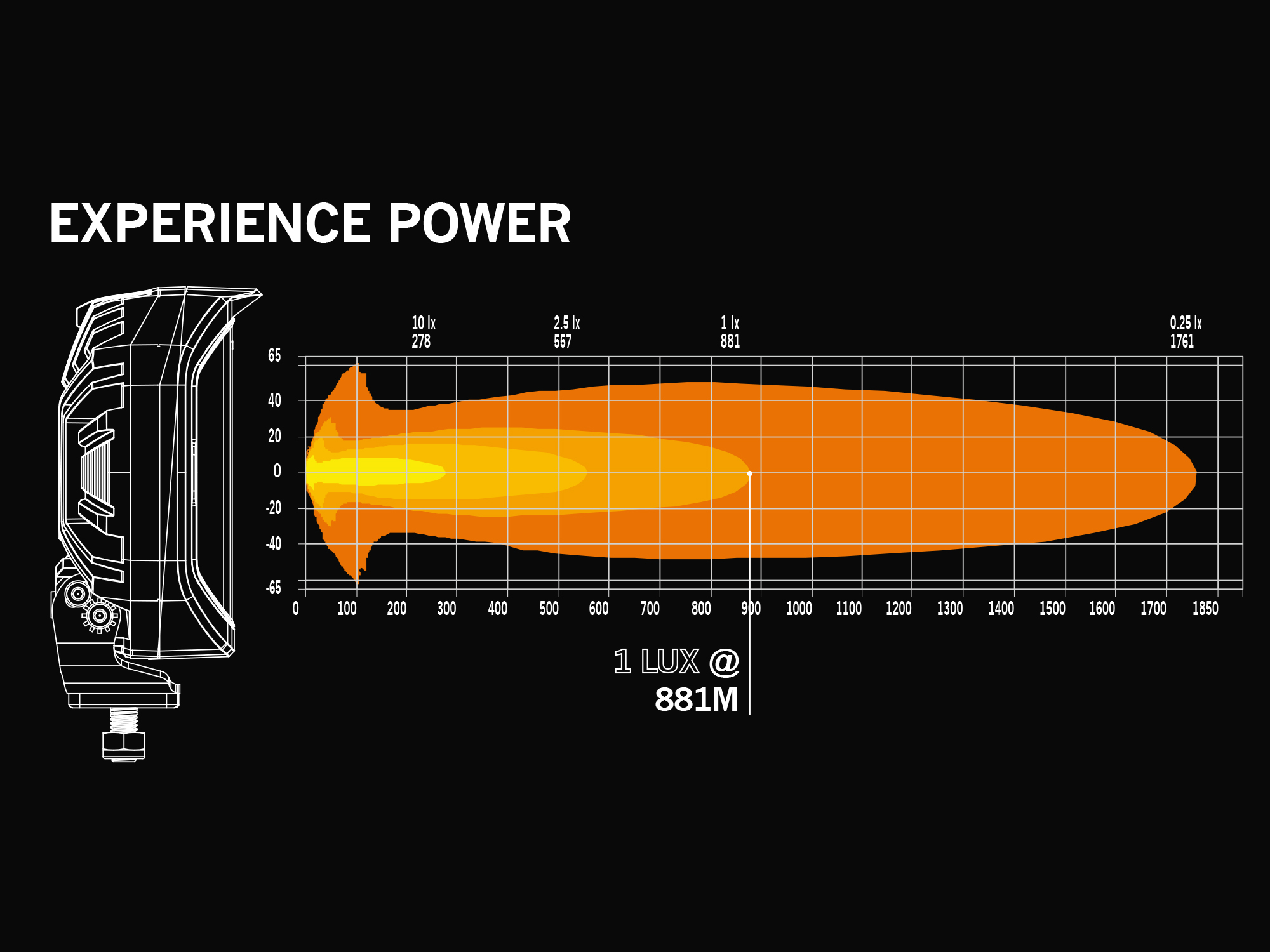

- 1 lux @ E-mode: 319m / Xperience mode: 881m
- Color temperature 5700K
- Beam pattern Long-distance beam
- Beam angle 9,7
- Connection DT-4PIN
- Cable length 150mm
- Color housing Black

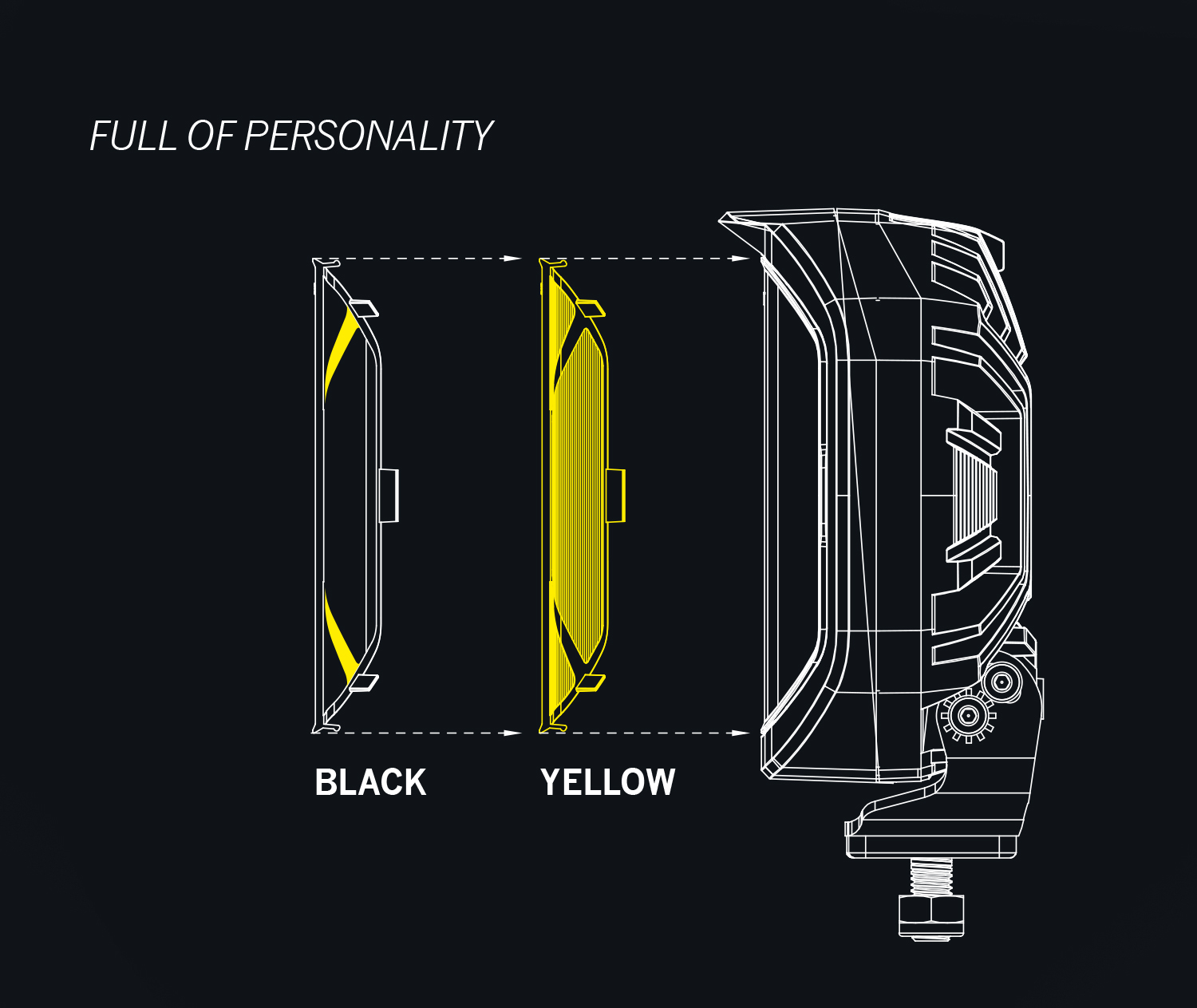

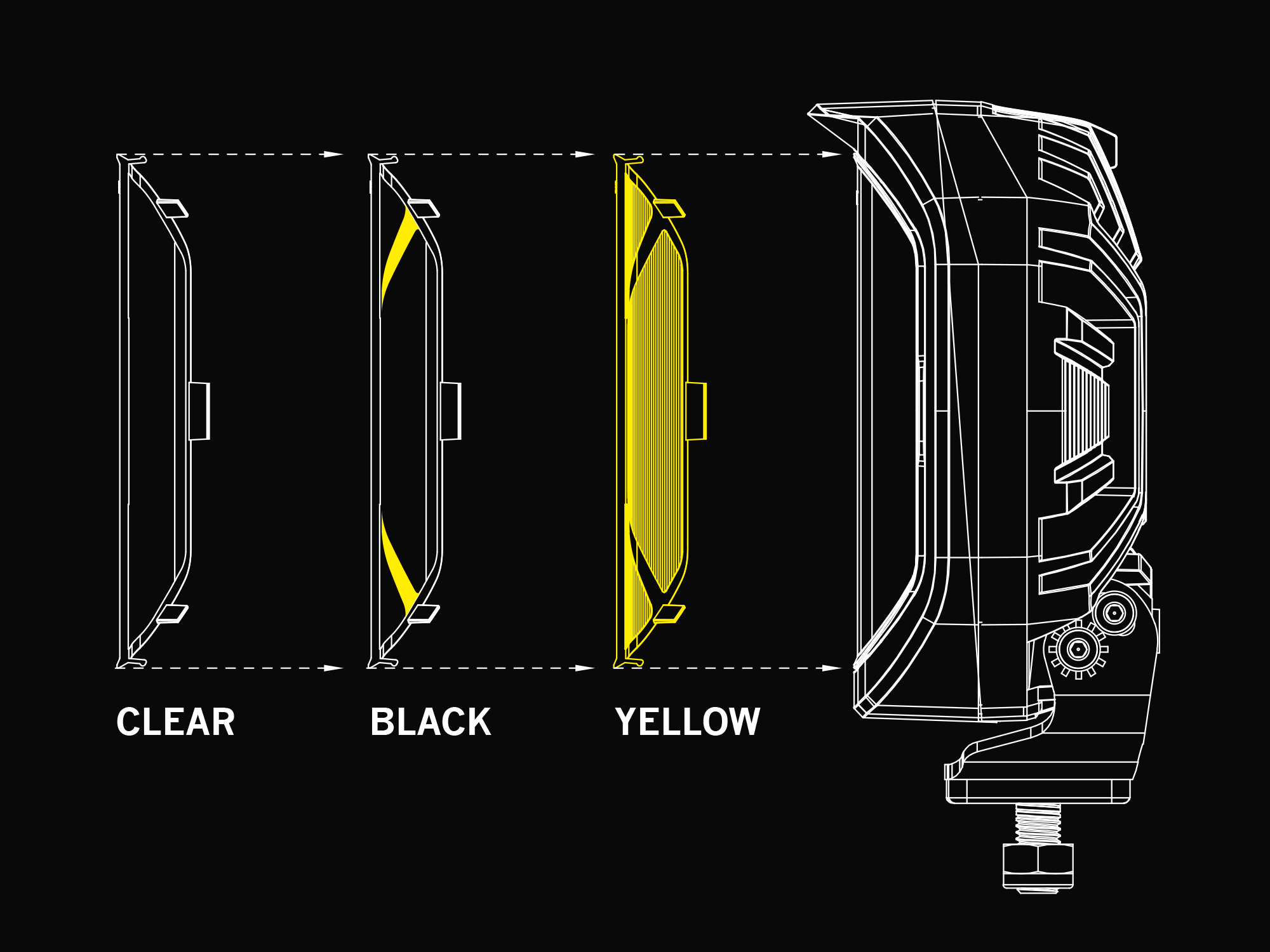

- Color lens Main lens: clear, External lens cover: black and yellow flood versions
- Color LED´s White/amber
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length 220,4mm
- Depth 99,3mm
- Height 212,6mm
- Height including bracket 233,1mm
- Weight 3,95kg
- IP-class IP68/69K
- Operating temperature -30 - +65°C
- E-approved Yes
- According to regulation ECE R148(R7),R149(R112)
- Reference number 20
- EMC ECE R10, CISPR25 Class 3
- Black cable - (Negative)
- Red cable + (High-beam)
- White cable + White Position light(Positive)
- Yellow cable + Amber Position light(Positive)
- Included in package Black cover, yellow flood cover, brackes,Screws, washers, bolts,rubber pad,cover remover tool
- Length inner box 331mm
- Width inner box 160mm
- Height inner box 287mm
- Volume 0,0152m³
- Warranty 3 Years
- Length master carton 682mm
- Width master carton 185mm
- Height master carton 595mm
- Weight master carton 17,3kg
- PCS in master carton 4pcs
