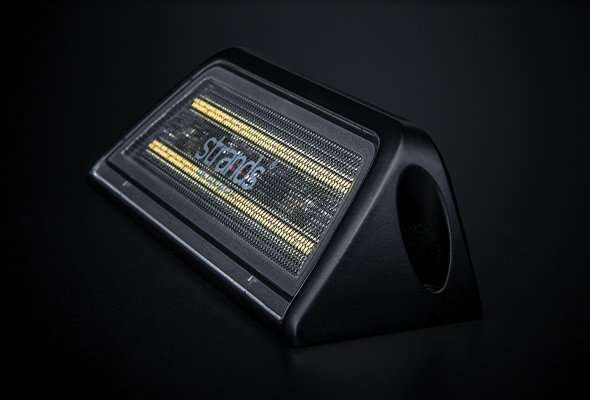

SIBERIA SL,SCENE LIGHT WORK LIGHT LED
The perfect solution when you need to illuminate a specific area. This versatile lamp is engineered to suit a broad range of vehicles – for both interior and exterior use. Delivers a clear white light, a perfectly controlled light scene. Suitable on the sides of a caravanette, at the back of a truck, on emergency vehicles, tractors, trailers or any kind of vehicle. Can also be mounted to the undercarriage of your vehicle for a great styling effect. Mounting the lamp higher generates a larger illuminated area, while mounting it lower creates a smaller scene. The 52 diodes are engineered to deliver a LED beam pattern within 180° horizontal spread and 125° vertical spread. Can withstand harsh environments and vibrations.
– CLEAR WHITE LIGHT
– INTERIOR AND EXTERIOR USE
– 180° HORIZONTAL AND 125° VERTICAL SPREAD
- Type of Lamp LED
- PCS LED´s 52
- Voltage (V DC) 9-35V DC
- Theoretical effect (w) 12V 52
- Theoretical effect (w) 24V 52
- Consumption (w) 12V 19
- Theoretical lumen 6500
- Actual lumen 2296
- 1 LUX @ m 31
- Kelvin 6000
- IP-class 67/69K
- Color housing Black
- Color lens Clear
- Color LED´s White
- Beam pattern Flood
- Position light No
- Connection Cable
- Cable length (mm) 500
- Material housing/chassi Aluminium
- Material lens Polycarbonate
- Length (mm) 150
- Depth (mm) 39,5
- Height (mm) 47
- Height including bracket (mm) 47
- Operating temperature -30°C - +65°C
- ADR-approved No
- E-approved No
- EMC ECE R10
- Black cable - (Negative)
- Red cable + Positive
- Mounting details included Screws, rubber base
- Length inner box (mm) 165
- Height inner box (mm) 50
- Depth inner box (mm) 70
- Weight (kg) 0,5
- PCS in master carton 50
- Length master carton (mm) 345
- Height master carton (mm) 265
- Width master carton (mm) 370
- Weight master carton (kg) 2,6
- Taric code 85122000
- EAN 7323030185411
