SIBERIA RF, RED FOX SIDE SHOOTER WORK LIGHT LED
/
Strands Lighting Division

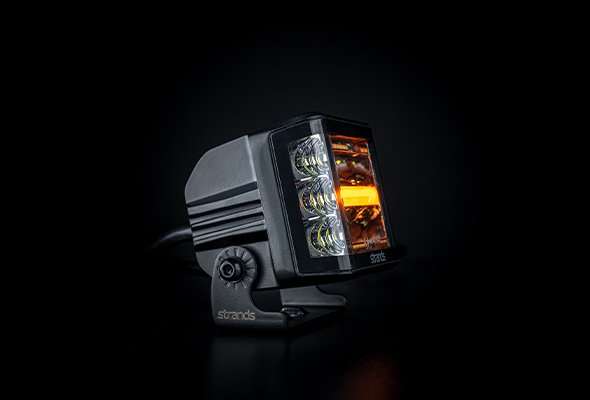

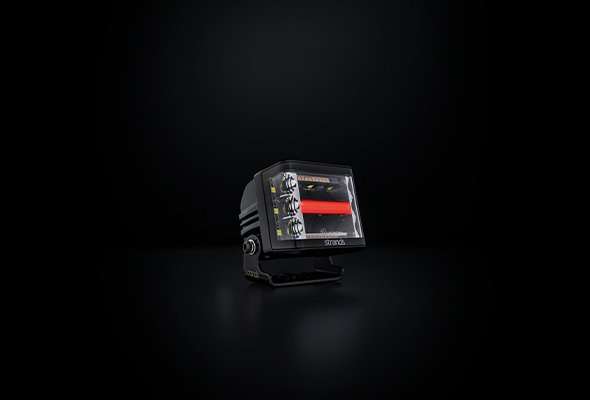

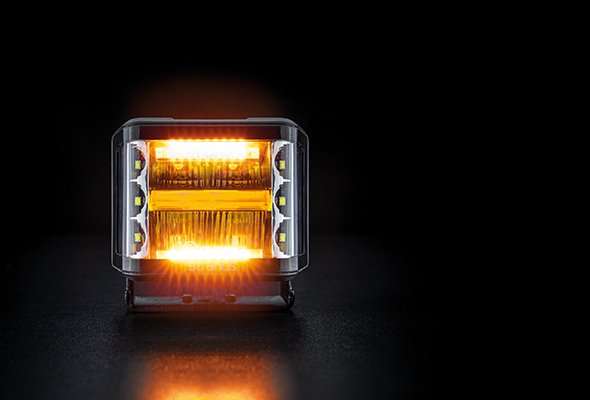

SIBERIA RF, RED FOX SIDE SHOOTER WORK LIGHT LED

SKU: 809125
RRP: €121.90 (Excl. tax)
Buy in store Buy in USA
Manual Product sheet

Built to revolutionize how accessory lighting works and looks. A bold new side shooter work light in a category of its own. With Siberia Red Fox you get it all. The ultra-wide and long-distance coverage light beam, the powerful warning light and the Siberia position light. This is the Red Fox that easily lives up to its name. Made to turn heads with a breathtaking look. Made to be brave and powerful in a compact package.

    • Unit pcs
    • Voltage 10-32V DC
    • Theoretical effect 70W
    • Consumption 41W
    • Functions Work light Warning light Red/amber position light
    • Consumption specific function Work light: 40,9W, Warning light: 22,5W, Amber position light: 1,6W, Red position light: 1,6W
    • Patterns 1
    • Theoretical lumen 8400lm
    • Actual lumen 3583lm
    • 1 lux @ 151m
    • Color temperature 5700K
    • Beam pattern Focused beam
    • Beam angle 44,6
    • Connection DT-6PIN
    • Cable length 500mm
    • Color housing Black
    • Color lens Clear
    • Color LED´s Red/amber/white
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length 92,93mm
    • Depth 74,57mm
    • Height 74,1mm
    • Height including bracket 87,56mm
    • Weight 0,63kg
    • IP-class IP67/69K
    • Operating temperature -20 - +45°C
    • E-approved No
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + (Positive)
    • Yellow cable Amber Position light
    • Green cable Warning light
    • Grey cable Red position light
    • Included in package Screws, washers, bolts
    • Length inner box 150mm
    • Width inner box 115mm
    • Height inner box 125mm
    • Gross weight 0,7kg
    • Volume 0,002m³
    • Warranty 3 Years
    • Length master carton 315mm
    • Width master carton 600mm
    • Height master carton 265mm
    • Weight master carton 16kg
    • PCS in master carton 20pcs

– 160° BEAM ANGLE

WORK LIGHT AND WARNING LIGHT

The massive amount of lighting knowledge that’s packed into Red Fox leaves no one disappointed. This is the next generation of multifunctional side shooters. The ultra-wide, long-distance beam and the extremely effective warning light – packed into one compact lamp. The lightheads are placed along the top and bottom of the lamp to provide maximum performance. The all-in-one solution simplifies installation, eliminates the need to mount several different lamps, while helping your vehicle to look smoother from all angles.

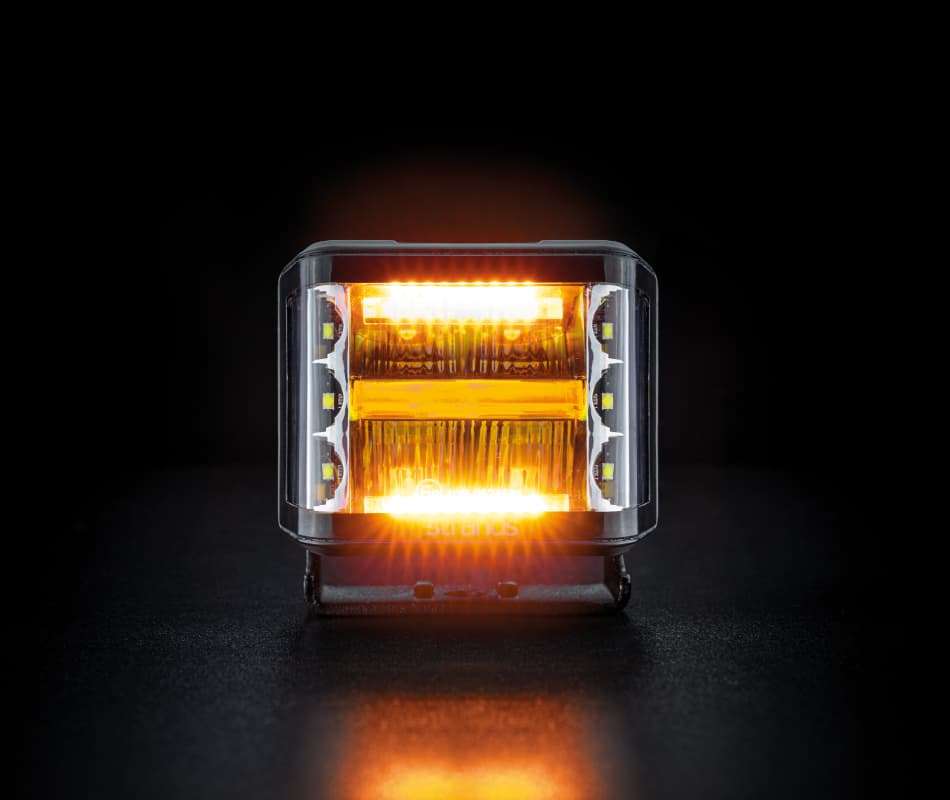

DUAL POSITION LIGHT

Personalize the look and choose which position light color you prefer. Go for the warm and intense amber color, reminding you of the most beautiful of sunsets – or be the fire and dare to choose the red color.

COMPACT SIZE

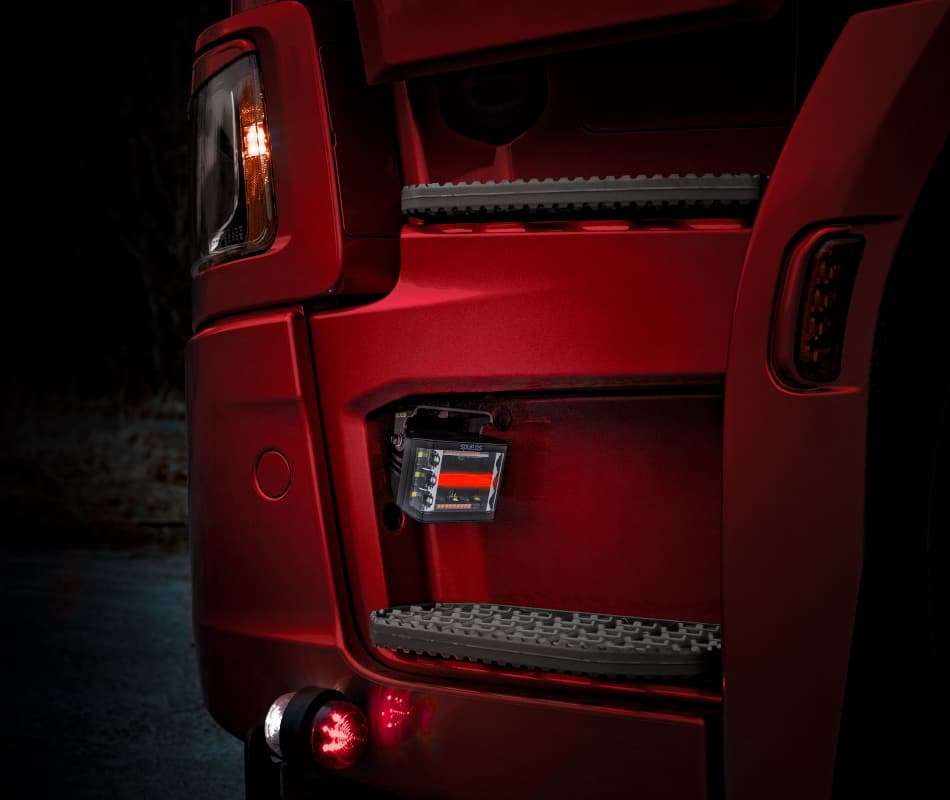

Perfectly sized with endless of mounting possibilities. Mount it alone or in pairs. Off road and on road. Motorcycles, on the stairs of a truck, dirt bikes, ATV, UTV. Ideal on any vehicle in need of an ultra-wide, long-distance coverage light beam and a warning light. Combine it with other lamps from the Siberia series for the perfect overall look.

COMBO BEAM

With Red Fox you can be sure no unexpected dangers will sneak up on you. The ultra-wide, long-distance beam with forward and side facing LEDs, produces a light pattern of 160° beam angle. Red Fox simply keeps an eye on as much as possible of your surroundings to increase your visibility and safety.
