Strands Lighting Division

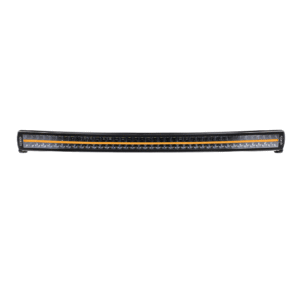

SIBERIA DRC 42″

SKU: 809198
RRP: €559.20 (Excl. tax)

Choose variant

SIBERIA DRC 42″

RRP: €559.20 (Excl. tax)
SKU: 809198
Chosen

SIBERIA DRC 32″

RRP: €455.10 (Excl. tax)
SKU: 809197
Choose

SIBERIA DRC 22″

RRP: €279.30 (Excl. tax)
SKU: 809196
Choose

SIBERIA DRC 50″

RRP: €719 (Excl. tax)
SKU: 809199
Choose
Buy in store Buy in USA
Manual Product sheet

Pioneering design and incredible light capacity. Let yourself be enchanted by Siberia Curved. A curved shape, appealing from all angles. An elegant look, even during the bright hours of the day. Exclusive material choices. Innovative features that provide freedom of choice. Make your own mark and choose between amber and white position light. And of course – Siberia Curved offers an optimized light beam that provides maximum width, without losing length.

– CURVED SHAPE
– DOUBLE ROW
– OPTIMIZED LIGHT BEAM

    • Unit PCS
    • Voltage (V DC) 10-40V DC
    • Consumption (W) High beam: 383,3 White position light: 9,5 Amber position light: 30
    • Functions White and amber position light
    • Theoretical lumen 32000
    • Actual lumen 15800
    • 1 LUX @ m 557
    • Color temperature (kelvin) 6000
    • Beam pattern Driving beam
    • Position light Yes
    • Connection Cable
    • Cable length (mm) 2500
    • Color housing Black
    • Color lens Clear
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate
    • Length (mm) 1078,4
    • Depth (mm) 71,6
    • Height (mm) 76
    • Height including bracket (mm) 89
    • IP-class 69K
    • Operating temperature -20℃- +45℃
    • E-approved No
    • EMC ECE R10
    • Black cable - (Negative)
    • Red cable + Positive
    • White cable White position light
    • Yellow cable Yellow Position light
    • Mounting details included Screws, washers, bolts
    • Length inner box (mm) 1130
    • Depth inner box (mm) 130
    • Height inner box (mm) 190
    • Weight (kg) 7,13
    • Length master carton (mm) 1145
    • Width master carton (mm) 300
    • Weight master carton (kg) 28
    • PCS in master carton 4
    • Warranty 3 Years

VÄLVD ELEGANS, IMPONERANDE LJUSSPRIDNING.

HIGHEST POSSIBLE PERFORMANCE

Comes in 22 “, 32”, 42 “and 50”. Available in both single-row and double-row versions. The 22” version is E-approved. The exclusive costume gives an unbeatable overall impression. Slim, dark and sophisticated. The lens extends from edge to edge with an extremely thin frame. Every little element is created to bring out the highest possible performance and interact in perfect harmony.

CURVED DESIGN

The rounded design fits perfectly on vehicles with a curved front. Siberia enhances the impression of your vehicle – and fits perfect with it. Like it has always been a part of the original look. The shape also contributes to a wider light distribution and efficiency on completely new levels, on all roads and in all conditions.

OPTIMIZED LIGHT BEAM

Siberia Curved comes with the established Siberia light beam – now optimized to perform maximally in a curved shape. An extended light distribution that gives you a lot of light to the sides. In addition, it provides a lot of light ahead, thanks to an increased number of spot reflectors. A phenomenal combination. It increases your safety and makes your driving experience extraordinary. The combined light beam makes the Siberia Curved suitable for varied driving, perfect for all kinds of roads and vehicles.

DUAL POSITION LIGHT

The well-known Siberia position light creates a powerful character and runs in a line along the bottom of the LED bar. Express your style and personality by choosing color between amber and white.
