FREEDOM LIGHT GUIDE RUBBER ARM SMALL RIGHT
FREEDOM LIGHT GUIDE RUBBER ARM SMALL LEFT
FREEDOM LIGHT GUIDE RUBBER ARM MEDIUM LEFT
FREEDOM LIGHT GUIDE RUBBER ARM MEDIUM RIGHT
FREEDOM LIGHT GUIDE RUBBER ARM LARGE LEFT
FREEDOM LIGHT GUIDE RUBBER ARM LARGE RIGHT
FREEDOM LIGHT GUIDE RUBBER ARM XL LEFT
FREEDOM LIGHT GUIDE RUBBER ARM XL RIGHT
Refuse to be average with the Freedom Light Guide. A small rubber arm with a position light for the right side of the vehicle. The Freedom series gives you the opportunity to maximize your own personality and change the logotype to your personal one. So much more than average, so much more of you.
Light Guide is for you who want to leave the standard behind and maximize your personality with your logotype. It comes in a unique, dark design with an exclusive look. Nothing you’ve experienced before.

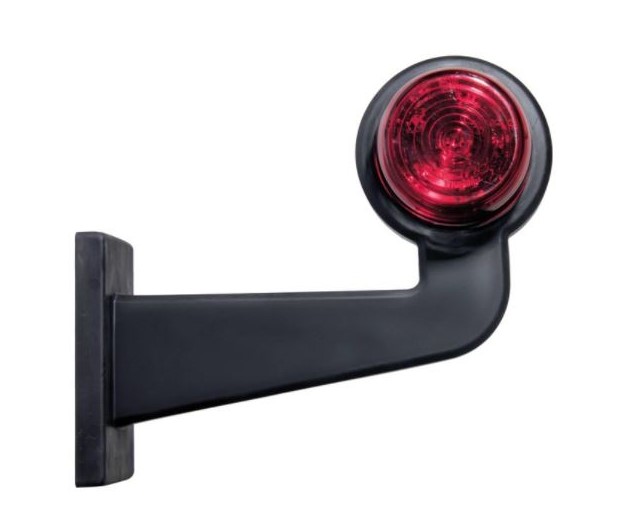

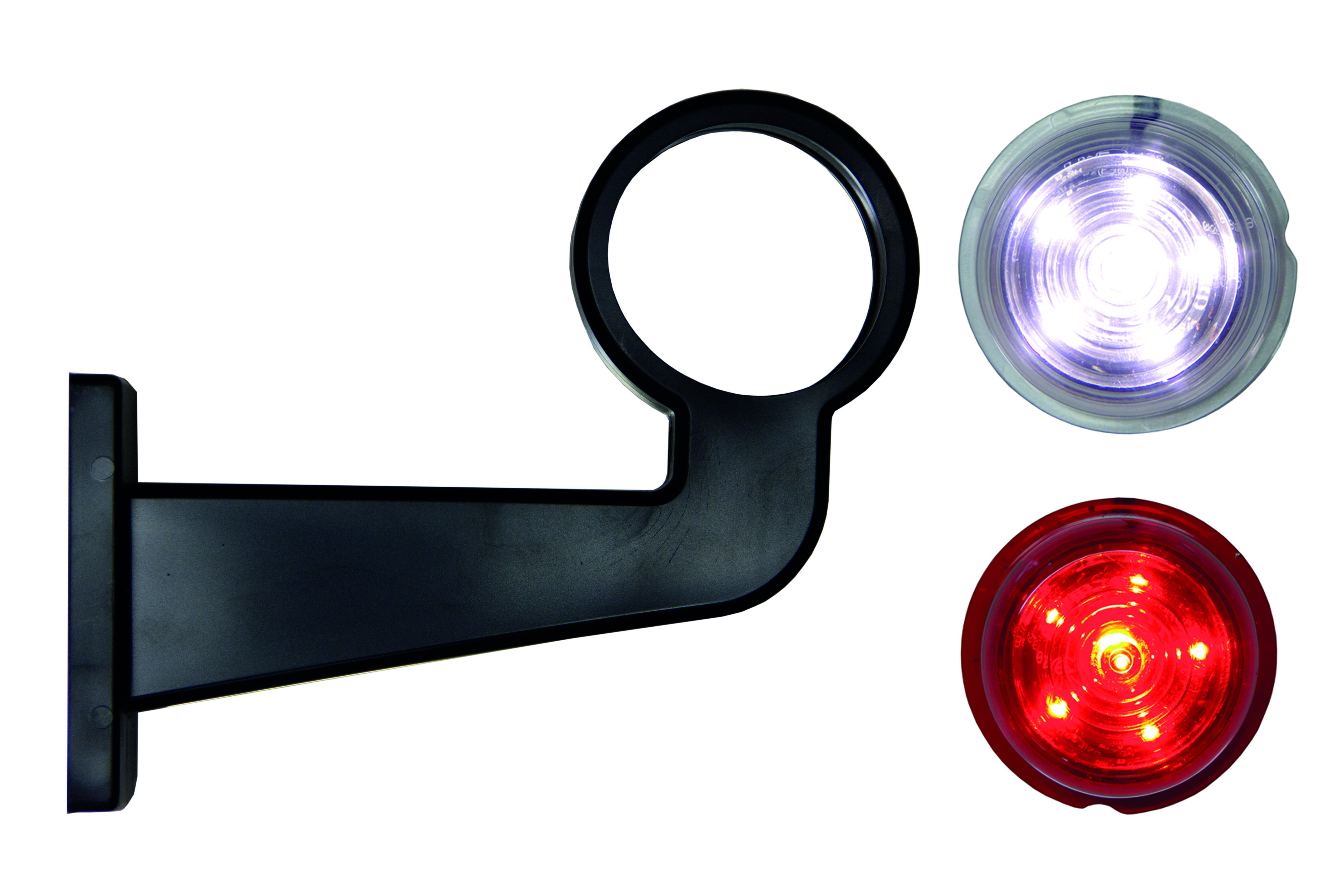

Light Guide is a small rubber arm with three lights – a red position light backward, a white forward, and a side marker on the side. It´s easy to mount and can be mounted on all types of trucks or trailers regardless of whether they have 12V or 24V. The rubber arm is often located far back on a trailer to help the driver keep track of the vehicle’s width and position.
It´s built of durable materials to last in demanding environments. It´s impact-resistant, UV-protected, as well as waterproof, and dustproof, according to IP6K9K. The lens is made of polycarbonate, making it basically unbreakable. Light Guide provides you with visibility, safety, and long-term product durability. It´s fully E-approved according to ECE R148 and comes with Strands Lighting Division´s market-leading three-year function warranty.
Combine Light Guide with other products from the Freedom series to create your own personal expression on your vehicle with your logotype. The perfect solution for you who want the freedom to choose yourself.
Contact us to maximize your personality with your logotype.
- Type of Lamp LED
- PCS LED´s Side-8 pcs, front-12pcs , rear-12pcs
- Voltage (V DC) 12-24
- Functions Front position, rear position, side position
- IP-class IP6K9K
- Color housing Black
- Color lens Dark Clear
- Color LED´s White, Red and Amber
- Position light Yes
- Connection Cable
- Cable length (mm) 1000
- Material housing/chassi Rubber
- Material lens Polycarbonate
- Length (mm) 89
- Depth (mm) 46
- Height (mm) 10,4
- CC (mm) 80
- Operating temperature -40 - +40°C
- ADR-approved No
- E-approved Yes
- According to regulation ECE R148
- EMC ECE R10
- PCS in master carton 40
- Country of origin Poland
- EAN 7350133815938
