FREEDOM LIGHT GUIDE RIGHT MEDIUM
RRP: €34
(Excl. tax)
SKU: 900025
/
Strands Lighting Division
Chosen
Choose
Choose
Choose
Choose
Choose
FREEDOM LIGHT GUIDE RIGHT MEDIUM
SKU: 900025
RRP:
€34
(Excl. tax)
Choose variant
FREEDOM LIGHT GUIDE LEFT SMALL
RRP: €32
(Excl. tax)
SKU: 900021
FREEDOM LIGHT GUIDE RIGHT LARGE
RRP: €36
(Excl. tax)
SKU: 900027
FREEDOM LIGHT GUIDE LEFT LARGE
RRP: €36
(Excl. tax)
SKU: 900026
FREEDOM LIGHT GUIDE RIGHT SMALL
RRP: €32
(Excl. tax)
SKU: 900022
FREEDOM LIGHT GUIDE LEFT MEDIUM
RRP: €34
(Excl. tax)
SKU: 900023

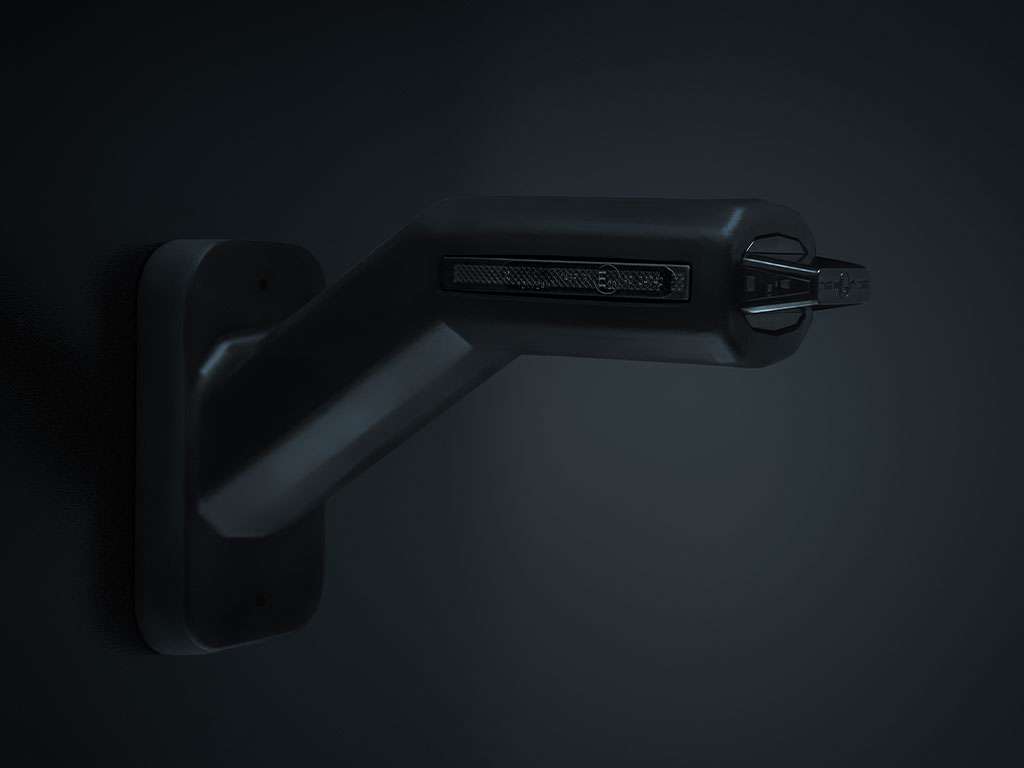

The Freedom light guide medium has a new modern design, reimagining the 3-in-1 side marker and red and white position light. It’s part of the Freedom series and is manufactured in Europe using high-quality materials, aiming for the highest sustainability and durability. Thanks to the high IP rating, IP6K9K, you can be sure the light guide can withstand the harsh exposure it faces on the road. To further guarantee its durability, it’s covered by Strands’ unique 3-year function warranty. The Freedom light guide has a low power consumption of only 5,5 W and can be used with 12-24 V. It’s available in three sizes, combining safety, visibility, and smooth, dark lines. It’s E-approved R148.
- Unit pcs
- Voltage 12-24V DC
- Theoretical effect 8W
- Consumption 5,5W
- Functions Rear position, side marker, front position
- Consumption specific function Rear: 2W, side marker: 1,5W, front: 2W
- Connection Cable
- Cable length 400mm
- Color housing Black
- Color lens Dark
- Color LED´s White/Red/Amber
- Material housing/chassi Rubber
- Material lens Polycarbonate
- Length 58mm
- Depth 161,5mm
- Height 112mm
- CC 78,5mm
- Weight 0,18kg
- IP-class IP6K9K
- Operating temperature -40 - +40°C
- E-approved Yes
- According to regulation ECE R148
- EMC ECE R10
- Black cable (+ Positive)
- White cable - (Negative)
- Length inner box 200mm
- Width inner box PIN PACKmm
- Height inner box 300mm
- Gross weight 0,2kg
- Warranty 3 Years
- Length master carton 410mm
- Width master carton 300mm
- Height master carton 320mm
- Weight master carton 6kg
- PCS in master carton 0pcs
Modern design
Benefits for drivers

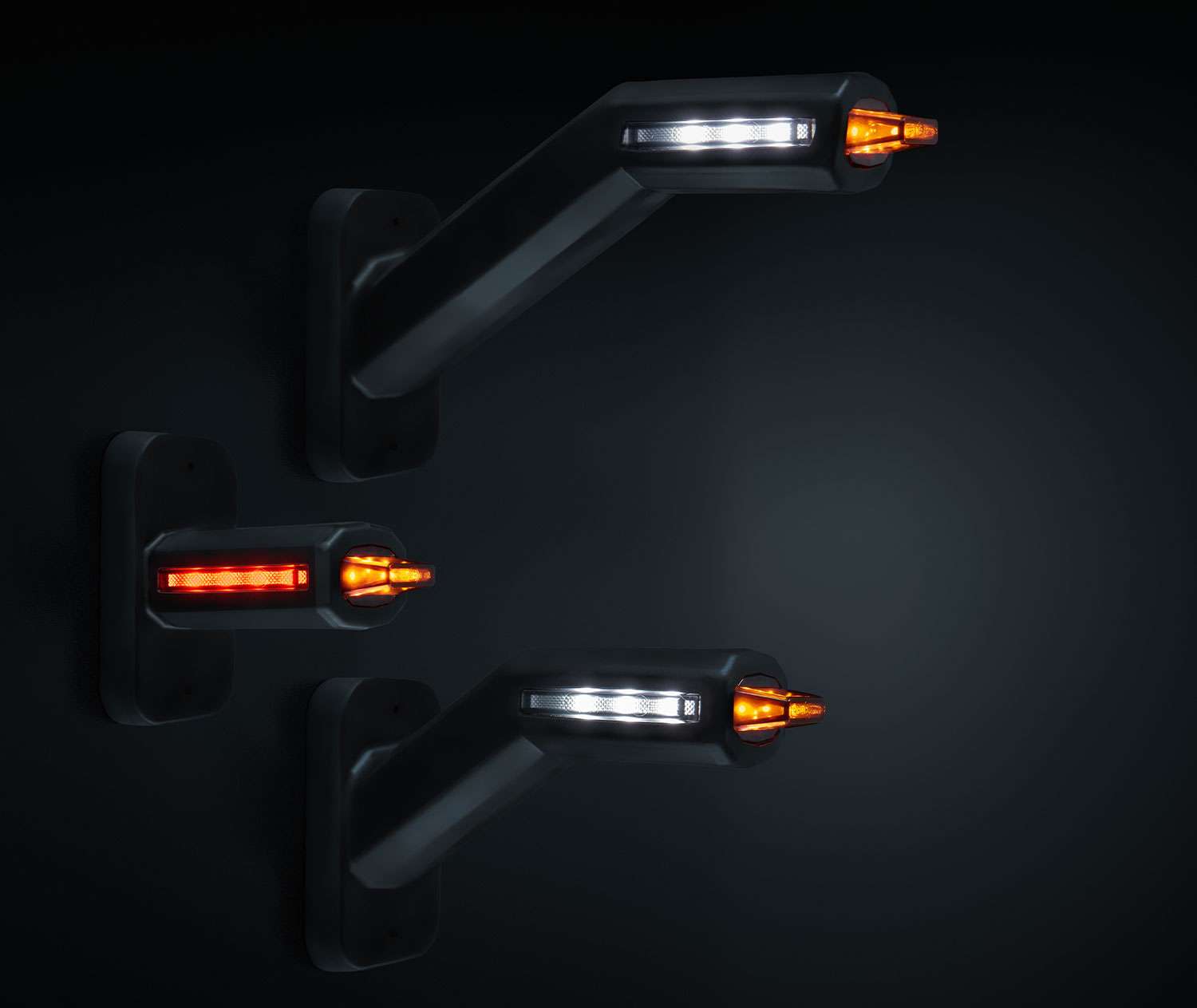

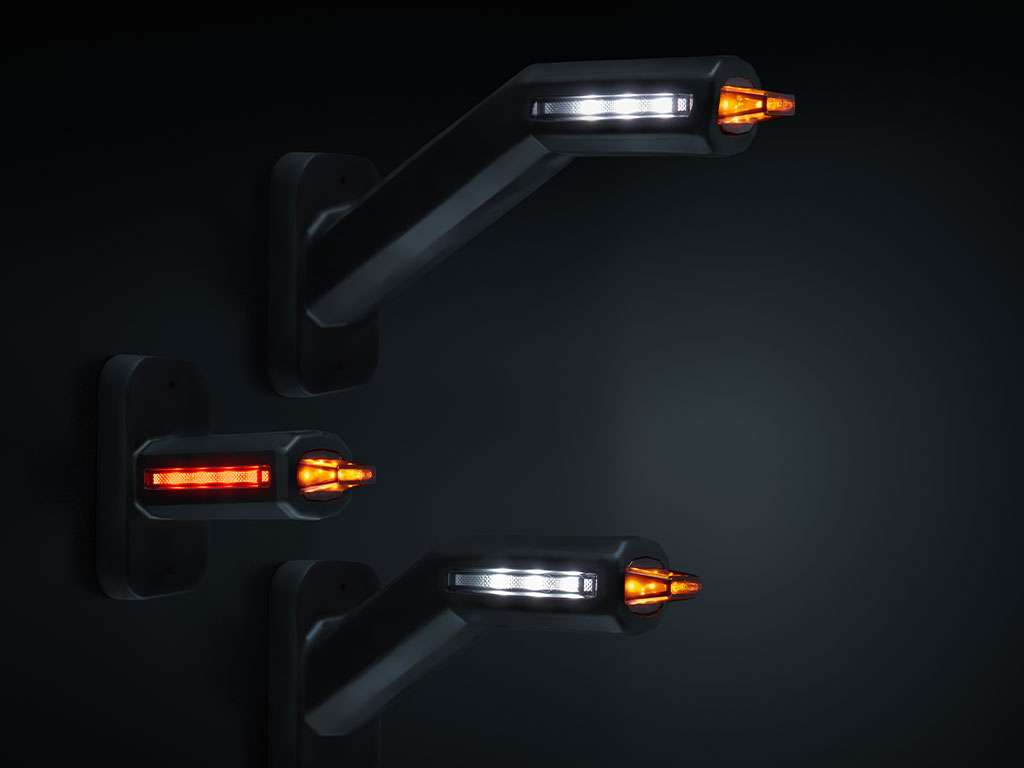

The Freedom light guide has a modern and dark design, an updated take on this everyday must-have product. The dark lenses blend smoothly into the flexible rubber arm when the lights aren’t in use. With the 3-in-1 position light, you’ll get smart and efficient illumination. When in use, the white, red, and amber lights bring an intense glow to maximize visibility and safety.Benefits for installation
When installing a new product, the process must be as easy and efficient as possible. That’s why the Freedom light guide has a standard measurement of 78,5 mm CC and is installed using only two screws. It’s available in three sizes and built for durability and flexibility. The 3-in-1 rubber arm saves you time and energy, and the cable is non-polarized.Benefits for retailers
We know that as a retailer, customer satisfaction is the number one priority. That’s why the Freedom light guide is covered by Strands’ 3-year warranty and manufactured in Europe using the highest quality materials. Thanks to the high IP-rating IP6K9K, it’s guaranteed to withstand the hard wear of the road. It’s E-approved R148.
