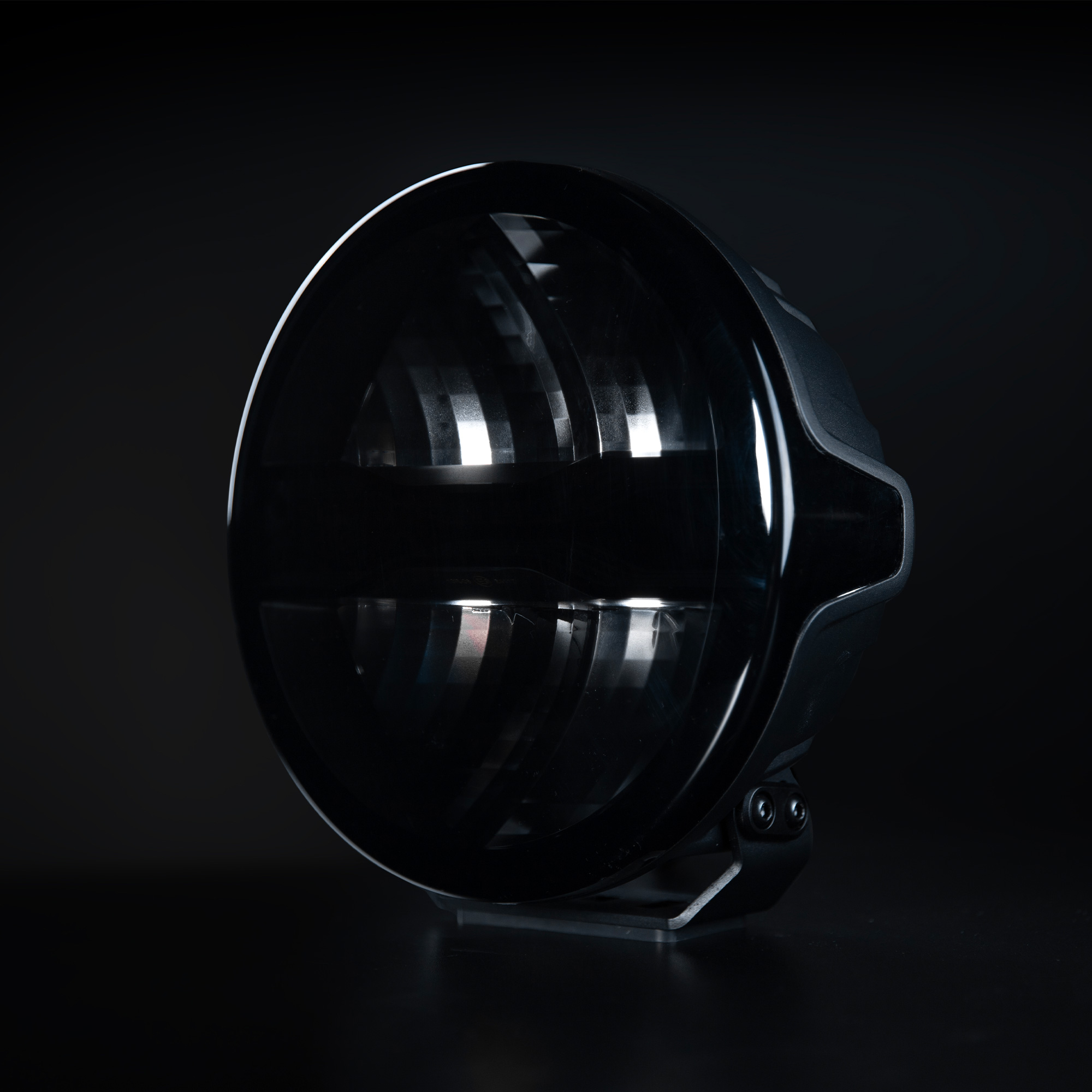

FOR9T DRAGON DRIVE 9″ DRIVING LIGHT
Not only a good-looking addition to any vehicle, the Dragon Drive driving light packs real power behind its brightness. The extended beam has 9300 lumens, 6500 kelvins, and a range of 586 m @ 1 lux. The Dragon Drive is easy to install, thanks to a 150 mm cable with a DT-4 connector. With high-quality aluminum and polycarbonate and IP-class IP67, you can be sure it will be a lasting addition to your vehicle. It is covered by Strands Lighting Divisions’ market-leading 3-year function warranty.
At Strands Lighting Division, our passion is improving the lives of every driver every day with products defined by innovation and quality. In the new FOR9T family, functionality and technology merge with a surprising design. This new design of position lights ensures a look you’ve never seen, with hypnotic lines that draw you forward and into the future. The wide range of FOR9T products provides a complete and stylish look for any vehicle. The night is yours to explore.

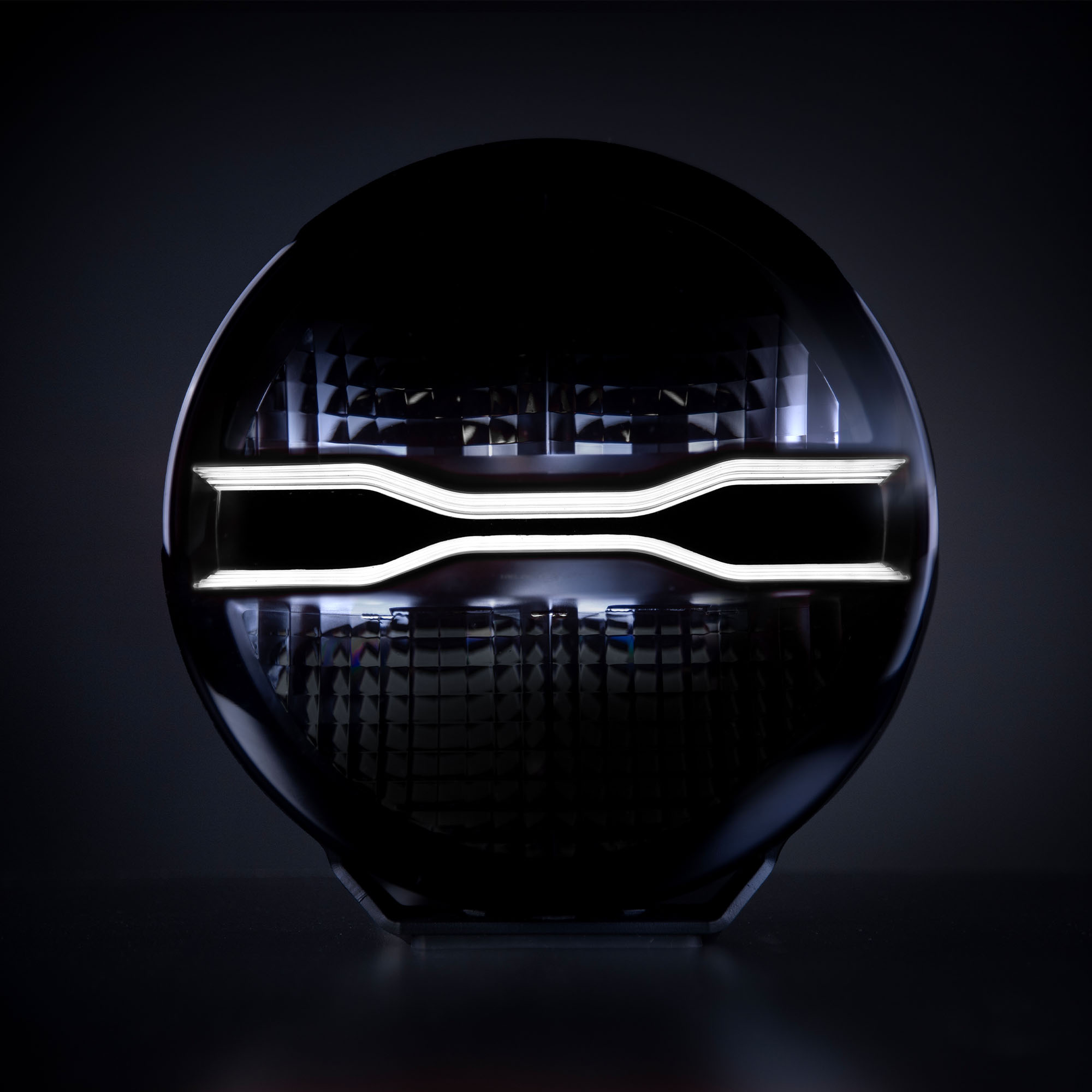

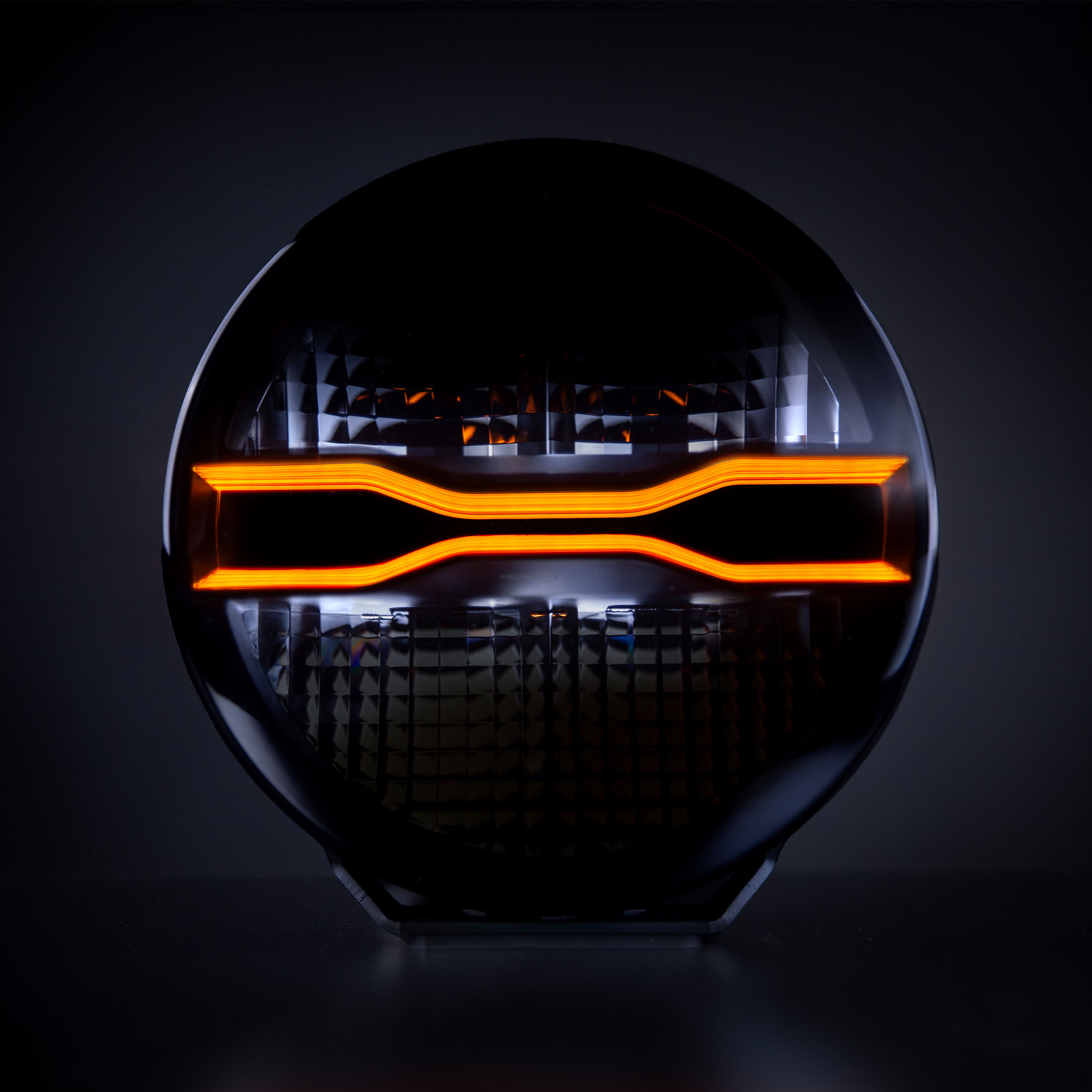

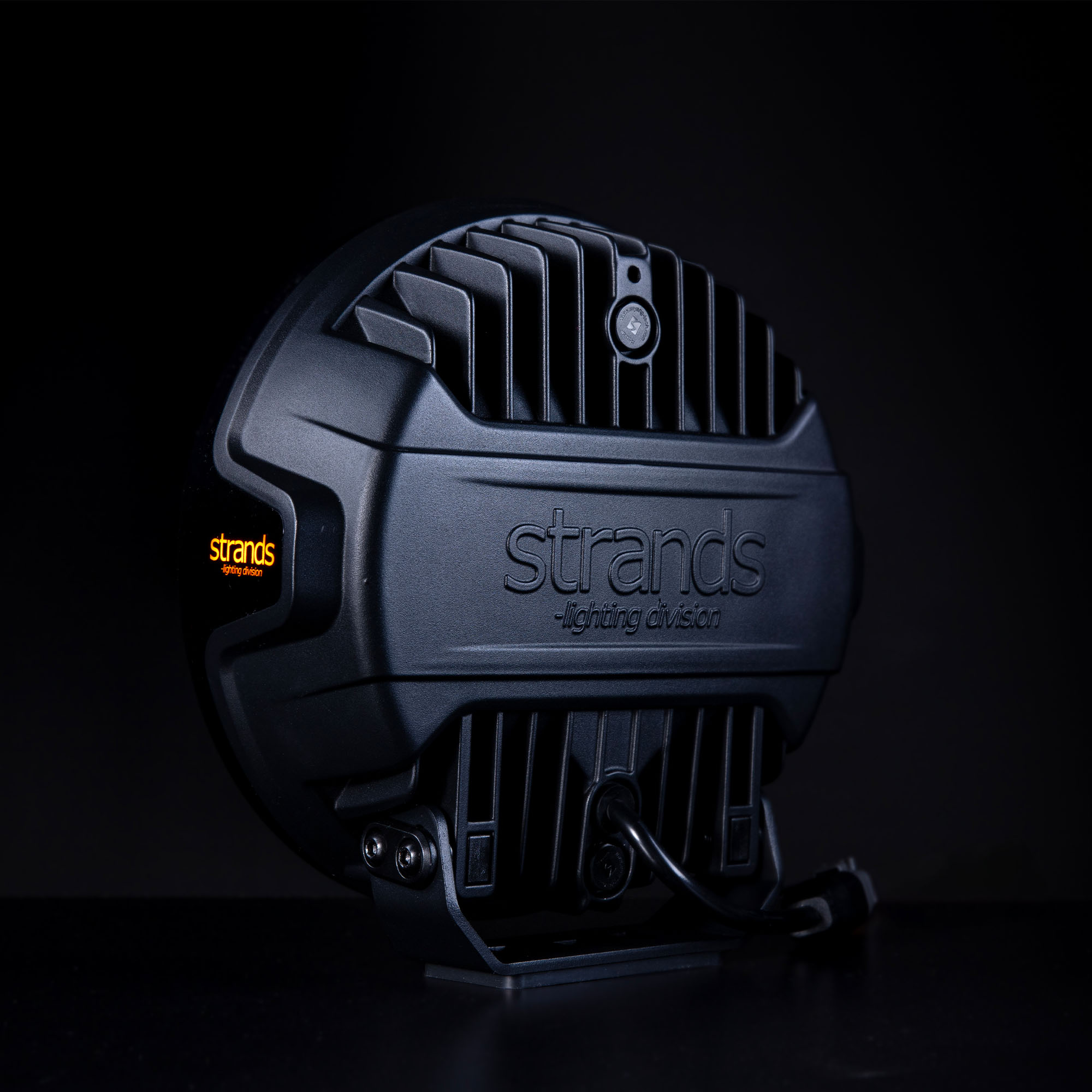

FOR9T IS PASSION. Let the superior performance of FOR9T Dragon Drive show the way. With a white and amber position light, you can choose your glow and show your passion. The artistry of the black design further enhances the shape and brightness of the unique position light. An extensive reflector with the FOR9T honeycomb pattern ensures high visibility and an undeniable look. Dragon Drive has a design where all details matter: its lightweight aluminum housing, high-quality materials, and clean design make it a powerful addition to any vehicle. The extended beam has a long range and high visibility to guide you in the dark. Thanks to the powerful output, nothing can stop you from exploring the night.
- Unit pcs
- Voltage 10-48V DC
- Theoretical effect 144W
- Consumption 142W
- Functions High-beam, white position light , amber position light, logo light
- Consumption specific function White position light: 3,5W, Amber position light: 3,6W
- Theoretical lumen 14000lm
- Actual lumen 9300lm
- 1 lux @ 604m
- Color temperature 6500K
- Beam pattern Extended beam
- Beam angle 17,4
- Connection DT-4PIN
- Cable length 150mm
- Color housing Black
- Color lens Dark
- Color LED´s White/amber
- Material bracket Stainless steel
- Material housing/chassi Aluminium
- Material lens Polycarbonate

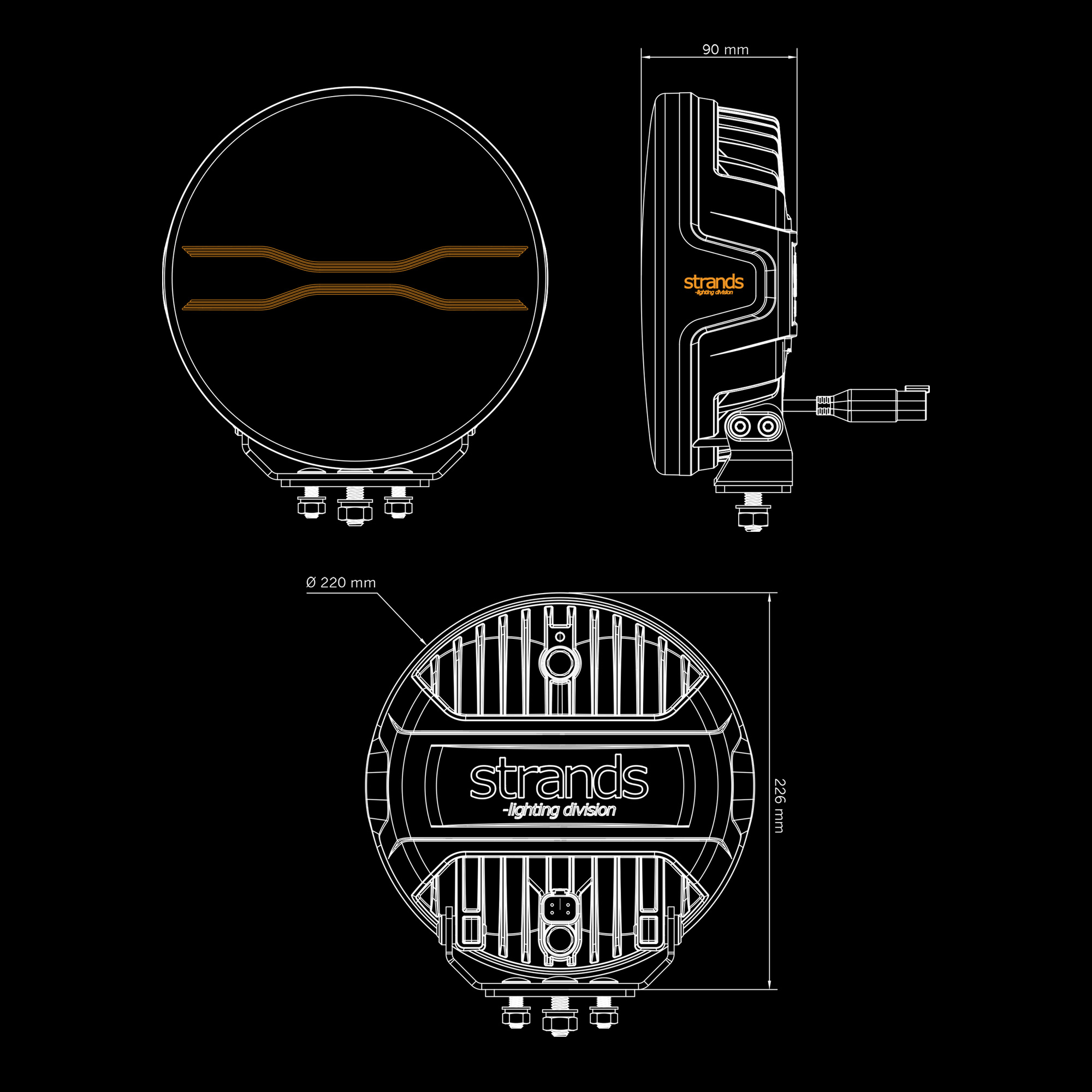

- Depth 90mm
- Height including bracket 226mm
- Diameter 220mm
- Weight 3,24kg
- IP-class IP67
- Operating temperature -40 - +65°C
- E-approved No
- EMC ECE R10
- Black cable - (Negative)
- Red cable + (High-beam)
- White cable + White Position light(Positive)
- Yellow cable + Amber Position light(Positive)
- Included in package Bracket, Screws, washers, bolts
- Length inner box 295mm
- Width inner box 295mm
- Height inner box 109mm
- Gross weight 3,6kg
- Volume 0,01m³
- Warranty 3 Years
- Length master carton 600mm
- Width master carton 230mm
- Height master carton 304mm
- Weight master carton 15,3kg
- PCS in master carton 4pcs
